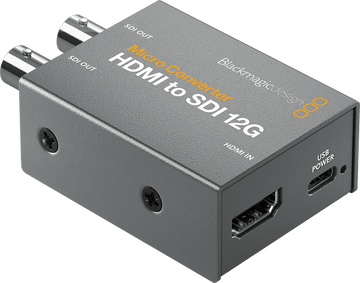

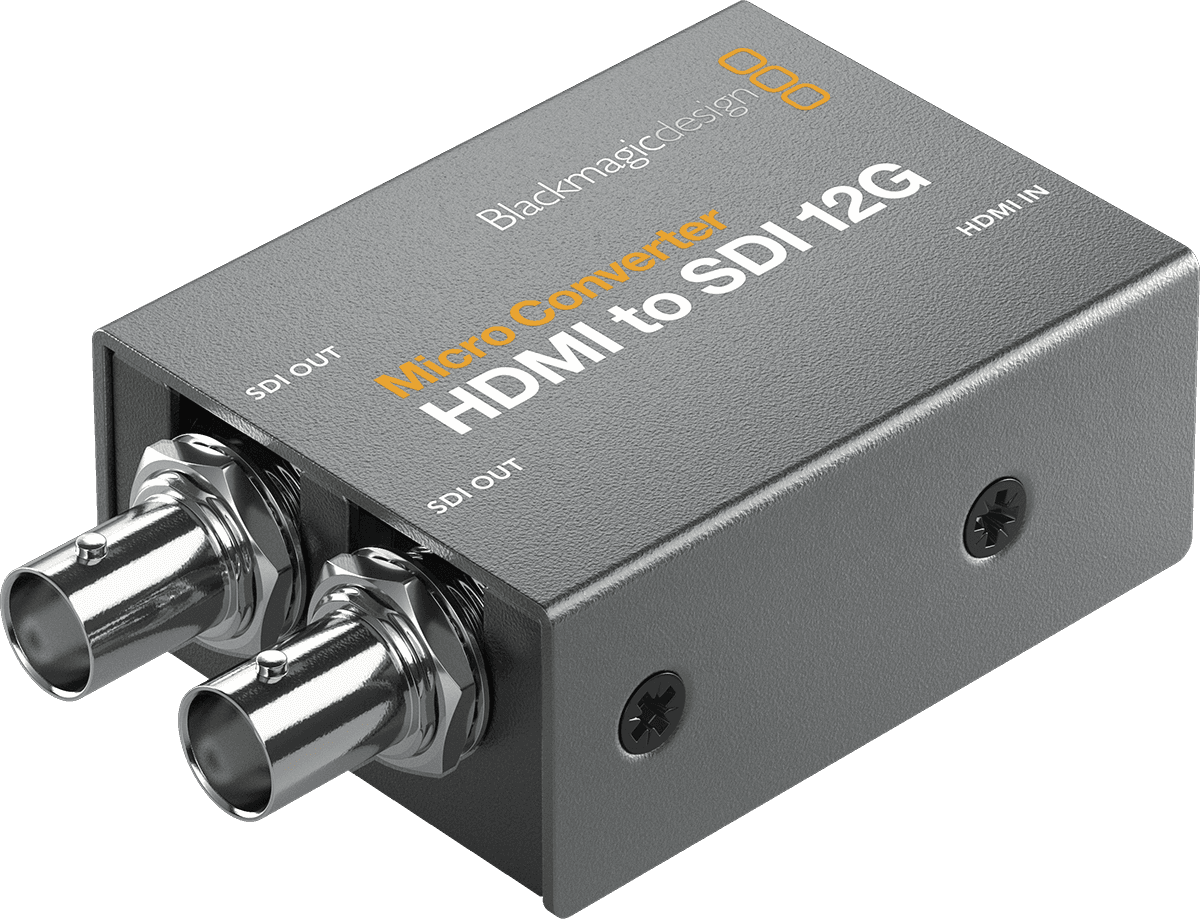

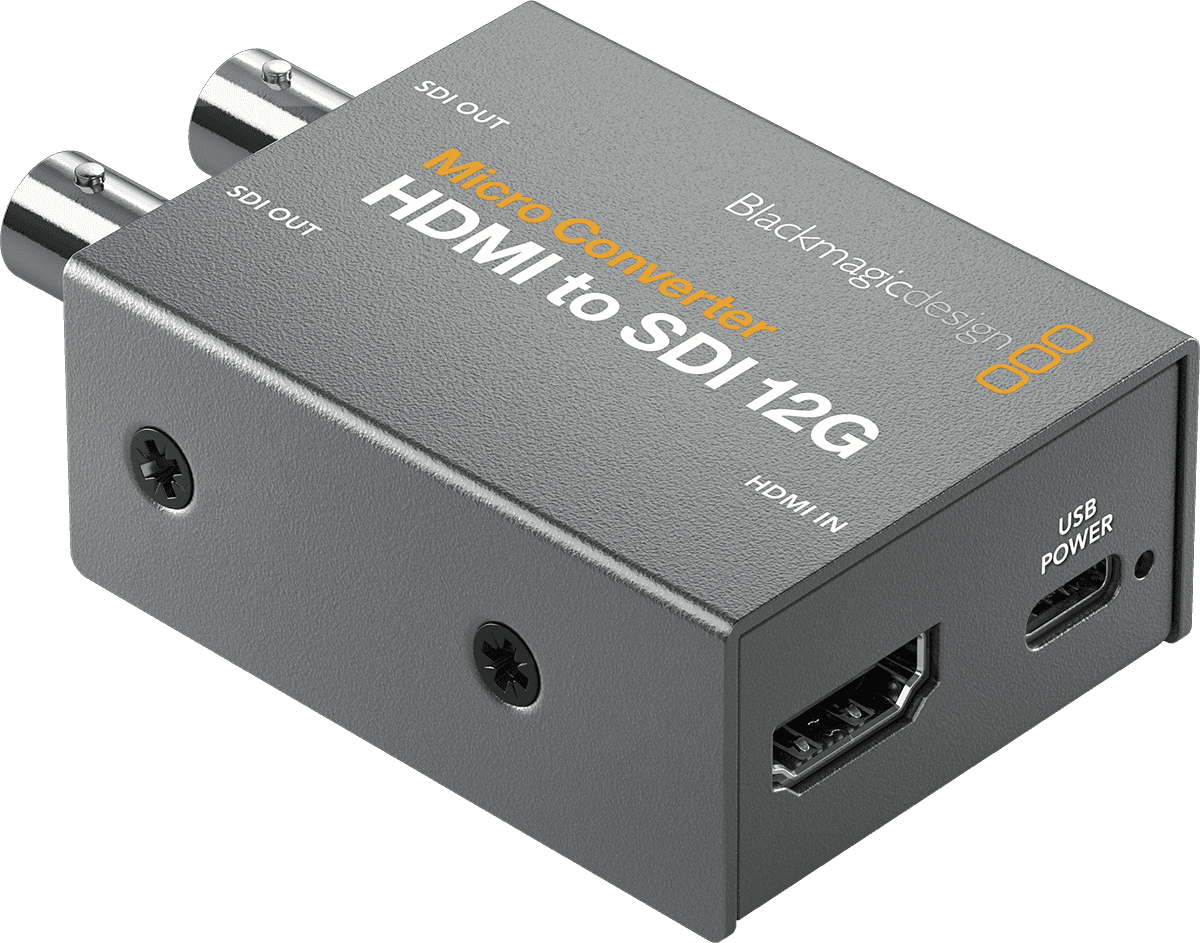

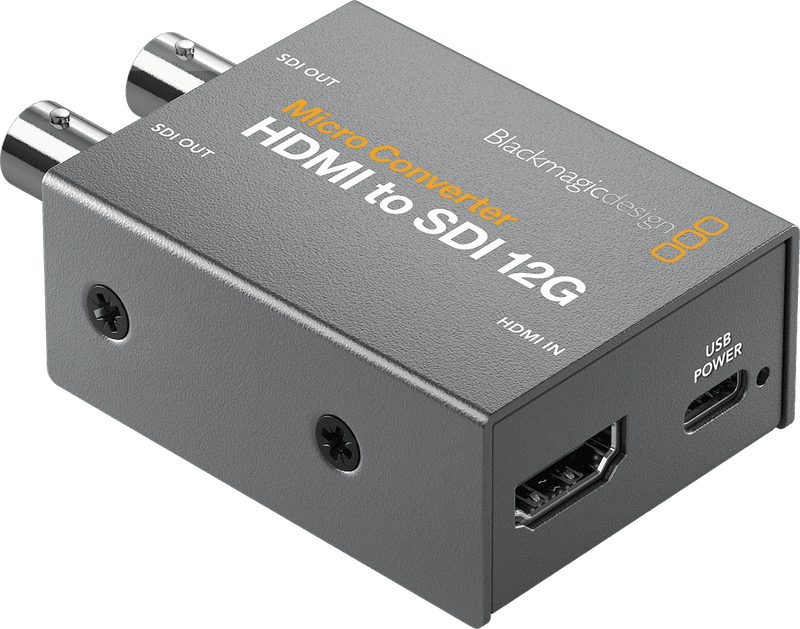

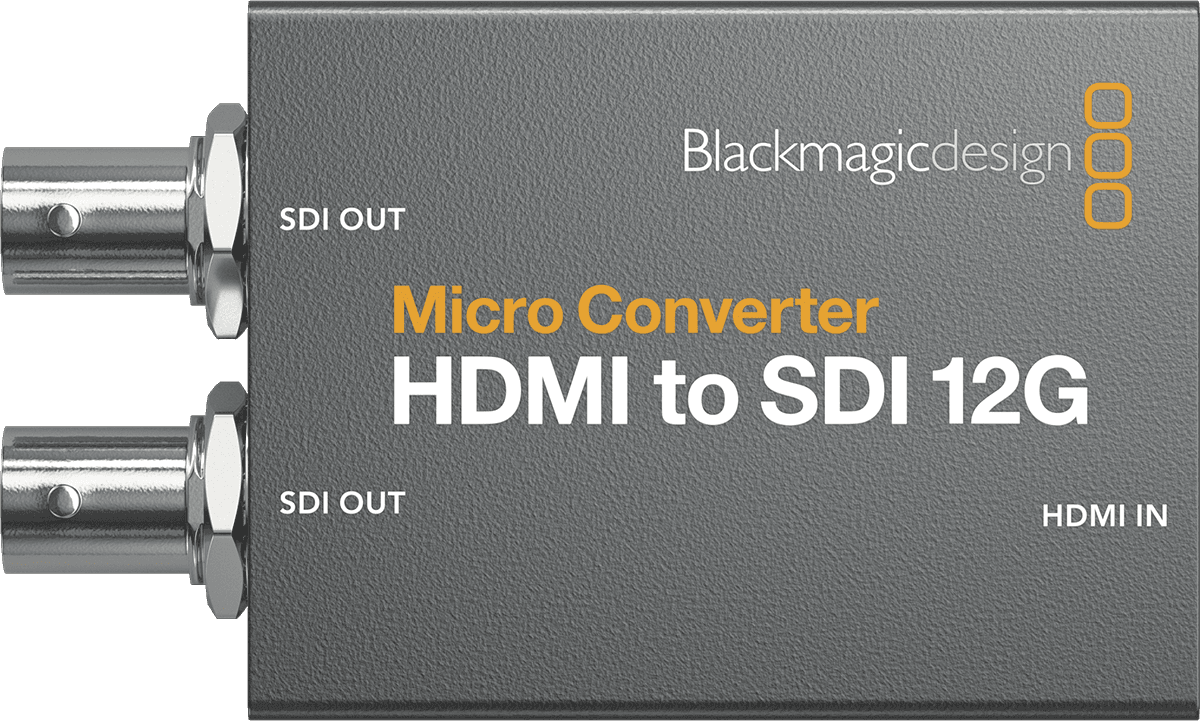

Blackmagic Design Micro Converter HDMI to SDI 12G PSU

Name: Micro Converter HDMI to SDI 12G PSU
Brand: Blackmagic Design
SKU: 379925
Price: 132.00 EUR
Availability: InStock

132,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 379925

EAN : 9338716007077

This item is covered for 3 years

Information

Essential Information About the Blackmagic Micro Converter HDMI to SDI 12G HDMI to 12G-SDI Converter
• Broadcast quality in a micro format, ideal for discreetly integrating an HDMI to SDI conversion on a rig, control room, or flight case.
• Two 12G-SDI outputs to simultaneously power two SDI devices (monitoring, recorder, mixer) with a stable signal.
• Multi-format compatibility: NTSC, PAL, 720p, 1080i, 1080p, and 2160p, including 4K DCI at 24, 47.95, and 48p frame rates.
• Flexible power options: universal power supply included with international adapters, or power via USB (laptop, charger).

Micro Converter HDMI to SDI 12G PSU

132,00 €VAT incl.

0,90 € Ecotax included

Reference price

A Micro-Format Evolution Designed for Modern SDI Workflows

The Micro Converter HDMI to SDI 12G follows Blackmagic Design's "micro" philosophy: offering compact, easy-to-deploy, and reliable converters for production environments. While many HDMI to SDI converters are limited to 3G-SDI, this 12G-SDI version is designed to support current UHD workflows while remaining compatible with HD environments. The result: an efficient bridge between HDMI sources (camera, computer) and a professional SDI chain (mixer, router, monitor, recorder).

Who Is This 12G HDMI to SDI Converter For?

This converter is ideal if you need to secure an HDMI signal for use in a broadcast or live event environment. It is especially suitable for video technicians, directors, content creators, and streaming teams who use HDMI cameras or computers but then work on an SDI infrastructure (long-distance cabling, patching, distribution, monitoring). Its miniaturized format also makes it very practical on set: it can be easily mounted close to the source and avoids fragile adapters or bulky converters.

Technical specifications

Accessories included	External power supply	Outputs	2x SDI
Category	SDI Converter	Power supply	External power supply
Requires power supply	Yes	Consumption	4 W
Maximum conversion resolution	4K/60	Weight	150 g
Type	Video	Dimensions (mm)	79,4 x 45,8 x 24,8
Inputs	HDMI

Questions frequently asked

Does the Blackmagic Design Micro Converter HDMI to SDI 12G support 4K at 60 frames per second?

The maximum conversion resolution stated is 4K/60, supporting 2160p formats. 4K DCI formats at 24p, 47.95p, and 48p are also indicated.

Can an HDMI camera be connected to an SDI switcher?

The HDMI input allows connecting a camera or computer to an SDI infrastructure. The two 12G-SDI outputs can simultaneously feed a switcher and a monitoring display. This setup simplifies distributing the same feed without an external splitter.

How many SDI outputs are available?

Two 12G-SDI outputs are integrated into the converter.

Is USB power possible for a mobile streaming setup?

Powering via USB is possible from a laptop or a phone charger. A universal external power supply with international AC adapters is also included.

Is the converter compatible with 3G-SDI level A and level B?

The SDI outputs can be configured for 3G-SDI level A or level B. This selection allows integration with equipment that uses different 3G-SDI standards.
