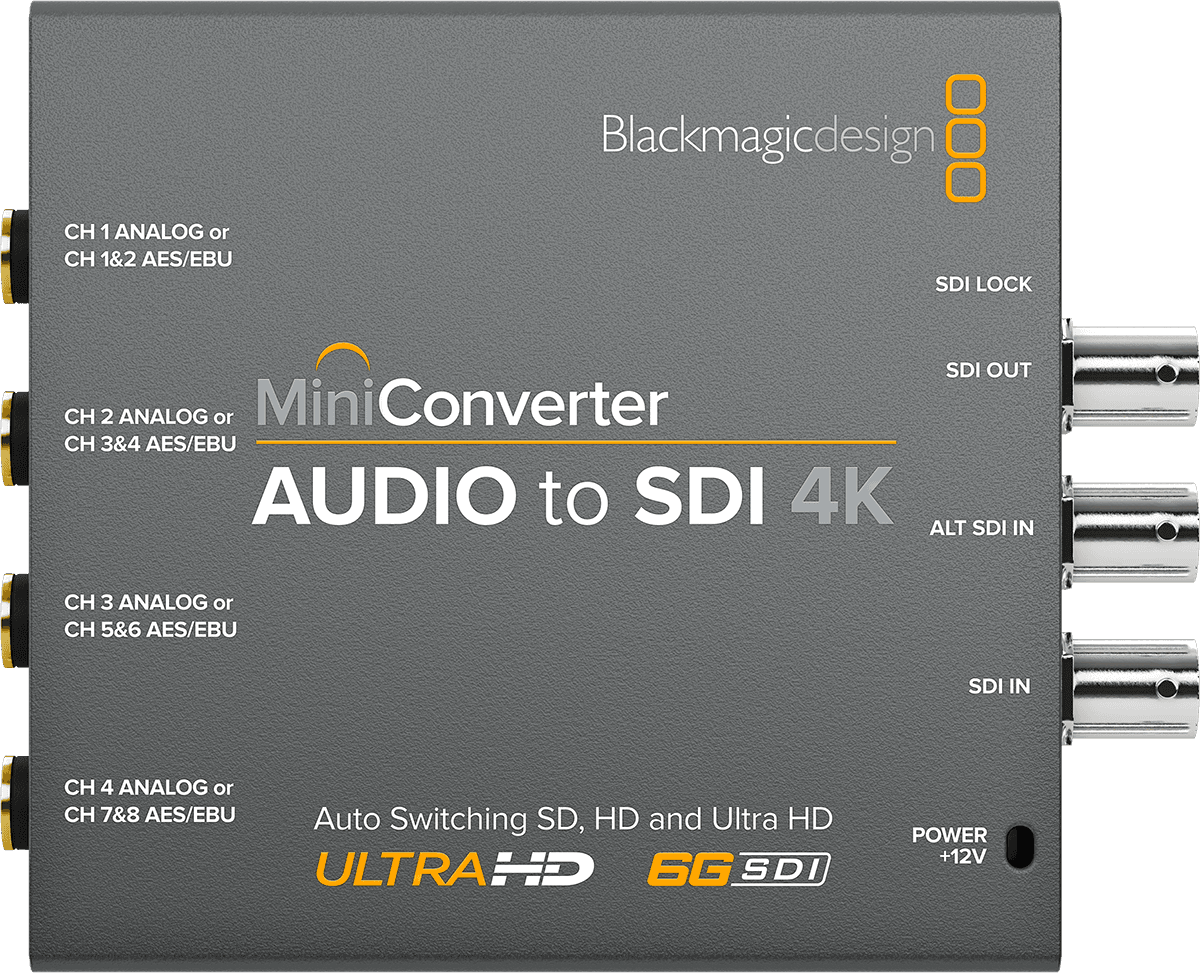

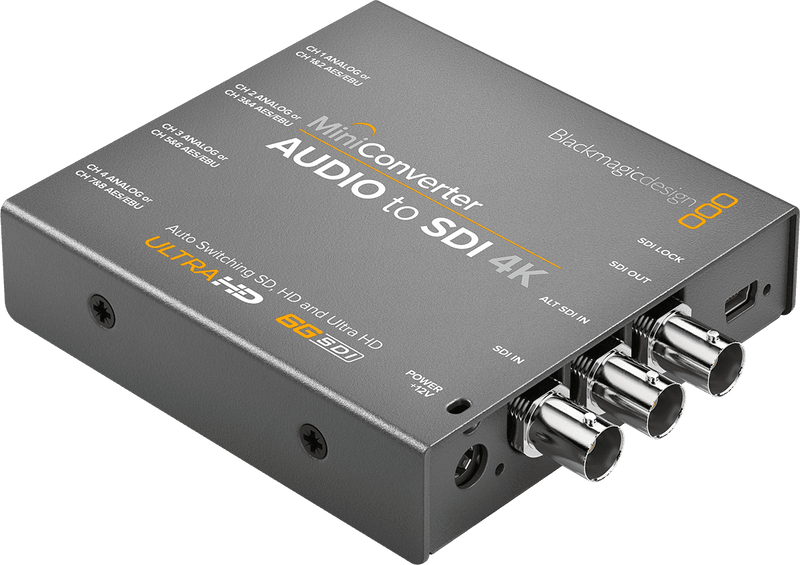

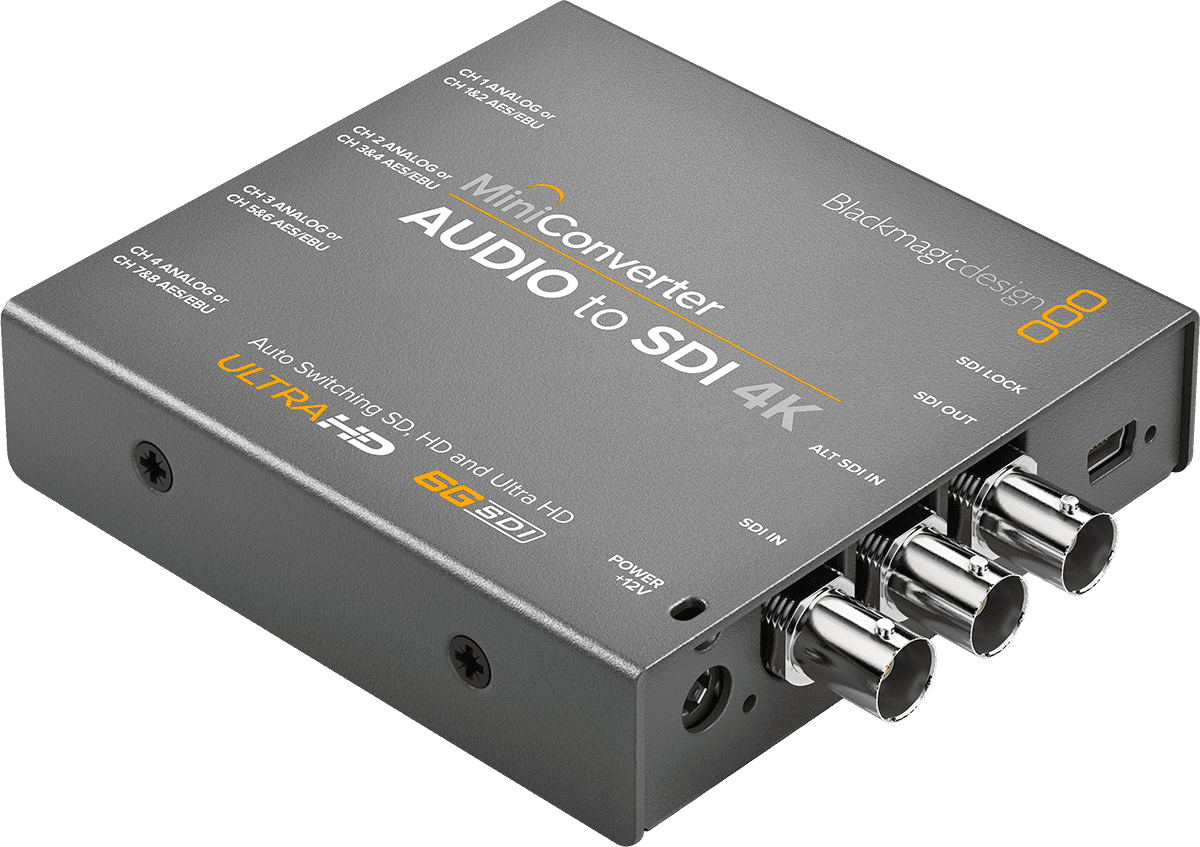

Blackmagic Design MCONV-audio-SDI4k

The "Mini Converter" Philosophy: a discreet but essential link

This converter is part of the Mini Converter range from Blackmagic Design, designed to meet the practical needs of modern SDI infrastructures and existing installed bases. The idea is simple: to offer a compact, robust, and easy-to-deploy unit capable of integrating seamlessly into existing video chains, where every adapter and connection must remain reliable day after day.

In a control room, studio, or OB van, this type of converter quickly becomes a "go-to" tool: it is added to solve a specific need (embedding audio into SDI) without disrupting the rest of the setup. The result: a cleaner workflow, fewer points of failure, and more coherent signal management across the entire production.

Who is it for, and in what applications?

The 4K Audio to SDI Mini Converter is aimed at video and audio teams working in broadcast, recording, or monitoring who need to integrate audio directly into an SDI stream. It is suitable for both studio configurations and live shoots or captures when maintaining a clear and easy-to-diagnose signal chain is important.

It is especially useful if you need to send an SDI video to a recorder, switcher, router, or monitor while keeping the audio perfectly "embedded" in the same stream. This is a simple and effective approach to limit separate connections, reduce patching errors, and gain peace of mind during set changes, soundchecks, or live event ramp-ups.

Audio Embedding to SDI: simplicity, continuity, and reliability

A conversion designed for HD and 4K chains

Designed to support current formats, this converter handles conversion from HD up to 4K. It allows embedding audio into the SDI stream to obtain a single signal that is easier to route, record, and monitor. In practice, this facilitates multi-station workflows: the audio "follows" the video, minimizing delays and cabling confusion.

Rapid deployment in the field

Its "Mini Converter" form factor is an asset when working with constrained spaces: control room drawers, racks, flight cases, temporary installations, sets where every centimeter counts. The ergonomics remain field-oriented: aiming for quick commissioning with a plug-and-play logic adapted to live constraints and frequent configuration changes.

A clean link for studio, live, and post-production

In the studio, it naturally integrates into an SDI chain to maintain clean distribution to capture and monitoring equipment. In live environments, it helps secure the signal path and standardize routing. In post-production, it facilitates recording and monitoring by keeping coherence between SDI video and embedded audio, speeding up checks and reducing unnecessary handling.

Technical specifications

Accessories included	External power supply	Outputs	1x SDI
Category	Audio Converter	Power supply	External power supply
Requires power supply	Yes	Consumption	8.4 W
Type	Video	Weight	216 g
Inputs	1x SDI, 4x Stereo Jack 6.35	Dimensions (mm)	115 x 92 x 23

Brand	Blackmagic Design	Supported video resolution	up to 4K
Model	4K Audio to SDI Mini Converter	Applications	live control room, studio, capture, and post-production
Conversion	embedding audio signal into an SDI stream
