Blackmagic Design Studio Camera 6K Pro

A Studio Camera Built for Multicam with Blackmagic DNA

The Blackmagic Studio Camera 6K Pro follows the Studio Camera line philosophy: providing studio camera ergonomics (comfortable viewfinder, tally, intercom, remote control) while maintaining cinema-oriented technical choices (Super 35, EF mount, Blackmagic RAW). It targets productions seeking premium image quality without complicating the control room, thanks to advanced integration of video, audio, and control signals.

For Studios, Events, and Sets Wanting 6K Image Quality Without Slowing Production

This camera is aimed at talk shows, concerts, corporate events, indoor sports, places of worship, streaming studios, and broadcast sets whenever a more "cinematic" multicam look is desired. Its very bright screen facilitates focus and exposure, while autofocus (with compatible lenses) provides a real responsiveness boost when shots follow quickly. In control room environments, tally and intercom contribute to clear communication between camera operators and directors.

6K, ND, Network: A Studio Camera with a Streamlined Workflow

Super 35 Sensor and Dynamic Range: More Flexibility in Grading and Live

With its effective 23.10 x 12.99 mm (Super 35) sensor, 13 stops of latitude, and dual native ISO (0 dB and 18 dB), the Studio Camera 6K Pro is designed to remain usable on high-contrast sets while preserving a consistent image signature. It supports frame rates from 23.98 to 60 fps, with off-speed modes adapted by resolution (5 to 50 fps in 6K, 5 to 60 fps in other resolutions), and Ultra HD downscaled from 5.3K for detailed rendering.

Built-in ND IR Filters: Shutter Speed and Aperture Stay Under Control

The integrated infrared ND filters with 4 positions (none, 2, 4, 6 stops) allow quick exposure adjustment without compromising your intended depth of field. This is a key advantage on hybrid sets (indoor/outdoor), stage capture with follow spots, or brightly lit sets where natural motion and consistent aperture are desired.

Studio Connectivity and Control: From 12G-SDI to 10G Ethernet

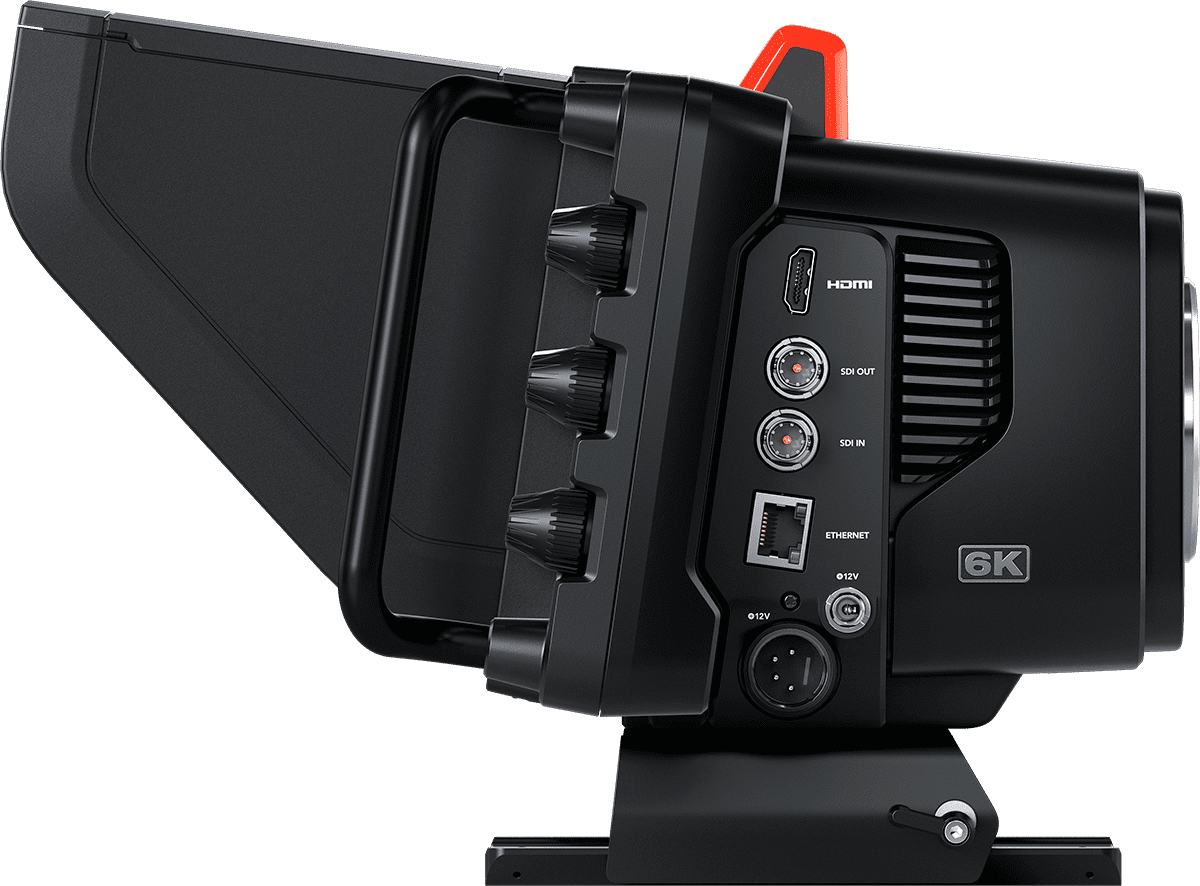

The camera combines one 12G-SDI input and output, one HDMI 2.0 output, and a 10G Ethernet port. Depending on your setup, camera control can be routed via SDI, HDMI, or Ethernet, with logic designed for multicam production and integration into a control room. Power can also be simplified via PoE Type 4 (RJ45), convenient for reducing cabling on certain sets.

Streaming and Recording: RTMP and Blackmagic RAW via USB-C

For broadcast workflows, RTMP streaming can be managed via Ethernet or USB-C. On the recording side, the Studio Camera 6K Pro can record Blackmagic RAW (3:1 to Q5) to external media via USB-C, with media management through a web browser (Web media manager) and network options (FTP, SMB, NTP) for better integration into studio pipelines.

Technical specifications

Camera category	camera	Definition	6144x3456 (6K) 50 i/s
LCD monitor	7" LCD Touch	White balance	auto, Manual
Resolutions	6K	Sensor	23,10mm x 12,99mm (Super 35)
Variable colour temperature	Yes	Accessories included	Power supply
Audio/Video outputs	XLR, HDMI, SDI	Color	Black
Sound	Micro mono	External power supply supplied	Yes
PoE	Yes	Power supply	External power supply
Control	IP	Connections	USB, Ethernet, SDI, HDMI, Mini-jack stereo

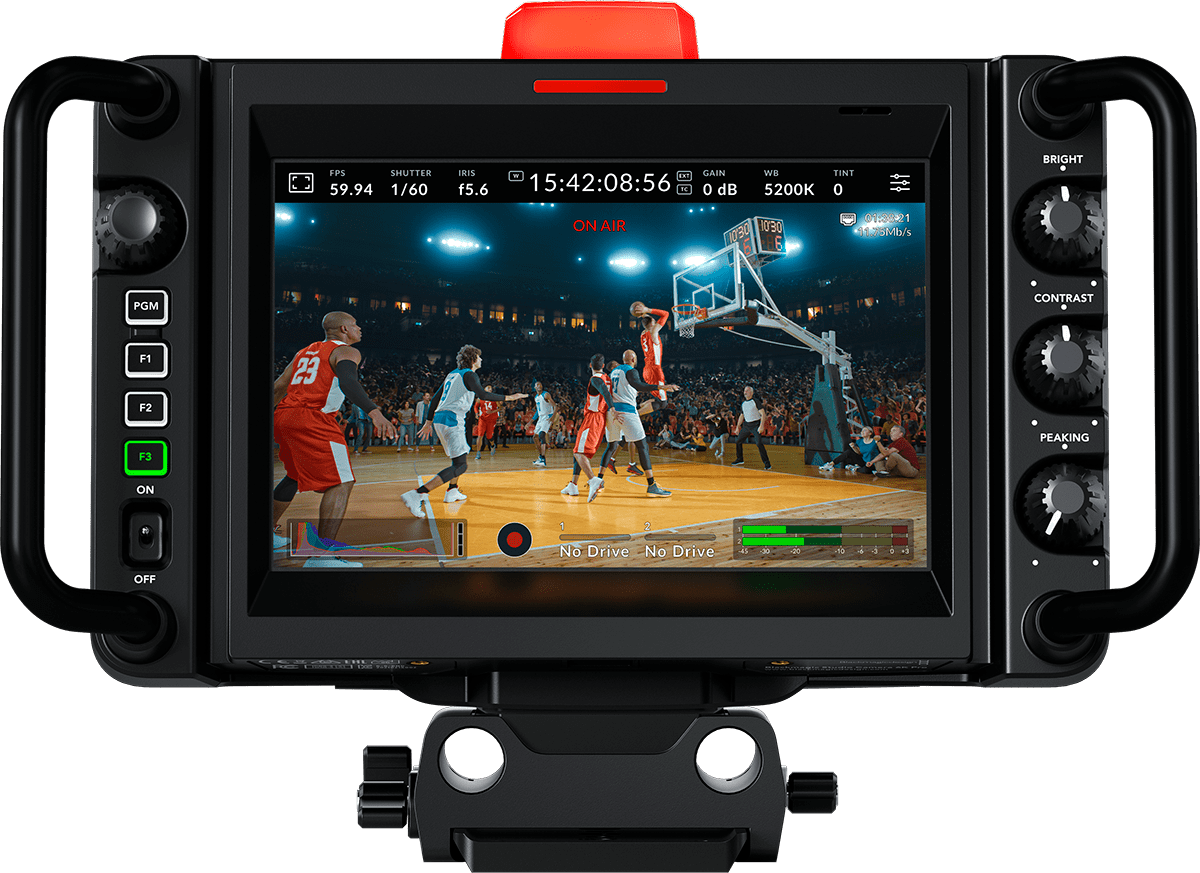

Sensor Size	23.10 x 12.99 mm (Super 35).	Screen	7-inch 1920 x 1200 LCD touchscreen, 2000 nits.

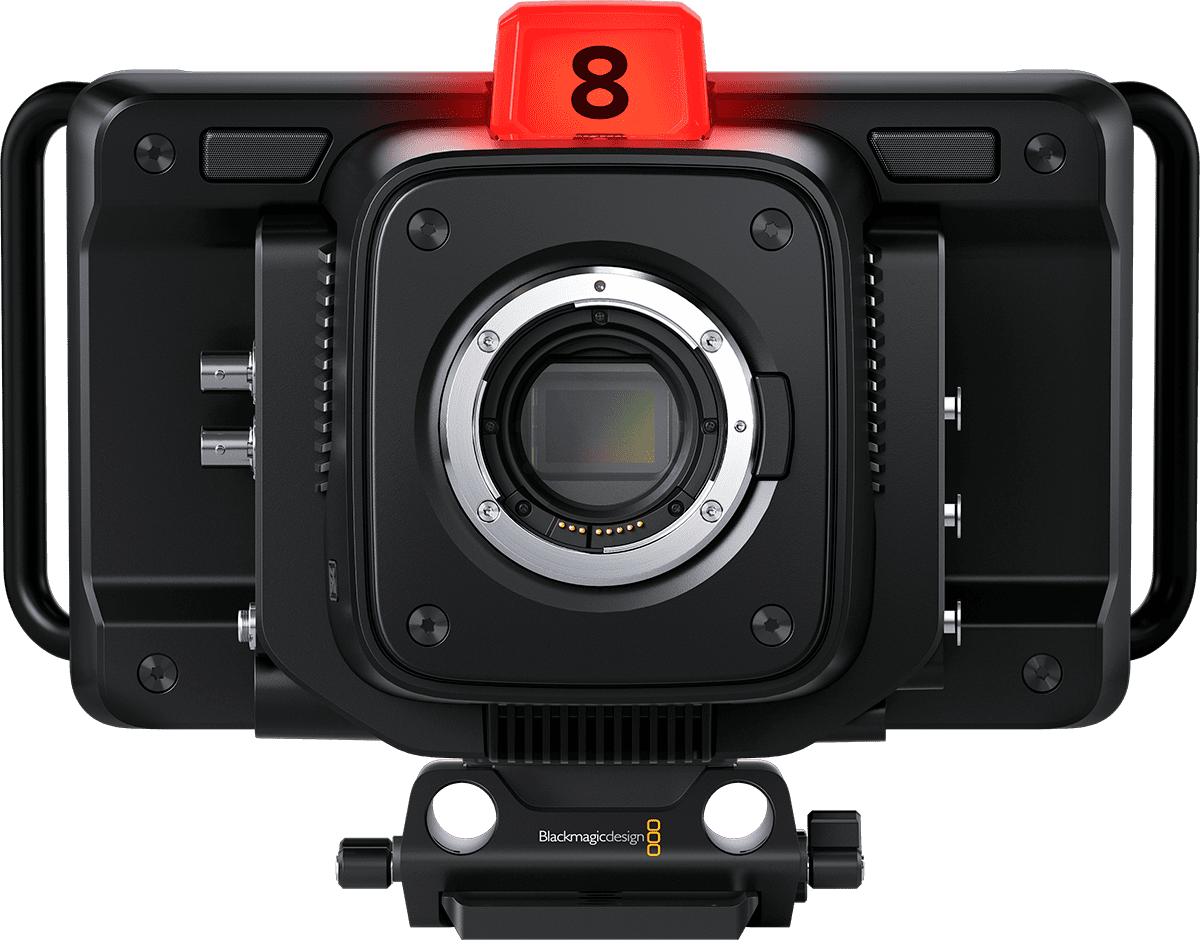

Mount	Active EF mount.	Controls	Touch menus, adjustment dial, program button, assignable F1/F2/F3 buttons; dials for brightness, contrast, focus peaking.
Optical Control	Iris, focus, and zoom control with compatible lenses.	Mounting	2 x 1/4" and 1 x 3/8" tripod mounts.
Dynamic Range	13 stops.	SDI	1 SDI input, 1 SDI output (1.5G/3G/6G/12G).
Dual Native ISO	0 dB and 18 dB.	HDMI	1 HDMI 2.0 output.
Sensitivity at 0 dB	f11 (2160p59.94) / f12 (2160p50) at 2000 lux, 89.9% reflectance.	Reference	Tri-Sync/Black Burst reference inputs with optional Studio Converter.
SNR	64.62 dB (2160p).	Camera Control	via SDI, HDMI, Ethernet.

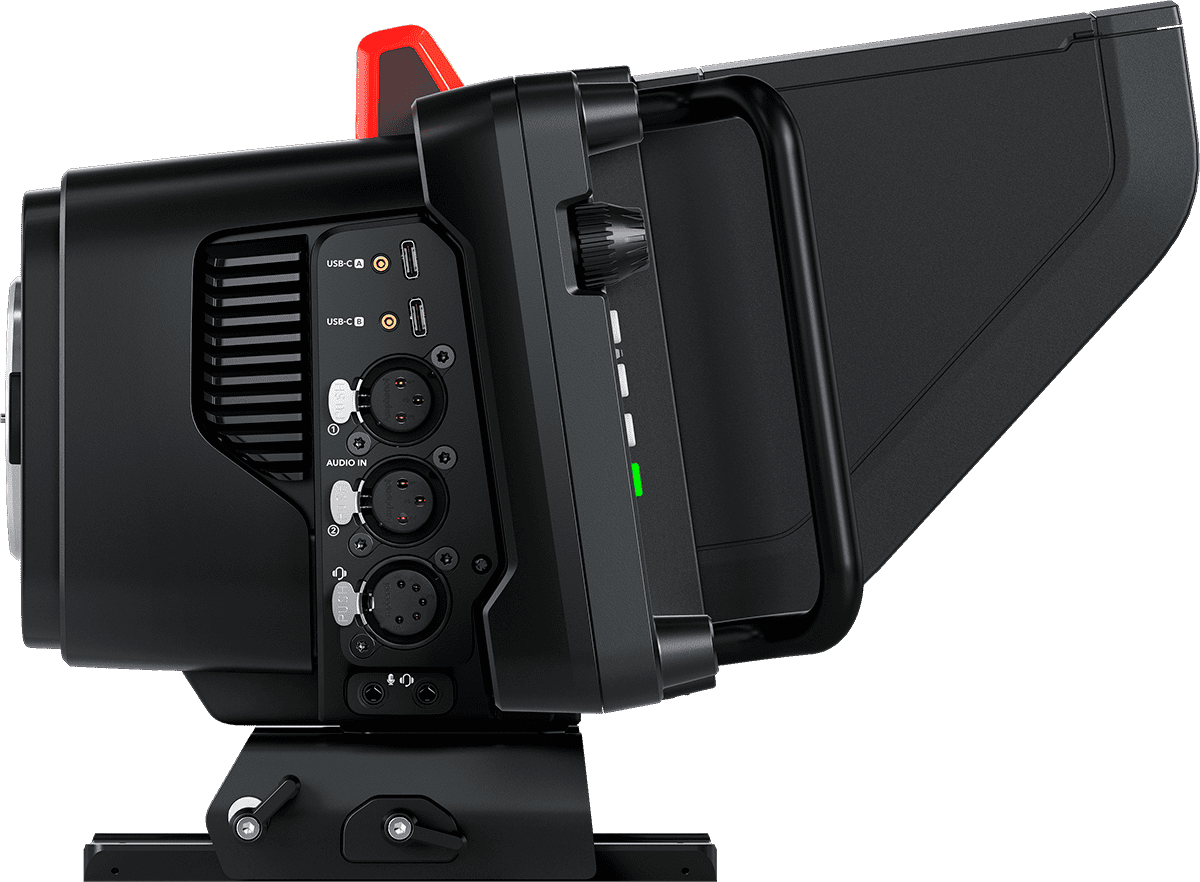

Recording Resolutions	6144 x 3456 (6K) up to 50 fps; 6144 x 2560 (6K 2.4:1) up to 60 fps; 5376 x 3024 (5.3K 16:9) up to 60 fps; 3840 x 2160 (Ultra HD) up to 60 fps.	Audio Inputs	2 x XLR mic/line with phantom power; 1 x stereo 3.5 mm input (timecode possible).
Video Outputs	2160p, 1080p, 1080i; frame rates 23.98 to 60 fps.	Headphone / Intercom Outputs	1 x 5-pin XLR intercom headphone; 1 x 3.5 mm TRRS headphone/mic.
Off-speed	5 to 50 fps in 6K; 5 to 60 fps in other resolutions.	Audio via SDI	2 program channels + intercom on channels 15/16.
Ultra HD	Downscaled from 5.3K.	Built-in	Stereo microphone and speaker.
ND IR Filters	4 positions (none, 2, 4, 6 stops).	Tally	Front/rear tally lights; SDI intercom channels 15/16.
Autofocus	With compatible lenses.
