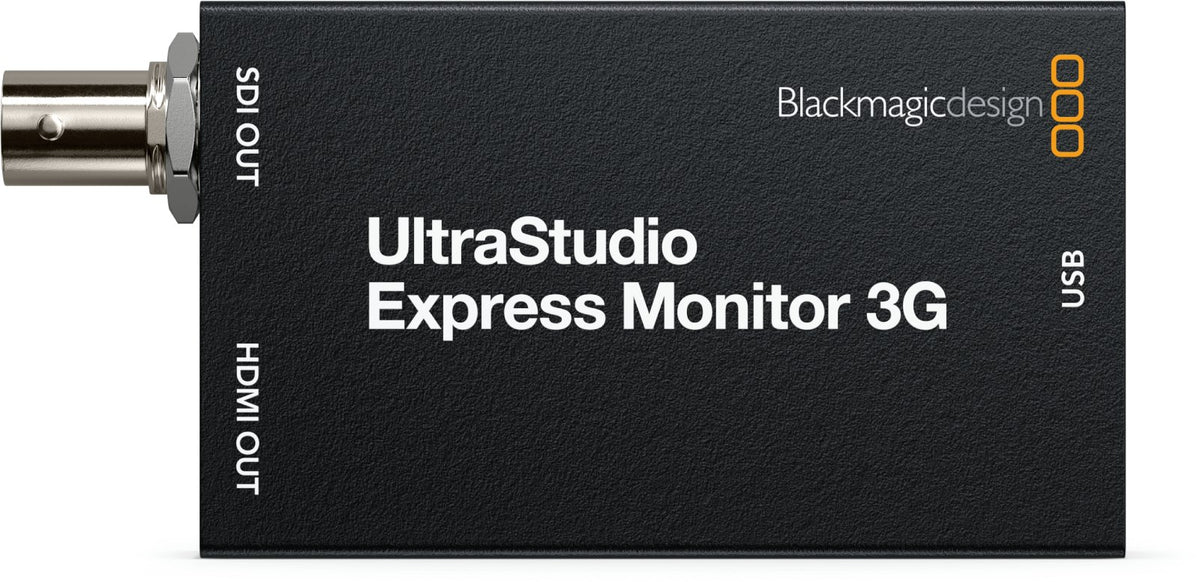

Blackmagic Design UltraStudio Express Monitor 3G

A Blackmagic Monitoring Interface Designed for Current Workflows

With the UltraStudio Express Monitor 3G, Blackmagic Design offers a video output solution designed to meet the needs of modern workstations. Its compact form factor facilitates integration into a mobile or fixed setup while retaining the essentials for reliable monitoring in a post-production environment.
Within the UltraStudio range, this model targets a clear use: providing a clean, stable external video output compliant with broadcast standards. The integration of a USB-C connection compatible with USB 40 Gbps, combined with SDI and HDMI outputs, makes it a perfectly suited interface for recent machines and workflows where display accuracy is as important as installation simplicity.

A Relevant Tool for Color Grading, Editing, and Broadcasting

The UltraStudio Express Monitor 3G is aimed at editors, colorists, broadcast graphic artists, video technicians, and content creators who need a true monitoring output independent of computer display. It allows viewing the video signal as it will actually be broadcast, on an HDMI monitor or a professional SDI chain.
It naturally fits into a lightweight post-production studio, a laptop editing station, a compact control room, or an advanced streaming environment. For working in DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, Fusion, or After Effects, this interface provides a dedicated output more reliable than simple fullscreen display on a computer monitor.
Its practical value is also notable for mobility. Thanks to its small footprint, it easily accompanies a shooting setup, a live graphics configuration, or a quick intervention station without imposing a heavier or more complex rack-mountable interface.

Precise, Versatile Video Playback Adapted to Broadcast Standards

The core of the UltraStudio Express Monitor 3G relies on a high-quality external video output capable of feeding both an SDI environment and an HDMI screen. This dual connectivity allows adaptation to both a broadcast reference monitor and a modern TV or control screen, depending on the production context.

Simple but Effective Connectivity

The 3G-SDI output ensures smooth integration into professional video chains, with embedded audio transport up to 16 channels in SD and HD. The HDMI 2.0 Type A output supports up to 8 embedded audio channels, with automatic configuration based on the connected display. This flexibility is valuable for switching from a grading station to a more general control setup.

Serious Video Management for Demanding Work

The interface supports SD, HD, and 2K signals with color depths suited for post-production uses. It supports 10-bit streams, 4:2:2 and 4:4:4 sampling, as well as compatibility with widely used color spaces in broadcasting and finishing. For users working with precise image control, this technical foundation is essential.
HDR compatibility, including metadata management and HLG and PQ curves, further enhances the product's appeal in a modern workflow. This more current positioning is one of the model's strengths: it is not limited to a simple control video output but fits into creative environments where image quality, color consistency, and signal compliance are critical.

Wide Software Compatibility

Blackmagic supports this interface with its proprietary utilities, including Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and the Blackmagic driver depending on the operating system. The package simplifies installation and maintenance, with firmware directly integrated into the driver for seamless updates.
Compatibility with a very broad range of applications is another major asset. In addition to DaVinci Resolve, Final Cut Pro, Premiere Pro, Avid Media Composer, or Pro Tools, the UltraStudio Express Monitor 3G can integrate with streaming, titling, video playback, and software broadcasting tools. For a studio juggling editing, graphics, and live production, this versatility is particularly appreciated.
