Bose CC-16 Control Center

A Controller Designed for the ControlSpace Ecosystem and Professional Installations

The Bose Pro CC-16 ControlCenter is a wall-mounted controller designed to integrate with Bose Pro audio architectures based on ControlSpace processors. In a fixed installation, the quality of the user experience depends as much on audio processing as on the simplicity of everyday controls. The CC-16 precisely addresses this challenge: providing a local, discreet, and intuitive control point capable of managing advanced functions without exposing the system's complexity.

Its programming is done via ControlSpace Designer with a drag-and-drop logic, allowing buttons, navigation, and display to be linked to the actual uses of the site (recording room, control room, reception, meeting room, commercial space, rehearsal studio, or multiroom zones). This approach standardizes the operation of an installation fleet while maintaining fine customization according to projects.

Who Is the Bose Pro CC-16 For and In Which Applications Does It Excel?

The CC-16 is intended for integrators, technicians, and venue managers who want to secure the operation of an audio system while giving end users immediate control. In a production or studio environment, it can become a local control for recalling configurations (reference listening, client listening, playback, talkback routed by zones), adjusting an output level, or changing sources without using a computer.

In public venues, its benefits are even clearer: users can perform simple actions (raise/lower volume, navigate selections, recall "opening," "event," or "closing" scenes) while the installation remains protected. The programmable software lock helps prevent accidental manipulations and preserves the consistency of settings established during commissioning.

Key Features: Scenarios, Customizable Display, and Simplified Deployment

Scene Programming for Immediate Control

The CC-16 allows scene programming to select and recall multiple usage scenarios. Practically, a scene can correspond to a specific audio source, a set of levels, or even a system configuration adapted to a particular moment. The result: fewer errors, faster operation, and improved service continuity, even when multiple people use the system.

LCD Screen and Field-Oriented Ergonomics

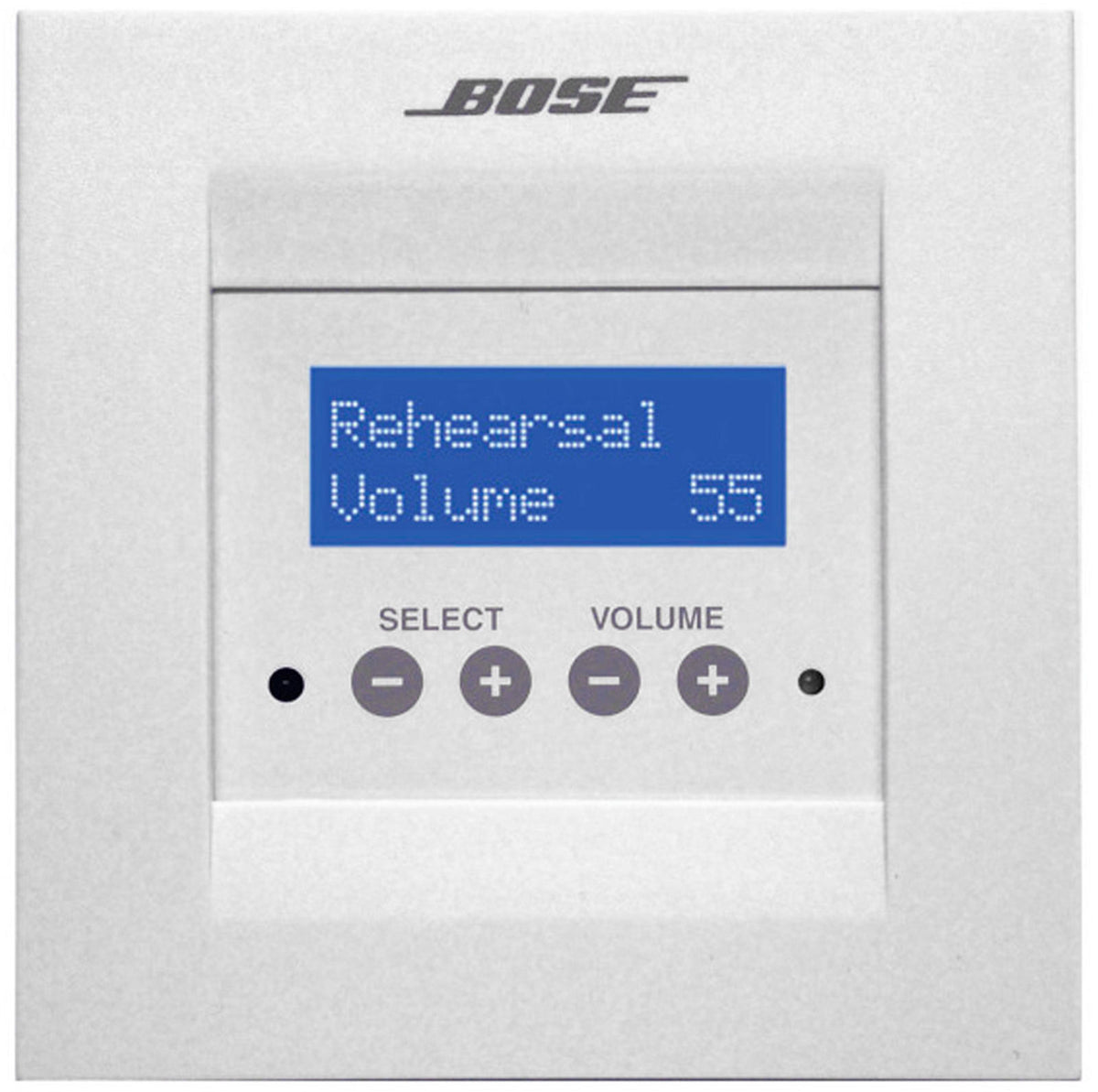

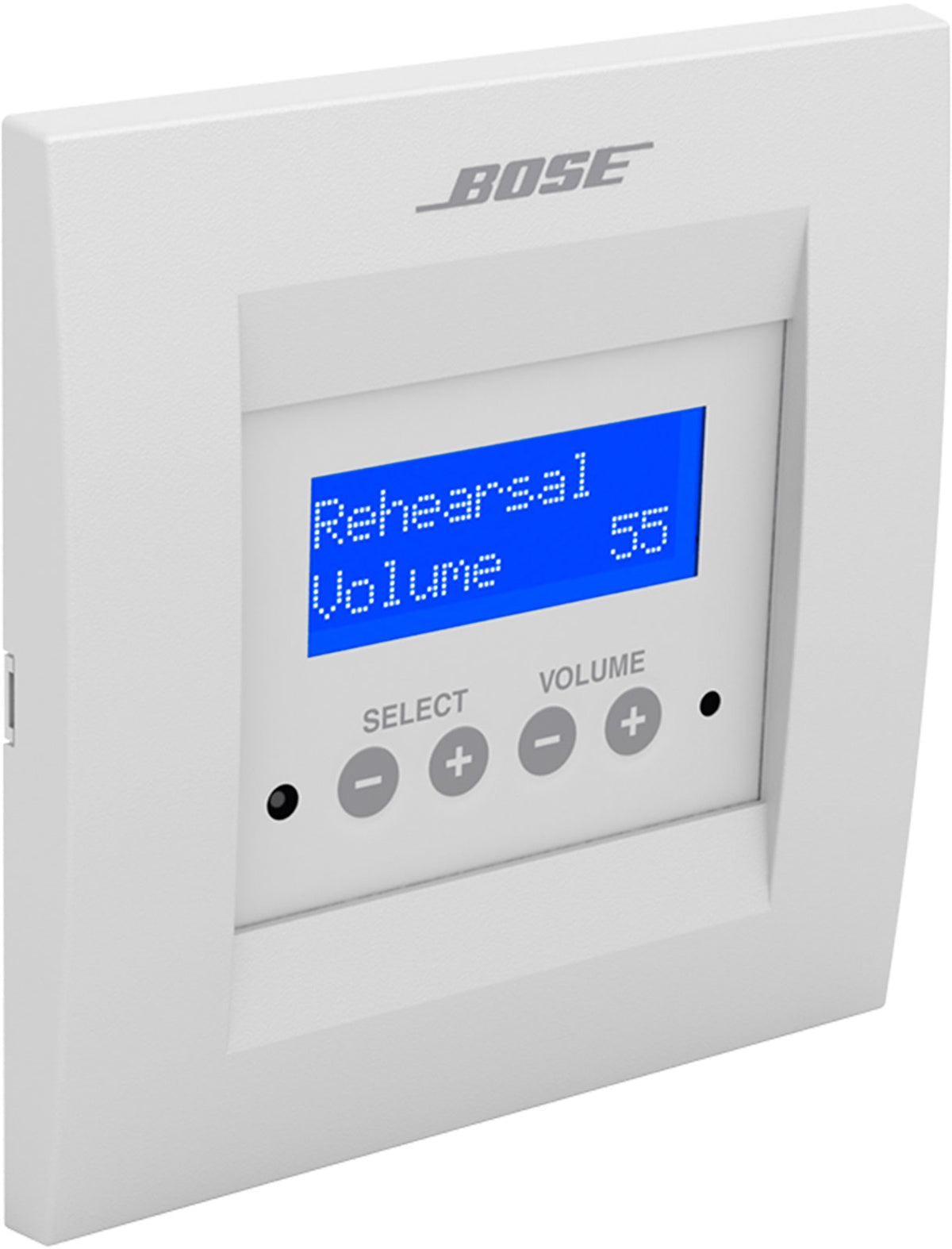

Its blue backlit bitmap LCD screen enhances readability and can be configured to display relevant information (source name, zone, mode, active scene). The front panel controls are designed for repetitive use: volume buttons (+, -) and selection buttons (+, -) to easily navigate programmed options. This ergonomics promotes quick adoption, even in contexts where there is no time for extensive user training.

Addressing, Cabling, and Deployment in Fixed Installations

The CC-16 uses DIP Switch addressing on the rear, convenient for deploying multiple controllers on the same system. Up to 15 controllers can be installed per ControlSpace processor, meeting multi-zone project requirements. Cabling relies on Cat 5 unshielded twisted pair (UTP), with a maximum length of 609 m as specified for cable standards, enabling coverage of large sites while maintaining a simple, standardized infrastructure.

The 6-pin Euroblock connector aligns with professional installation practices, and the mounting in a standard electrical wall box facilitates clean and durable integration. Power can be supplied via an 8 to 18 VDC adapter (sold separately), a point to anticipate during budgeting and project preparation.

Technical specifications

Bluetooth

No

Inputs

talkback

Model	Bose Pro CC-16 ControlCenter	Maximum number of controllers	15 per ControlSpace Processor ESP
Type	remote control	Compatible with	ControlSpace ESP-880A
Manufacturer reference	41761	Screen	bitmap LCD, 122 x 32 pixels, blue backlit
Color	white	Front controls	volume buttons (+, -), selection buttons (+, -)
Mounting	standard electrical wall box	Rear controls	addressing (DIP Switches)
Programmable control	audio source switching, system configurations	Cable requirements	Cat 5 (24-18 AWG), unshielded twisted pair (UTP)
Scene programming	selection and recall of multiple usage scenarios	Maximum cable length	609 m
Simplified configuration	drag-and-drop via ControlSpace Designer	Connector	Euroblock, 6-pin
On-screen display	customizable to facilitate system use	Power supply	via 8 to 18 VDC adapter, 100 mA (sold separately)
Locking	programmable software lock	Dimensions	121 x 118 x 37 mm
