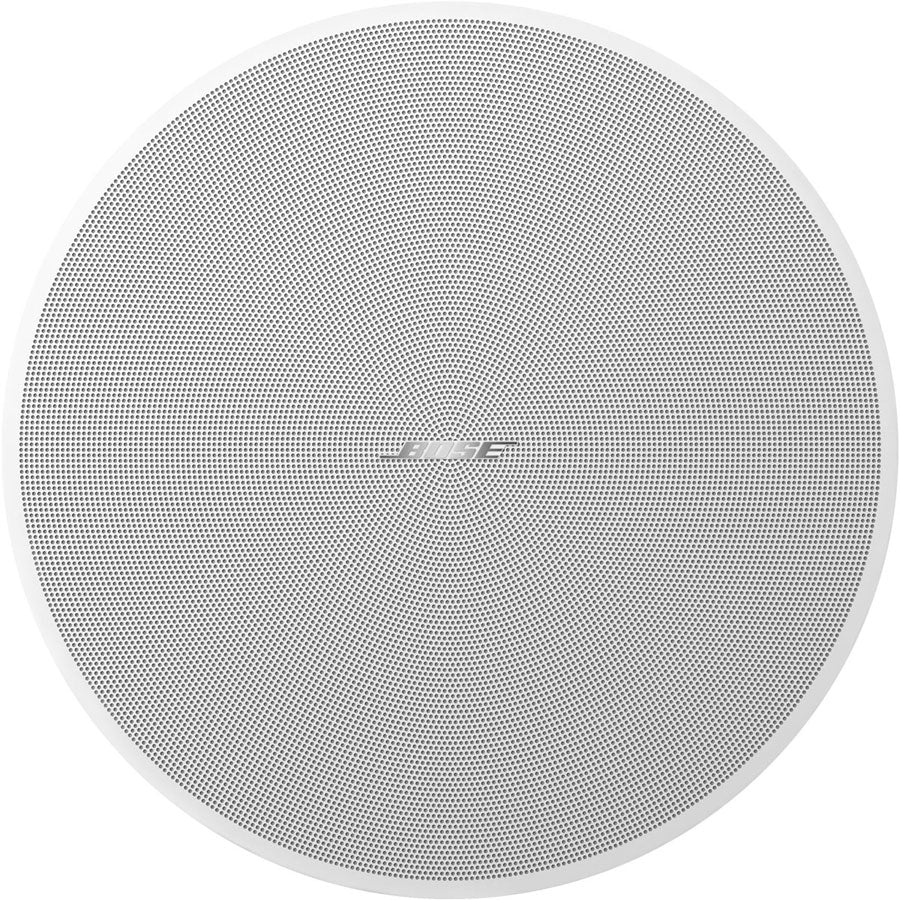

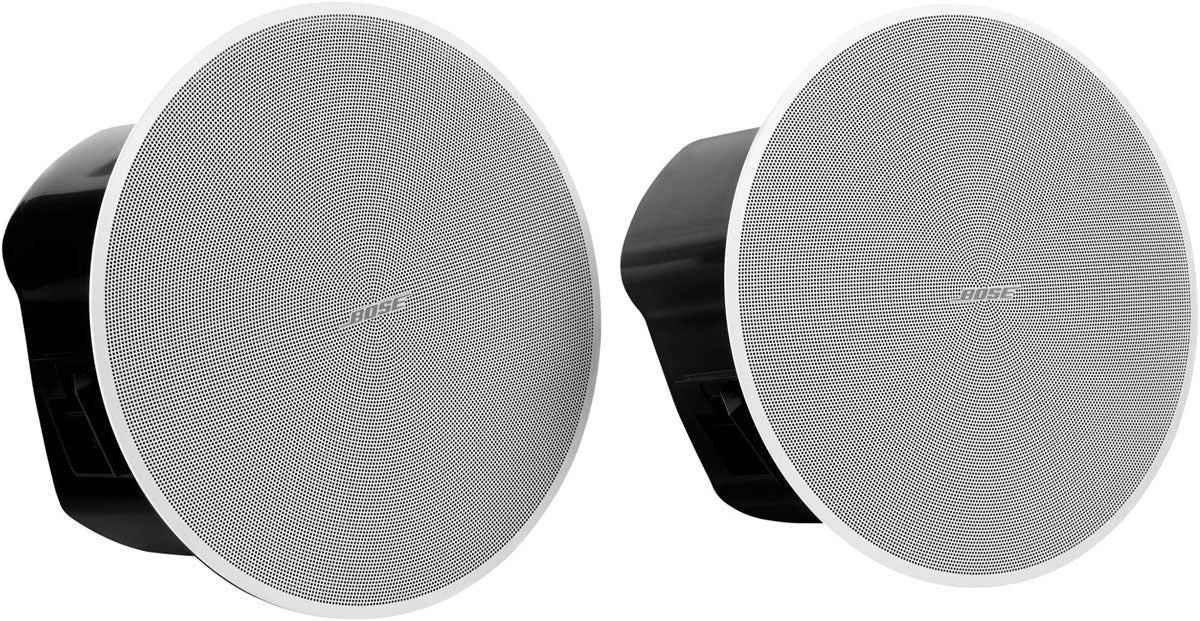

DesignMax DM6C: The Bose Professional Solution for Neat Fixed Installations
The DM6C fits within the Bose Professional approach focused on fixed installations : offering an in-ceiling speaker capable of delivering clean and intelligible sound while remaining visually discreet. In a range designed for public spaces, this model emphasizes the balance between sound quality, ease of installation, and compatibility with 70 V / 100 V architectures, which are very common in multi-zone sound systems.
For Which Venues and Sound Needs?
The Bose Professional DesignMax DM6C White is designed for restaurants, hotels, bars, and retail stores where consistent coverage without hot spots is expected, with clear announcements and well-controlled background music. Ceiling mounting frees up floor space and naturally integrates with the volumes, making it a relevant choice for reception areas, dining rooms, corridors, sales floors, or lounge zones.
Thanks to its operation in either 8 Ohm or 70 V / 100 V line, it suits both small stereo setups and distributed systems requiring multiple speakers on the same line, with power selection according to zone and desired level.
Design, Sound Dispersion, and Installation: Engineered for Integration
2-Way Coaxial Architecture: Coherence and Intelligibility

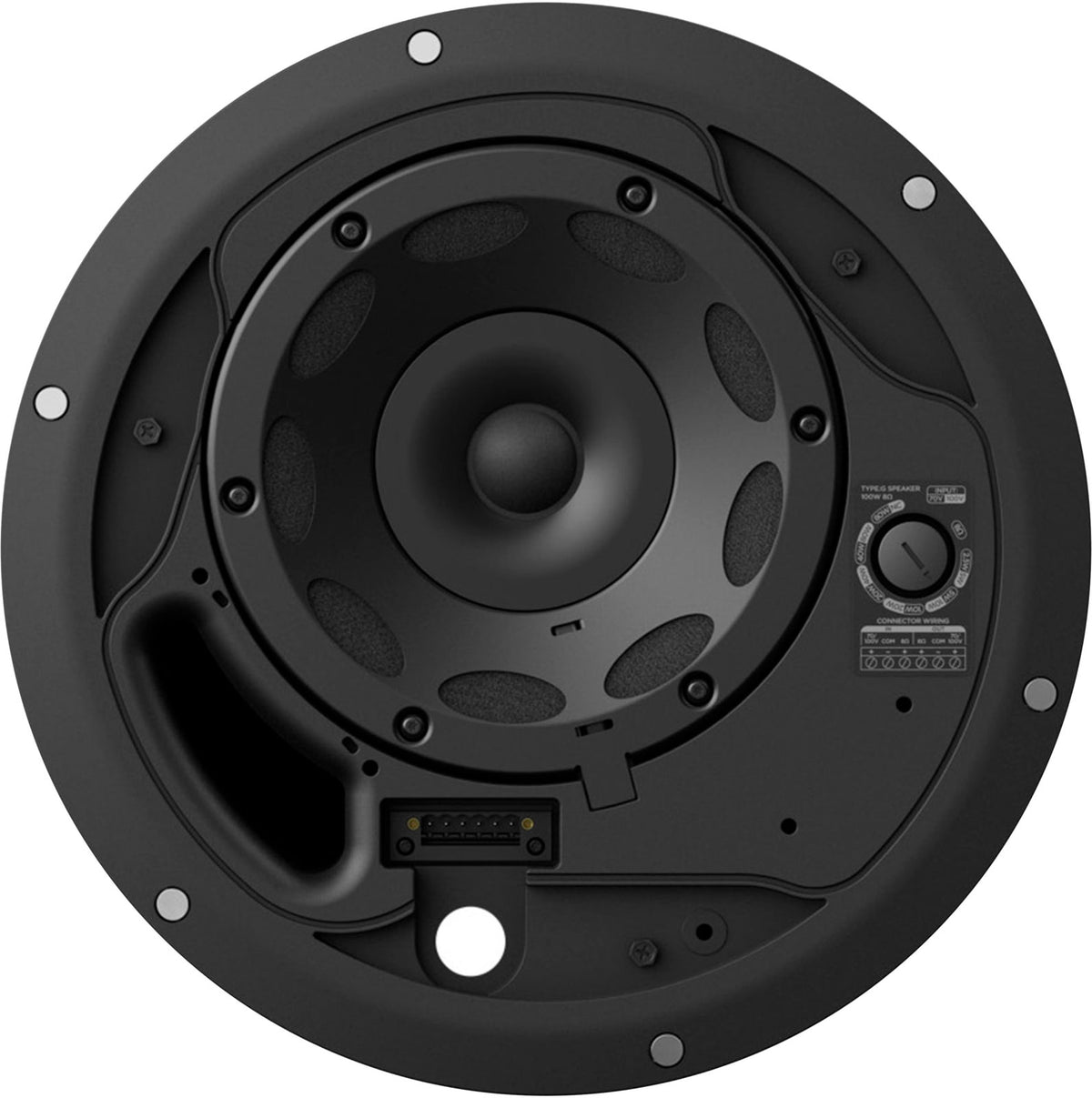

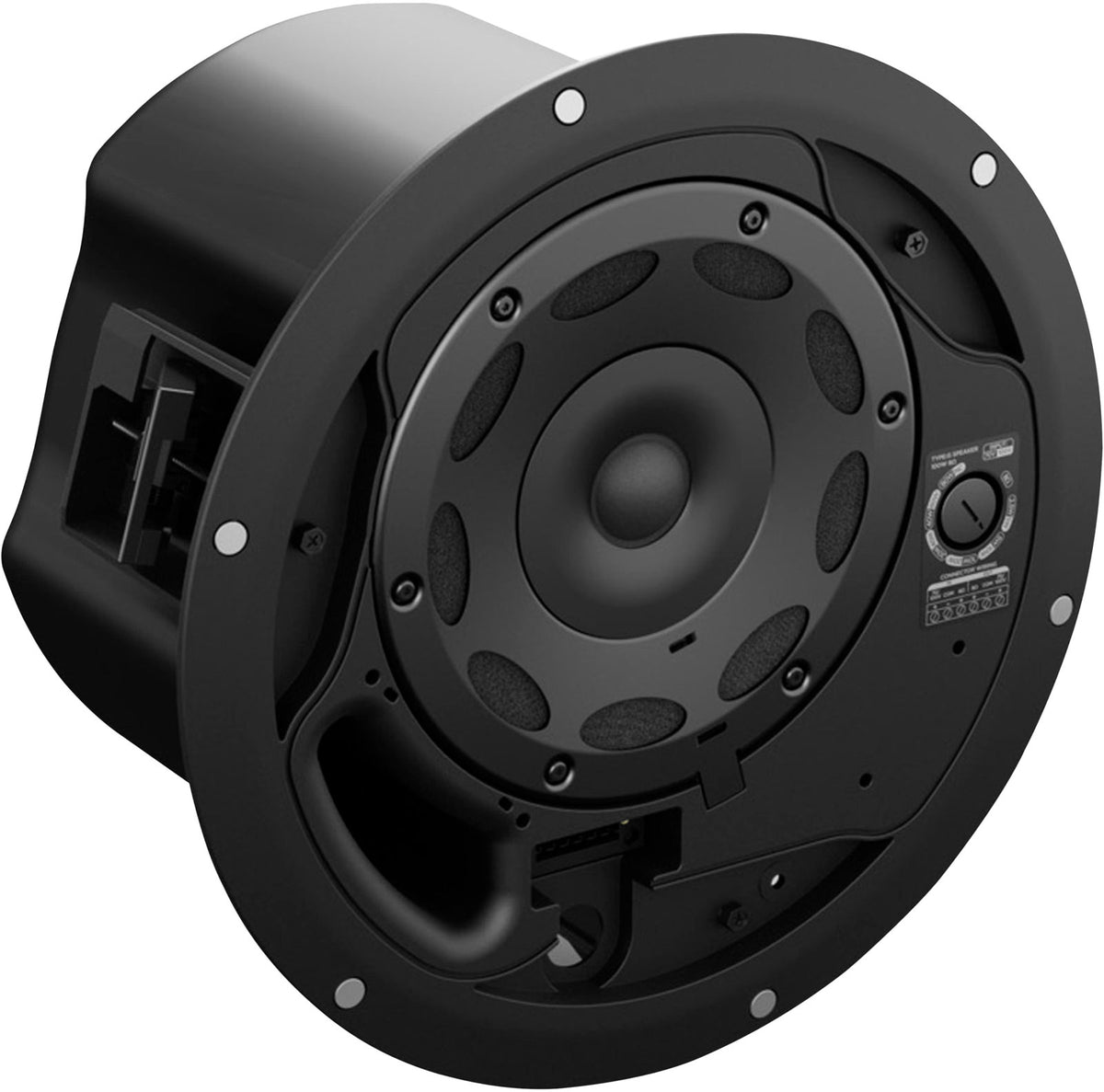

The DM6C features a 2-way coaxial design combining a 6.5-inch (165 mm) woofer and a 1.25-inch (32 mm) tweeter. This configuration promotes a coherent sound image and strong presence in the mid-high frequencies, particularly appreciated for voice and ambient content. The passive 2-way crossover with a cutoff frequency at 1.7 kHz ensures a balanced transition between drivers.
Wide Coverage for Even Sound Distribution
With a 125-degree conical dispersion, the speaker aims for broad coverage, useful for reducing the number of sound points while maintaining consistent coverage. The specified frequency response of 59 Hz to 20 kHz delivers a full-range sound suitable for background music and announcements, with bass adapted for ceiling use.

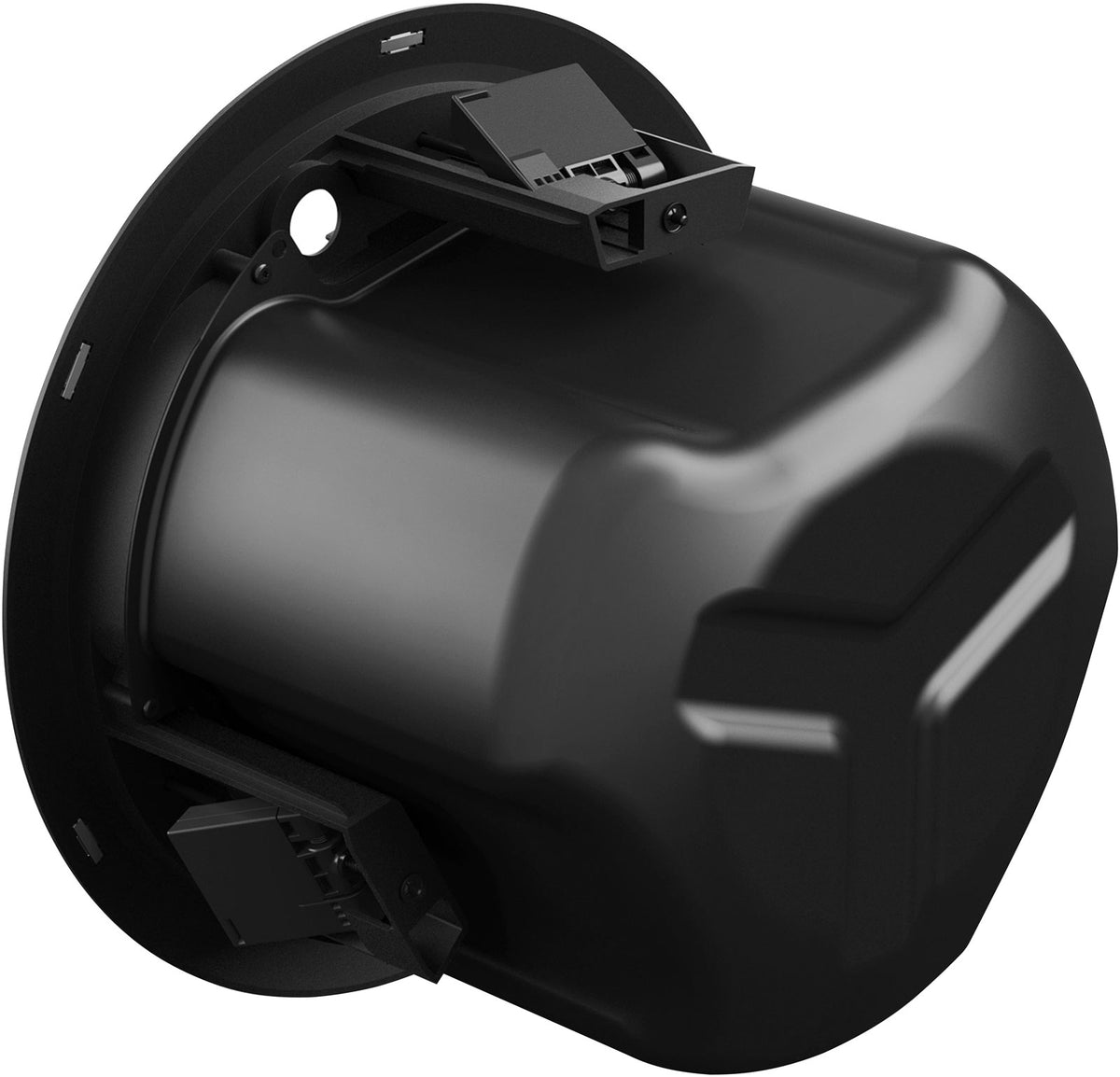

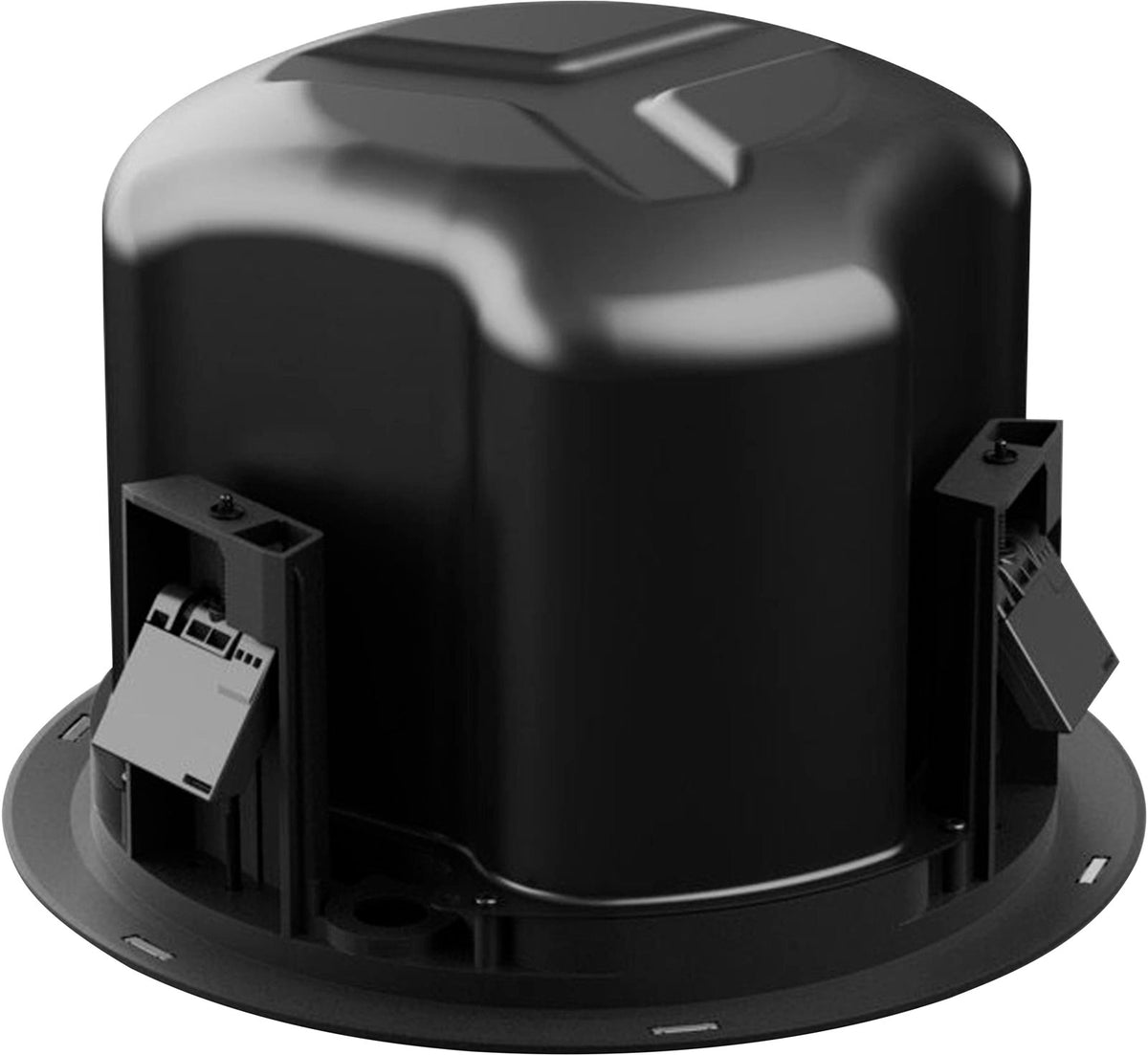

QuickHold Mounting: Time-Saving on Site

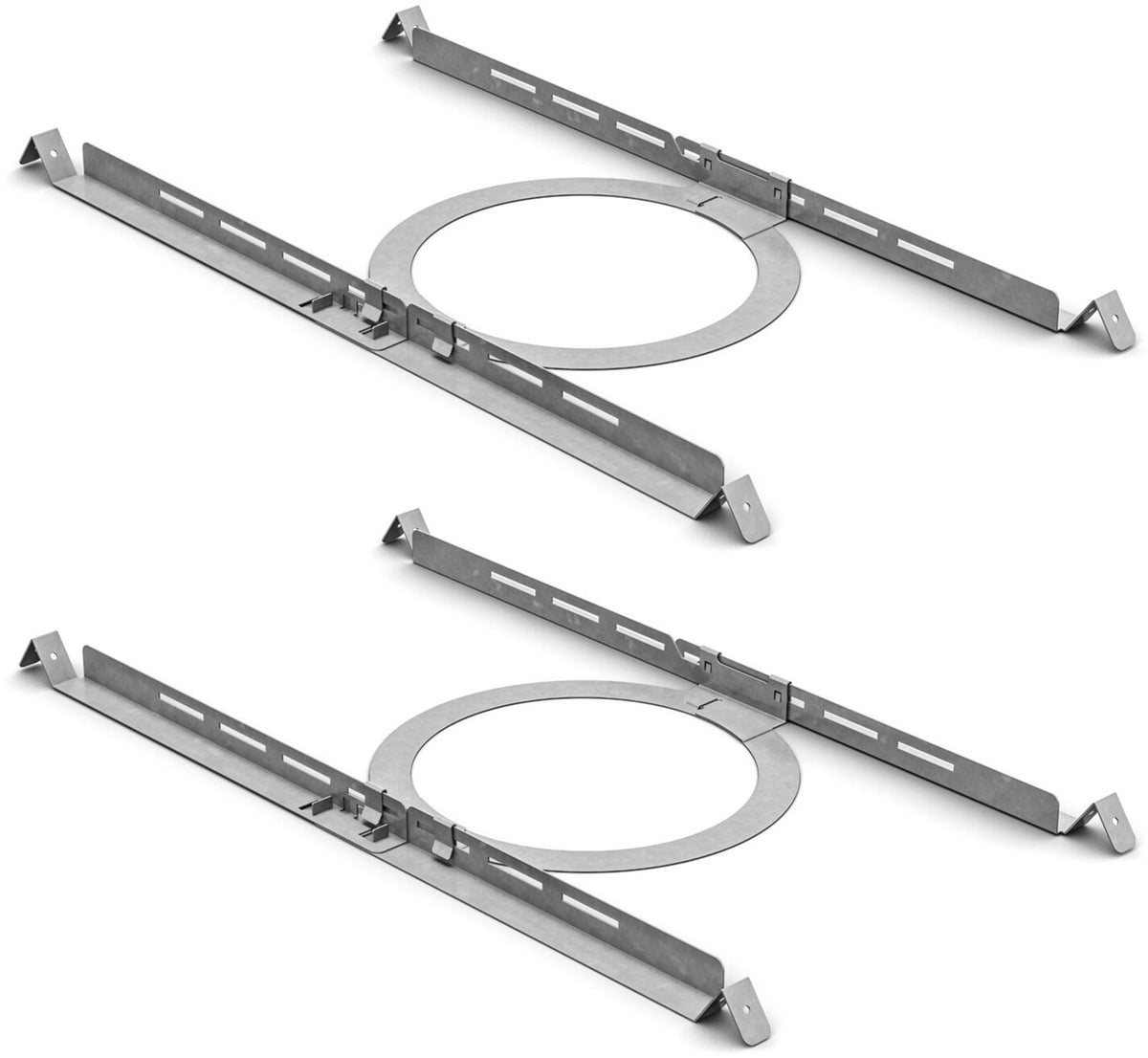

For installation, the QuickHold mounting arms are designed to speed up fitting into a drop ceiling. The DM6C comes with an installation bracket and a cutout template, facilitating preparation and alignment. The speaker accommodates a maximum ceiling thickness of 57 mm and requires a 292 mm cutout.
Technical specifications
| Impedance | 8 Ω |
| Color | White |
| Type | in-ceiling loudspeaker |
| Application | Public Address, 70 V / 100 V line |
| Installation | QuickHold mounting arms |
| Maximum ceiling thickness | 57 mm |
| Cutout size | 292 mm |
| Configuration | 2-way coaxial |
| Woofer | 6.5 inches (165 mm) |
| Tweeter | 1.25 inches (32 mm) |
| Crossover | 1.7 kHz (passive 2-way) |
| RMS Power | 125 W |
| Peak Power | 500 W |
| 100 V line power taps | 5 W, 10 W, 20 W, 40 W, 80 W, Bypass |
| 70 V line power taps | 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, Bypass |
| Recommended high-pass protection | 60 Hz with 24 dB/octave filter |
| Frequency response | 59 Hz to 20 kHz |
| Dispersion | 125-degree conical |
| Max SPL | 109 dB |
| Peak SPL | 115 dB |
| Sensitivity | 88 dB |
| Connectivity | EuroBlock terminal |
| Materials | UV-resistant technical resin |
| Dimensions per unit | diameter 287 mm x depth 239 mm |
| Weight per unit | 6.5 kg |
| Manufacturer designation | DesignMax DM6C loudspeakers (1 pair) White |
| Manufacturer reference | 829679-0210 |
| Included | installation bracket, cutout template |
Questions frequently asked
Does the Bose DesignMax DM6C White operate on 100 V line?
The DM6C White supports 70 V / 100 V installations through its built-in transformer. The available 100 V taps are 5 W, 10 W, 20 W, 40 W, and 80 W, with a bypass mode for 8 Ω use.
What ceiling cutout size is required for these recessed speakers?
A 292 mm cutout is required. The QuickHold system accommodates a maximum ceiling thickness of 57 mm, and a cutout template is included.
What sound performance does this Bose ceiling speaker provide?
The coaxial 2-way design combines a 165 mm woofer and a 32 mm tweeter, with a passive crossover at 1.7 kHz. Frequency response ranges from 59 Hz to 20 kHz. The 125° conical dispersion supports broad coverage in sound distributed spaces.
What amplifier power should be planned for 8 ohms?
At 8 Ω operation, the RMS power is 125 W and peak power reaches 500 W. A high-pass filter at 60 Hz with a 24 dB/octave slope is recommended.
Is the DM6C pair suitable for a restaurant or retail store?
This recessed speaker is designed for restaurants, hotels, bars, and retail stores. Its maximum SPL of 109 dB and EuroBlock connectors meet the requirements for fixed installations of background music and paging.
