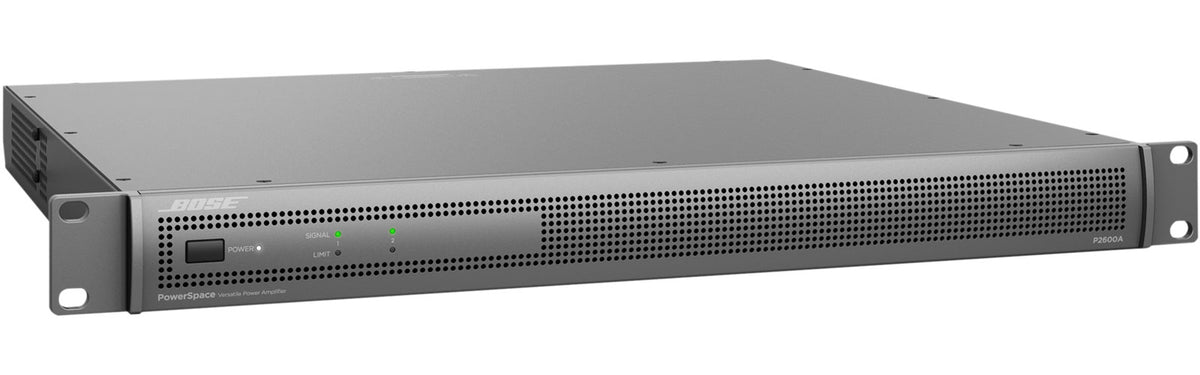

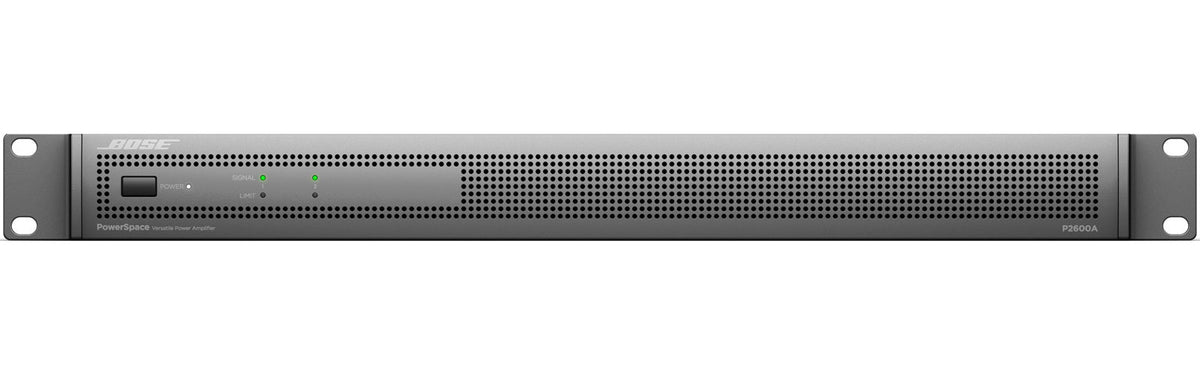

PowerSpace P2600A: an amplifier designed to complement a Bose Professional installation
The PowerSpace P2600A is part of the Bose Professional amplifier range intended for fixed installations (retail, hospitality, multipurpose rooms, corporate spaces). Its positioning is clear: to offer a comfortable power reserve, simple rack integration, and audio distribution options suited to modern architectures, notably via AmpLink. It meets common needs for zone extension, system reinforcement, or creation of 70V/100V lines, while maintaining an "installation-friendly" approach regarding cabling and deployment.
Intended uses and users
The Bose Professional PowerSpace P2600A is primarily aimed at integrators, installers, and operators seeking a reliable amplifier for multi-zone sound distribution. It is suitable for installations where intelligibility and level consistency over time are expected: background music, microphone announcements, meeting room sound reinforcement, or distribution across multiple spaces (bar, restaurant, reception, showroom). Thanks to its low impedance and 70V/100V line modes, it adapts equally well to traditional passive speakers and speaker networks on line systems, typical of buildings and large volumes.
Key features: power, distribution, and integration
Dual channel, bridged mode, and compatibility with low impedance / 70V / 100V
The P2600A is a 2-channel amplifier capable of delivering 2x 600 W at 4 Ohm, 8 Ohm, or 100V, or operating in bridged mode to provide 1x 1200 W at 4 Ohm, 8 Ohm, or 100V. This flexibility allows optimization of amplification according to need: two distinct zones, a stereo zone, or a single zone requiring more power.
AmpLink: multichannel digital audio, low latency
The AmpLink input allows receiving multiple uncompressed digital audio channels with low latency, facilitating audio routing in a technical rack and limiting unnecessary conversions. The P2600A boasts an audio latency under 1 ms from any analog or AmpLink input to the speaker output, a valuable asset for maintaining a sense of synchronization, especially in multi-zone installations.
Audio performance suited to installation environments
For clean and controlled playback, the amplifier offers a frequency response from 20 Hz to 20 kHz (+/-1 dB at 1 W) at 4 to 8 Ohm. At 70V/100V, the response is stated to be identical, with a 50 Hz high-pass filter to secure line operation and optimize power handling in this type of distribution. Channel separation (crosstalk) is specified as greater than 80 dB at 1 kHz and greater than 65 dB at 20 kHz, and the dynamic range reaches 100 dBA at nominal power.
Technical specifications
| Product | Bose Professional PowerSpace P2600A |
| Type | 2-channel power amplifier |
| Manufacturer designation | PowerSpace P2600A 230V EU |
| Manufacturer reference | 803286-2110 |
| Recommended application | zone extension |
| Power | 2x 600 W at 4 Ohm / 8 Ohm / 100V |
| Power in bridged mode | 1x 1200 W at 4 Ohm / 8 Ohm / 100V |
| Gain (low impedance mode) | 35 dB |
| Gain (70V mode) | 35 dB |
| Gain (100V mode) | 38 dB |
| Frequency response (4 to 8 Ohm) | 20 Hz to 20 kHz (+/-1 dB at 1 W) |
| Frequency response (70V/100V) | identical to 4 to 8 Ohm mode with a 50 Hz high-pass filter |
| Channel separation (crosstalk) | greater than 80 dB at 1 kHz, greater than 65 dB at 20 kHz |
| Dynamic range | 100 dBA (at nominal power) |
| Audio latency | under 1 ms (from any analog or AmpLink input to speaker output) |

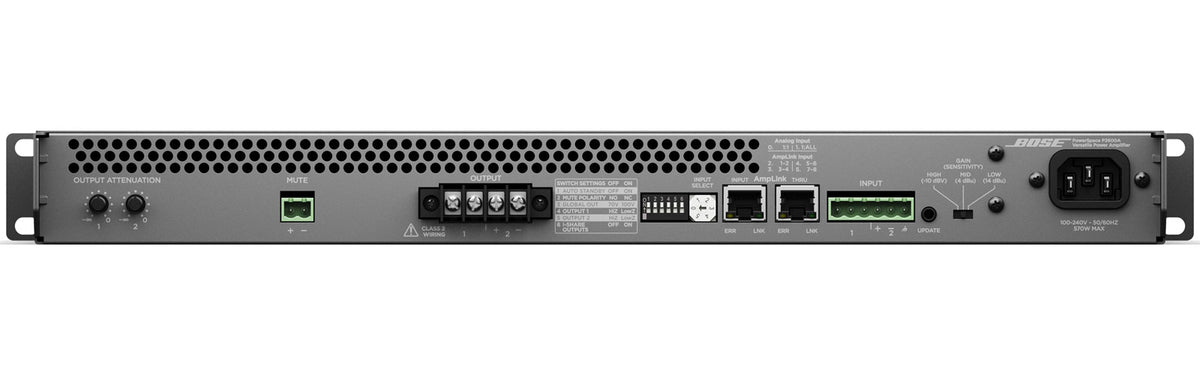

| Analog inputs | 2x balanced (6-pin Euroblock) |
| Analog outputs | 2x |
| Digital I/O | 8 channels of AmpLink digital I/O (RJ-45) |
| Input | 1x AmpLink input (uncompressed digital audio, low latency) |
| Dimensions (H x W x D) | 44 x 483 x 420 mm |
| Net weight | 6.2 kg |
Questions frequently asked
What power does the Bose PowerSpace P2600A deliver?
The amplifier provides 2 x 600 W at 4 ohms, 8 ohms, or 100 V. In bridged mode, the power reaches 1 x 1200 W at 4 ohms, 8 ohms, or 100 V.
Can it power speakers on 70V or 100V lines?
The 70 V and 100 V modes are supported for installed speaker networks. At 100 V, each channel delivers 600 W and the frequency response includes a 50 Hz high-pass filter.
What audio connectivity is available?
There are two balanced analog inputs on 6-pin Euroblock connectors, with 2 analog outputs. An AmpLink RJ-45 input also carries 8 channels of uncompressed digital audio.
Does AmpLink add latency?
The specified latency between any analog or AmpLink input and speaker output is under 1 ms.
Can it be installed in a rack cabinet?
The 19-inch format measures 44 x 483 x 420 mm for rack mounting. With a net weight of 6.2 kg, integration into a fixed installation is facilitated. The manufacturer reference is 803286-2110.
