Boss MS-3

A Boss concept designed for modern pedalboards

The Boss MS-3 was designed to meet a simple reality: many guitarists love the tone and identity of their favorite pedals but want the quick recall and consistency of a programmable system. The MS-3 thus stands as a hybrid solution: it centralizes your chain, combines quality "Boss multi-effects" effects, and provides clean and reliable switching, ideal for building a compact, professional, and coherent pedalboard, both in the studio and on stage.

For whom, for which styles, and in what contexts?

The MS-3 is aimed at musicians who want to optimize their pedalboard : cover guitarists, modern rock, pop, metal, funk, fusion players, but also bassists looking for a complete and easily recallable effects set. Its approach is perfect if you play live (quick transitions, clean sound changes, tap tempo, scenes/presets) and equally relevant in the home studio to instantly retrieve coherent patches from one session to another.

In practice, it suits both intermediate musicians (who want an evolving "all-in-one" solution) and advanced musicians (who want a programmable pedalboard brain with loops, MIDI, and assignments).

Switching, patches, MIDI: a true command center

The MS-3 can manage three effects loops (send/return) to insert your favorite external pedals while simultaneously activating its internal effects. You can organize the order and activation of blocks to switch from a modulated clean sound to a saturated lead with delay/reverb with a single press, via Memory (patch recall) and Manual (direct block and loop control) modes.

Assignable controls provide very "instrument-like" expressiveness: real-time parameter adjustment, level management, speed/depth modulation, delay mix, etc. The Wave Pedal function allows creating automatic expression-type movements (sweeps, filter rises, pitch/mod variations) without an expression pedal, while the CTL/EXP inputs accept footswitches or an expression pedal for even more control. Finally, the MIDI output facilitates integration of an external MIDI delay, reverb, or multi-effects, and USB allows sound editing and organization via the dedicated editor.

The sound

The MS-3's sonic character is typically Boss: clear, precise, and robust, with excellent clarity in a mix. Modulation and ambience effects (chorus, phaser, tremolo, delay, reverb) are designed to remain musical even with heavy settings, while the built-in overdrives/distortions offer a palette ranging from subtle boost to more pronounced saturation, useful for complementing an external drive or "saving a set" on an unfamiliar backline.

The dynamics are responsive, and the whole remains coherent thanks to integrated tools like the tuner, noise suppressor, and global EQ. In terms of use, the MS-3 is found both in compact pedalboard setups and more ambitious rigs, notably among guitarists seeking centralized control (for example Vernon Reid, Paul Jackson Jr., Marco Sfogli, or Tyler Larson).

Technical specifications

Number of built-in effect types	112	Output impedance	1 k?
Number of internal effect blocks usable simultaneously	up to 6	Input	6.35 mm Jack
Number of patches	200	Outputs	OUTPUT L/MONO and R (6.35 mm Jack)

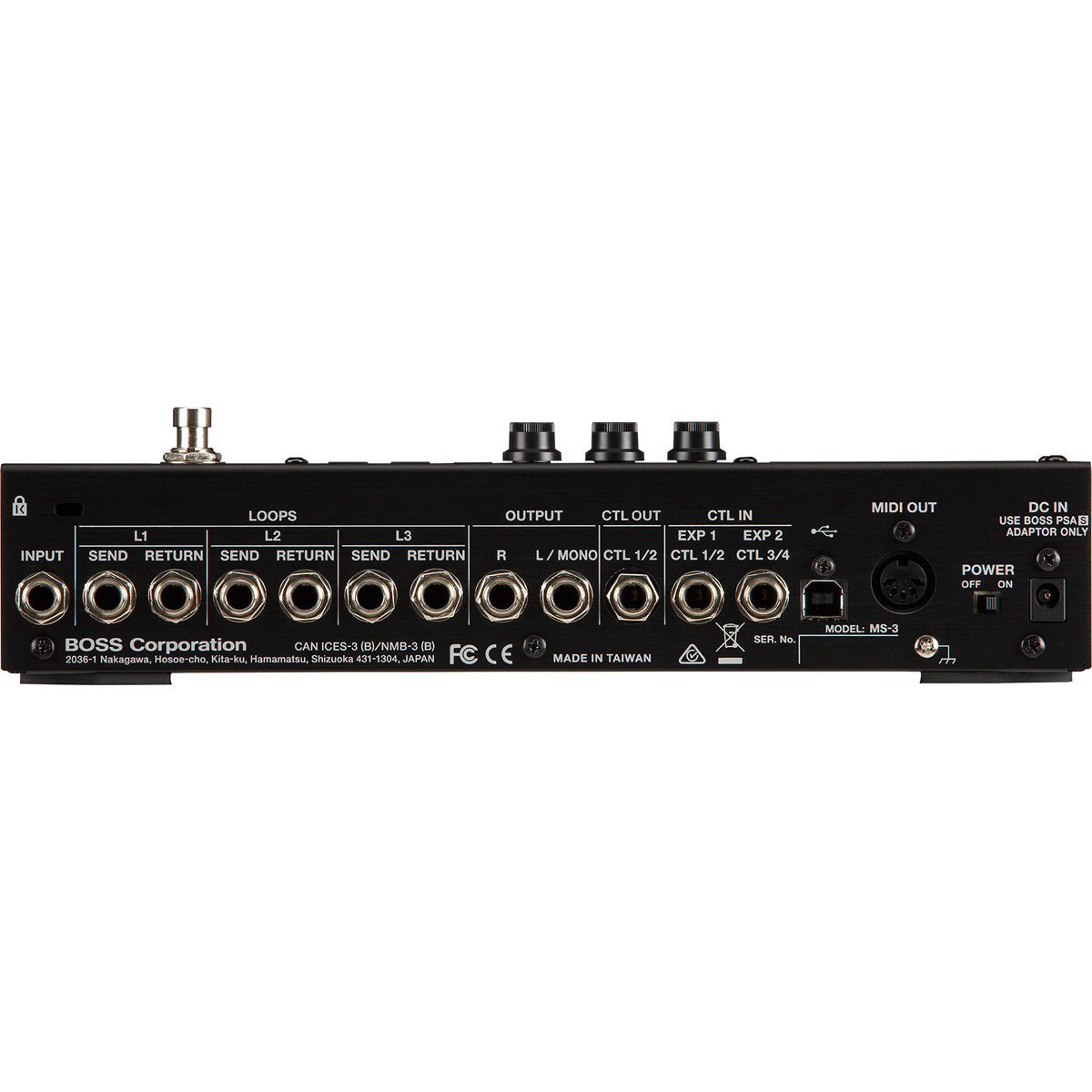

Modes	Memory / Manual	Loops	L1 to L3 SEND (6.35 mm Jack) and L1 to L3 RETURN (6.35 mm Jack)
AD converters	24-bit + AF method	Amp/equipment control	CTL OUT CTL1/2 (6.35 mm TRS Jack)
DA converters	24-bit	Control inputs	CTL IN EXP1 CTL1/2 (6.35 mm TRS Jack), CTL IN EXP2 CTL3/4 (6.35 mm TRS Jack)
Sampling frequency	44.1 kHz	USB	USB COMPUTER port (USB type B)
Bypass type	buffered	MIDI	MIDI OUT
Number of loops	3 (L1 to L3)	Power supply	DC IN
Nominal input level (Input / Loop Return)	-10 dBu	Display	backlit graphic LCD (132 x 32 pixels)
Maximum input level	+7 dBu	Controls	switches 1 to 4, MEMORY/MANUAL switch, ON/OFF buttons, MENU, EDIT, EXIT, ENTER, 3 editing potentiometers, POWER switch
Input impedance	1 M?	Indicators	status LEDs for loops and effect blocks
Nominal output level (Output L/Mono, R)	-10 dBu
