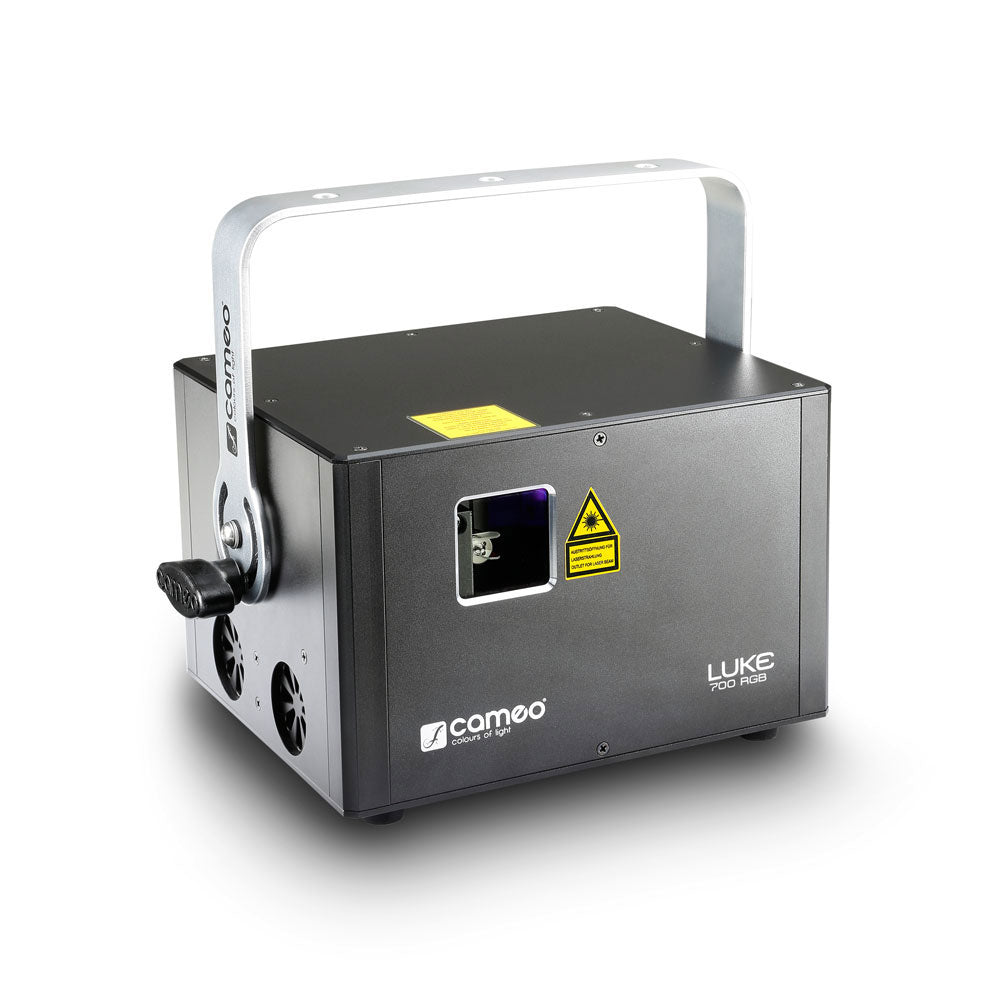

Cameo LUKE 700 RGB - PROFESSIONAL LASER SHOW 700 MW RGB

Precise Laser Shows for Stage, Club, and Events

The LUKE 700 RGB delivers aerial and graphic effects with high readability in clubs, bars, multipurpose rooms, and theaters. Its scan speed and wide scanning angle ensure logos, simple texts, and complex figures with exemplary stability, suitable for both fixed installations and mobile performances for DJs, weddings, and corporate events.

Features and Innovations

At the heart of the LUKE 700 RGB, diode and DPSS sources deliver the three primary colors (red, green, blue) for a total power of 700 mW. The 3 mm beam at 2 mrad guarantees clean rays with maximum impact in foggy atmospheres. High-speed galvanometers (30 kpps at 8deg ILDA) combined with a 60deg scan angle produce smooth animations, tunnels, waves, and cones perfectly continuous, as well as sharp graphic projections on surfaces.

On the control side, the ILDA interface on a 25-pin Sub-D connector opens the door to software control, while DMX-512 in 4 or 11 channels integrates effortlessly with your console. A built-in microphone (adjustable sensitivity) enables a "sound-activated" mode responsive to music, and Auto, Master/Slave, and Standalone modes facilitate quick setups. The 128 onboard presets accelerate the creation of a coherent show, especially since the "Luke" and "Ioda" series share the same memories for spectacular Master/Slave syncs.

The construction separates power/ventilation from the optical block to preserve beam stability. The lightweight and robust aluminum housing comes with a bright LCD display and dedicated buttons (Value +/-, Mode, Enter) for on-site adjustments. The Neutrik PowerCON mains socket secures connections. Designed for professional use, the LUKE 700 RGB includes an interlock key, a silent fan to maintain controlled temperature, and a "scan-fail" protection for audience safety. Use is reserved for qualified operators, in compliance with laser class 4 and current regulations.

Technical Specifications

Sources and Optics

• Product type: professional RGB laser
• Total power: 700 mW
• Color spectrum: RGB
• Wavelengths: 650 nm (red), 532 nm (green), 447 nm (blue)
• Laser sources: diode laser and DPSS
• Beam characteristics: approx. 3 mm diameter, 2 mrad divergence
• Laser class: 4

Scan and Effects

• Scanner: high-power galvanometers
• Speed: 30 kpps at 8deg ILDA
• Maximum scan angle: 60deg
• Built-in presets: 128

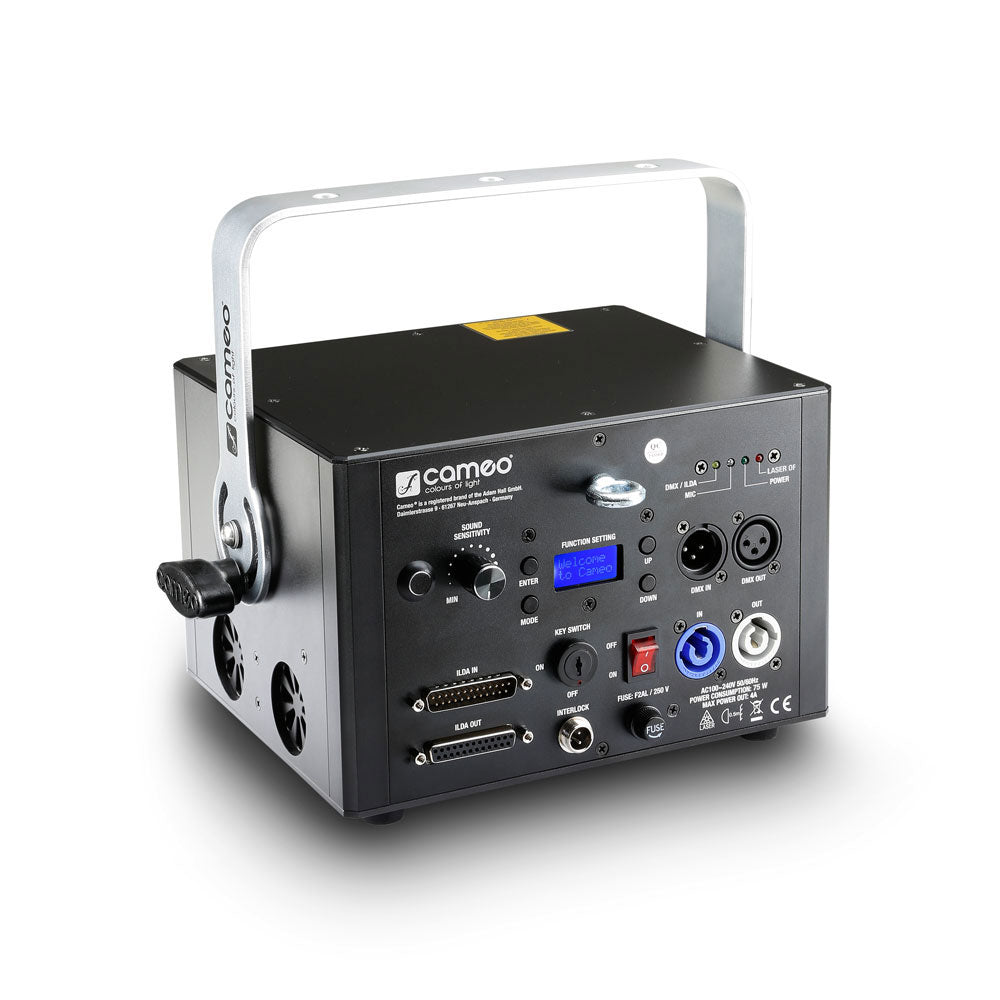

Control and Protocols

• Operating modes: ILDA, DMX-512, Auto, sound-activated, Master, Slave, Standalone
• DMX modes: 4 channels, 11 channels
• DMX input: 3-pin XLR
• DMX output: 3-pin XLR
• ILDA input: male 25-pin Sub-D connector
• ILDA output: female 25-pin Sub-D connector
• Local controls: Value + and -, Mode, Enter buttons
• Display: LCD screen

Ergonomics and Safety

• Separated architecture: power/ventilation isolated from optical components
• Silent fan for moderate operating temperature
• Key switch (interlock) to prevent unauthorized use
• Safety system in case of scan failure ("scan-fail")
• Master/Slave compatibility with the "Ioda" series (identical presets)

Power Supply and Connectivity

• Power supply: 100 to 240 Volts, 50-60 Hz
• Power consumption: 75 W
• Mains connection: Neutrik PowerCON socket

Chassis

• Housing material: aluminum
• Housing color: black
• Very bright LCD display

Dimensions

• Dimensions (L x H x D): 215 x 157 x 225 mm (without mount)
