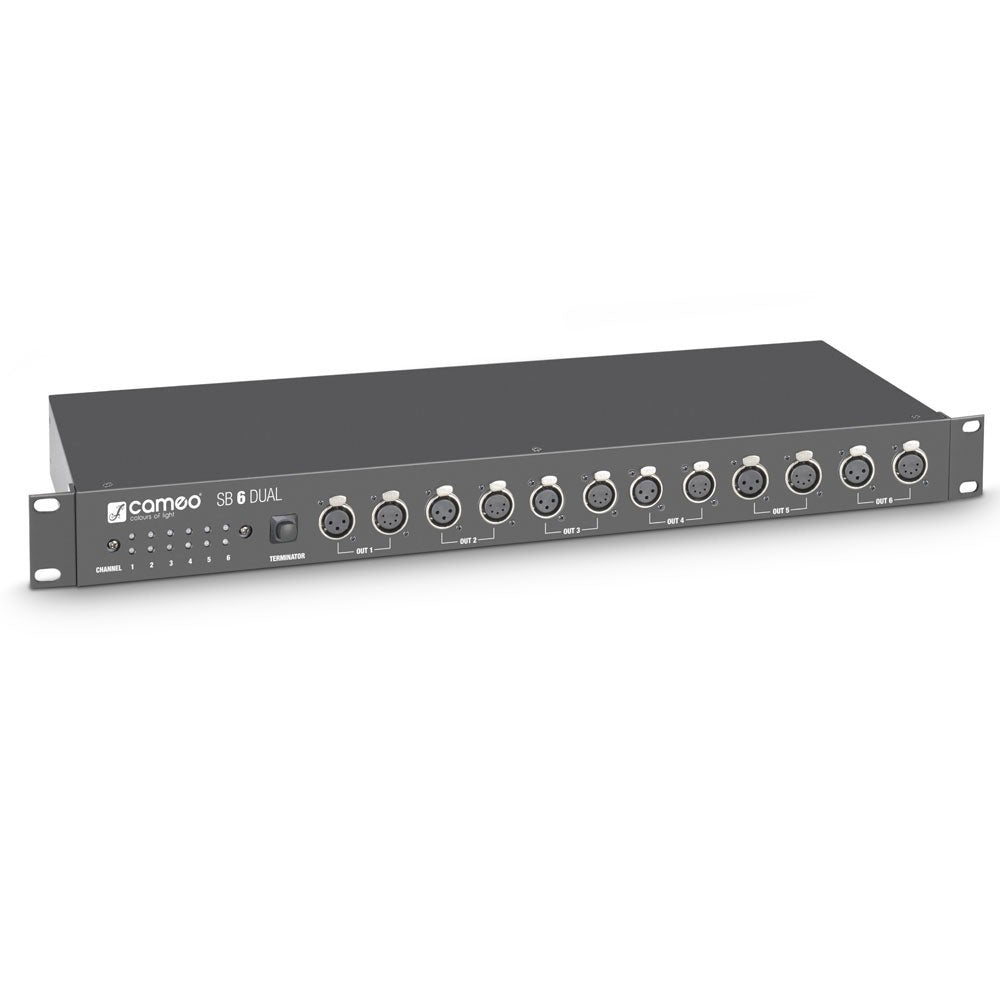

Cameo SB 6 DUAL - 6-CHANNEL DMX SPLITTER-BOOSTER (3-POINT XLR AND 5-POINT XLR)
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cameo
https://www.adamhall.com
info@adamhall.com
------------------------
Safety manager:
Adam Hall GmbH
Email: info@adamhall.com
Address:
For Stable DMX Networks in Live and Installation Settings
The Cameo CLSB6D secures your DMX topologies when powering multiple lighting device chains over long distances. Ideal for stage, clubs, theaters, events (weddings, parties), mobile rigs, or fixed installations in bars or restaurants, it guarantees a clean signal and instant visual maintenance.
Who Is the Cameo CLSB6D For?
Designed for lighting technicians, mobile DJs, technical providers, venue operators, and integrators, this splitter/booster suits anyone needing reliable DMX distribution that is easy to wire and quick to diagnose, including home use for small stages or studios.
Features and Innovations

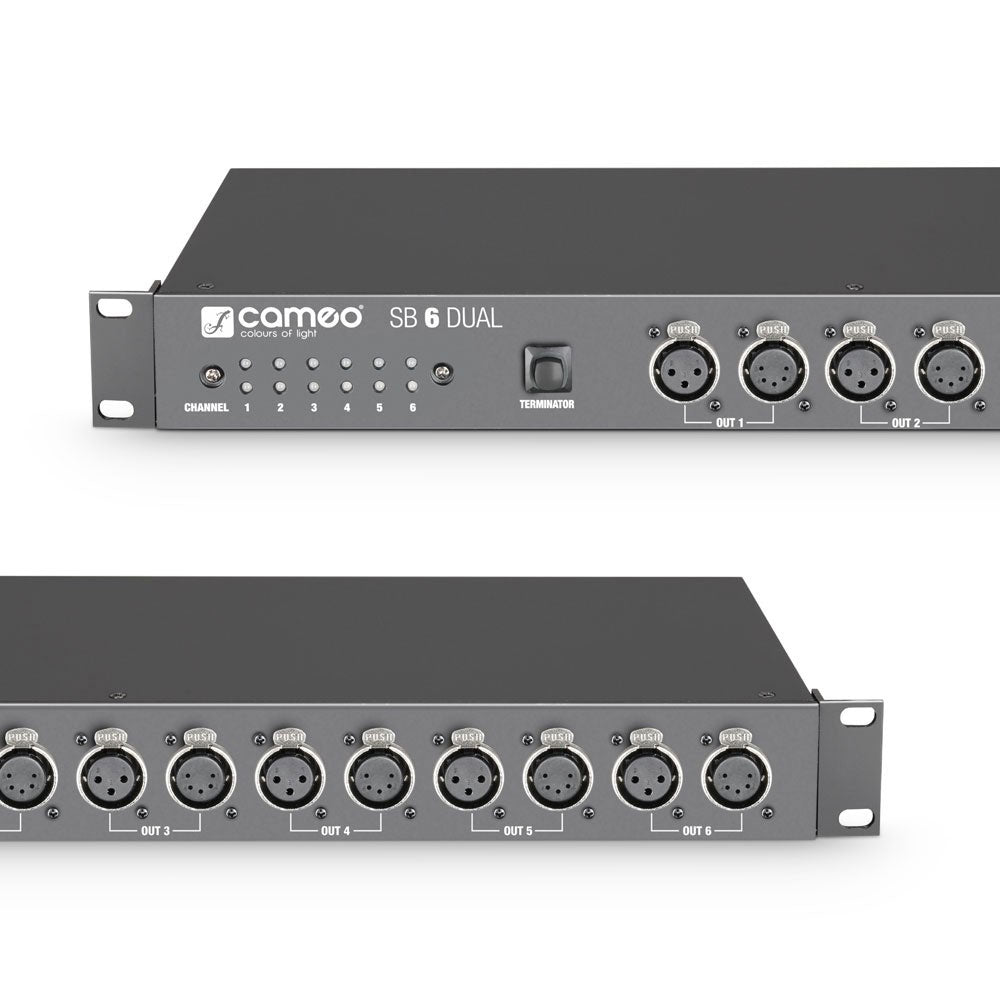

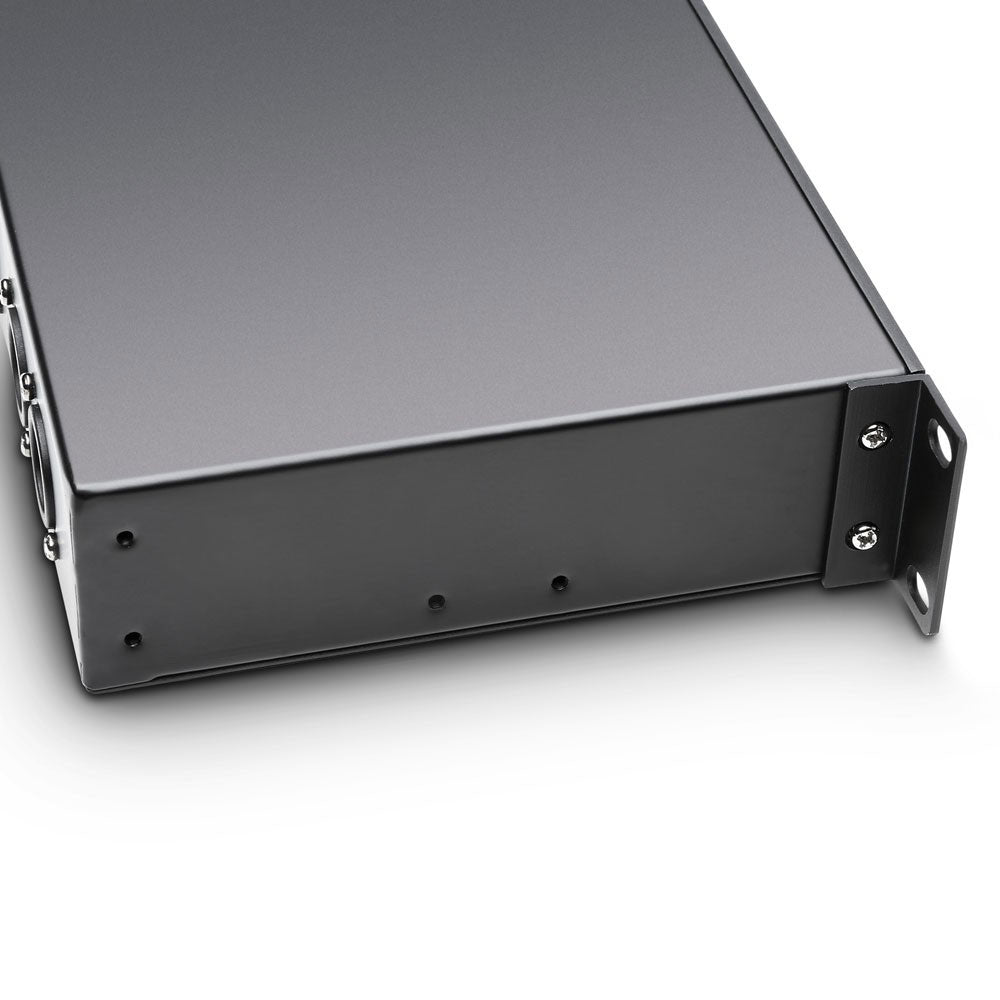

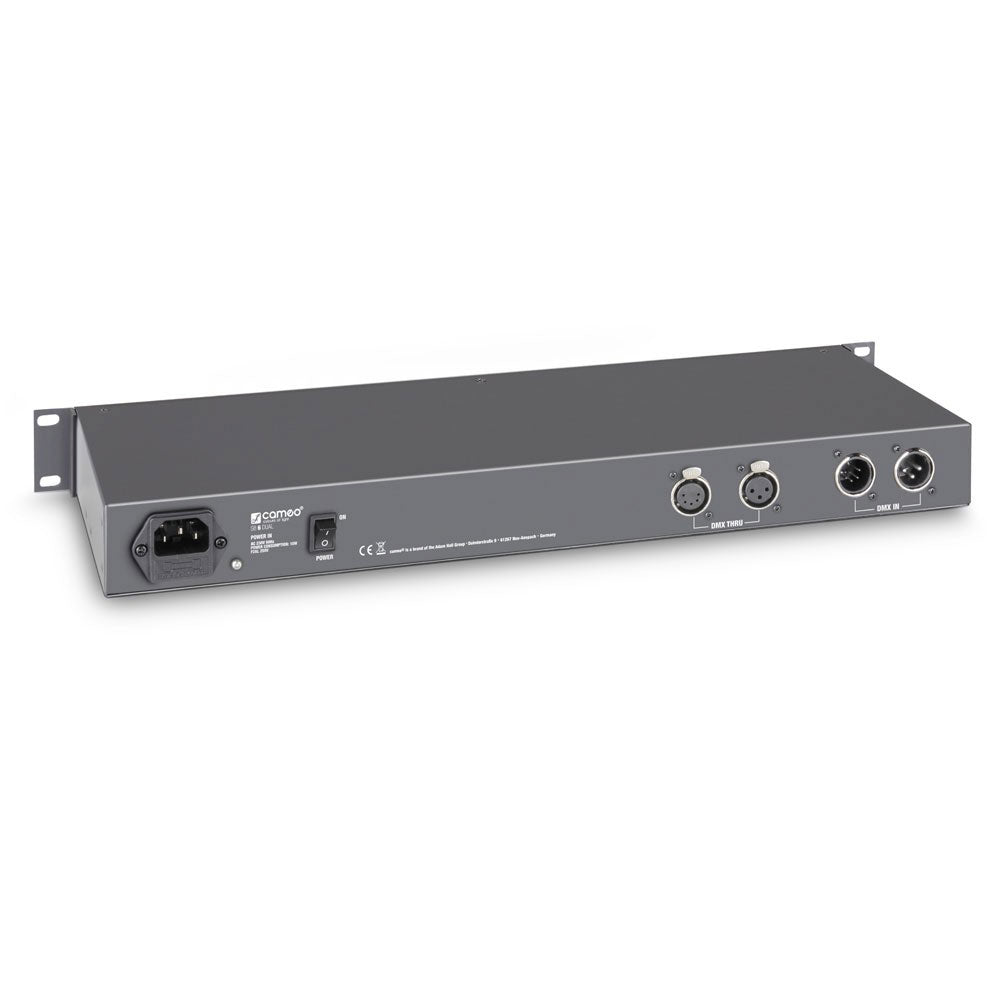

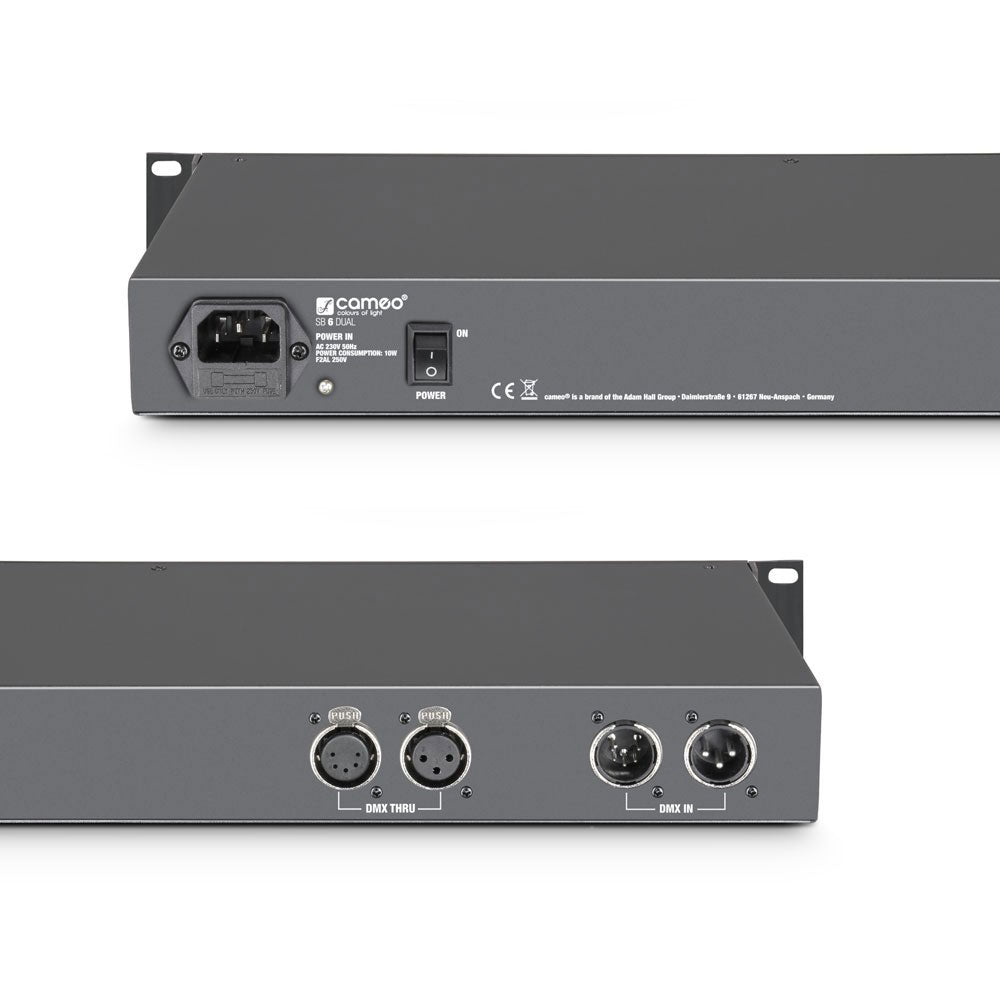

The CLSB6D combines signal amplification and galvanic isolation across 6 outputs to protect consoles and fixtures. Its doubled DMX input and Thru outputs, wired in parallel, are accessible on both front and rear panels to fit your rack setup. "Power" and "Signal" indicators per channel simplify troubleshooting. The built-in 120-ohm termination resistor is switchable on the Thru output to stabilize lines, and reversible rack ears allow standard or inverted mounting for optimized connector access. Supplied with an IEC cable, it integrates immediately into your DMX chain.
Technical specifications
| Product type | Lighting accessories - miscellaneous | Isolation | galvanically isolated outputs |
| Type | DMX Splitter/Booster | Controls | Power On/Off, DMX Thru Terminator selector |
| Rack format | 19-inch, 1U | Indicators | 6 x Power LEDs, 6 x Signal LEDs |
| Rack mounting options | front or rear panel visible (reversible ears) | Power connector | IEC |
| DMX inputs | 2 (in parallel) | Mains voltage | 230 V AC, 50 Hz |
| DMX input connectors | 3-pin male XLR, 5-pin male XLR | Power supply type | transformer |
| Number of DMX Thru outputs | 2 (in parallel) | Power consumption | 15 W |
| DMX Thru connectors | 3-pin female XLR, 5-pin female XLR | Width | 483 mm |
| Termination resistor | 120 ohms switchable on DMX Thru output | Height | 44 mm |
| DMX outputs | 6 | Depth | 160 mm |
| DMX output connectors | 3-pin male XLR, 5-pin male XLR | Weight | 3 kg |
Questions frequently asked
Does the Cameo SB 6 Dual support DMX over 3-pin and 5-pin XLR?
Both formats are supported: a 3-pin male XLR input and a 5-pin male XLR input are wired in parallel. The six outputs also use 3-pin and 5-pin male XLR connectors.
How many DMX lines can be distributed with this splitter?
Six galvanically isolated DMX outputs allow feeding six separate chains from the same signal.
How to terminate a DMX line with this splitter?
A 120-ohm termination resistor can be switched on the DMX Thru output. Two Thru outputs, one 3-pin XLR and one 5-pin XLR, are available in parallel. The DMX Thru Terminator switch controls this function.
Are the DMX outputs isolated to protect the lighting installation?
Each output features galvanic isolation to separate the six distributed DMX lines.
Can the Cameo SB 6 Dual splitter be rack mounted?
The 19-inch format occupies 1U, with a width of 483 mm and a height of 44 mm. Reversible rack ears allow the front or rear panel to remain visible. Power is supplied at 230 V AC via IEC connector, with a consumption of 15 W.
