Celestion CDX1-1746

Name: CDX1-1746
Brand: Celestion
SKU: 129925
Price: 109.00 EUR
Availability: BackOrder

109,00 €VAT incl.

0,90 € Ecotax included

Reference price

Temporarily out of stock

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 129925

EAN : 0739894548748

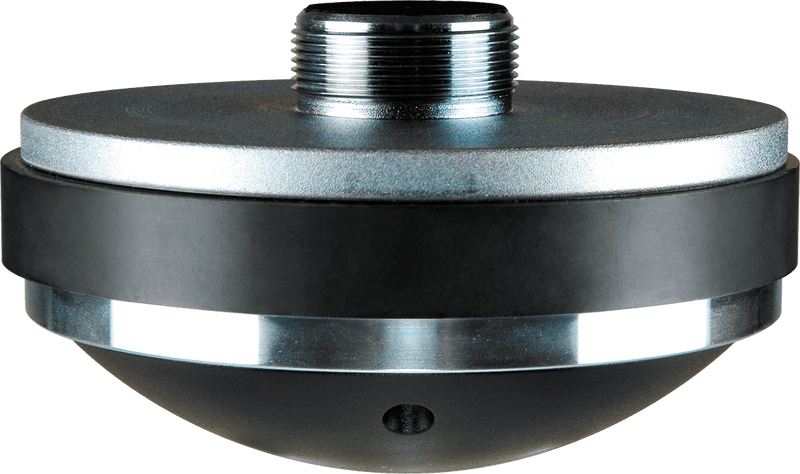

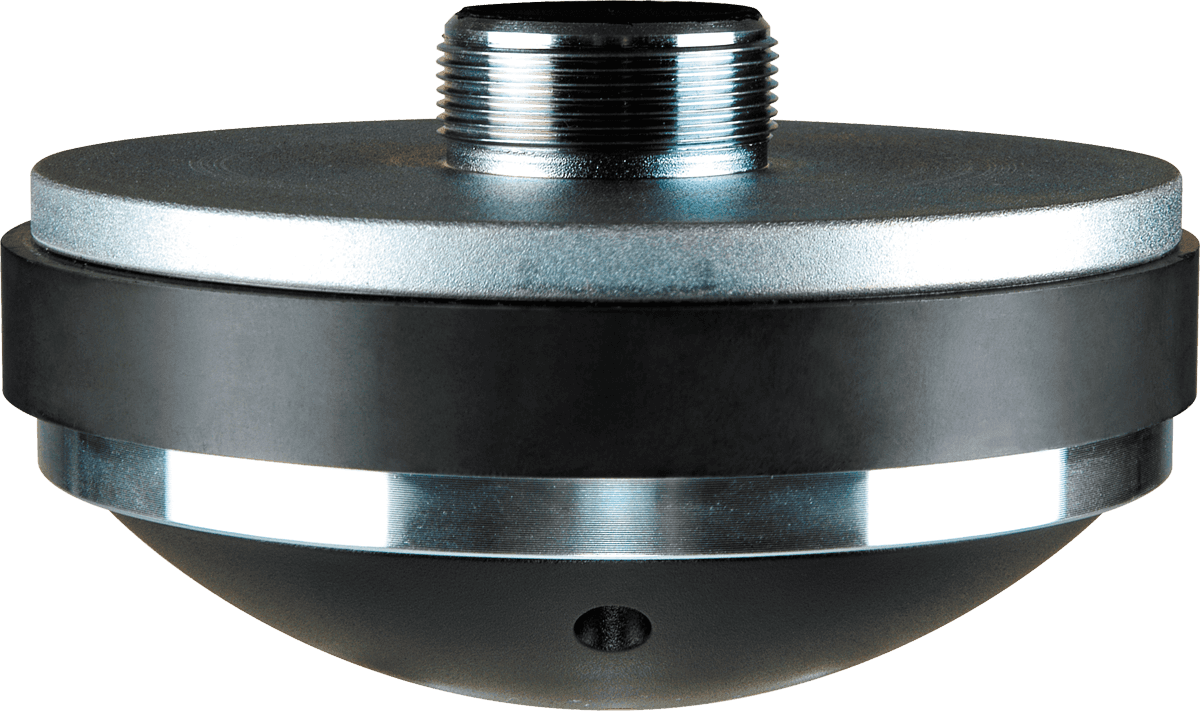

Essential Information About the Celestion CDX1-1746 Compression Driver

1-inch throat for easy integration with most sound reinforcement horns
Frequency range starting at 1.2 kHz with high-frequency extension up to 20 kHz for excellent definition
High sensitivity (110 dB) and 8-ohm impedance for efficient and easy-to-drive systems
Robust design with ferrite magnet and 1.75 voice coil for reliability on stage and in installations

CDX1-1746

109,00 €VAT incl.

0,90 € Ecotax included

Reference price

The Celestion Signature Serving Sound Reinforcement

Famous for its guitar speakers, Celestion also applies its expertise to sound reinforcement systems. The CDX series has established itself as a benchmark for reliability and performance, adopted by many speaker manufacturers. The CDX1-1746 continues this tradition with a precise, powerful, and durable high-frequency driver.

Intended Uses and Users

Ideal for repair, upgrading, or designing two-way speakers, this driver suits service providers, integrators, and repair workshops. Its high sensitivity and standard 8-ohm impedance make it a relevant choice for compact front speakers, stage monitors, or column arrays, provided it is paired with a suitable horn and properly designed crossover.

Technical specifications

Cabinet impedance (Ω)	8 Ω	Magnet	Ferrite
Frequency response - start	1.2 kHz	Coil diameter	1.75 "
Frequency response - end	20 kHz	Throat	1 "
Speaker diameter	1,75"	Power output	40 W
Sensitivity	110	Weight	2.3 kg
Category	compression driver

Questions frequently asked

Is the Celestion CDX1-1746 compatible with a 1-inch horn?

The 1-inch throat diameter allows pairing with a horn of the corresponding size.

What is the power rating of the compression driver?

The specified power rating is 40 W at 8 ohms. This standard impedance facilitates integration into a two-way speaker designed for this load.

What crossover frequency should be used for this Celestion driver?

The indicated frequency response starts at 1.2 kHz and extends up to 20 kHz. Careful filtering should be implemented during speaker integration. The lower cutoff of 1.2 kHz serves as the reference point for connection with the woofer or midrange transducer.

Is this driver suitable for repairing a PA speaker?

This model is suitable for repairing or upgrading two-way speakers, provided there is mechanical compatibility with its 4.7-inch outer diameter and 1-inch throat.
