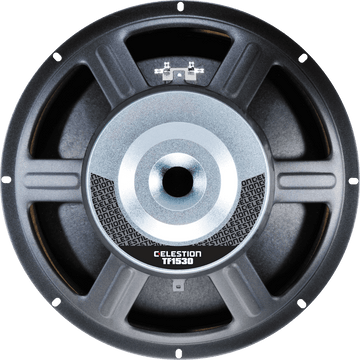

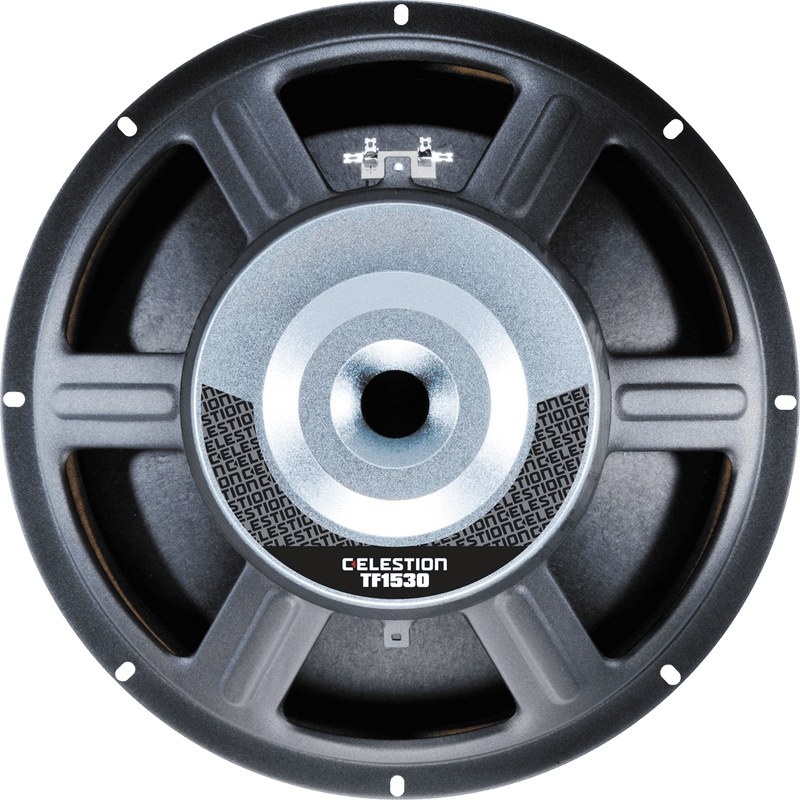

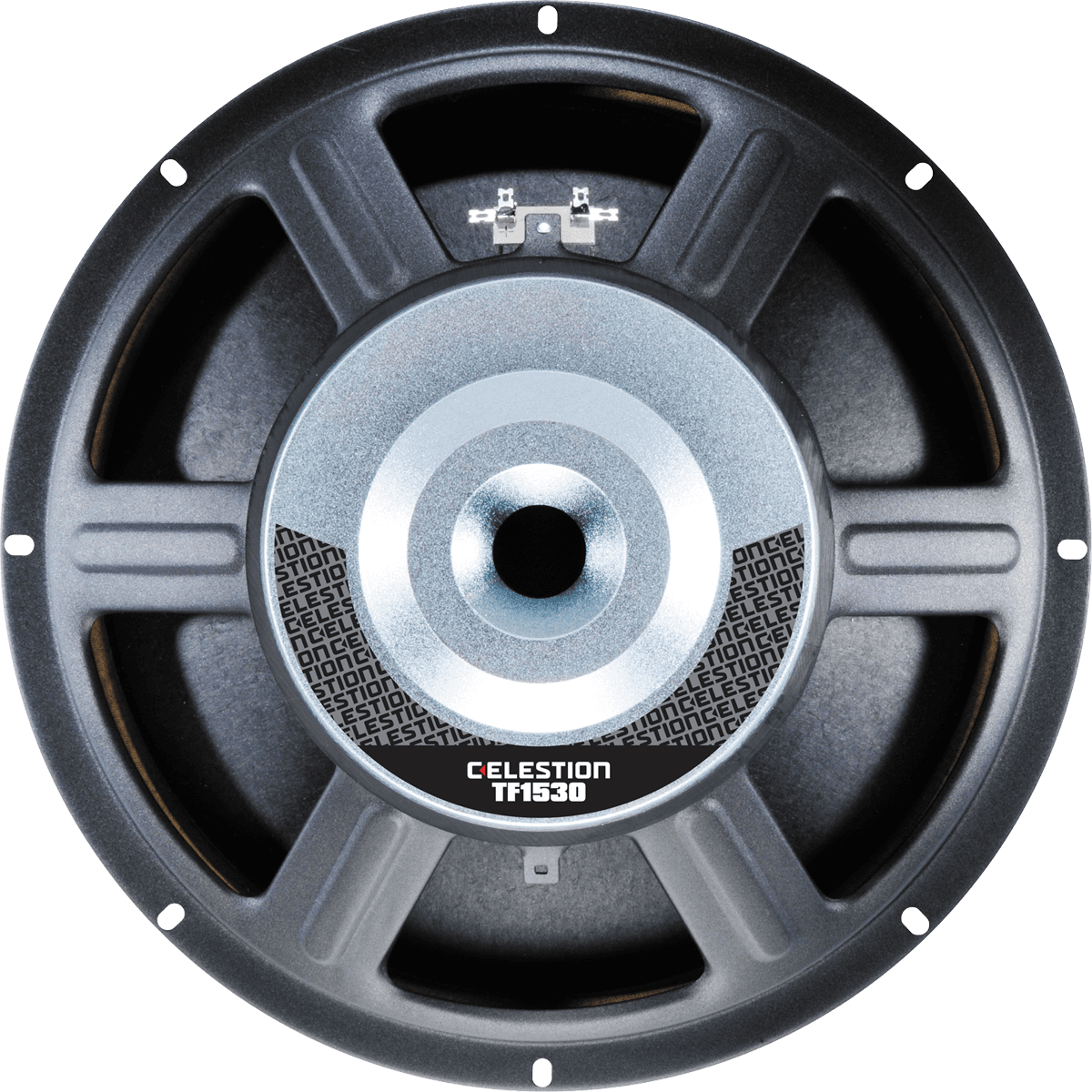

Celestion TF1530
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Celestion
https://www.celestion.com
info@celestion.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Celestion DNA in the TF Series
A historic reference in loudspeakers, Celestion excels both in the guitar world and professional sound reinforcement. The TF series continues this legacy with reliable and high-performance drivers designed for PA cabinets, stage monitors, and compact subwoofers. The TF1530 is one of the most versatile 15-inch models in this lineup.
Who Is the TF1530 For?
Ideal for contractors, speaker repair technicians, and skilled DIYers, the TF1530 is suited for replacing a faulty 15-inch woofer or designing bass-reflex enclosures. It delivers solid bass reproduction and clean midrange, useful in full-range applications with filtering or in two-way systems with a compression driver.
Technical specifications
| Cabinet impedance (Ω) | 8 Ω | Chassis | steel |
| Speaker diameter | 15" | Coil diameter | 3 mm |
| Frequency response | 40 Hz - 3 kHz | Depth | 163 mm |
| Sensitivity | 99 | Power output | 550 W |
| Category | loudspeaker | Weight | 6.1 kg |
| Magnet | Ferrite | ||
Questions frequently asked
Is the Celestion TF1530 compatible with an 8-ohm amplifier?
The nominal impedance of 8 ohms allows pairing with amplifiers and passive crossovers designed for this load.
What power rating does this 15-inch speaker support?
The specified power handling is 550 W. The sensitivity of 99 dB helps achieve a high sound level without oversized amplification.
Is the TF1530 suitable for a bass-reflex enclosure?
Its frequency response from 40 Hz to 3 kHz allows integration into a bass-reflex enclosure. It can be used for designing PA speakers or compact subwoofers tuned for low frequencies. A crossover also enables use in a two-way system with a compression driver.
What is the frequency response of the Celestion TF1530 woofer?
The stated bandwidth ranges from 40 Hz to 3 kHz, with a reproduction focused on lows and midrange.
Is the TF1530 frame robust enough for PA speaker cabinets?
The frame is made of stamped steel and the magnet is ferrite. The total weight is 6.1 kg.
