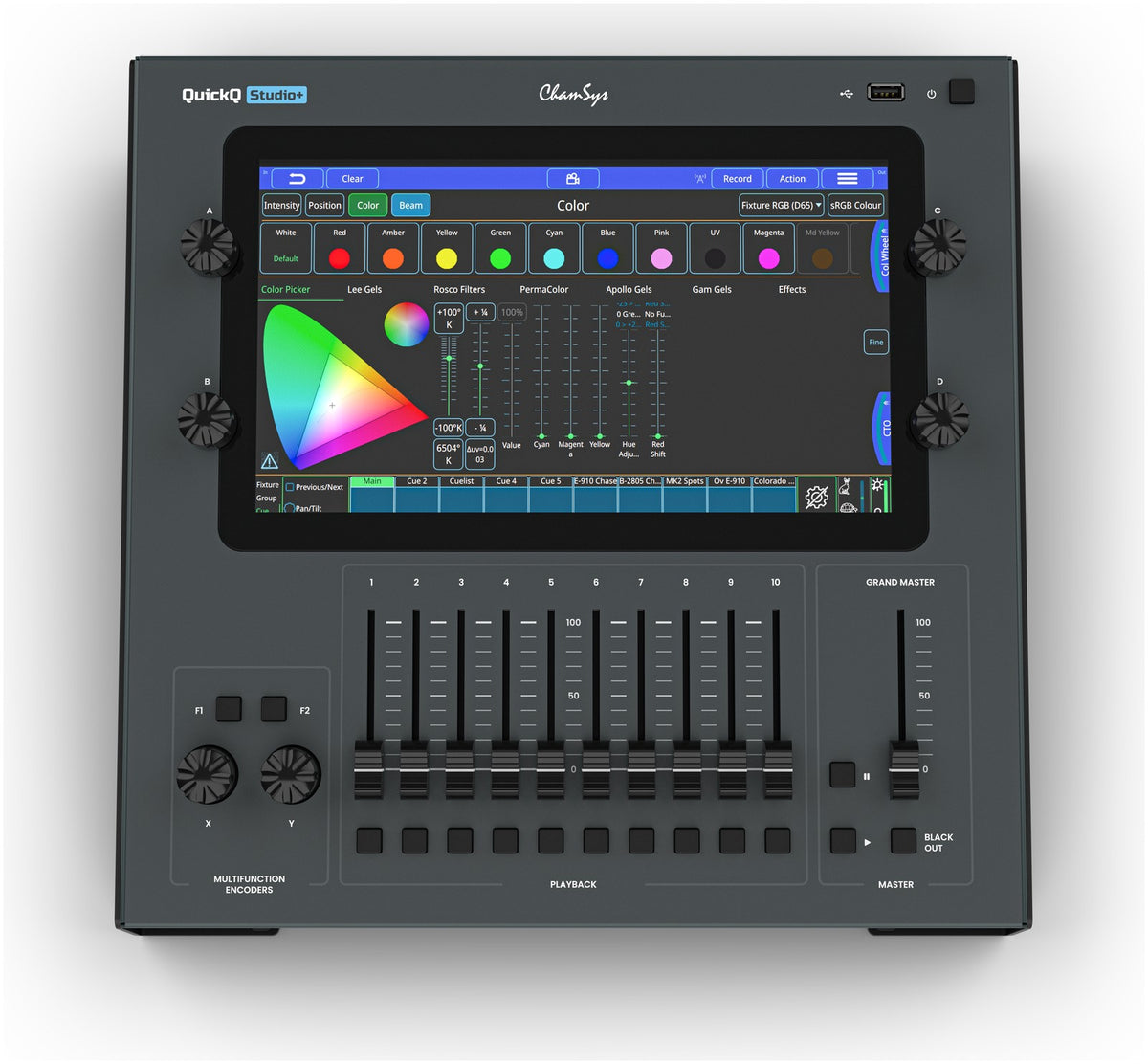

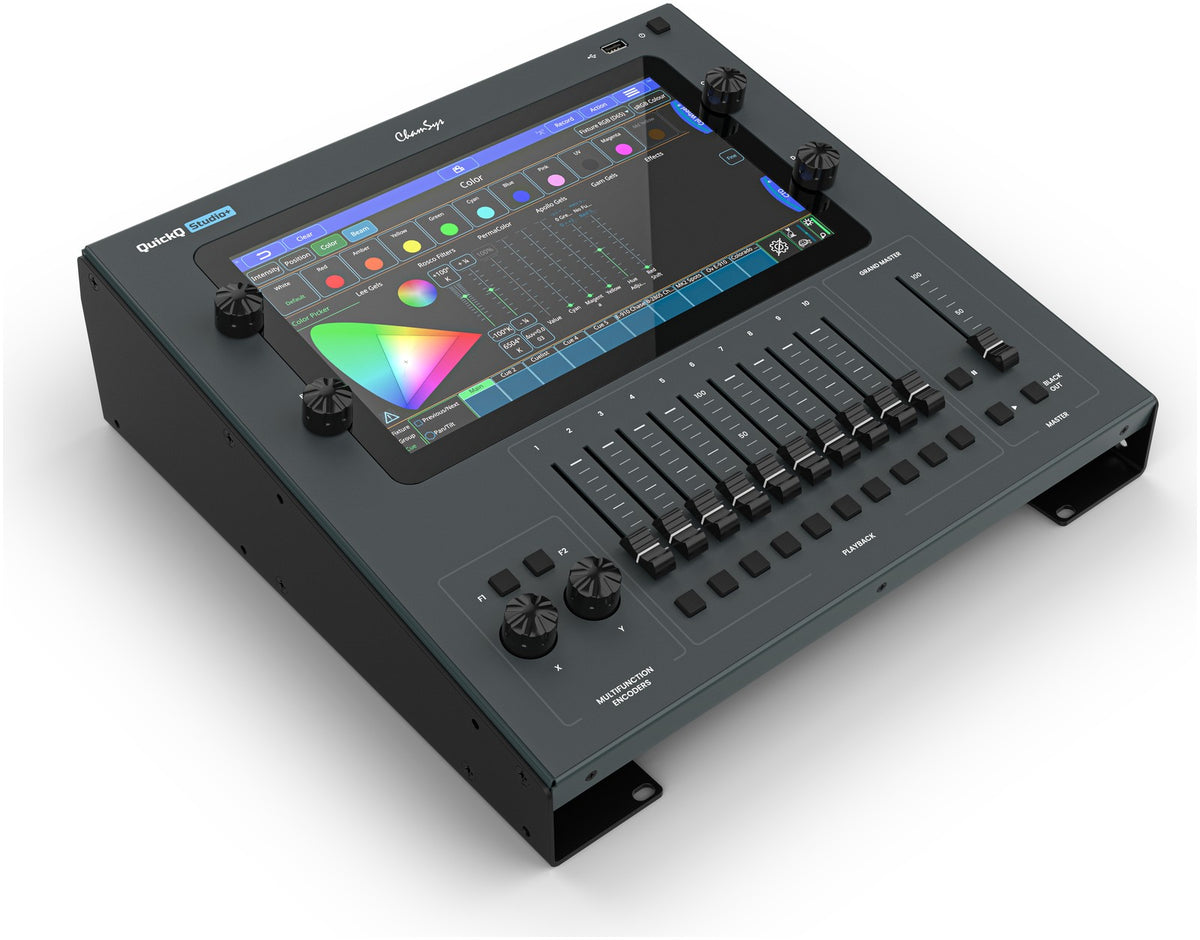

Chamsys QuickQ Studio+

A Compact Lighting Control Console for Studios, Venues and Permanent Installations

The QuickQ Studio+ is a lighting console designed to simplify the management of LED fixtures, moving heads, PARs, LED bars and DMX effects in a fixed installation. Its compact chassis fits easily into a technical rack, theatre control room, audiovisual studio, multipurpose venue, place of worship, educational institution or cultural space.

Its reversible rack ears allow you to choose between a 19-inch 8U installation and desktop use. This flexibility is particularly valuable in equipped venues where control room space is limited, as well as for service providers looking for a console that can be easily transported between a studio, stage and event.

A ChamSys Console Accessible to Technicians and Occasional Users

Thanks to its intuitive touchscreen interface and dedicated physical controls, the QuickQ Studio+ is suited to lighting operators and production technicians as well as teachers, activity coordinators, cultural venue managers and less experienced users. The main color, intensity, position and effects functions remain accessible without requiring mastery of complex programming.

It is ideal for operators of bars, restaurants, clubs, performance venues and event spaces who want to create reliable lighting looks on a daily basis. DJs, theatre companies, production studios and audiovisual integrators will also benefit from its extensive DMX control, dual-port network and external triggering capabilities.

Technical specifications

Type	19-inch format studio lighting console	RDM compatibility	yes
Mounting	8U rack or desktop use	RDM autopatch	yes
Rack ears	reversible	Main playback faders	10
Top width	365 mm	Bump buttons	yes
Rack-mount width	480 mm	Maximum number of cue stacks	5000
Depth	355 mm	Maximum number of chases	5000
Height	115 mm	Built-in screen	11.6-inch multitouch display
Weight	4.5 kg	Interface	smartphone-inspired icon-based system
Maximum power consumption	60 W	Attribute encoders	4
Universes supported	4	Multifunction encoders	2
Network protocols	Art-Net and sACN	Multifunction encoder functions	color and intensity control
Maximum number of DMX channels	2048	Effects generator	built-in
Maximum number of fixtures supported	2048	Color selector	built-in
Direct DMX outputs	2	Gobo library	built-in
DMX connectors	5-pin XLR	Fixture library	more than 60,000 files
