Chamsys QuickQ30+

A Touchscreen Console for Smooth Shows, from Programming to Playback

The QuickQ 30+ is a lighting console designed to simplify the creation and operation of lighting shows. It naturally fits DJ performances, weddings, private parties, clubs, multipurpose venues, corporate events, or permanent installations in bars and restaurants.

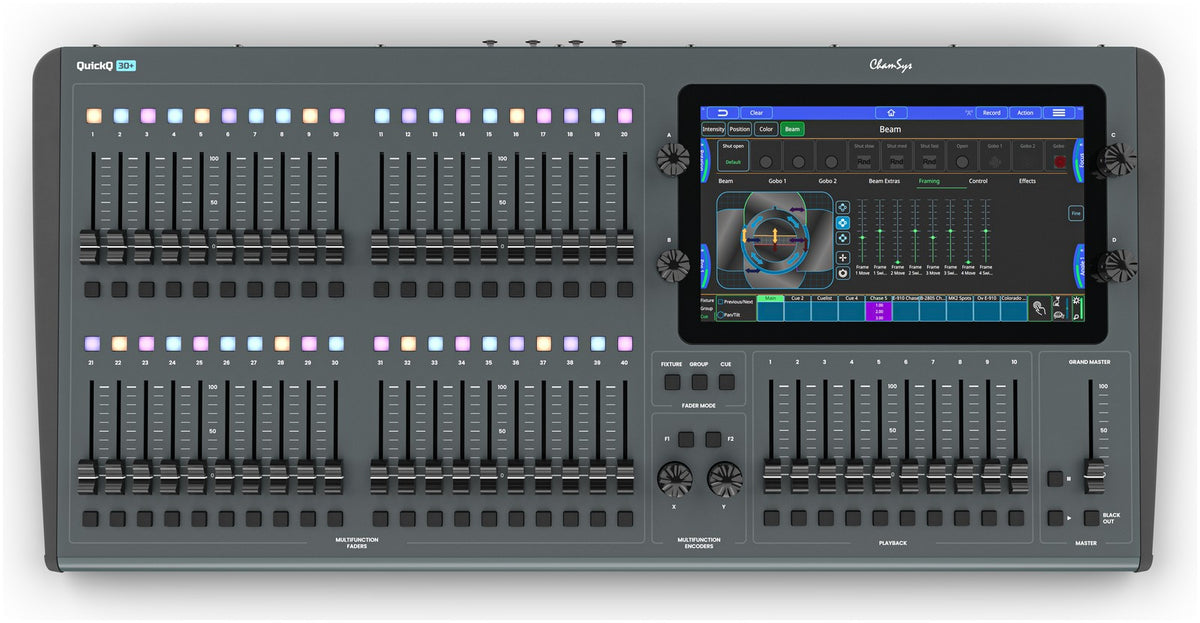

With its clearly laid-out faders, multitouch screen, and direct color and intensity tools, it provides quick control over the lighting atmosphere. Simplified Cues and Chases make it easy to sequence scenes, atmospheres, and effects, even when the pace of the evening calls for immediate adjustments.

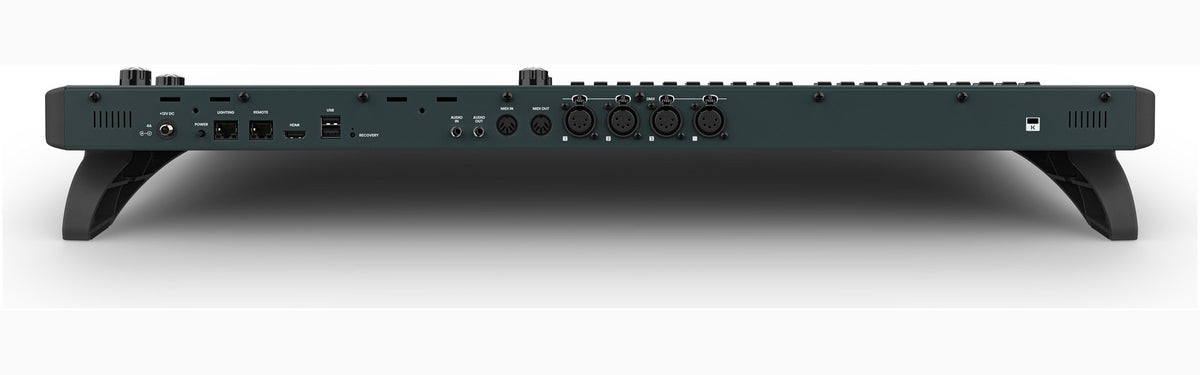

Its four direct DMX outputs make it easy to connect several lighting lines, while additional universes via the network open the way to more ambitious configurations. Separating lighting data from control data across two independent network ports enhances the reliability of a professional installation.

Accessible Operation for DJs, Technicians, and Venue Operators

This ChamSys console is aimed at mobile DJs, entertainers, beginner technicians, lighting directors, event service providers, and operators of small to medium-sized venues. Its interface, inspired by mobile devices, makes navigation clear and reduces the time required to get to grips with the main functions.

It is also suitable for users wishing to gradually move towards more comprehensive programming. The screen guides users through the various stages of patching, fixture selection, scene creation, and playback, without imposing a complex approach from the very first use.

For technical teams, compatibility with MagicQ systems is a major advantage: shows created on the QuickQ 30+ can be transferred to a more advanced ChamSys console as production requirements evolve.

Technical specifications

Universes supported	6	Maximum number of Chases	5000
Direct DMX outputs	4 5-pin XLR outputs	Built-in effects generator	yes
Network output	up to 6 universes via Art-Net and sACN	Color selector	yes
RDM compatibility	yes	Built-in gel library	yes
Maximum number of DMX channels	3072	Fixture library	more than 60,000 files
Maximum number of supported fixtures	3072	MIDI and MIDI timecode compatibility	yes
RDM auto-patch	yes	OSC support	yes
Built-in multitouch screen	11.6 inches	Offline programming software	available for Windows and macOS
External monitor	HDMI output, 1920 x 1080 resolution	Built-in Wi-Fi	yes
Main playback faders	10	Network ports	2
Multifunction fixture faders	40	USB ports	2
Bump buttons	yes	Audio input	1
Attribute encoders	4	Audio output	1
Multifunction encoders	2, dedicated in particular to color and intensity control	MIDI input and output ports	yes
Maximum number of Cue stacks	5000
