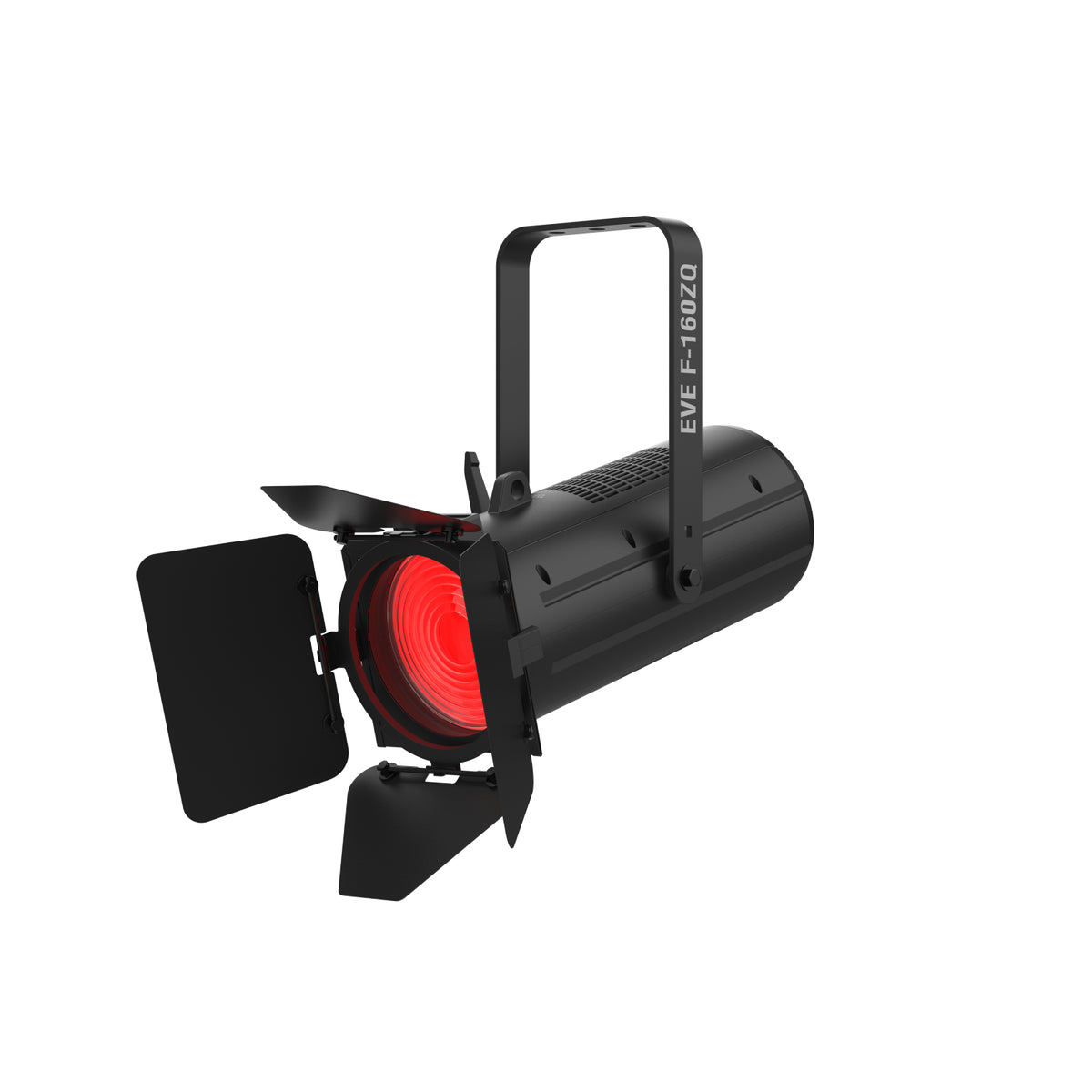

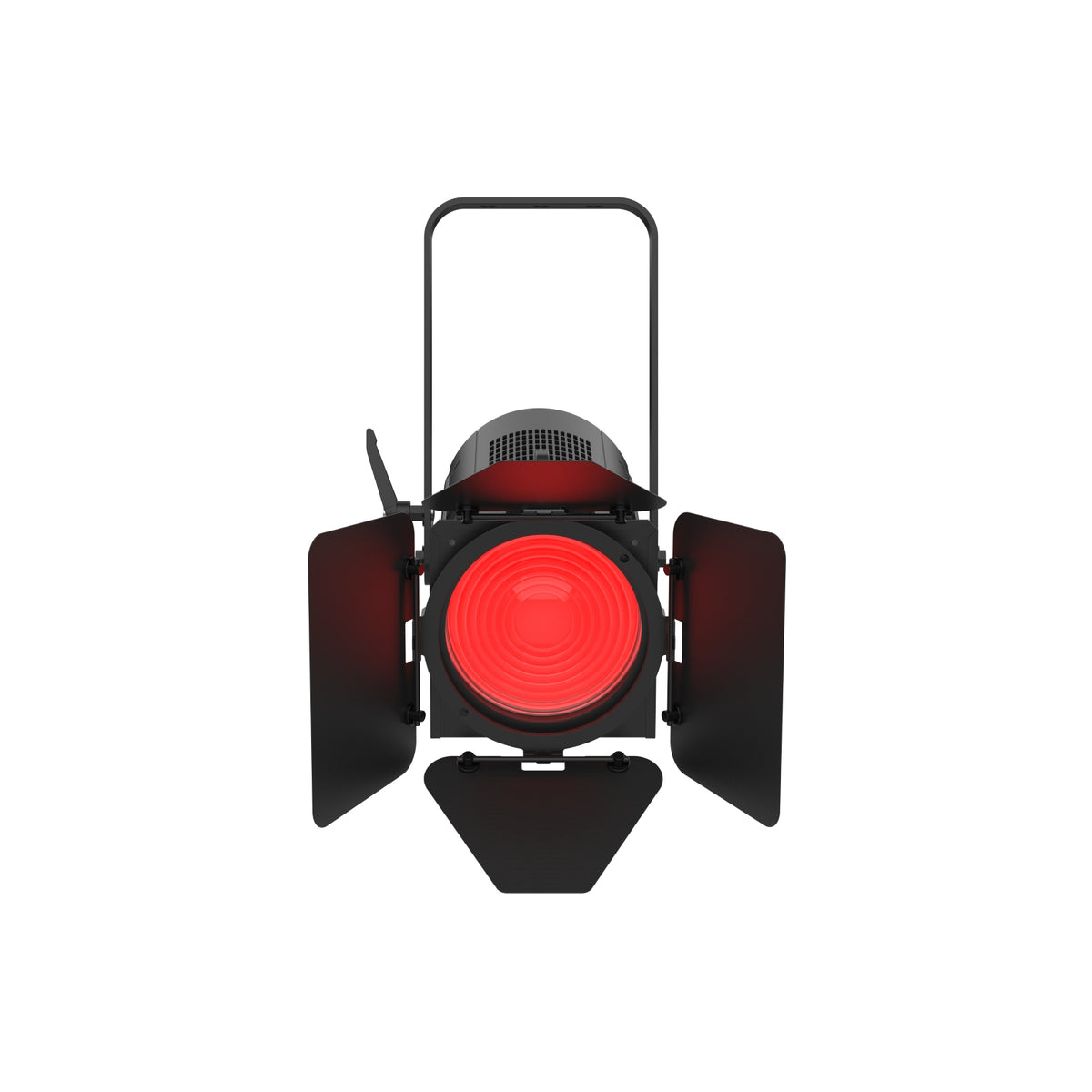

Chauvet DJ EVE F-160ZQ
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Chauvet Dj
https://www.chauvetdj.com
------------------------
Safety manager:
Chauvet Europe
Email: eutech@chauvetlighting.com
Address:
A Versatile Fresnel for Stage, Recording, and Installation
Designed for permanent installations and rental companies, this LED Fresnel provides steady, flicker-free light, ideal for theatre, studio, and video recording. Its zoom allows widening or focusing coverage depending on the distance to the subject, whether it's a TV set, concert stage, club, or event space. The powerCON daisy-chaining optimizes power lines in fixed installations (bars, restaurants, theaters) as well as on tour.
Who Is It For?
This spotlight is aimed at lighting technicians, theatre companies, studios, mobile DJs, and integrators seeking a compact, reliable Fresnel calibrated for demanding environments. The color temperature presets speed up white balance during recording, while DMX control or wireless master/slave via D-Fi USB facilitates both temporary setups and permanent configurations.
Features and Innovations
At the heart of this spotlight, a 160 W quad-color RGBW LED delivers a flux of 3219 lumens with a CRI of 96 to preserve the texture of costumes, sets, and skin tones. The variable zoom from 16deg to 61deg combines a precise beam with wide coverage as needed, while the 29deg to 90deg field ensures a smooth transition without a "hotspot." The CCT range from 2800 K to 8000 K provides ready-to-use whites, from warm tungsten to daylight-cool white, without manual mixing. The flicker-free operation secures image quality on high-speed cameras. For control, choose between 3, 4, or 11 DMX channels, use master/slave mode, or add a D-Fi USB module for wireless control. The powerCON inputs/outputs and segmented daisy-chaining (8 units at 120 V, 16 at 230 V) speed up installation. A strobe from 0 to 30 Hz completes the effects, and the 15.88 cm gel frame holder accepts your diffusion gels or color correction filters.
Technical specifications
| Light source | 1 quad-color RGBW LED 160 W, approx. 50,000 hours lifespan |
| Beam zoom | 16deg to 61deg |
| Field angle | 29deg to 90deg |
| Gel frame size | 15.88 cm |
| Color temperature range | 2800 K to 8000 K |
| Strobe frequency | 0 to 30 Hz |
| Illuminance (16deg) | 5975 lux at 2 m; 956 lux at 5 m |
| Illuminance (61deg) | 733 lux at 2 m; 117 lux at 5 m |
| Lumens | 3219 |
| CRI | 96 |
| DMX modes | 3, 4, or 11 channels |
| DMX connectors | 3- and 5-pin XLR |

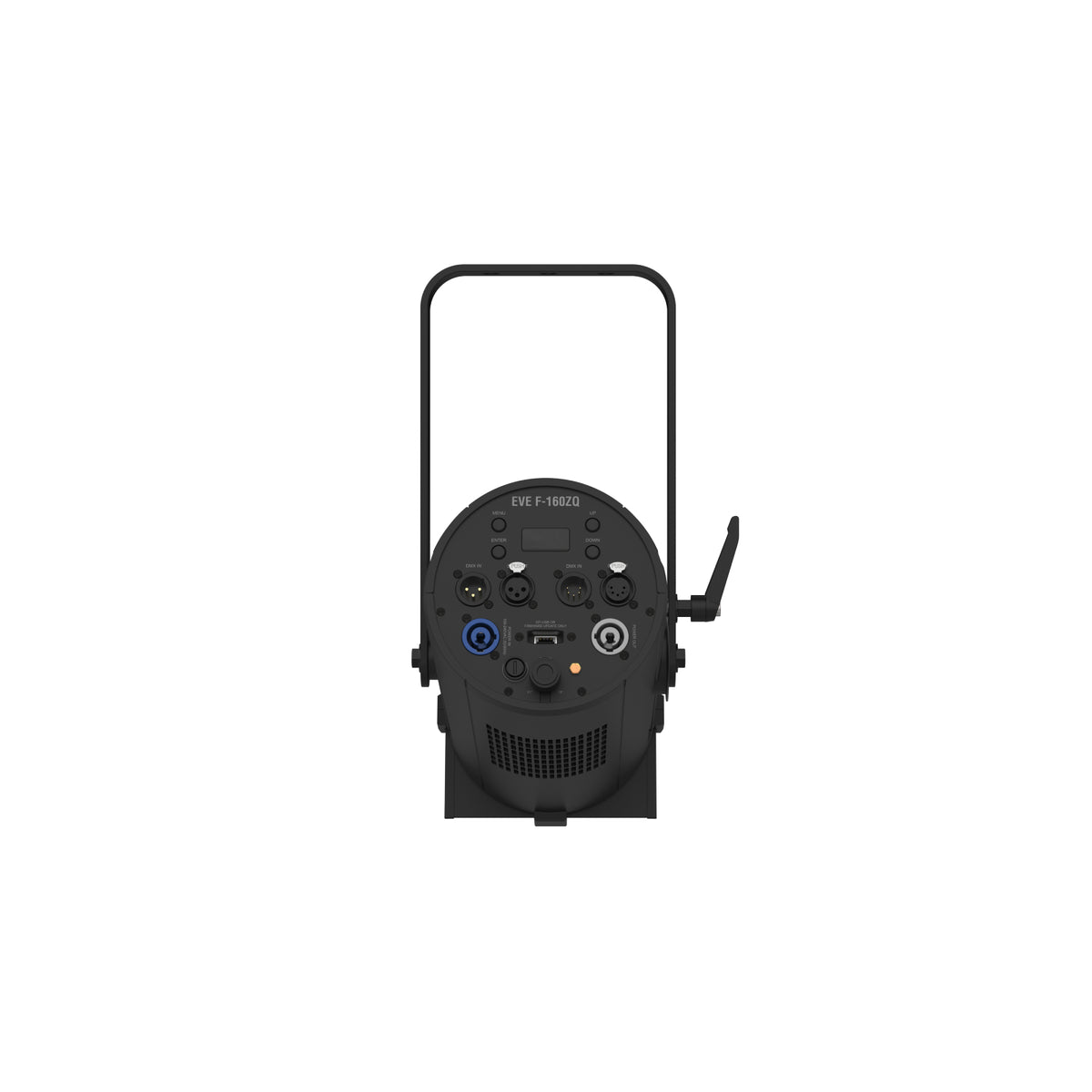

| Power input/output | powerCON (ideal for linking multiple units) |
| Daisy-chaining | 8 units at 120 V; 16 units at 230 V |
| Power consumption | 163 W, 1.4 A at 120 V, 60 Hz |
| Dimensions | 380 x 227 x 357 mm |
| Weight | 4.6 kg |
Questions frequently asked
What zoom does the Chauvet DJ EVE F-160ZQ offer?
The zoom adjusts from 16° to 61°, with a field angle ranging from 29° to 90°.
Is this LED Fresnel suitable for video and theater?
The 160 W RGBW LED operates flicker-free for video capture. Its CRI of 96 preserves the rendering of costumes, sets, and skin tones. Color temperature presets from 2800 K to 8000 K facilitate white balance.
What light output is at 5 meters?
At 5 m, the illuminance reaches 956 lux at 16° zoom and 117 lux at 61°. The specified luminous flux is 3219 lumens.
How to control this fixture via DMX or wirelessly?
Control is available via DMX on 3, 4, or 11 channels, through 3- and 5-pin XLR connectors. Master/slave operation is supported. Adding a D-Fi USB module enables wireless control.
Can multiple EVE F-160ZQ units be daisy-chained on one power supply?
The powerCON inputs and outputs allow daisy-chaining up to 16 units at 230 V.
