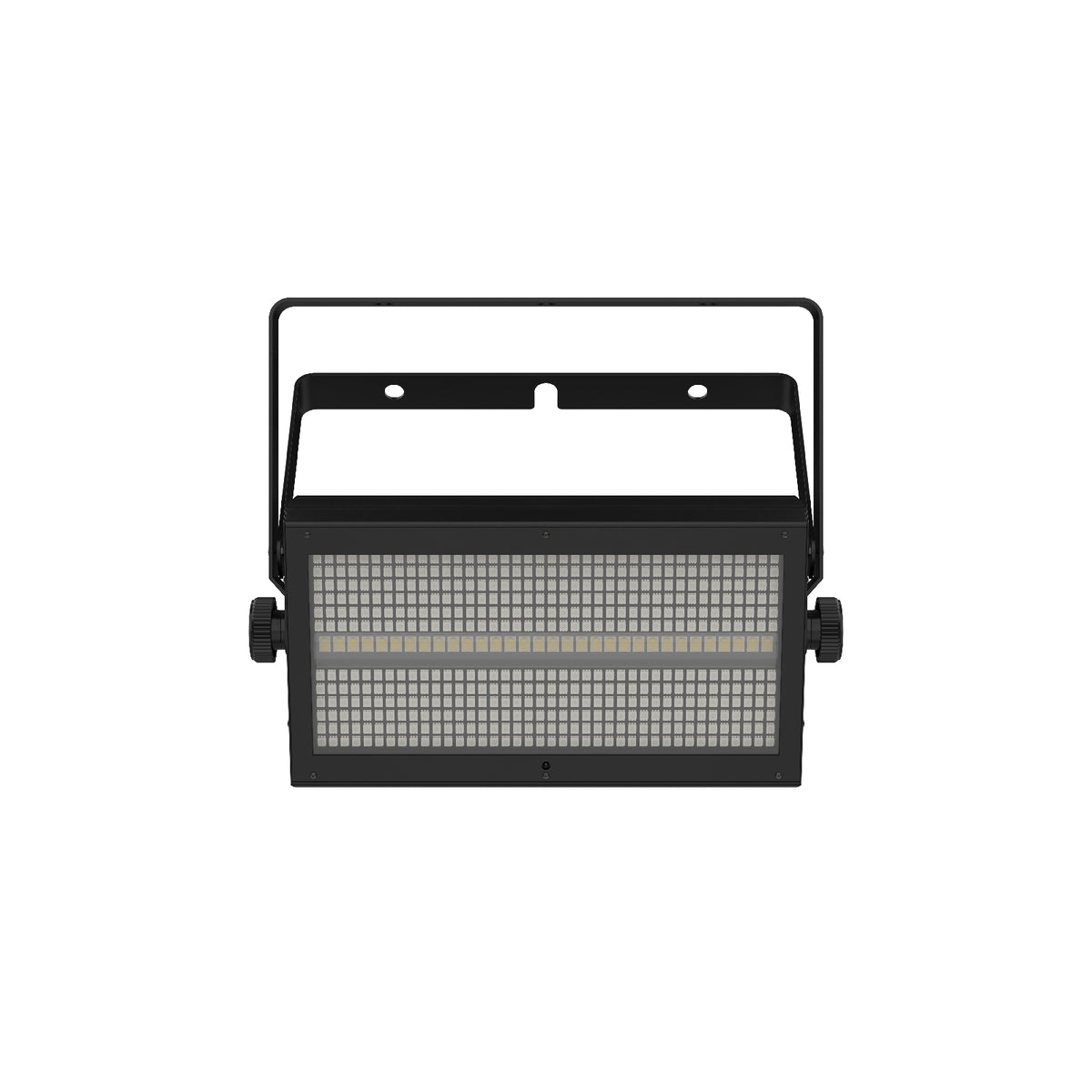

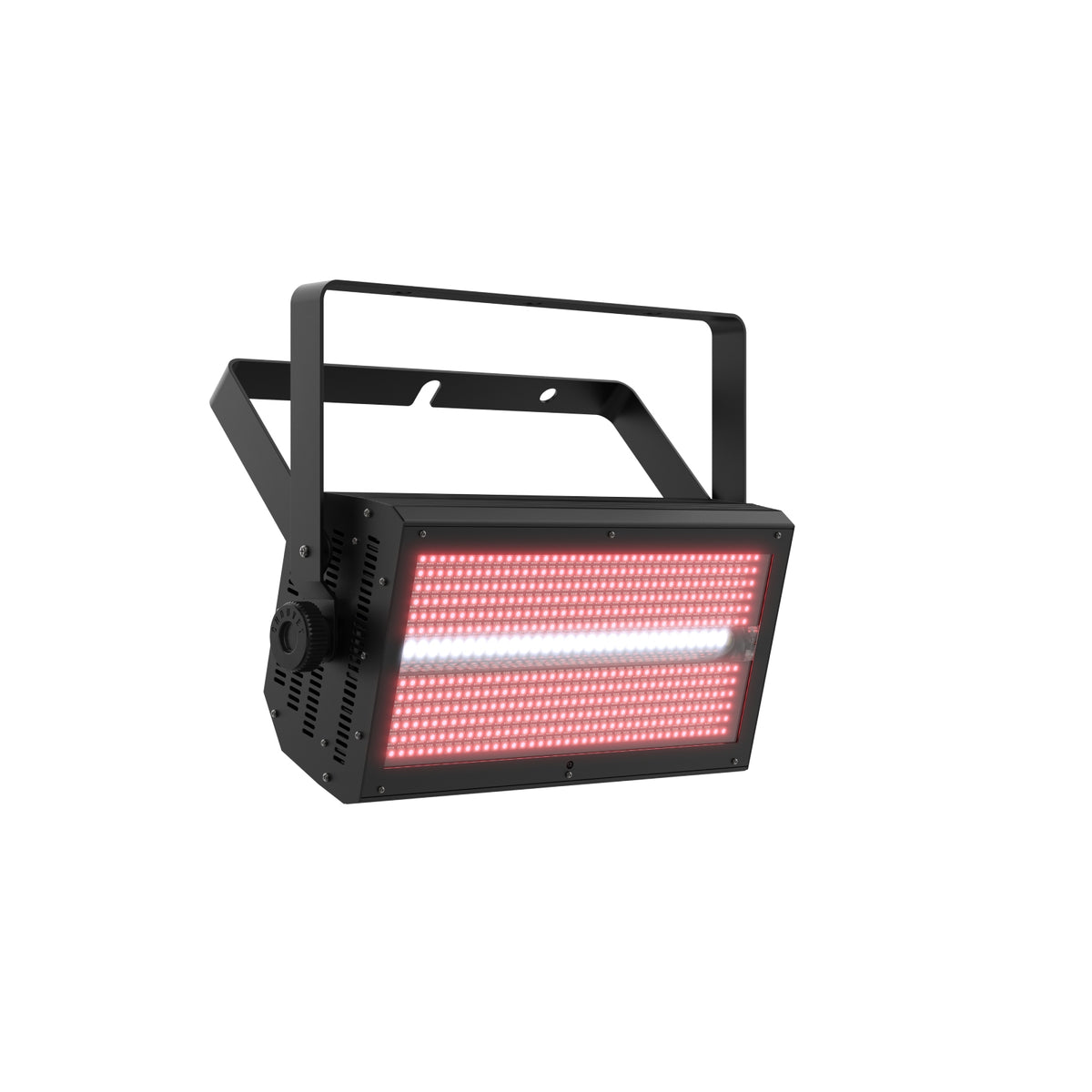

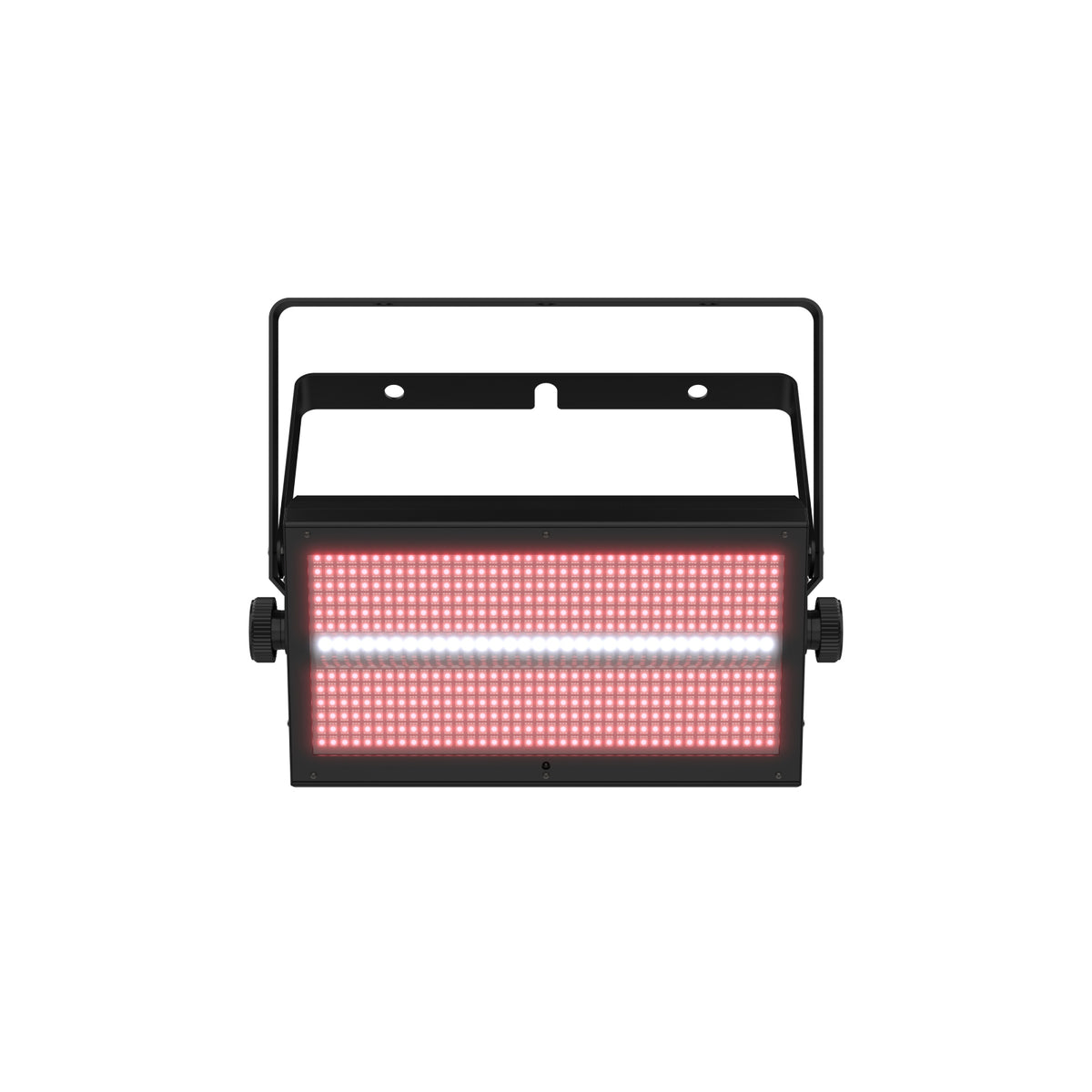

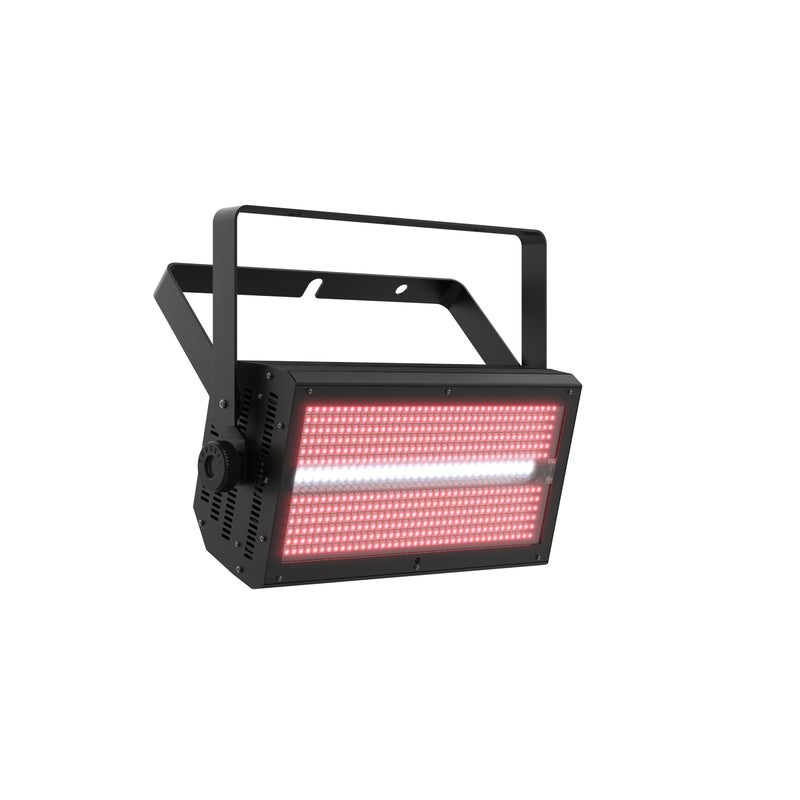

Chauvet DJ Shocker Panel FX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Chauvet Dj
https://www.chauvetdj.com
------------------------
Safety manager:
Chauvet Europe
Email: eutech@chauvetlighting.com
Address:
Set the Dancefloor on Fire: A Panel Designed for Events
Designed to energize your shows, the "Shocker Panel FX" delivers light impacts that match the rhythm and electrify the audience. In strobe mode, it projects dense flashes that sculpt the space. In wash mode, it blankets the stage with a uniform wash ideal for choruses and build-ups. In blinder mode, it creates light explosions that resonate at the end of tracks. Its versatility makes it a preferred ally for stages, clubs, weddings, private parties, DJ events, and fixed installations in bars or restaurants.
Who Is This Projector For?
The "Shocker Panel FX" is aimed at mobile DJs and hosts who want to impress without multiplying fixtures, lighting technicians seeking a compact panel to enrich a lighting plot, club operators wanting sharp effects that are easy to control, as well as event companies requiring quick, reliable, and creative deployment.
Features and Innovations

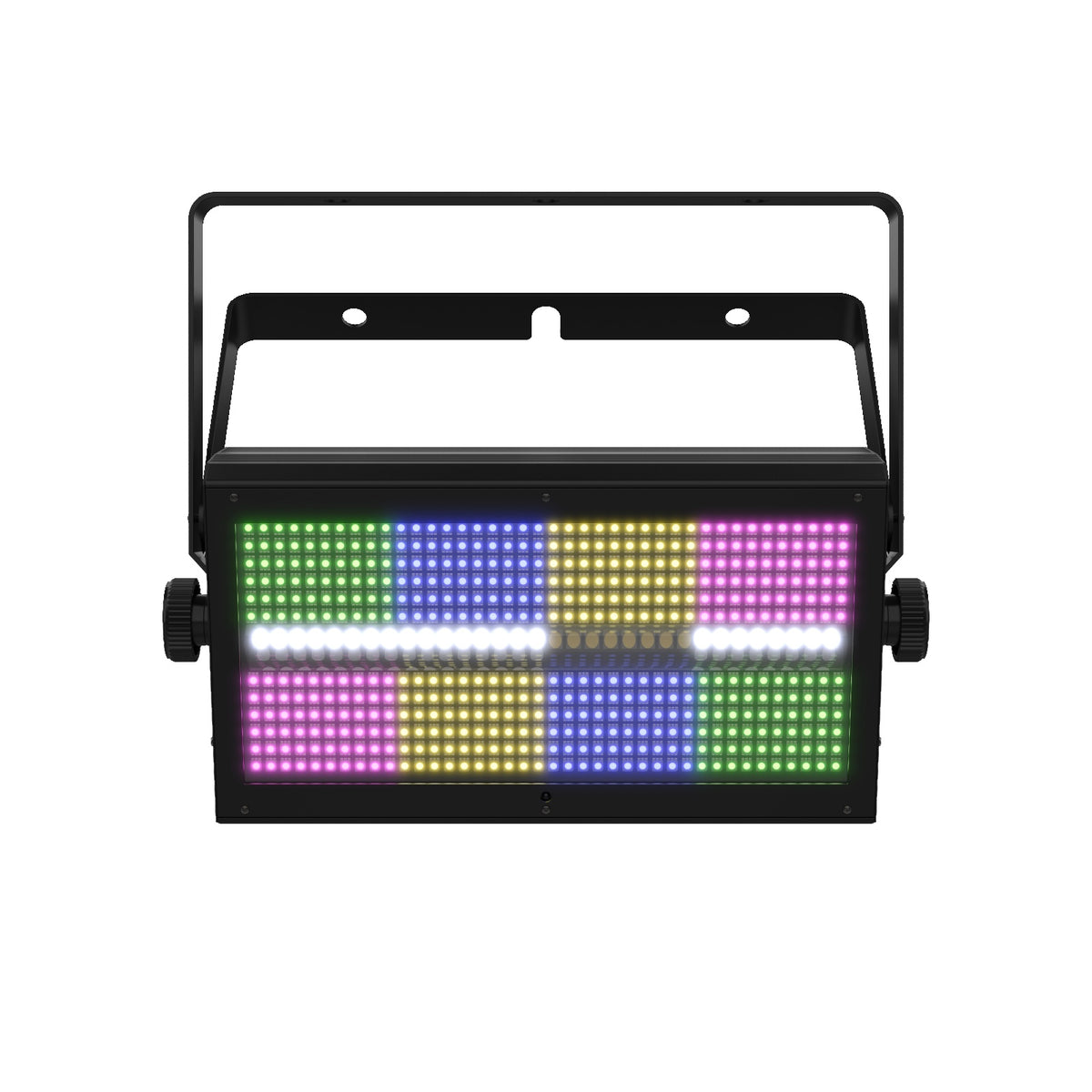

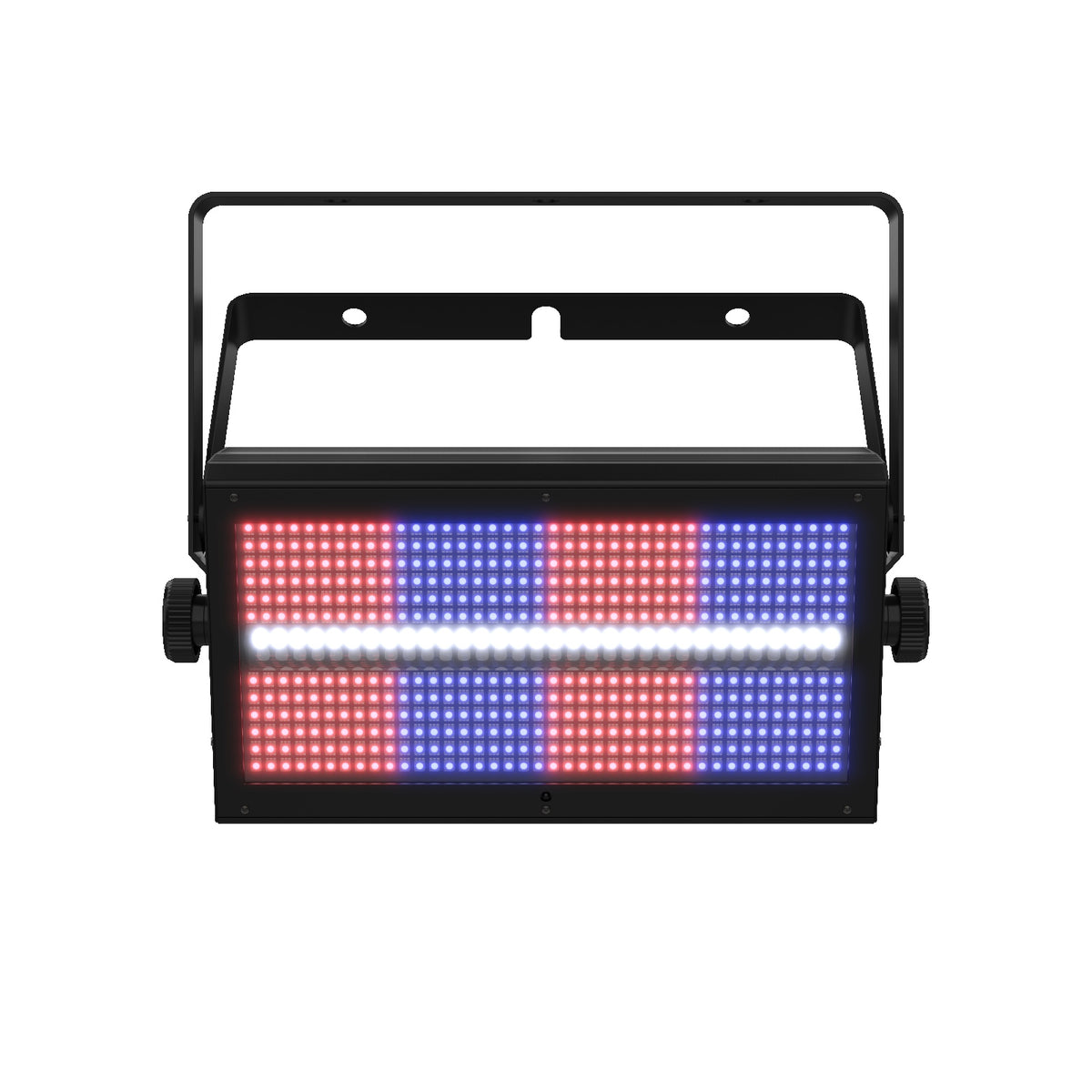

With its 512 LEDs and 16 independent zones, the "Shocker Panel FX" opens the door to expressive pixel mapping: waves, bursts, sweeps, stutters, precise chases, or light curtains-all built in a few programming steps. The strobe offers a wide speed range from subtle tremors to sharp lightning bursts. The wash delivers a clean and uniform output, ideal for front or ambient fill. The blinder mode enhances stage impacts, perfect for punctuating drops. On the control side, it integrates easily with a DMX console while offering automatic programs and a music-reactive mode when speed is essential. Smooth dimming, fast transitions, and crisp responses ensure faithful synchronization with musical energy.
Technical specifications
| Spotlight type | Wash | ||
| Source type | matrix of 512 high-intensity LEDs | Format | compact panel for easy integration into trusses, totems, or grids |
| Functions | strobe, wash, blinder | Mounting | adjustable mounting bracket for trusses, beams, or inclined floor placement |
| Pixel mapping | 16 individually controllable sections for pixel mapping | Usage | designed for indoor stage and event applications |
| Dimming | 0 to 100% with fast and clean transitions | DMX | XLR inputs/outputs for daisy chaining |
| Effects | variable speed strobe, chases, and dynamic effects by zones | Power | AC mains 50/60 Hz |
| Control | wired DMX | Stage and concert | strobe and blinder impacts to highlight breaks and drops |
| Operating modes | DMX, automatic, master/slave, music-reactive | Club and bar | dynamic chases and wash textures to enhance the atmosphere |
| Zone control | independent control of 16 sections to create patterns and sequences | Events | weddings, parties, corporate events, conventions, DJ sets |
| Interface | onboard menu for addressing and essential settings | Fixed installation | integration on front, sides, totems, or backstage |
Questions frequently asked
Does the Chauvet DJ Shocker Panel FX support pixel mapping?
Its 16 individually controllable sections allow for creating chases, sweeps, and zone-based patterns via DMX. The matrix comprises 512 high-intensity LEDs.
What control modes are available?

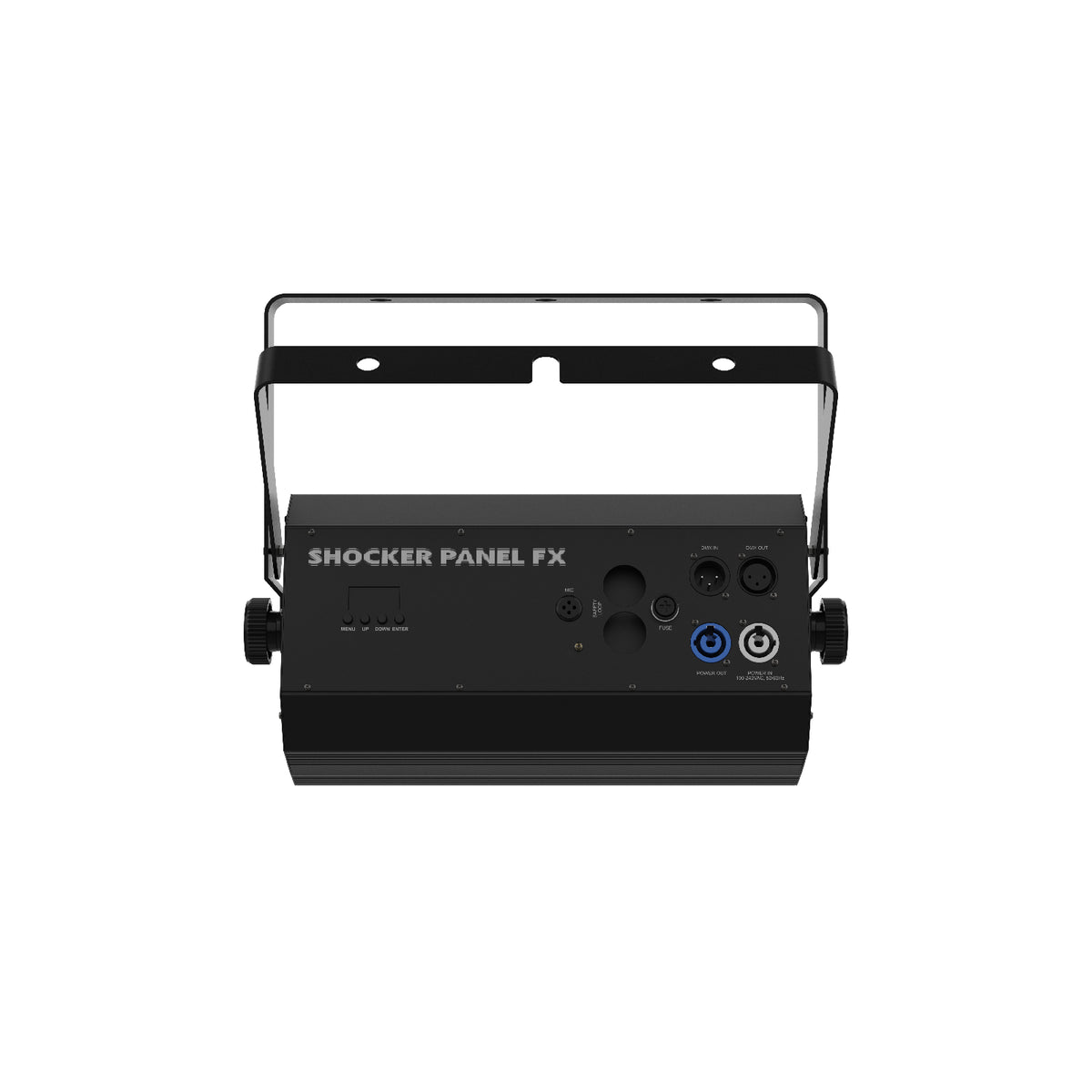

Control is done via wired DMX, with XLR inputs and outputs for daisy-chaining. Automatic, master/slave, and sound-responsive modes are also offered. An onboard menu is used for addressing and essential settings.
Can this panel be used as a strobe and blinder?
The LED source provides strobe, wash, and blinder functions, with variable strobe speed and dimming from 0 to 100%.
How to install the Shocker Panel FX on a rig?

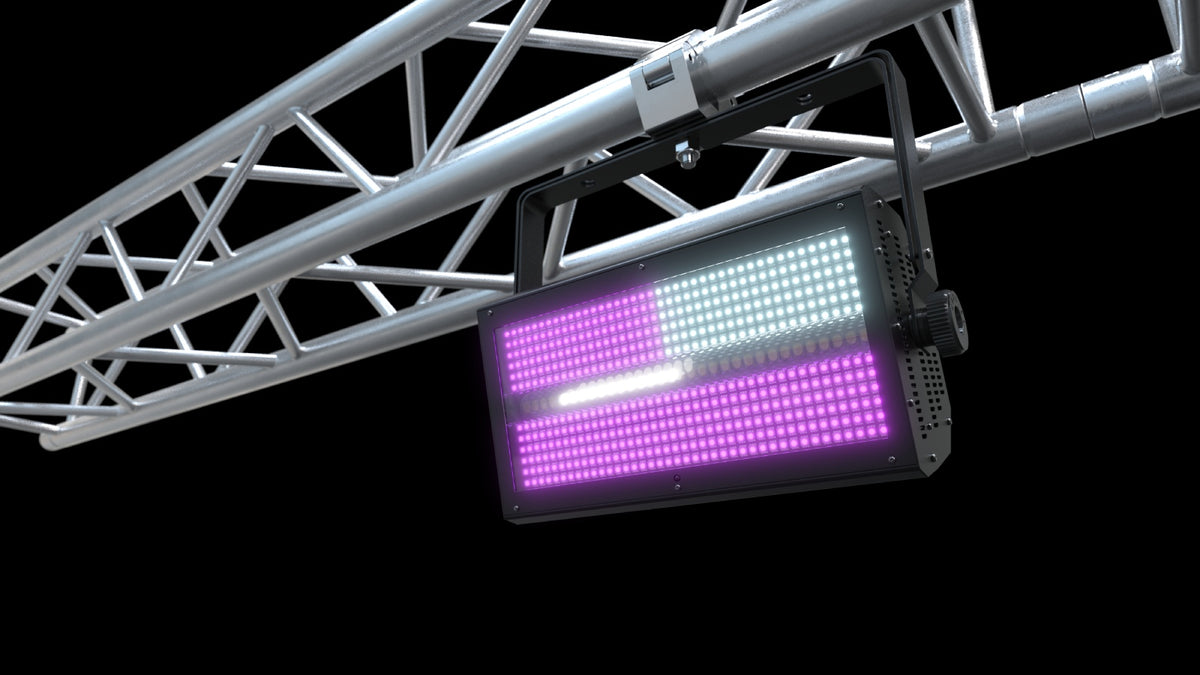

An adjustable bracket allows mounting on truss or beam, as well as floor placement with an incline. Its compact panel format makes integration on podiums, grids, or fronts easy.
For what stage applications is it intended?
Designed for indoor use, this fixture meets the demands of stage, concert, club, bar, and event settings. The 16-zone effects are particularly suited to highlighting breaks, drops, and DJ sets.
