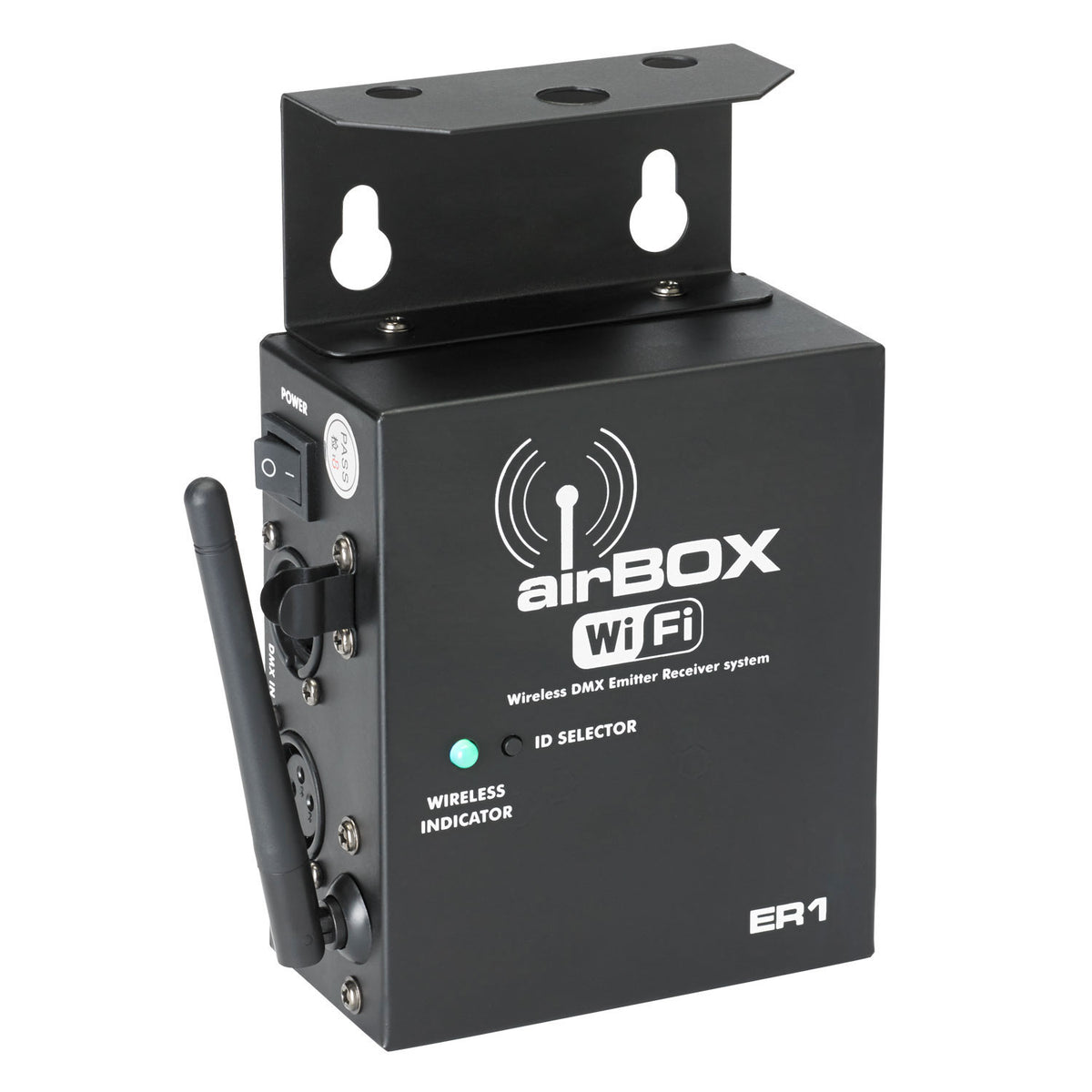

Essential Information About the airDMX airBOX-ER1 Unit
Essential Information About the airDMX airBOX-ER1 Unit
- Wireless DMX transmitter/receiver via 2.4 GHz WiFi "airDMX" with 7 channels to create independent groups.
- Automatic switching: wired DMX input detected = switch to transmitter mode; otherwise, operates in receiver mode.
- Typical range of 100 m in open field, tricolor LED for quick channel selection.
- Daisy chaining power + DMX, wall/structure mounting thanks to removable bracket.
Manufacturer Information
Contest
https://www.contestage.eu
------------------------
Safety manager:
HIT MUSIC
Email:
Address:
Free Your Shows from Cables
Ideal on stage, in clubs, at events (weddings, parties), for mobile DJs or in theater, the airBOX-ER1 speeds up setups, reduces cables, and secures pathways in high-traffic areas. Also perfect for fixed installations (bars, restaurants, showrooms) as well as home studios.
Who Is It For?
For DJs, lighting technicians, service companies, installers, and venue operators seeking a reliable, simple, and robust wireless DMX solution to connect fixtures spread over large areas.
Technical specifications
| Technology | "airDMX" via 2.4 GHz WiFi (ISM band 2.400â2.483 GHz) | Reception sensitivity | -94 dBm |
| Channels | 7 selectable "airDMX" channels for grouping fixtures | Power supply | AC 100â240 V, 50/60 Hz |
| DMX | 512 channels | dimensions | 165 x 120 x 53 mm |
| Average range | 100 m in open areas (depending on conditions) | Net weight | 0.5 kg |
| Transmission power | 20 dBm (100 mW) | ||
You will also like
Power Lighting
Wirless 512 DMX
Algam Lighting
Wireless DMX transmitter + receiver pack
Algam Lighting
DMX-WT Wireless DMX transmitter male 3-pin
Algam Lighting
DMX-WR Wireless DMX receiver female 3-pin
Chauvet DJ
D-FI XLR Pack
Power Lighting
Wirless 512 DMX FEM
Chauvet DJ
RFC-XL
Algam Lighting
DMX-WRB - Wireless battery-powered DMX receiver
Questions frequently asked
What wireless DMX range does the Contest AIRBOX-ER1 offer?
The average range is up to 100 m in open areas, depending on operating conditions. Transmission uses the ISM band 2.400-2.483 GHz with an output power of 20 dBm.
How many DMX channels can this unit handle?
Up to 512 DMX channels can be managed.
Is it possible to create multiple wireless fixture groups?
Seven selectable airDMX channels allow grouping fixtures. Selection is done via a button paired with a tricolor LED indicator.
What DMX connectors are available on the AIRBOX-ER1?
One DMX input and one DMX output are integrated for insertion into a lighting chain. The AC power supply operates at 100-240 V, 50/60 Hz. Electrical daisy-chaining up to 10 units is supported, with a maximum current of 10 A.
Can the unit be mounted on a structure?
The metal housing comes with a removable bracket designed for mounting on a structure or wall. Its dimensions are 165 x 120 x 53 mm with a net weight of 0.5 kg.
