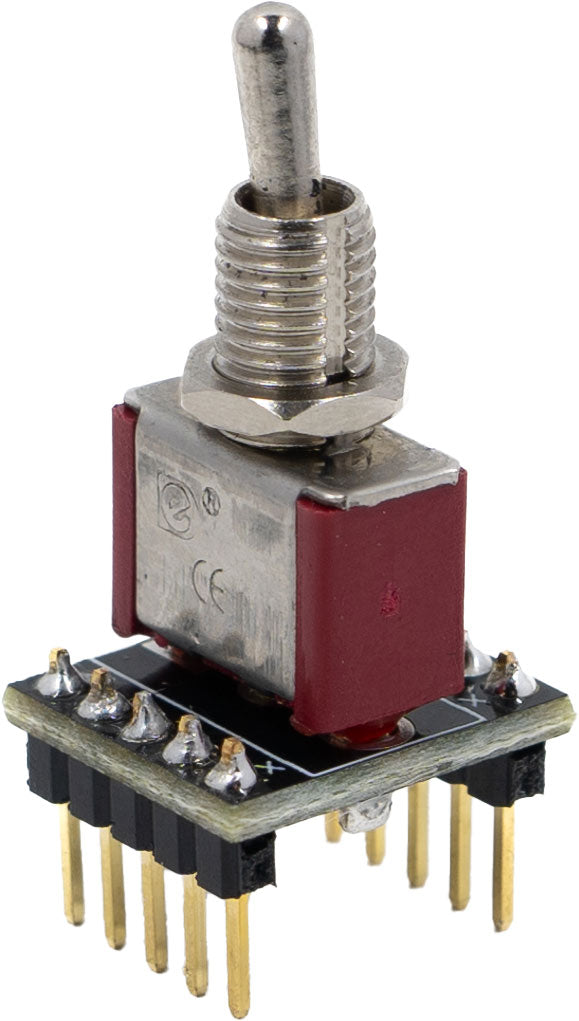

CopperSound SPDT (On-Off-On) Toggle Switch
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
CopperSound
------------------------
Safety manager:
Filling Distribution
Email:
Address:
A CopperSound DIY Classic to Multiply Wiring Options
This SPDT toggle switch is essential when you want to enhance a pedal without complicating the schematic. In a DIY context, it allows adding quick configuration choices (two options + an off position), while keeping the assembly easy to troubleshoot and upgrade.
Who Is It For and What Guitar Pedal Builds?
This toggle is aimed at builders, modders, and hobbyists prototyping on breadboards or finalizing wiring in enclosures. It is also well suited for projects where you want to compare two components (or two audio paths) with a neutral position to validate circuit behavior.
An SPDT "on-off-on" Switch Designed for Routing and Testing
Three Positions for Clear Choices
With its central "off" position, this SPDT allows switching between two states while including a stop step. Practically, this facilitates A/B testing, temporary deactivation of a section, or securing a setting during diagnostics.
Common Use Examples
Selection of two capacitor values (filtering), choice between two diode sets (clipping), enabling/disabling an option, routing signal to two different paths, or comparing two "homebrew" settings within the same pedal.
Technical specifications
| Fictitious load | No | Destination | effect pedal |
| IR loader | No | Headphone outputs | No |
| Category | amp accessory | Color | Grey |
| Type | SPDT | Function | on-off-on |
| Format | lever switch (toggle) | Applications | DIY, prototyping, and wiring of guitar pedal circuits |
| Positions | 3 | Role | selection between two options with a central off position |
Questions frequently asked
Does an SPDT on-off-on switch allow cutting the circuit in the center position?
The central "off" position breaks the connection, while the two extreme positions each select an option.
How to wire a 3-position toggle switch in a guitar pedal?
This switch uses a three-position SPDT configuration, designed to select two options with a central off stop. Its lever format fits into guitar pedal circuit assemblies. It is intended for DIY wiring and prototyping.
Is it possible to select two capacitor values with this switch?
It is possible to choose two capacitor values to modify filtering, with a central off position between the two settings. The same logic can be used to compare two sets of clipping diodes.
CopperSound SPDT (On-Off-On) Toggle: for which DIY projects?
This model is aimed at builders and modders working on breadboards or finishing a pedal in an enclosure. It notably allows routing the signal to two separate paths or activating an option.
Is this toggle suitable for testing two A/B circuits?
The on-off-on configuration facilitates comparing two components or two audio paths. The central break allows temporarily disabling a section during troubleshooting.
