Cordial CABLE REEL DMX 100 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

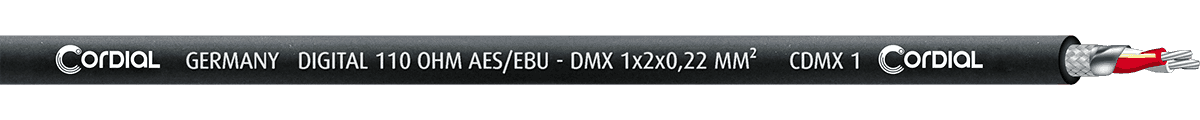

The Essentials to Know About the Cordial CDMX 1
- 110-ohm DMX cable designed for the transmission of AES/EBU and DMX digital signals with excellent stability.
- Slim 4.5 mm format, convenient for pulling through racks, lighting trusses, or fixed installations.
- S/FTP shielding with aluminum polyester foil and tinned copper braid to effectively limit interference.
- 100 m reel ideal for creating custom runs in control rooms, on stage, or in permanent installations.
Technical specifications
| Connectors | None | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned copper braid and aluminum/polyester foil (S/FTP) |
| Sheath material | PVC | Color | Black |
| Oxygen-free copper | Yes | Length (m) | 100 m |
| Number of pairs | 1 | ||
Questions frequently asked
Is this cable compatible with DMX and AES/EBU?
Its 111-ohm impedance allows the transmission of DMX and AES/EBU digital signals. It features a pair of 0.22 mm² oxygen-free copper conductors.
Which connectors should be fitted on the Cordial CDMX 1 reel?
The 100 m reel is supplied without connectors on either end. This allows wiring to be adapted to the connectors required by the installation.
What is the diameter of the Cordial DMX cable?
With an outer diameter of 4.5 mm, this cable is easy to pull through racks, lighting trusses, and fixed installations.
Does the shielding reduce interference in lighting installations?
The S/FTP structure combines an aluminum/polyester foil and a tinned copper braid. This dual shielding is designed to minimize interference on digital links. The specified capacitance is 42 pF/m.
Is the reel suitable for making custom-length DMX cables?
The 100 m of cable allows creating custom links for consoles, fixtures, dimmers, and compatible interfaces. The black PVC jacket protects the cable during wiring.
