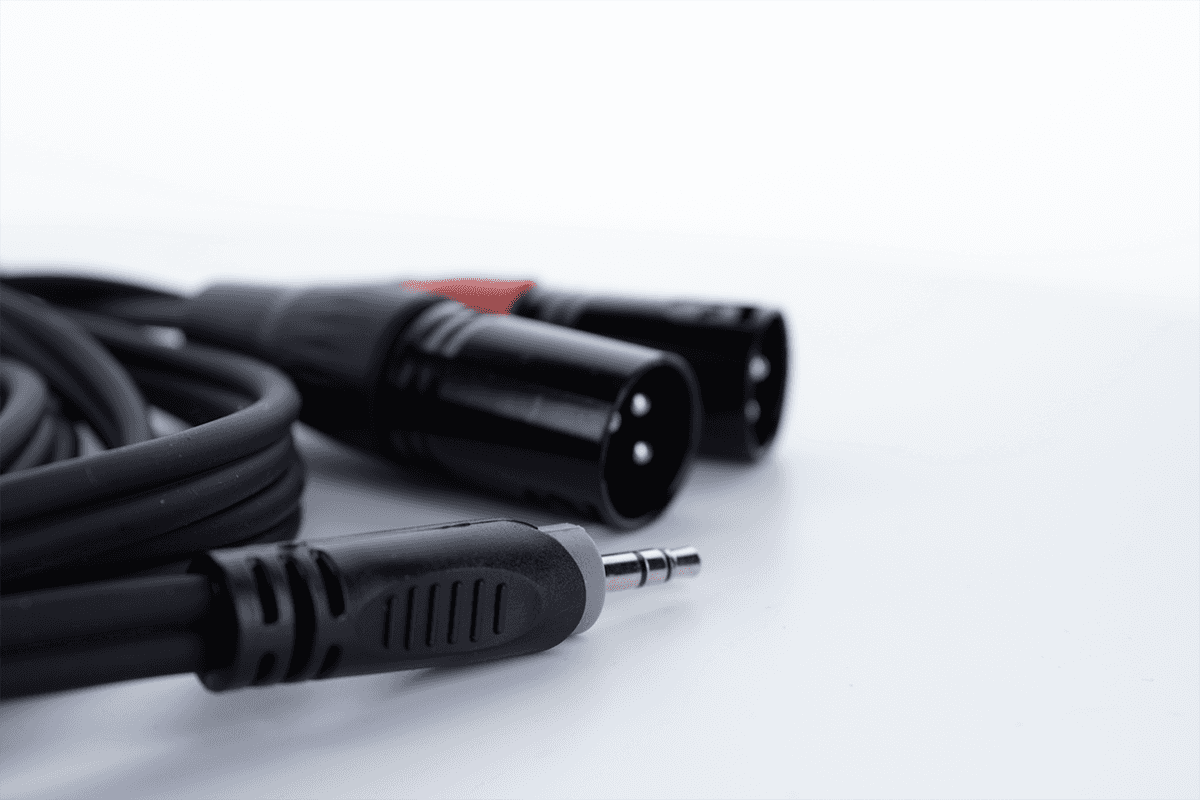

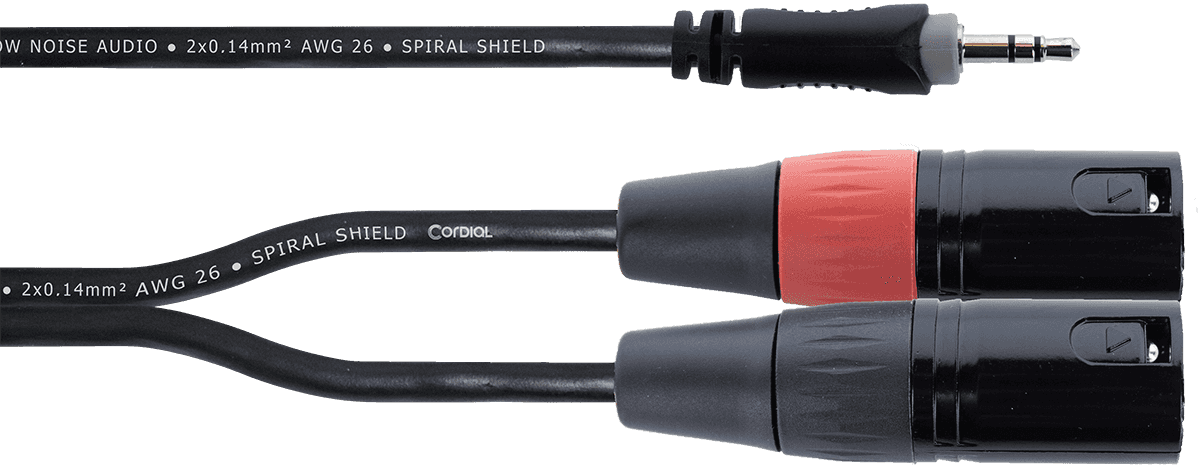

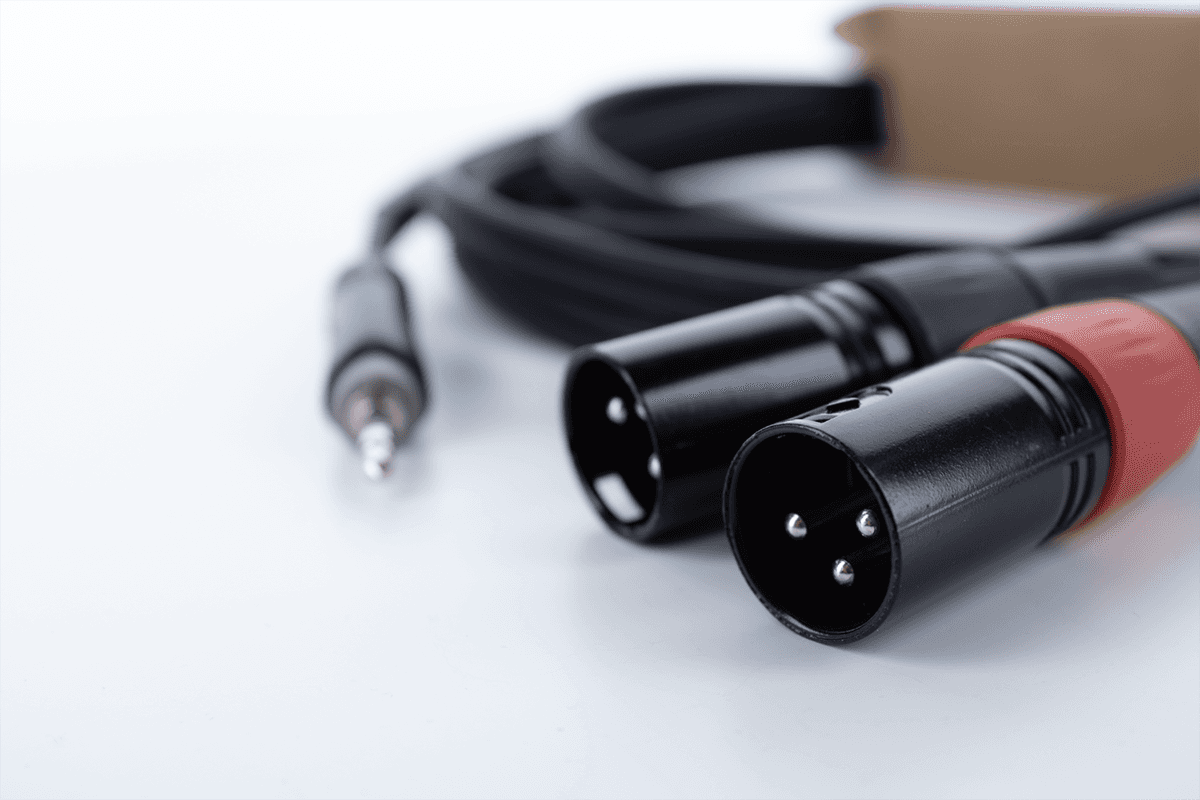

Cordial Y Cable Stereo Mini-Jack / 2 Male XLR 3 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the 3 m Stereo Mini-Jack to 2 Male XLR Y Cable
- Y audio cable designed to connect a stereo mini-jack output to two male XLR inputs, ideal for studio, stage, or fixed installations.
- Oxygen-free copper conductors for cleaner and more stable signal transmission, with accurate audio source reproduction.
- Bare copper spiral shielding limiting interference and noise in demanding musical environments.
- Molded connectors and black PVC jacket for reliable, flexible, and durable daily use.
Technical specifications
| Number of channels | 2 | Sheath material | PVC |
| Connectors | Stereo male mini jack, 2 x male XLR | Molded connectors | Yes |
| From connectivity | 3.5mm stereo male minijack | Oxygen-free copper | Yes |
| Towards connectivity | XLR 3-pin male | Cable cross-section (mm²) | 0.14 SQUARE_MILLIMETER |
| To solder | No | Shield type | bare copper spiral |
| Category | Y cable | Color | Black |
| Format | straight | Length (m) | 3 m |
Questions frequently asked
How to connect a computer to a console with two XLR inputs?
The stereo mini-jack output of a computer, tablet, or audio player can be connected to two XLR inputs thanks to the two separate left and right channels. Both XLR connectors are 3-pin male.
Does this mini-jack to XLR cable carry a stereo signal?
The cable features 2 channels: the stereo mini-jack distributes the signal to the two male XLR connectors. This setup allows sending the left and right channels to a console or an audio interface.
What is the length of the Cordial stereo mini-jack to 2 male XLR Y cable?
The total length is 3 m.
Is the cable shielded against interference?
A bare copper spiral shield is integrated to reduce interference and noise. The conductors are made of oxygen-free copper with a cross-section of 0.14 mm².
Are the connectors soldered?
The molded connectors require no soldering. The black PVC jacket retains flexibility suited for repeated connections.
