Dante DANTE-AES3 -2 IN/OUT

Name: DANTE-AES3 -2 IN/OUT
Brand: Dante
SKU: 378561
Price: 316.00 EUR
Availability: InStock

316,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 378561

EAN : 9353345000060

This item is covered for 3 years

Information

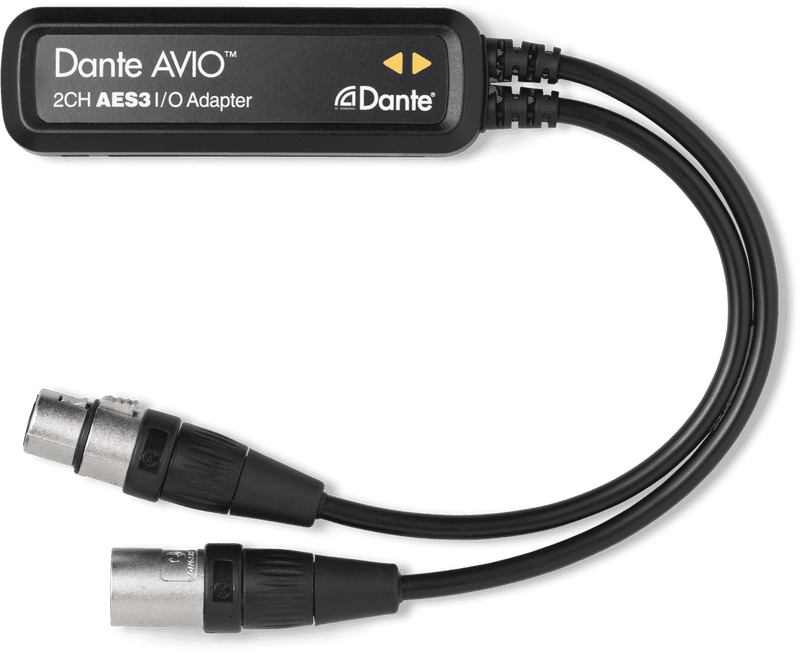

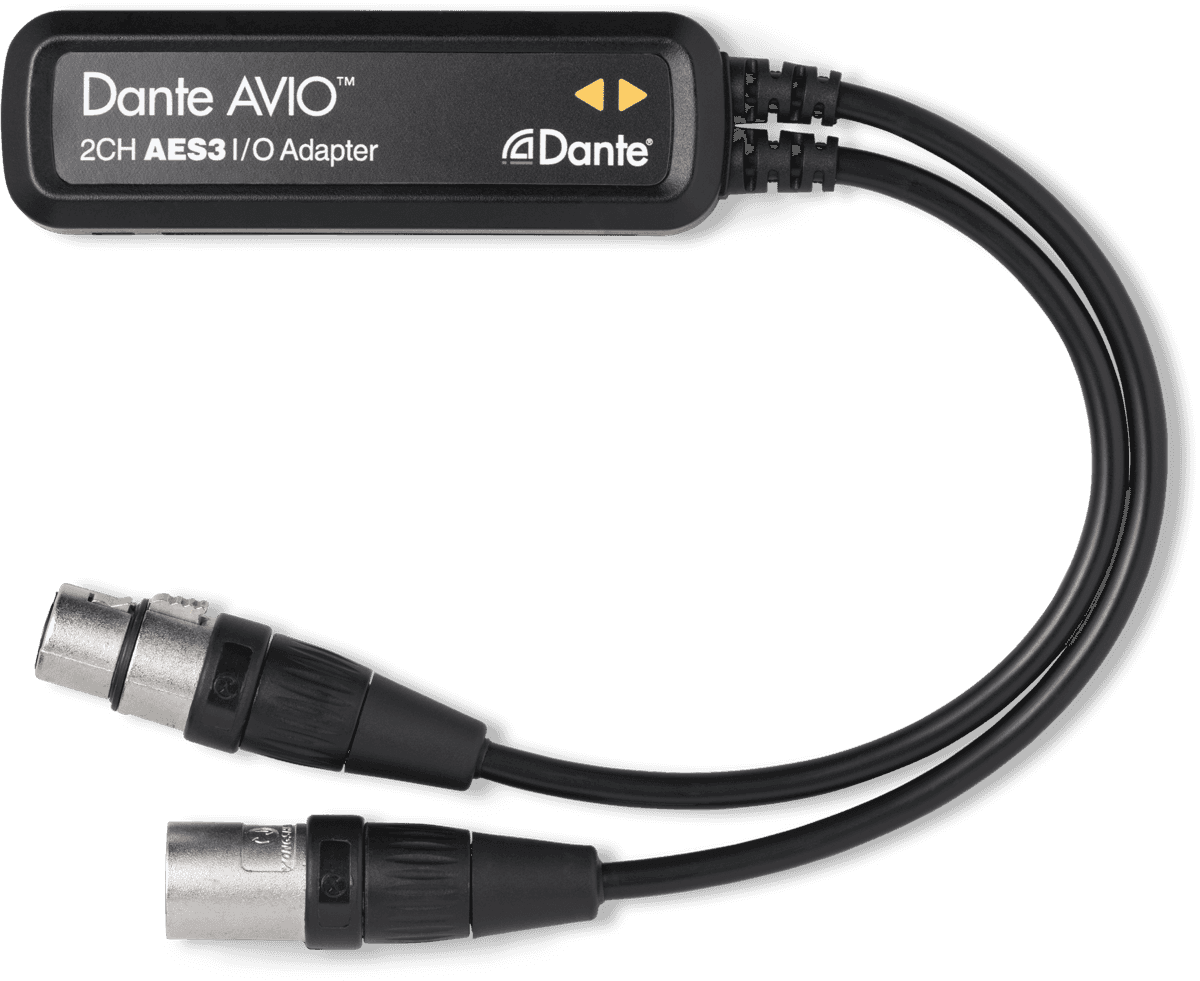

Essential Information About the Dante AVIO AES3/EBU Adapter

• Bidirectional Bridge: converts 2 AES3 channels to the Dante network and vice versa, allowing easy integration of your existing digital equipment.

• Professional Audio Quality: compatible with 44.1 kHz / 48 kHz / 96 kHz at 24 bits for precise reproduction in both studio and live settings.

• Simple Network Integration: RJ45 connection and PoE (Power over Ethernet) power supply to reduce cabling and speed up installation.

• Ready-to-use AES3 Connectivity: 1 male XLR + 1 female XLR, standard format to fit most digital audio chains.

DANTE-AES3 -2 IN/OUT

316,00 €VAT incl.

0,00 € Ecotax included

Reference price

Bridging AES3/EBU and the Dante Network Without Changing Your Habits

Many amplifiers, DSPs, and preamps remain benchmarks in performance and installation, notably due to their AES3/EBU connectivity. The Dante AVIO AES3/EBU follows this logic: rather than replacing perfectly functional equipment, it allows you to make it compatible with a Dante audio network. This way, you keep your tools and workflow while benefiting from the flexibility of audio transport over IP.

Who Is It For and What Are Its Uses?

This adapter is aimed at integrators, stage managers, studios, and venue operators who want to distribute or capture an AES3 signal over a Dante network. It is ideal for connecting rooms, linking remote spaces, or simplifying installations where reliable digital audio transmission is required. It is also a practical solution for integrating external equipment into a Dante system without complicating the overall architecture.

Questions frequently asked

Is it possible to send and receive AES3 over a Dante network?

The gateway transmits 2 AES3/EBU channels to Dante and converts a Dante stream back to AES3. Male and female XLR connectors provide AES3 input and output connections, respectively.

Which sampling frequencies are supported?

Compatibility includes 44.1 kHz, 48 kHz, and 96 kHz at 24-bit resolution.

Does the Dante DANTE-AES3 -2 Channels I/O require external power?

Power is supplied via PoE through the Ethernet network. No external power supply unit is specified in the provided specifications.

What network and AES3 connectors are available?

An RJ45 jack is provided for the Dante network. The AES3 connection uses one male XLR and one female XLR with an impedance of 110 ohms.

Can it integrate a preamp or AES3 amplifier into a Dante setup?

This adapter allows integration of a device with AES3/EBU connectivity into a Dante infrastructure. It can carry 2 digital channels between a preamp, DSP, or amplifier and the network. The specified signal-to-noise ratio exceeds 135 dB.
