A 1U Console Designed for Integration in Public Spaces
The Compact 9.2 1U was designed to meet the constraints of fixed installations where reliability and simplicity are paramount: bars, schools, multipurpose rooms, public venues, or reception areas. Its 19-inch rack format with 1U height facilitates integration into a technical rack while maintaining a "no surprises" operational logic: once configured, the end user only needs to select the correct source and adjust the level.
Who Is It For, and What Are Its Uses?
This mixing console is primarily intended for non-technical users (bar staff, teachers, reception agents, room managers) who need to operate a professional audio system without complex manipulations. It is perfectly suited for fixed installation contexts with multi-zone distribution: background music, microphone announcements, occasional events, sound reinforcement for a class, meeting, or small event. Thanks to dedicated microphone inputs and balanced master outputs, it also integrates into an existing audio chain with amplifier, active speakers, or line distribution system.
Technical specifications
| Type | analog Compact | Rackable | Yes |
| USB stereo recording / playback | Yes | ||
Questions frequently asked
Can the Dap Audio Audio Compact 6.2 handle two broadcast zones?
Two individual zones can be powered to broadcast different content in two separate areas.
How many microphones and line sources can be mixed?
The mixer supports 3 microphone levels and 2 line levels. Each line level provides access to 6 selectable input sources, labeled on the display.

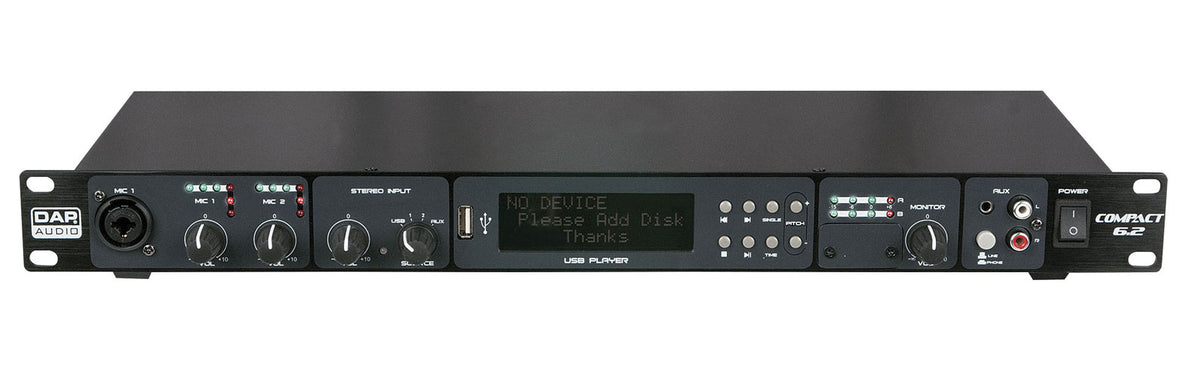

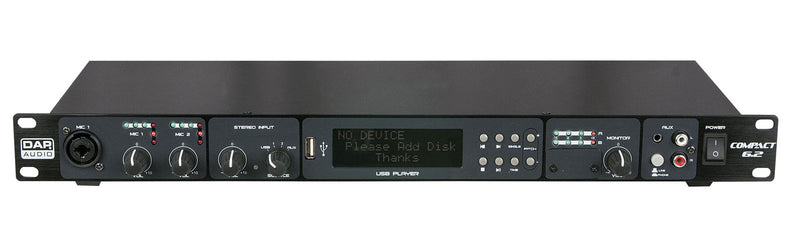

Can a smartphone be connected on the front panel?
A front input accepts a device without any intervention at the rear of the rack. The phone mode adjusts sensitivity for a smartphone, tablet, or MP3 player. This input can also be switched to line mode.
What rack format and dimensions does this console have?
The chassis occupies 1U in a 19-inch rack bay and measures 481 × 44 × 175 mm. It weighs 2.2 kg.
Is the master equalization adjustable?
The master equalization offers three bands at 80 Hz, 2.5 kHz, and 12 kHz, with a correction range from -6 dB to +6 dB.
