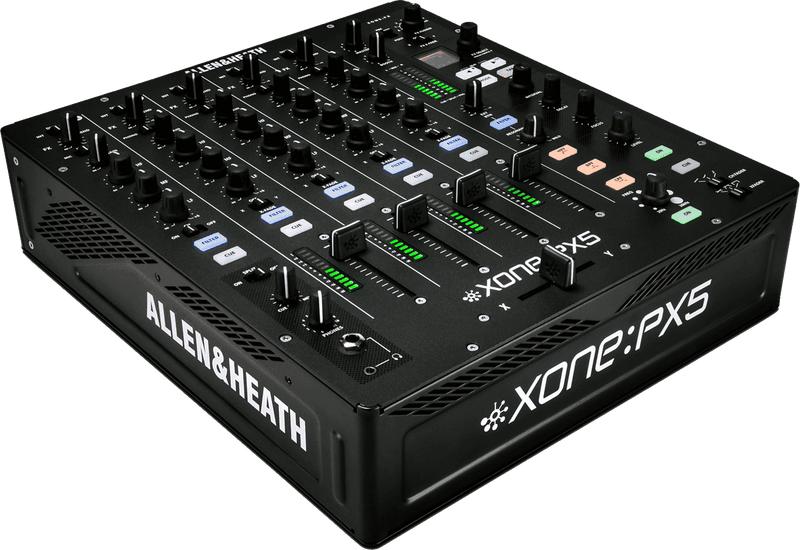

Allen & Heath XONE-PX5
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Between Analog Heritage and Modern Digital Workflow
Inspired by Xone club mixers, the Xone: PX5 combines the analog character cherished by the brand with digital connectivity tailored for current setups. It stands as a versatile cornerstone of the range, designed for DJs who want the classic Xone "grit" without sacrificing computer integration and onboard effects.
Who Is It For and What For?
Ideal for experienced or professional DJs in clubs, mobile gigs, or fixed installations, the PX5 also excels in the studio for recording sets thanks to its multichannel audio interface. Its clear ergonomics, precise faders, and adjustable crossfader suit both meticulous blending and scratching.
Technical specifications
| Insert | Yes | Number of mic preamps | 1 |
| Number of faders | 4 | Mic inputs | XLR |
| Number of channels | 4 | Line inputs | 2 x balanced jacks, 4 x line-level RCA |
| Bluetooth | No | Inputs (other) | USB, FX stereo return : 2 x unbalanced jacks, 4 x Rca phono |
| EQ | 3 channels | Main outputs | Rca, 2 x XLR |
| Motorised faders | No | Outputs (other) | midi, monitor 2 x balanced jacks, headphone 6,35 mm stereo jack, headphone 3,5 mm stereo jack, Record RCA, stereo FX send 2 x jacks |
| Filters | Xone VCF | Color | Grey |
| Rackable | No | Display | LED and backlit display |
| Category | console club | Weight | 5.2 kg |
| Fader travel | 60 mm | Dimensions (mm) | 320 x 375 x 110 |
| Crossfader | VCA | ||
Questions frequently asked
Is the XONE-PX5 compatible with Traktor Scratch Pro 2?
The built-in USB 2.0 audio interface, with 20 channels at 24-bit/96 kHz, is certified for Traktor Scratch Pro 2 and supports timecode usage.
Which filters are available on this mixer?

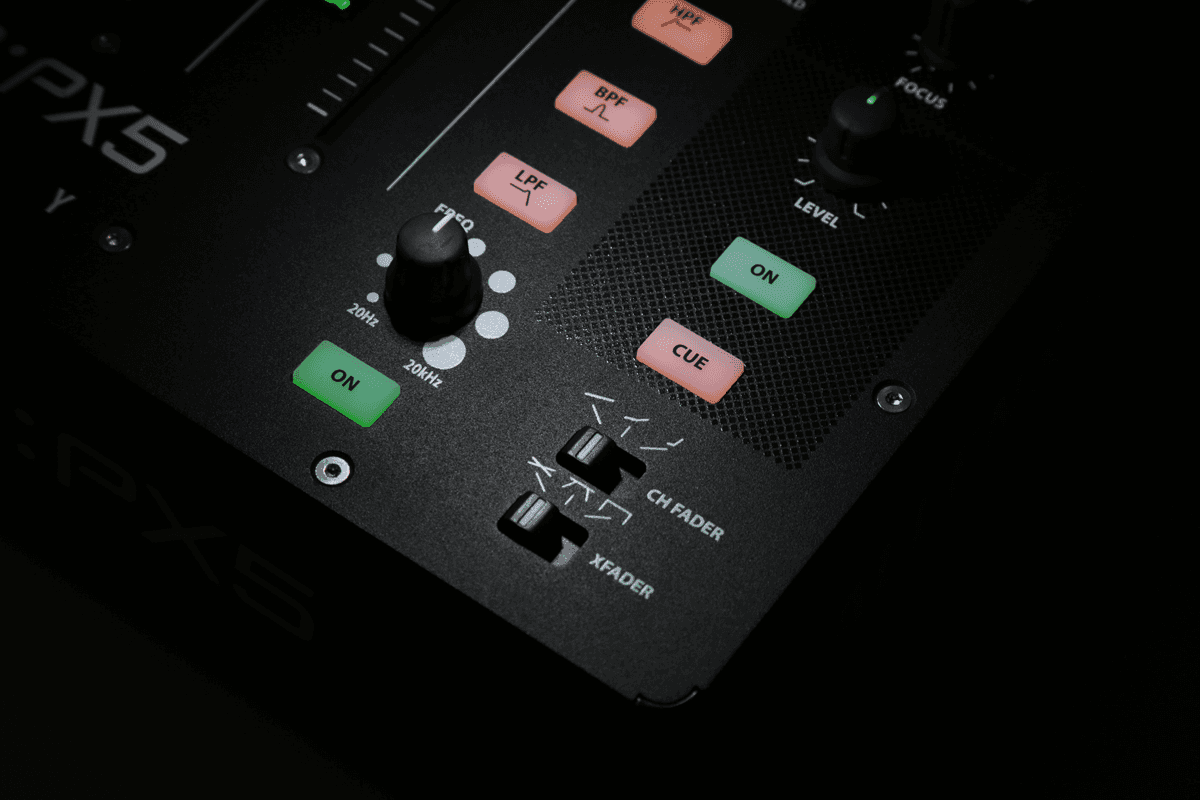

The Xone VCF filter combines high-pass (HPF), band-pass (BPF), and low-pass (LPF) modes, with resonance control.
Can vinyl turntables and players be connected to the PX5?

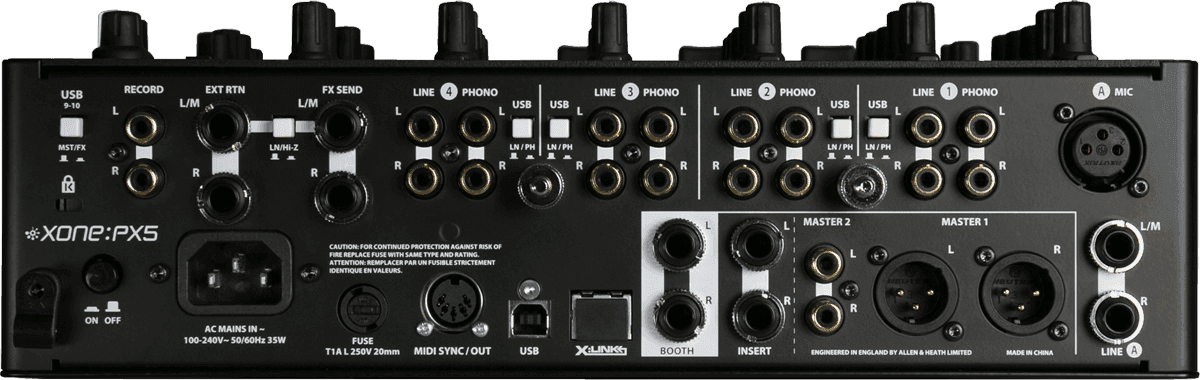

Each of the four channels accepts a phono, line, or USB source. There are four RCA phono inputs and four RCA line inputs. Two balanced line inputs on jack connectors complete the connectivity.
Does the PX5 have internal effects and an external effects loop?
A 24-bit/48 kHz Xone:FX engine is paired with the VCF filter. A stereo effects send and return on jacks allow connection of an external processor, while the master insert accepts a line or Hi-Z signal.

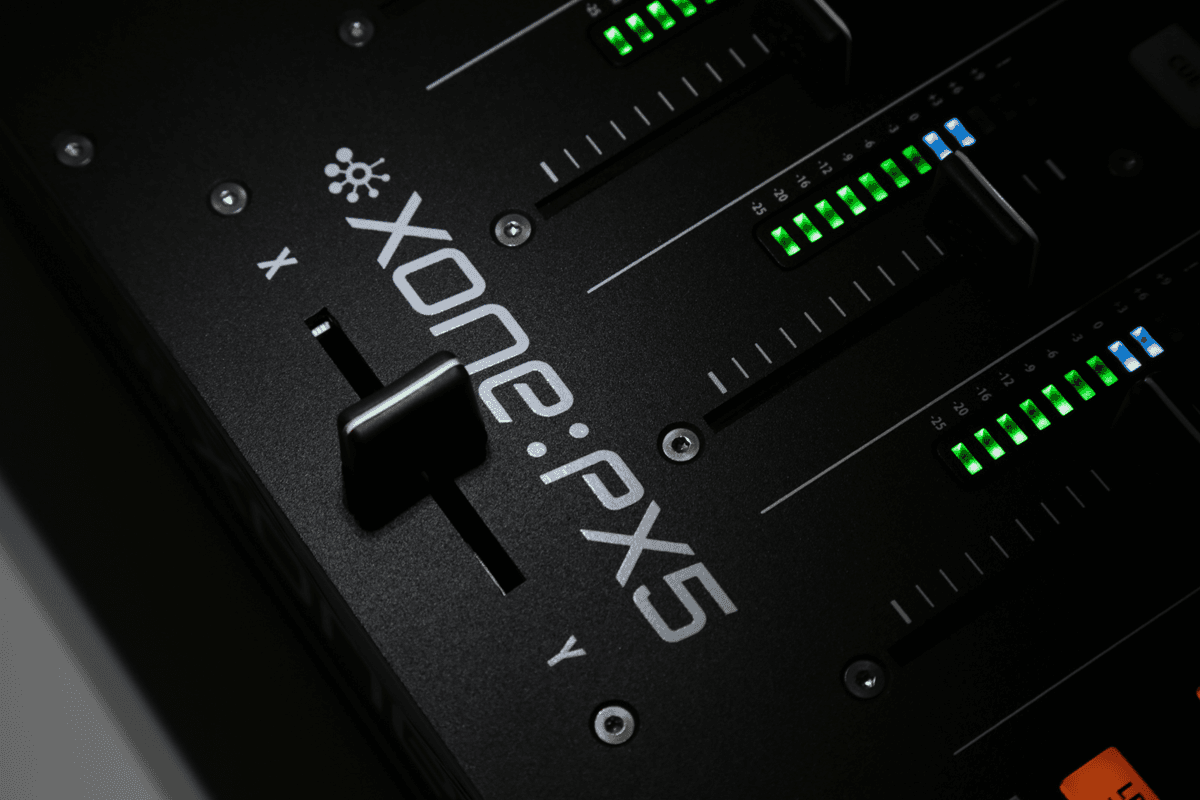

Is the crossfader suitable for scratching?
Its VCA crossfader offers three curve settings and remains compatible with the Innofader Pro 2.
