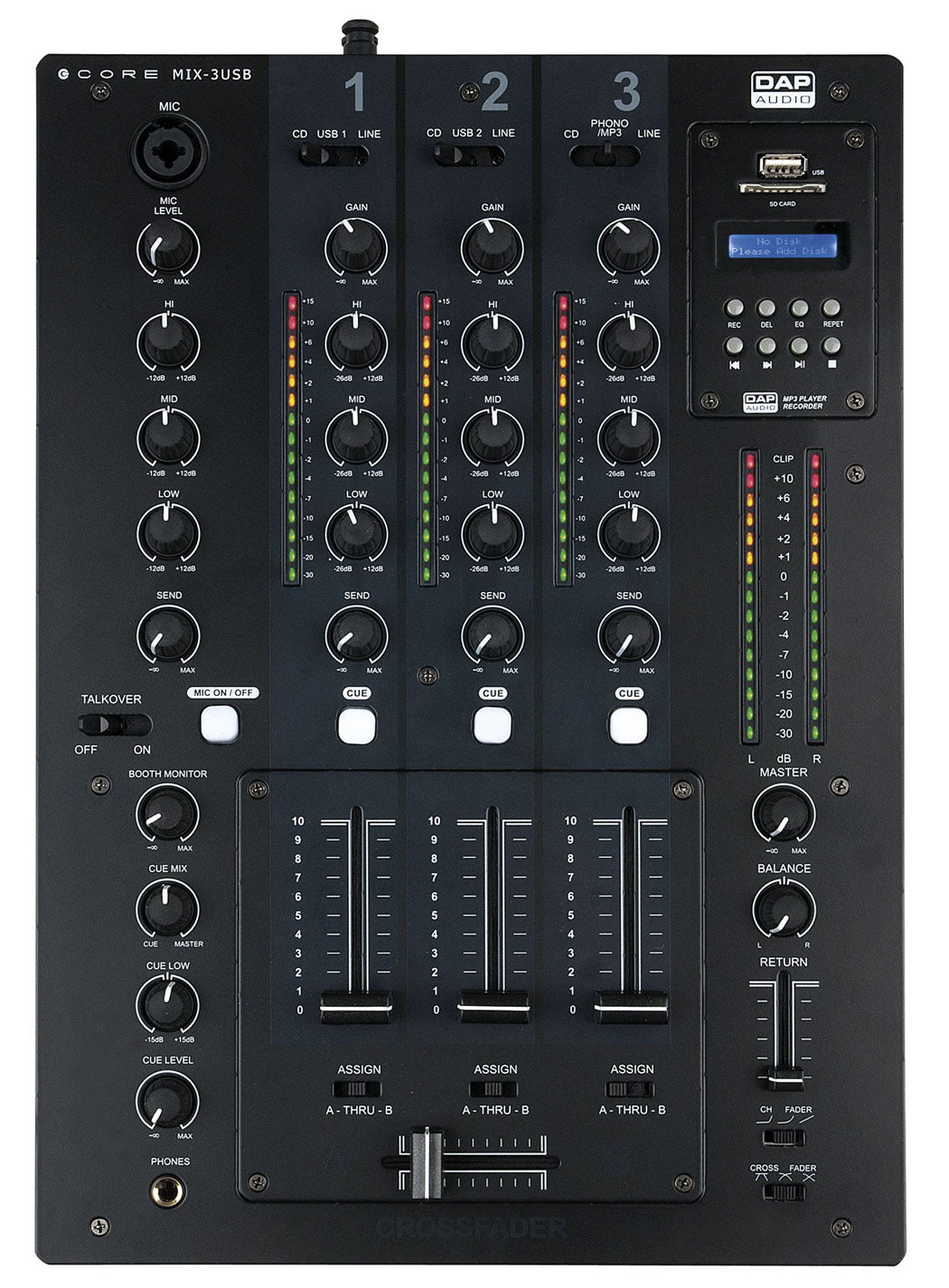

Dap Audio Core MIX-3 USB
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
The essentials to know about the DJ mixer CORE MIX-3USB
The essentials to know about the DJ mixer CORE MIX-3USB
- 8 analog inputs to connect microphone, turntables, players, and line sources, with connectivity designed for DJing.
- Independent dual USB audio interface: quick connection to a computer (Mac/PC) and direct routing of your DJ software audio through the console.
- External effect per channel with variable send and return controlled by a 45 mm fader: ideal for working on creative treatments live.
- Built-in MP3 module to record and play back your performances on USB stick or SD card, without additional equipment.
Manufacturer Information
Dap Audio
https://www.highlite.com
ventes@highlite.com
------------------------
Safety manager:
Highlite International BV
Email: ventes@highlite.com
Address:
A DJ mixer designed for hybrid setups and efficiency in the booth
The CORE MIX-3USB positions itself as a "practical" DJ mixer: many analog inputs, simple USB integration for laptops, and features dedicated to live performance. The goal is clear: to streamline the connection of your DJ software while maintaining a true hardware mixing core, with outputs adapted for sound reinforcement and an external effects path to enrich your transitions.
For which DJs and uses?
This mixer is aimed at DJs who alternate between analog sources and playback from a computer: private parties, bars, small stages, mobile gigs, or secondary booths. It is also suitable for DJs who like to work with external effects (delay, reverb, filter, multi-effects), thanks to a variable effect send per channel and a return controllable by fader to precisely dose the processed signal.
The microphone section with 3-band EQ and talk-over is particularly useful for hosting, events, or microphone interventions in clubs. Additionally, the integrated MP3 recording allows easy capture of rehearsal sets, demos, or live performances without using a dedicated recorder.
Technical specifications
| Type | Hybrid | Rackable | No |
| USB stereo recording / playback | Yes | ||
| Line inputs | 6 x RCA | Audio interface resolution | 16 bits |
| Phono input | 1 x RCA | Channel equalizer | - 26 dB / + 12 dB |
| USB inputs | 2 x type B | Microphone equalizer | - 12 dB / + 12 dB |
| Return input | 1 x RCA | Frequency response | 20 Hz - 20 KHz |
| Record output | 1 x RCA | T.H.D. | < 0.1 % |
| Booth output | 1 x RCA | Bit rate and sampling frequency | 128 Kbps, 44.1 KHz |
| Master output | 1 x unbalanced, RCA | Max. capacity | 16 GB |
| Headphone output | 1 x 6.3 mm jack | Power supply | 100 - 240 V AC, 50 / 60 Hz |
| USB outputs | 2 x type B | Power consumption | 10 W |
| Send output | 1 x RCA | Dimensions | 268 x 380 x 88 (L x W x H) |
| Audio interface | input / output for Mac & PC | Weight | 4 kg |
| Audio interface sampling frequency | 48 KHz | ||
You will also like
Numark
M4
RELOOP DJ
RMX-30 BT
Dap Audio
Core Beat
Pioneer Dj
DJM-250MK2
Numark
Scratch
Ecler
Nuo 2
RELOOP DJ
RMX-44 BT
OMNITRONIC DJ
TRM-202MK3 - 2- CHANNEL ROTARY MIXER
Customer reviews
Based on 1 review
- 5 stars, 1 review
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
Surprising sound result, very good dynamics, high output signal (gain), no breath, no breath, effective equalizer, with a good choice of frequencies, result I find it better than my Pioneer DJM 850 for a much more modest price, (but of course without the effects), the result on my speakers, the result on my speakers, the result on my speakers, sharp and deep bass, very good, very good midrange, and present treble without aggressiveness, simple mixer, but the sound that in The spell is excellent.
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Does the Dap Audio Core MIX-3 USB work with a Mac or PC computer?
Two independent USB audio interfaces in USB type B format allow connection to a Mac or PC computer. The USB audio conversion is done at 48 kHz / 16 bit.
Can an external effect be connected to this DJ mixer?
Each channel has a variable effect send to an external processor, such as a delay or reverb. The effect return level is adjusted with a 45 mm fader.
How does the microphone section and talk-over function operate?
The mic section includes a 3-band EQ adjustable from -12 dB to +12 dB, as well as an ON/OFF switch. The talk-over function highlights the voice during announcements.
Is it possible to record a mix without a computer?
The built-in MP3 module allows recording and playback on USB device or SD card. The maximum supported capacity stated is 16 GB.
What are the dimensions and weight of the CORE MIX-3USB?
With 268 x 380 x 88 mm and 4 kg, this model is not rack-mountable. The universal power supply accepts 100 to 240 V AC at 50 / 60 Hz, with a consumption of 10 W.
