Dap Audio IMIX-5.3

Name: IMIX-5.3
Brand: Dap Audio
SKU: 256893
Price: 246.00 EUR
Availability: InStock

246,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 256893

EAN : 8717748316165

This item is covered for 3 years

Information

Essential Information About the IMIX-5.3 Mixing Console

• 3-Zone Multiroom Management: easily assign each channel to the desired broadcast area using dedicated routing buttons.

• Clear Ergonomics and Direct Access: rational design to quickly find essential controls, ideal for installation and daily operation.

• Precise Zone Control: each output features equalization and headphone pre-listening to verify the sound before broadcasting.

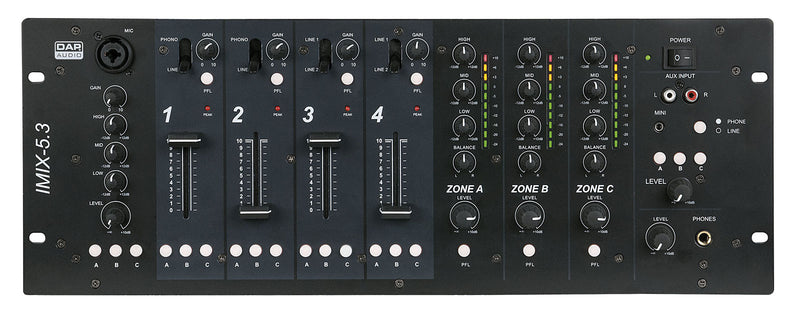

• Comprehensive Front Panel Connectivity: microphone, line, and MP3 player or phone inputs are quickly accessible, convenient for announcements and occasional sources.

IMIX-5.3

246,00 €VAT incl.

0,90 € Ecotax included

Reference price

A Simple and Effective Solution for Multi-Space Sound Reinforcement

Designed as an "essential" mixing console, the IMIX-5.3 emphasizes ease of use and flexible distribution. Its main asset is its 3-zone control, particularly relevant for environments where multiple spaces need independent sound reinforcement while maintaining immediate usability.

Who and In What Contexts to Use the IMIX-5.3?

This console is aimed at users who need reliable mixing without complexity: bars, restaurants, multipurpose rooms, teaching studios, small event setups, or fixed installations in businesses. It is also suitable for hosts and technicians who alternate between background music, microphone announcements, and external sources (player, smartphone) with distinct management according to zones (room, terrace, lounge, reception).

Technical specifications

Type	analog Compact
USB stereo recording / playback	No

Rackable

Questions frequently asked

Does the Dap Audio IMIX-5.3 allow managing 3 separate zones?

The 3 output knobs associated with the channels enable assigning each source to the desired zone.

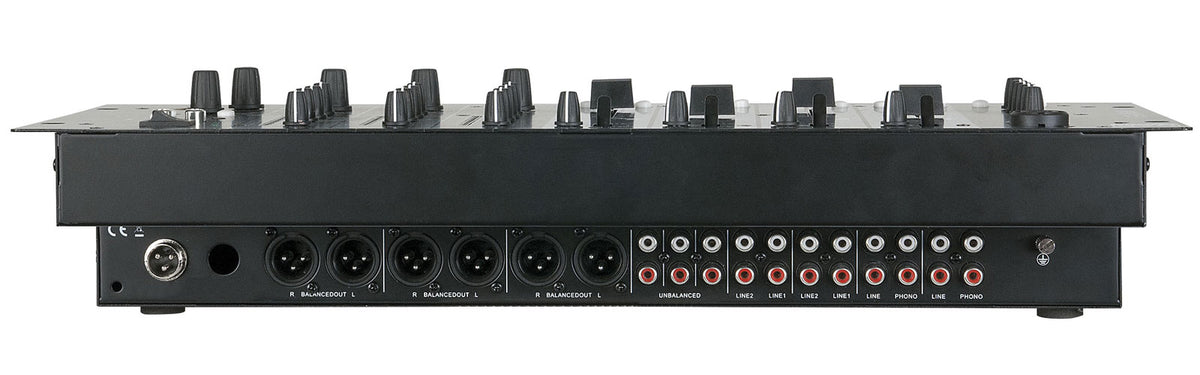

What audio sources can be connected to this mixer?

The connections include RCA line inputs for audio players. Phono inputs are provided for turntables. A 3.5 mm mini-jack input allows connecting a phone or MP3 player.

Can the sound be adjusted differently depending on the areas?

The master section includes a 3-band equalizer at 100 Hz, 1 kHz, and 10 kHz, with a -12 dB to +12 dB adjustment range. A separate microphone equalizer uses the same frequency settings.

Is headphone cueing available?

Headphone pre-listening allows checking each zone before broadcasting.

Is this mixer rack-mountable?

With dimensions of 481 x 176 x 89 mm and a weight of 3.4 kg, this compact mixer is not specified as rack-mountable. It operates on 230 V / 50 Hz power supply and consumes 15 W.
