Das Audio ALTEA-712A

Name: ALTEA-712A
Brand: Das Audio
SKU: 359826
Price: 831.00 EUR
Availability: InStock

831,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 359826

EAN : 8436542216548

This item is covered for 3 years

Information

Essential Information About the DAS Audio ALTEA-712A Powered Speaker
• Power and Dynamics: Class D 2-channel amplification 1500 W (peak) / 750 W (continuous) for energetic sound with low distortion.
• Professional Processing: 24-bit DSP with FIR filters, control via LCD screen and DAScontrol interface (voicings, EQ, delay, levels).
• Wireless Streaming: HD stereo streaming from mobile devices and monitoring/control via DASlink (depending on ALTEA-700 series configuration).
• Versatile Format: 2-way 12-inch (30 cm) speaker with monitor position, rigging points, robust polypropylene enclosure.

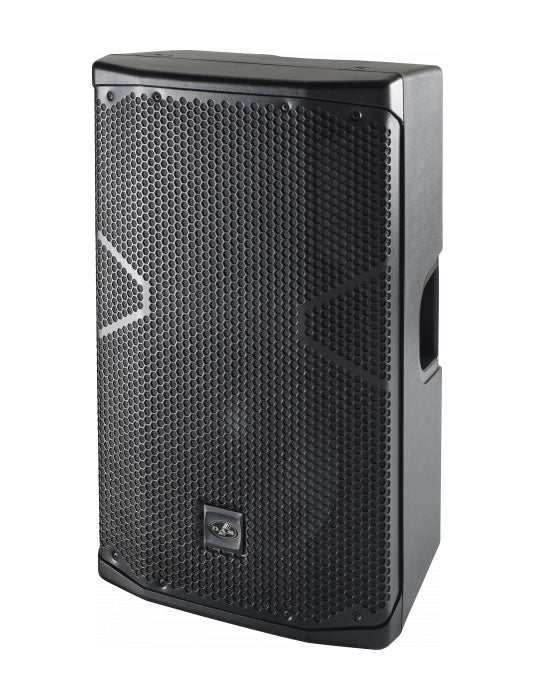

ALTEA-712A

831,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Reference in the ALTEA-700 Series Designed for Modern Performances

Within the ALTEA range, the ALTEA-712A stands out as a high-power model aimed at live use: its active architecture, advanced DSP, and rear panel ergonomic controls meet the demands of current performances where quick switching between front-of-house, stage monitors, and temporary installations is required. The integration of voicing presets and management tools (EQ, delay, routing) allows adaptation to very different venues without multiplying devices.

Who Is It For and What Are Its Uses? A Powered Speaker Tailored for Live, Event, and Light Installation

This DAS Audio powered speaker targets bands, DJs, event professionals, sound technicians, and organizations seeking a reliable, powerful, and easy-to-deploy solution. With its 90 deg x 60 deg coverage and high sound pressure level, the ALTEA-712A is suitable for concert sound reinforcement, corporate audiovisual, mobile clubs, theaters/auditoriums, and places of worship. Its format also allows use as a stage monitor when the setup requires it.

DSP, Voicings, and Connectivity: Precise Control Without Complexity

The heart of the ALTEA-712A lies in digital processing designed to secure sound quality in real conditions. The FIR filters contribute to controlled response, while the 24-bit DSP provides access to field-ready settings: choice of pre-equalization (Live, Dance, Vocals, Bass Boost), 3-band equalizer, high-pass filter (HPF) frequency adjustment, delay (0 to 9.9 meters), expander, control of brightness and parameter locking with or without password, as well as automatic standby in the absence of signal.

Transducers Focused on Impact and Definition

The low-frequency section is entrusted to the DAS 12F4 loudspeaker for solid and articulated bass reproduction, while the highs are handled by the M-28 compression driver, designed to provide precise dispersion and smooth listening. This 2-way duo aims for an effective balance: attack for vocals and instruments, and sustain for energy-rich content (drums, bass, electronic music).

DAScontrol Interface and DASlink Ecosystem

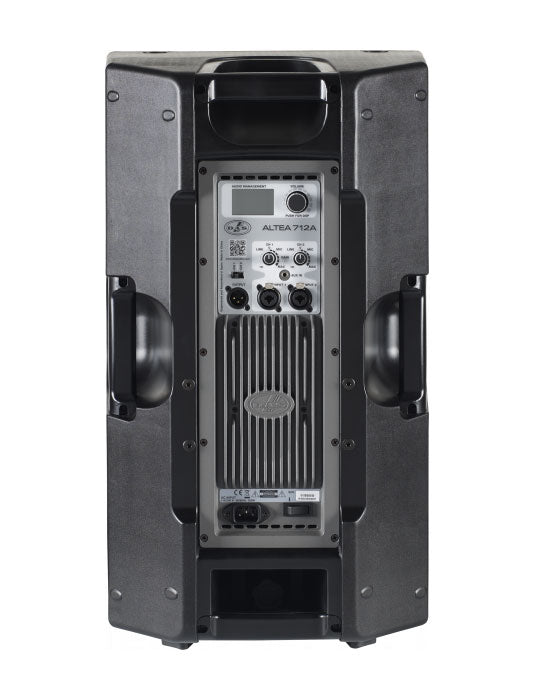

At the rear, the LCD screen facilitates quick adjustments (levels, EQ, delay, voicing), which is particularly useful when the speaker switches from front-of-house to monitor roles. For compatible configurations, DASlink adds a practical dimension: HD stereo streaming from a mobile device and monitoring/control possibilities, simplifying setups (background music, small stages, events, rehearsals) without sacrificing the essential functions of a sound reinforcement speaker.

Technical specifications

Battery	No	Cutaway	Yes
Number of channels	2 channels	Speaker structure	polymer molding
Bluetooth	No	Inputs	stereo minijack, combo XLR/jack
Speaker diameter	12"	Outputs	XLR
Number of speakers	2	Color	Black
EQ	Yes	Power output	750 W

Frequency range (-10 dB)	60 Hz - 20 kHz	Control	DASlink
Horizontal coverage (-6 dB)	90 deg	Current	230 V / 115 V 1.5 A / 3.0 A
Vertical coverage	60 deg	Enclosure construction	polypropylene
Maximum peak SPL at 1 m	130 dB	Speaker geometry	trapezoidal
Nominal amplifier power (continuous)	750 W	Rigging	M8 rigging points
Nominal amplifier power (peak)	1500 W	Dimensions (H x W x D)	655 x 380 x 350 mm
Input type	balanced	Net weight	17.5 kg (38.6 lb)
Input impedance	20 kOhms	LF driver	12F4
Input sensitivity	1.95 V (+8 dBu)	HF driver	M-28
Audio signal input connector	2 x female XLR	Carton dimensions (H x W x D)	740 x 450 x 415 mm
Input	AUX 1 x 3.5 mm mini jack	Shipping weight	20.5 kg (45.2 lb)
Audio loop-through connector	1 x male XLR

Questions frequently asked

Is the ALTEA-712A suitable for concerts and DJ sets?

With 750 W RMS, 1,500 W peak power, and a maximum SPL of 130 dB at 1 m, this model meets the sound reinforcement needs for concerts, DJ sets, and events. Its 90° x 60° coverage ensures controlled projection.

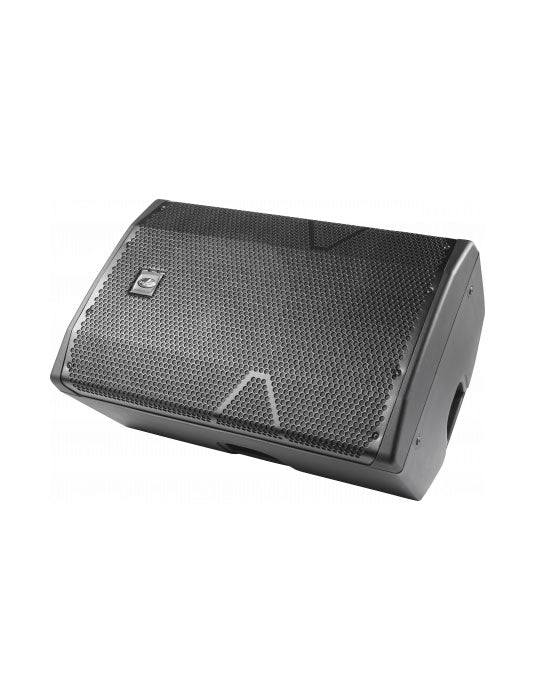

Can it be used as a stage monitor?

The beveled edge and trapezoidal cabinet design allow for stage monitor use. The 12-inch DAS 12F4 speaker and M-28 tweeter provide a 2-way configuration.

What inputs and outputs are available?

Connectivity includes a combo XLR/jack balanced input, a 3.5 mm stereo mini-jack auxiliary input, and an XLR output. Input impedance is 20 kOhms with a sensitivity of 1.95 V (+8 dBu).

What DSP settings are accessible on the speaker?

The LCD screen provides access to a 3-band equalizer, a high-pass filter, and a delay adjustable from 0 to 9.9 m. Four voicings are offered: Live, Dance, Vocals, and Bass Boost. Additional features include an expander, auto-standby, and settings lock.
