Essential Information About the Defender Midi Cable Protector
Essential Information About the Defender Midi Cable Protector

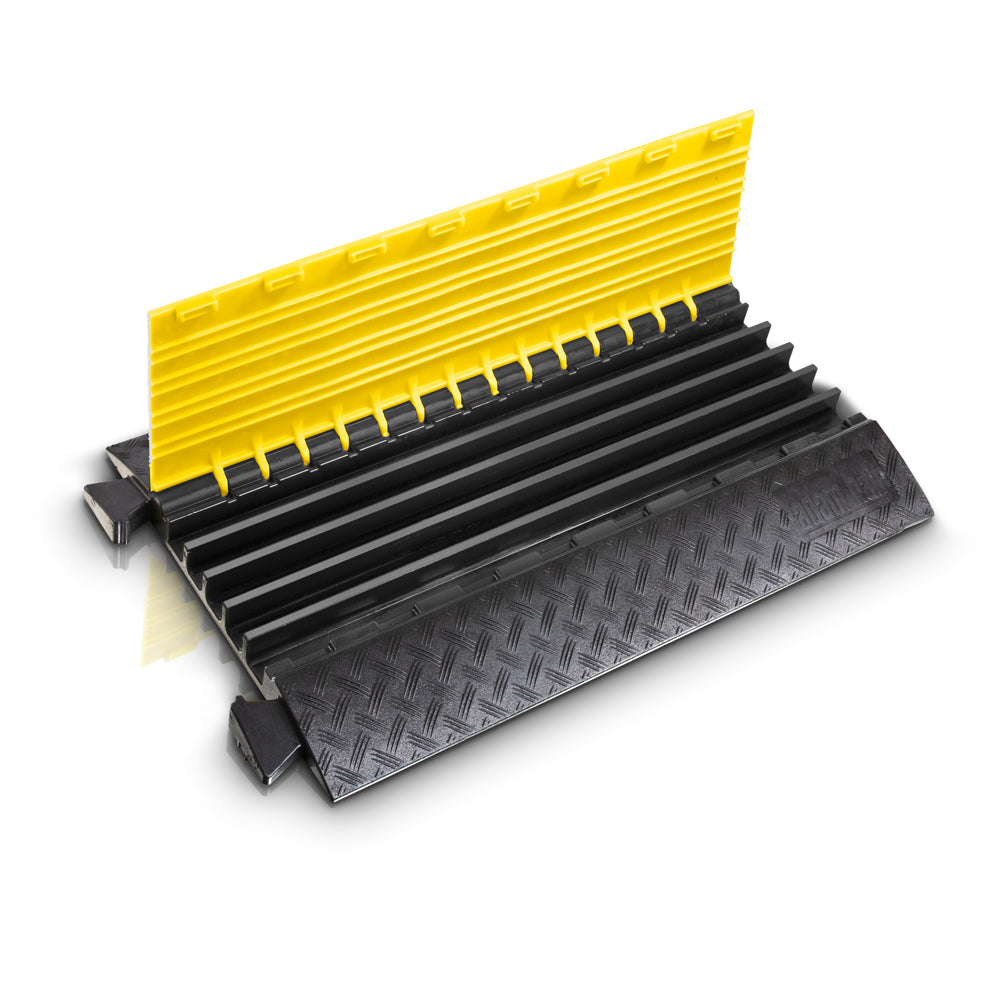

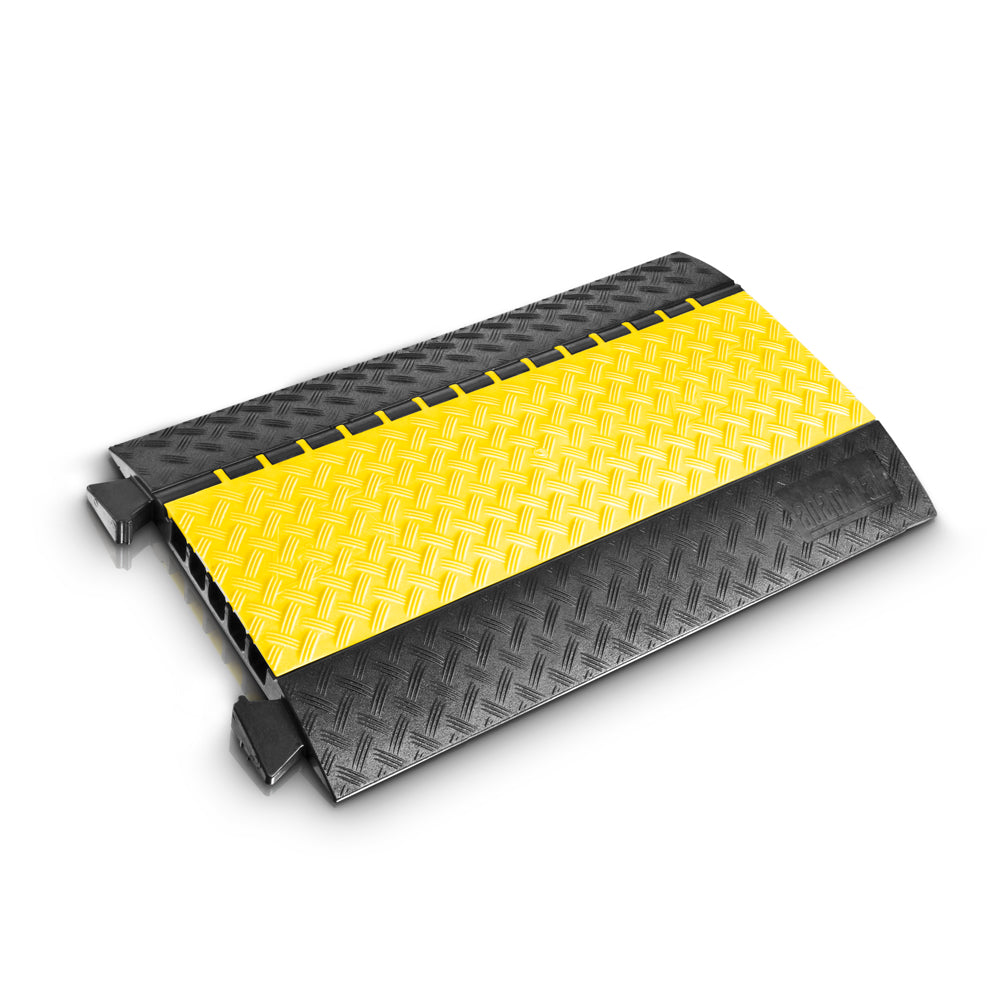

- 5 channels to neatly organize multiple lines (audio, power, data) on stage and during events.
- Very low slope (17deg) to facilitate the rolling of flight cases, dollies, and carts while minimizing jolts.
- High load capacity up to approx. 5t / 20 cmÂČ, with a more manageable size than a higher-end model with equivalent load capacity.
- Patented self-cleaning hinge system and integrated connection seals for quick and reliable setup on site.
Manufacturer Information
Defender
https://www.adamhall.com
info@adamhall.com
------------------------
Safety manager:
Adam Hall GmbH
Email: info@adamhall.com
Address:
An Intermediate Solution Designed for the Defender Range
The Defender Midi was developed to cover use cases between the Defender Compact and the Defender III. The idea is simple: to offer an all-purpose cable protector that maintains excellent load capacity while being easier to transport and deploy than a bulkier model. With its integrated connection elements (seals), it easily fits into scalable installations typical of event and technical environments where cabling plans often change.
For Stage, Events, and All Traffic Areas
This cable protector is intended for sound and lighting providers, stage crews, operations technicians, theaters, municipalities, and event organizers. It is especially suitable whenever it is necessary to secure cables on the floor in high-traffic areas: backstage, stage edges, FOH, technical corridors, site entrances, tents, gyms, or temporary spaces. Its low-slope profile contributes to smoother cart movement and reduces snagging risks while protecting cables from crushing.
Technical specifications
| Color | Black | Length (m) | 0.89 m |
You will also like
Defender
85310
Defender
85150 DEFENDER NANO - CABLE PROTECTOR 6-CHANNEL
Defender
DEFENDER 3 CABLE PROTECTOR 3-CHANNEL
Defender
85200 CABLE PROTECTOR 3-CHANNEL
Defender
85200BLK CABLE PROTECTOR 3-CHANNEL BLACK
Stagg
Cable Reel in Metal
Questions frequently asked
Can the Defender Defender Midi 5 accommodate power and DMX cables?
Its 5 channels, each 3.4 cm wide and 3.6 cm high, allow separation of power lines, DMX, network or multicore cables. This layout prevents cables from overlapping on the floor.
What load capacity does the Defender Defender Midi 5 support?
The maximum load capacity is approximately 5 tons per 20 cmÂČ. The 17° slope facilitates the passage of trolleys in technical areas.
What are the dimensions of this cable protector?
The module measures 89 cm long, 54.2 cm wide, and 5.2 cm high.
Is this cable protector suitable for outdoor use?
The operating temperature range extends from -30 °C to +60 °C. The structure is resistant to oils, acids, and gasoline. TĂV SĂD certification and B2 fire rating are specified for installations subject to safety requirements.
Can Defender Midi modules be assembled together?
Integrated connector elements allow modules to be joined in a scalable setup. The patented self-cleaning hinge system EP1366550 facilitates opening and closing during repeated installations.
