Definitive Audio TML 6 BU DSP
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

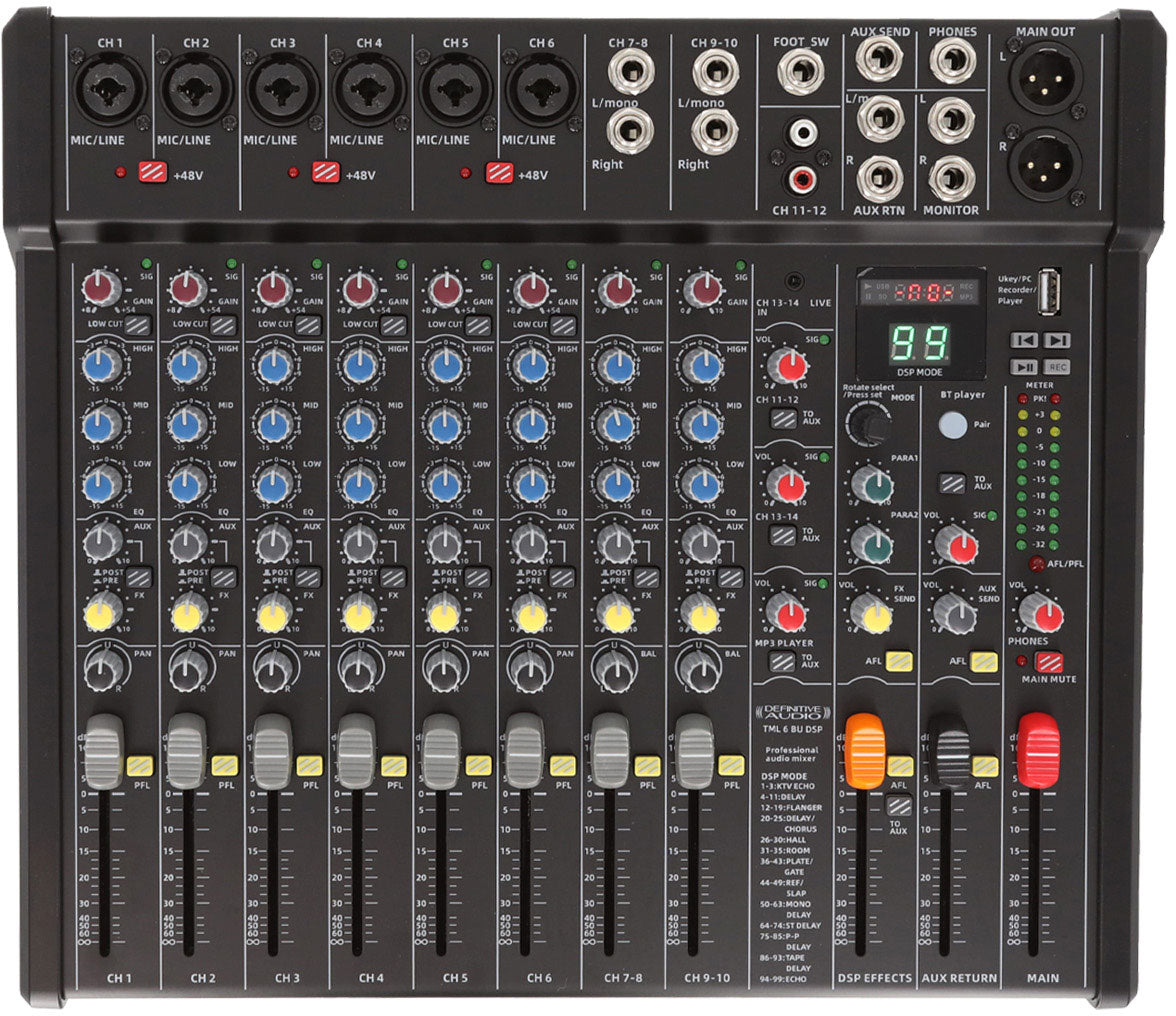

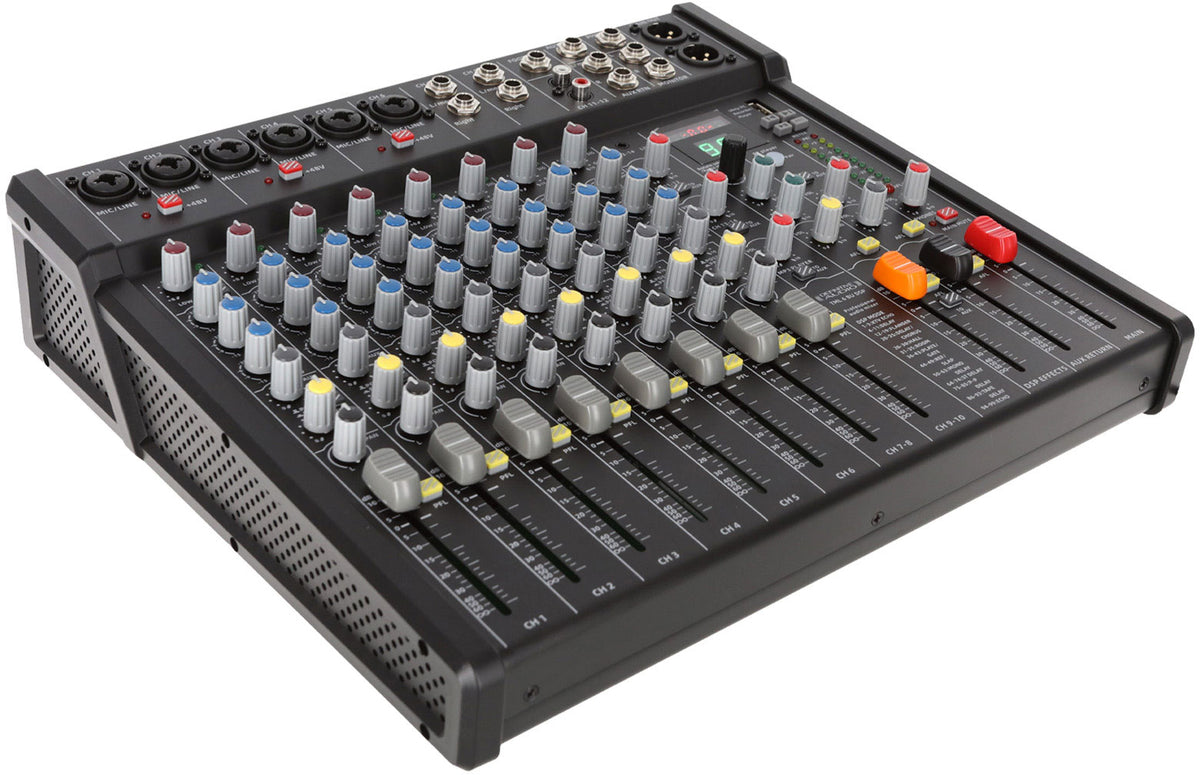

Essential Information About the TML 6 BU DSP Analog Mixing Console
Essential Information About the TML 6 BU DSP Analog Mixing Console
- 14 versatile channels : 6 mono inputs + 4 stereo channels to manage microphones, instruments, and audio sources simultaneously.

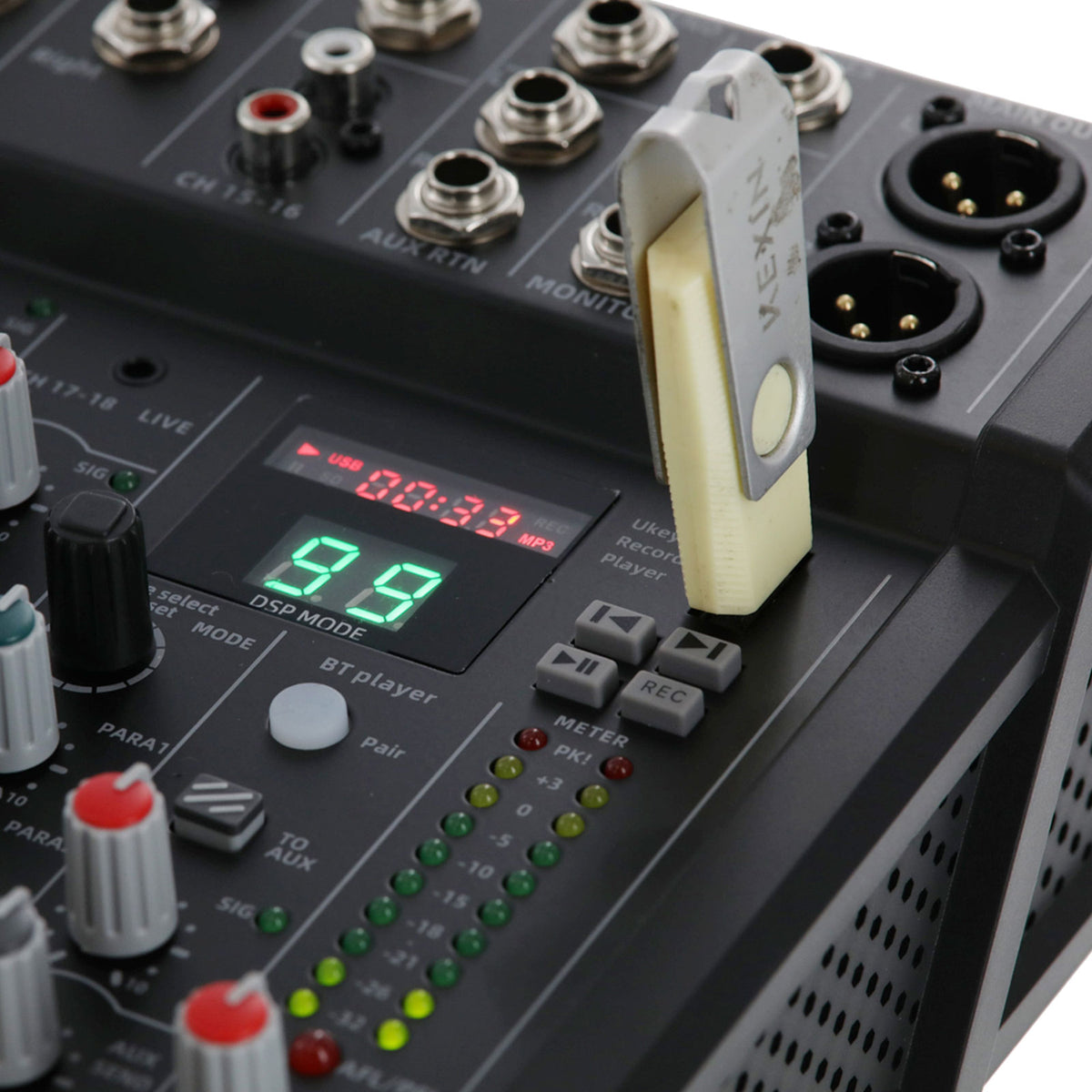

- Complete connectivity : USB player/recorder (MP3) + Bluetooth receiver, ideal for streaming playlists, launching intros, or quickly capturing a mix.

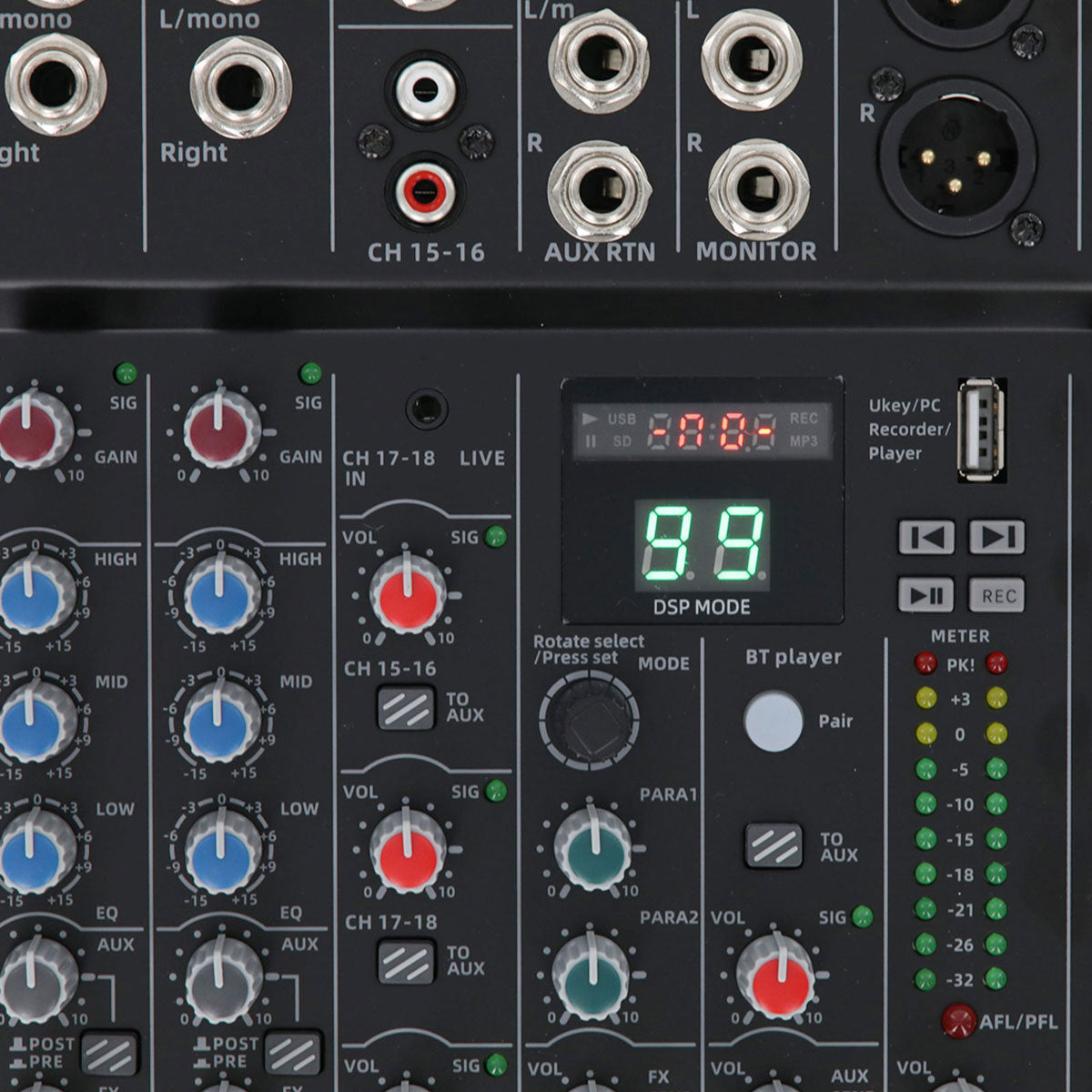

- Built-in processing : DSP with 99 effects and LED display, convenient for adding reverb/delay and providing depth both live and in the studio.

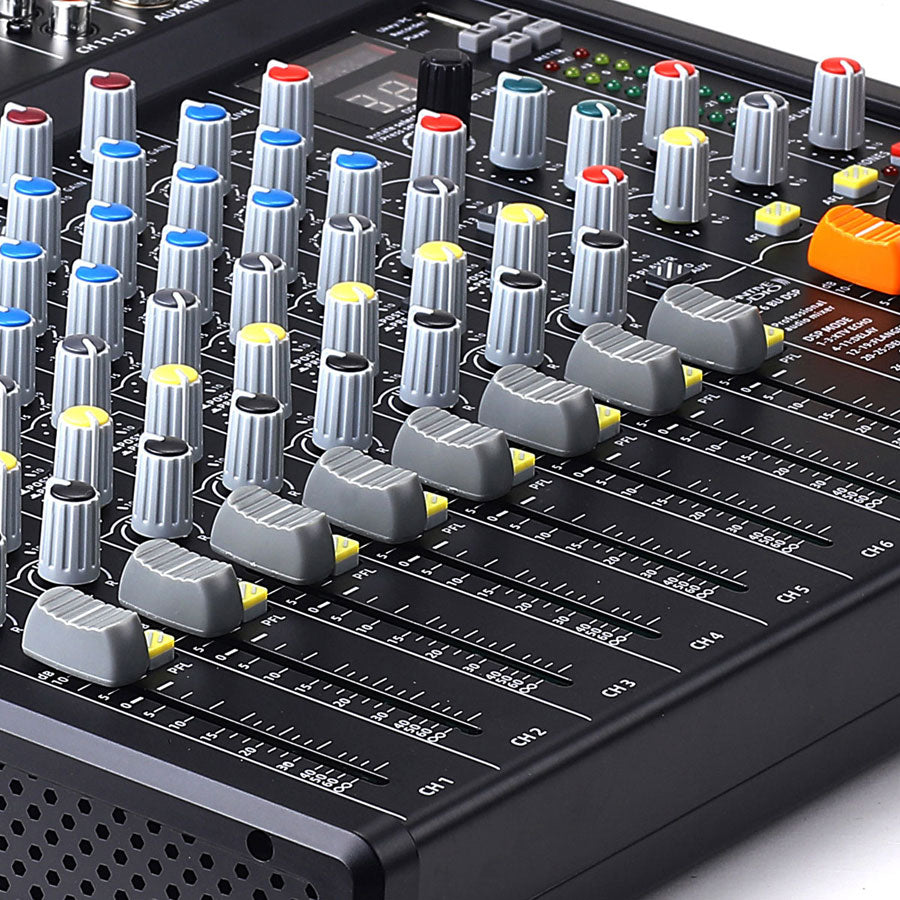

- Comfortable mixing : 10 combo XLR/6.35mm Jack inputs with 60 mm linear faders and balanced XLR outputs for clean connection to PA or recording devices.
Manufacturer Information
Definitive Audio
https://www.definitiveaudio.co.uk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A Compact Console Designed for Modern Setups
The TML 6 BU DSP embodies the spirit of "all-in-one" analog consoles: a direct workflow at the fader, while integrating functions that have become essential for current performances (built-in DSP, USB playback/recording, Bluetooth). Its compact format facilitates installation on a mobile rig, a small stage, a rehearsal room, or a home studio, without sacrificing true multi-source mixing capability.
Who Is It For and What Are Its Uses?
This mixing console is suitable for musicians, bands, associations, hosts, podcasters, and small production teams seeking a simple, complete, and responsive solution. Live, it allows managing multiple microphones, instruments, and playback returns while adding effects to vocals. In the studio or rehearsal, it serves as a control center to connect various sources (mic/line, player, Bluetooth) and create a clear and structured mix.
Technical specifications
| Type | analog Compact | Number of faders | 7 |
| USB stereo recording / playback | Yes | Rackable | No |
| Console type | analog mixing, 14 channels | Player/recorder | MP3 |
| Channel configuration | 6 mono and 4 stereo | Maximum input level | MIC +10 dBu / Line +22 dBu |
| Potentiometer | fully sealed | Main meters | 6 segments, -20 dB to peak |
| Microphone input channels | gain control, signal indicator, 3-band equalization, low-cut filter, left/right audio-visual routing keys, auxiliary and effects send, monitoring control | Channel VU meters | 1 signal indication LED |
| Stereo 6.35 mm jack inputs | 2 | Level display | 3-color, 10-band LED |
| Stereo 3.5 mm jack input | 1 | Frequency response | 20 Hz to 22 kHz +/- 1 dB |
| Stereo RCA input | 1 | Power supply | DC 12 V / 2 A, 24 watts |
| Bluetooth receiver | V5.1 + BR + EDR + BLE | Dimensions | 347 x 84 x 309 mm |
| DSP with LED display | 99 24-bit/48 kHz effects | Weight | 4.35 kg |
You will also like
Woodbrass
MP14 USB
Yamaha
MG10XU
Zoom
Livetrak L6
Yamaha
MG 10
Behringer
Xenyx X1222USB
Behringer
Xenyx QX2222USB
Behringer
X2222 USB
Behringer
Xenyx QX1222USB
Questions frequently asked
How many microphones and line sources can be connected to this mixer?
The mixer features 10 combo XLR/6.35 mm jack inputs, suitable for microphones and line sources. Each mic channel includes gain control, 3-band EQ, a high-pass filter, an auxiliary send, and an effects send.
Are the DSP effects of the Definitive Audio TML 6 BU DSP built-in?
The onboard DSP offers 99 effects at 24-bit/48 kHz. The LED display allows effect selection. The channel effects sends enable adding reverbs or delay to the mix.
Bluetooth mixing console and USB recording: what functions are available?
A Bluetooth V5.1 receiver and a USB MP3 player/recorder allow playback of audio sources and recording of a mix.
Can condenser microphones be used with this mixer?
Phantom power +48 V is available on the XLR inputs for condenser microphones. This is in addition to the 10 combo XLR/6.35 mm jack inputs.
What are the dimensions and weight of the TML 6 BU DSP?
With dimensions of 347 x 84 x 309 mm and a weight of 4.35 kg, this model fits on a mobile rack, a small stage, or in a home studio.
