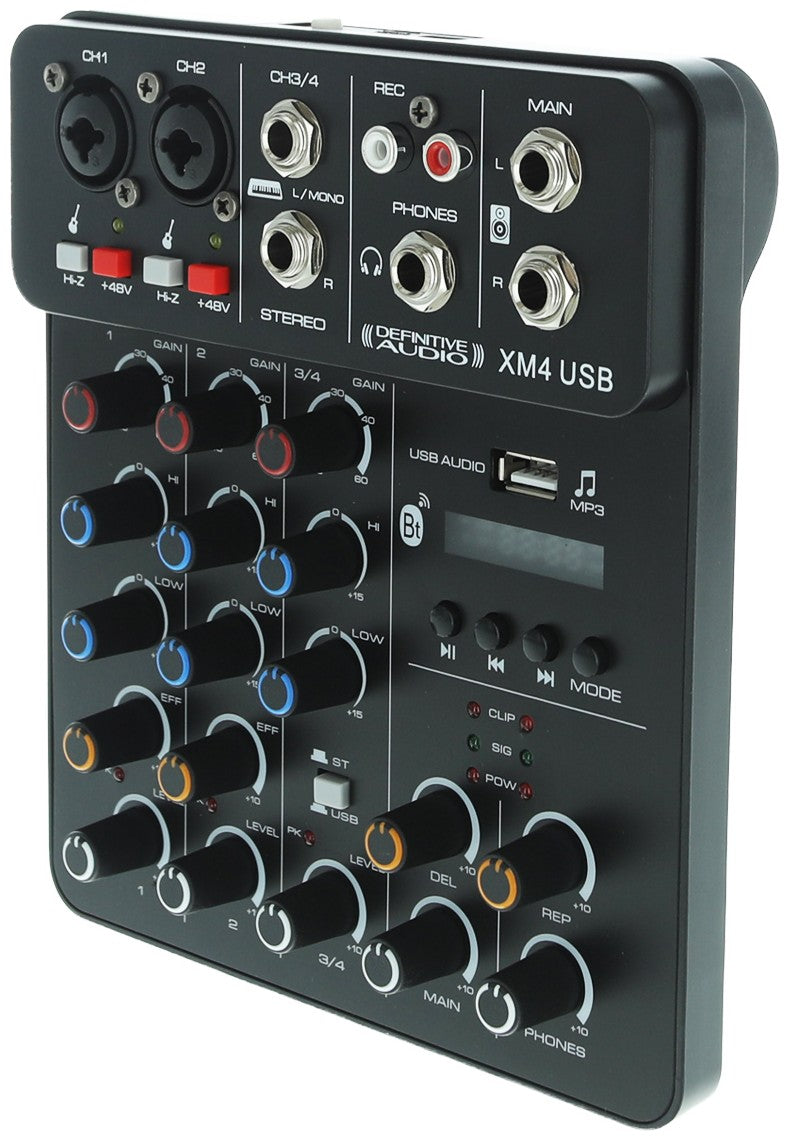

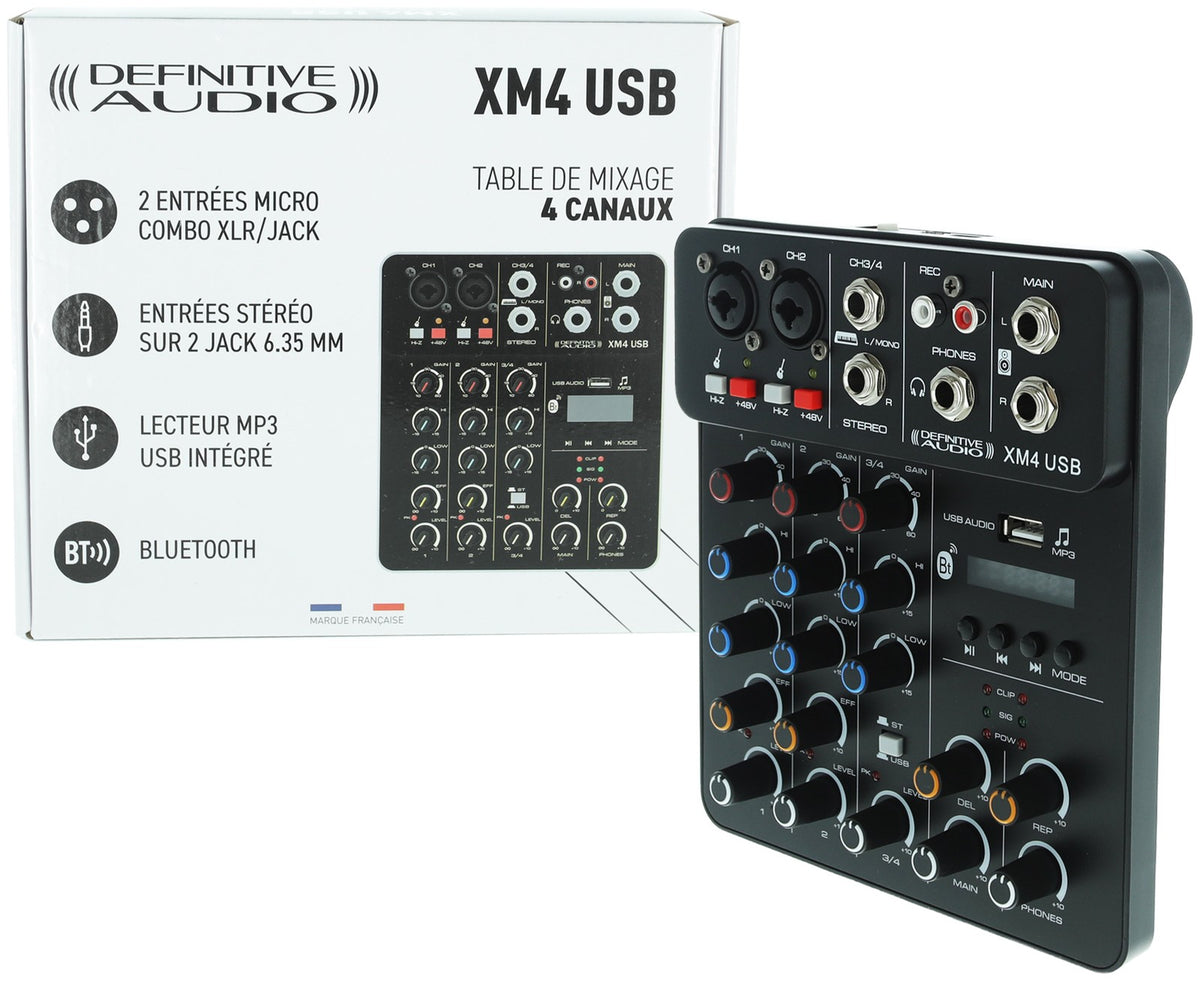

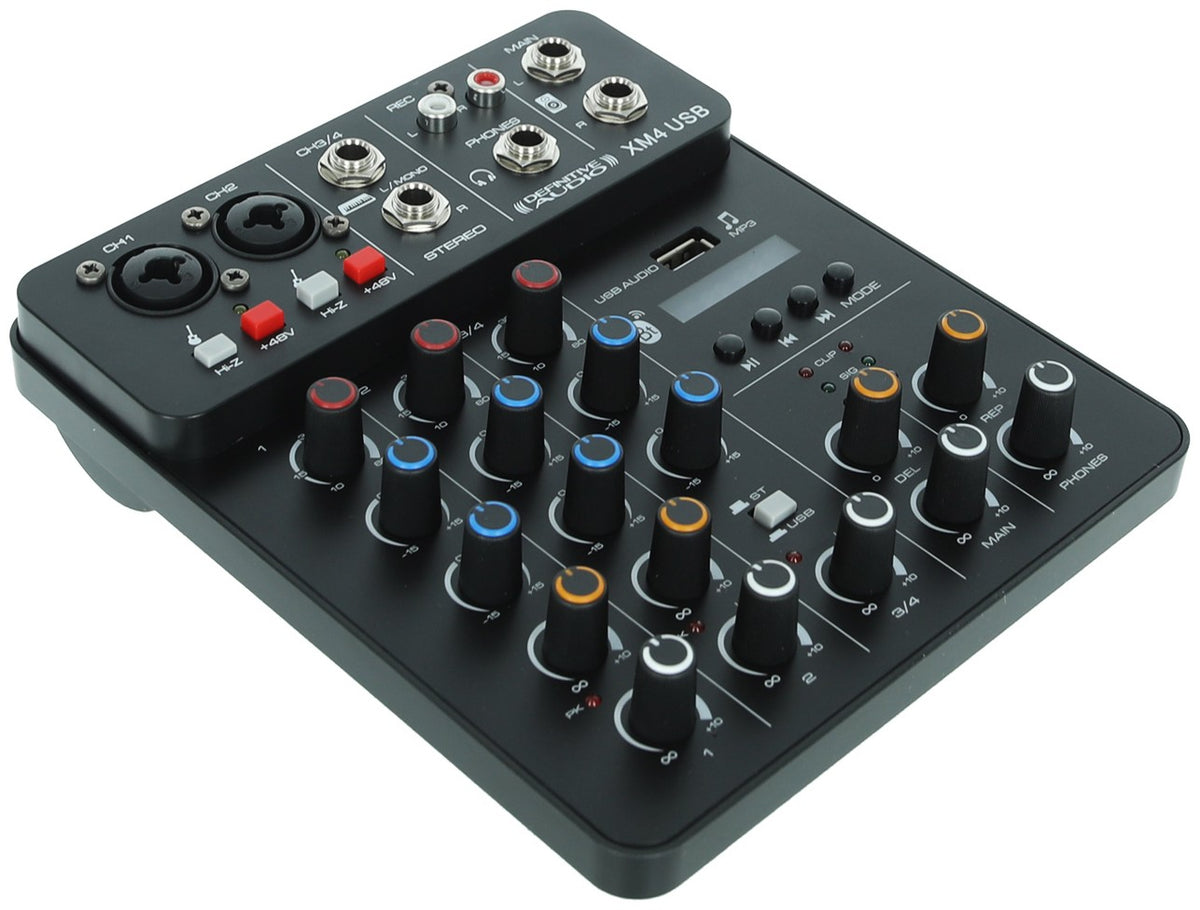

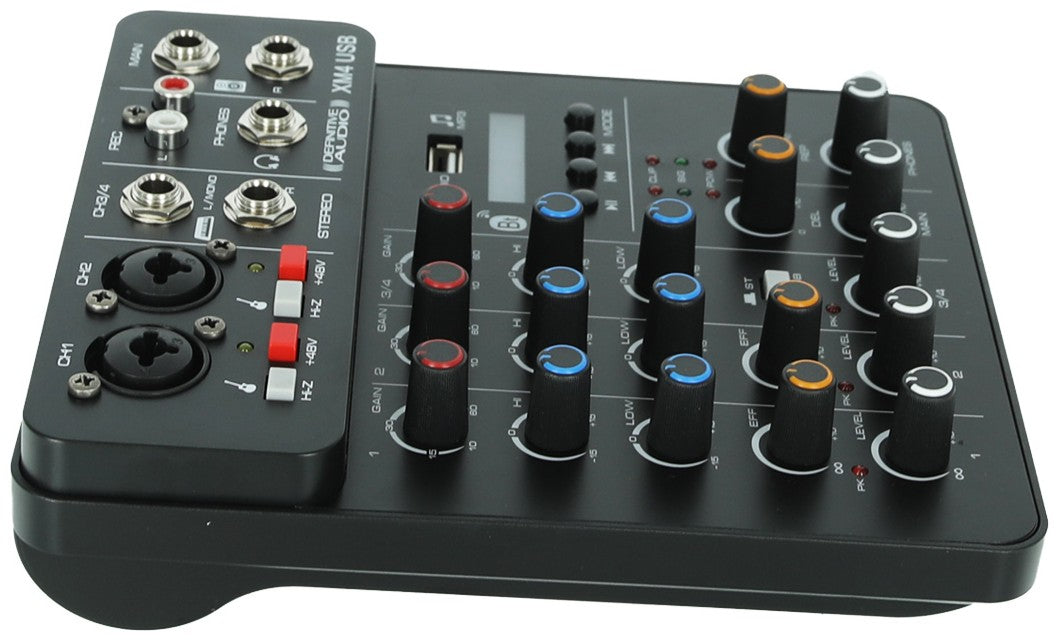

Definitive Audio XM4 USB

What you need to know about the XM4 USB 4-channel analog mixing console

• Compact and versatile format for light sound reinforcement, DJing, rehearsals, streaming and recording.
• Two XLR/Jack combo microphone/instrument inputs, with +48 V phantom power and Hi-Z mode for guitar or bass.
• USB playback, Bluetooth and USB/PC audio interface for easily streaming and recording your audio content.
• Built-in effect, 2-band EQ and channel controls for quickly adjusting each sound source.

A compact console designed for mobile setups

The XM4 USB packs the essential functions of an analog mixing console into a lightweight, easy-to-transport chassis. Its compact format makes it particularly well suited to mobile performances, small sound reinforcement systems, events, rehearsals and simple home audio setups.

It lets you centralize microphones, instruments, audio players and a computer without adding multiple pieces of equipment. With its direct controls and intuitive layout, this mixing console is quick to operate, even when adjustments need to be made urgently during a performance.

For DJs, musicians, presenters and small sound systems

This 4-channel console is aimed at DJs looking for a compact mixing console to connect multiple sources, as well as singers, musicians and presenters who need reliable control over their audio system. The Hi-Z inputs on channels 1 and 2 make it possible to connect a guitar or bass directly, without necessarily using a direct box.

The XM4 USB is also suitable for content creators wishing to stream background music from a USB flash drive, a smartphone via Bluetooth or a computer. Thanks to its USB/PC interface, it facilitates audio playback and simple recordings for demos, podcasts, rehearsal recordings or live sessions.

USB, Bluetooth and audio processing to stay in control

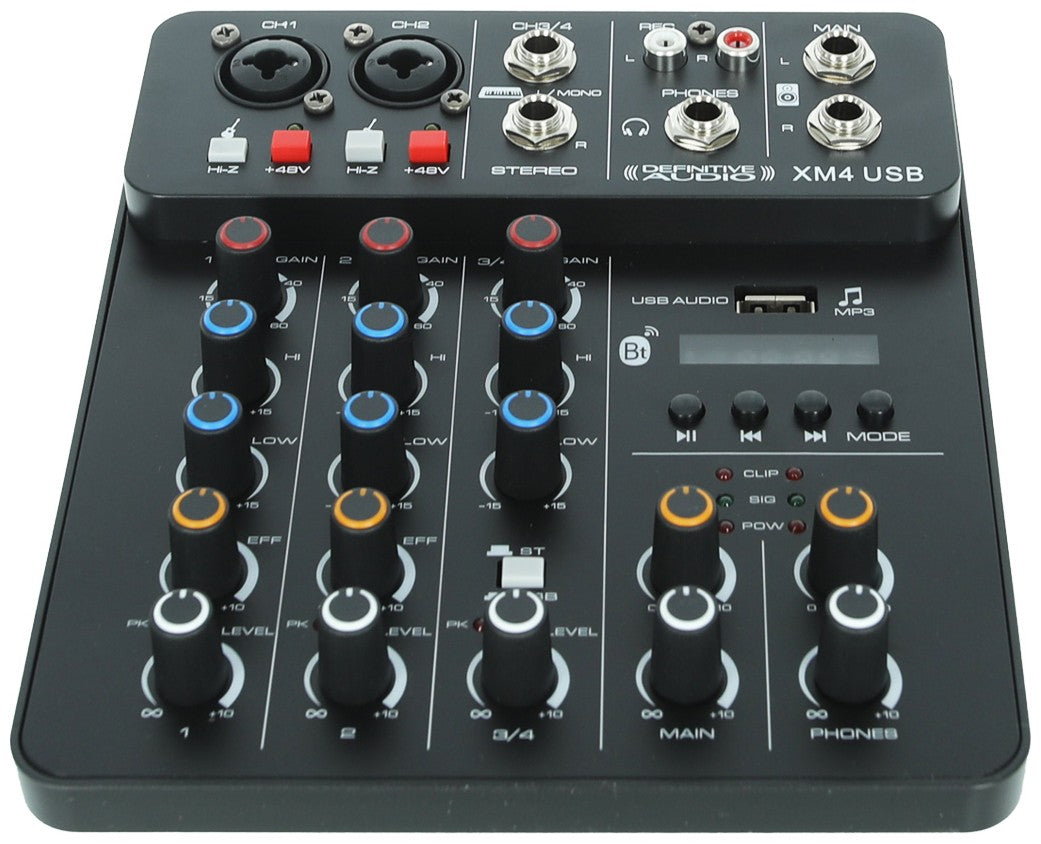

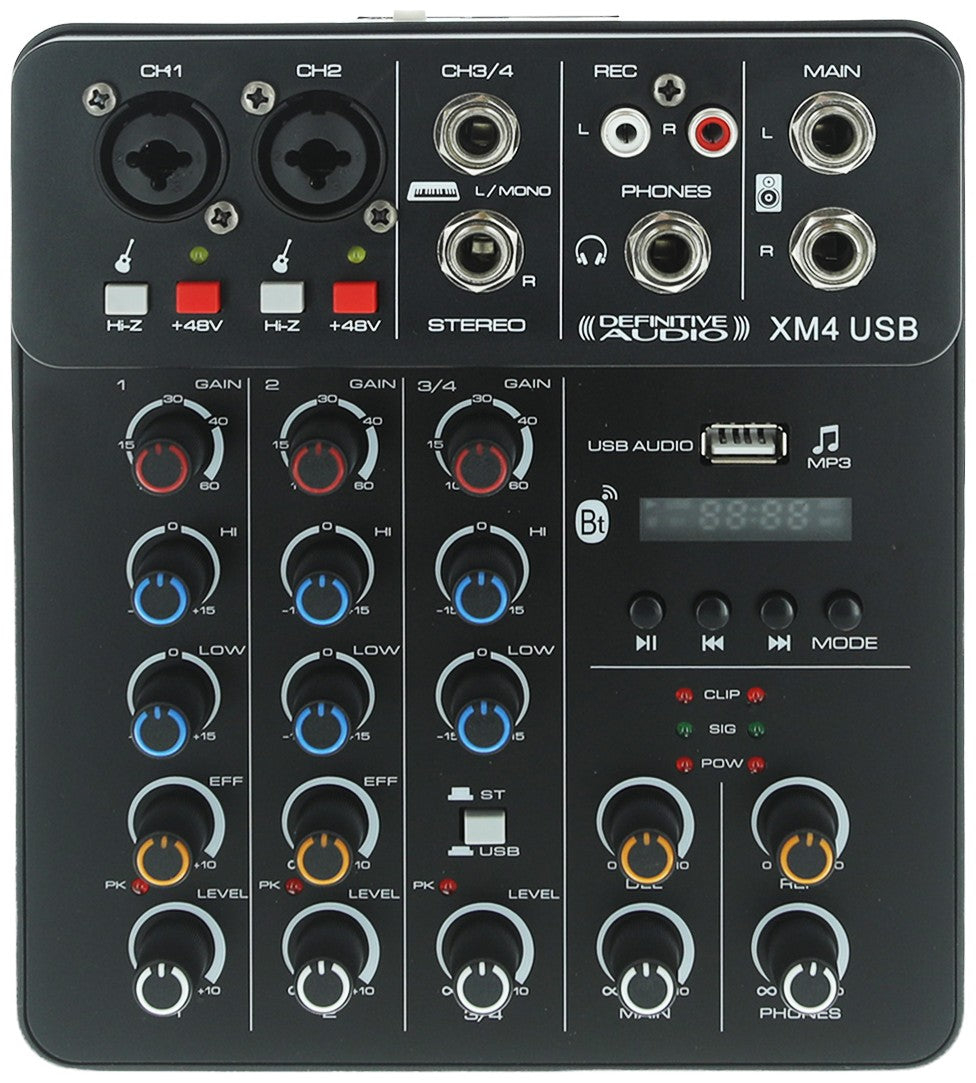

The two mono channels feature XLR/Jack 6.35 mm combo inputs, individual gain control, HI/LOW equalization and an effect send. +48 V phantom power allows the use of condenser microphones, while the Hi-Z function improves impedance matching for instruments equipped with passive pickups.

The CH3/4 stereo channel accommodates line-level sources via 6.35 mm L/Mono and R jacks. L/R RCA inputs complement the connectivity, making it easy to integrate a media player, turntable, DJ controller or any other stereo source. Each channel has its own LEVEL control as well as a Peak indicator for quickly identifying any risk of clipping.

The built-in USB player supports MP3, WMA, WAV, APE and FLAC files from a USB flash drive. The Bluetooth receiver allows wireless music streaming from a compatible device. To enhance the sound, the built-in effect offers dedicated DEL and REP settings for Delay and repeats, which are useful for adding space to a vocal, announcement or instrument.

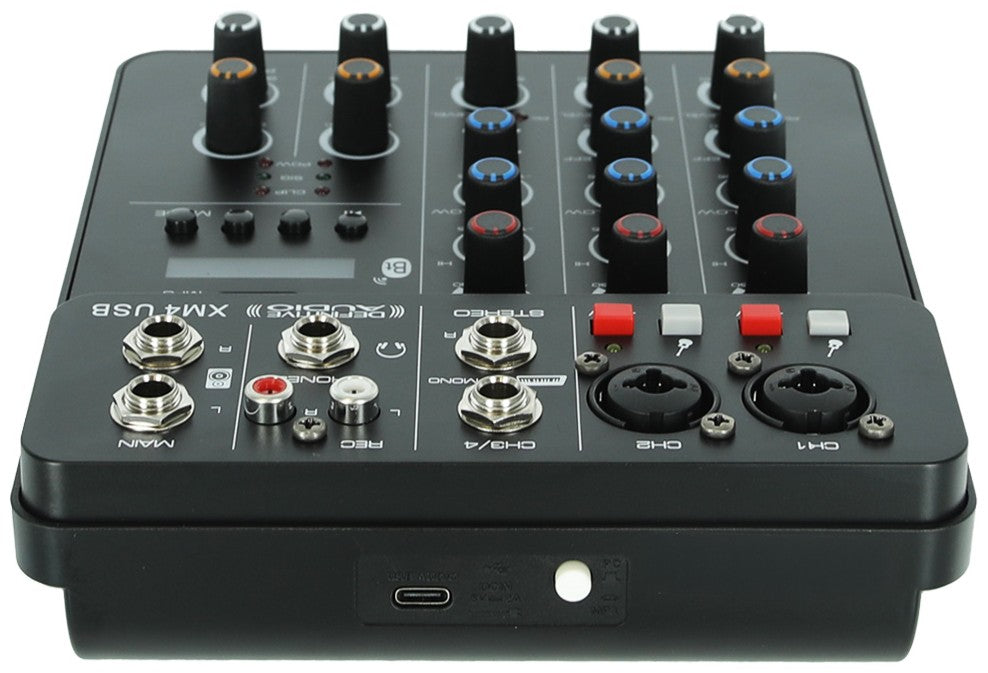

The MAIN L/R main output via 6.35 mm jacks provides the connection to active speakers, an amplifier or a sound reinforcement system. A headphone output with independent volume control makes monitoring easy. Finally, the SIG, CLIP and POW indicators provide clear visual monitoring of the console's activity and overall level.

Technical specifications

Type	Analog	Rackable	No
USB stereo recording / playback	Yes	Headphone output	Jack 6.35, Yes

Dimensions	160 x 47 x 182 mm	Compatible audio formats	MP3, WMA, WAV, APE and FLAC
Weight	0.45 kg	2-band HI and LOW equalization	+/- 15 dB
Power supply	230 V, 50 Hz	LED indicators	CLIP, SIG and POW
USB-C cable included	1 m
