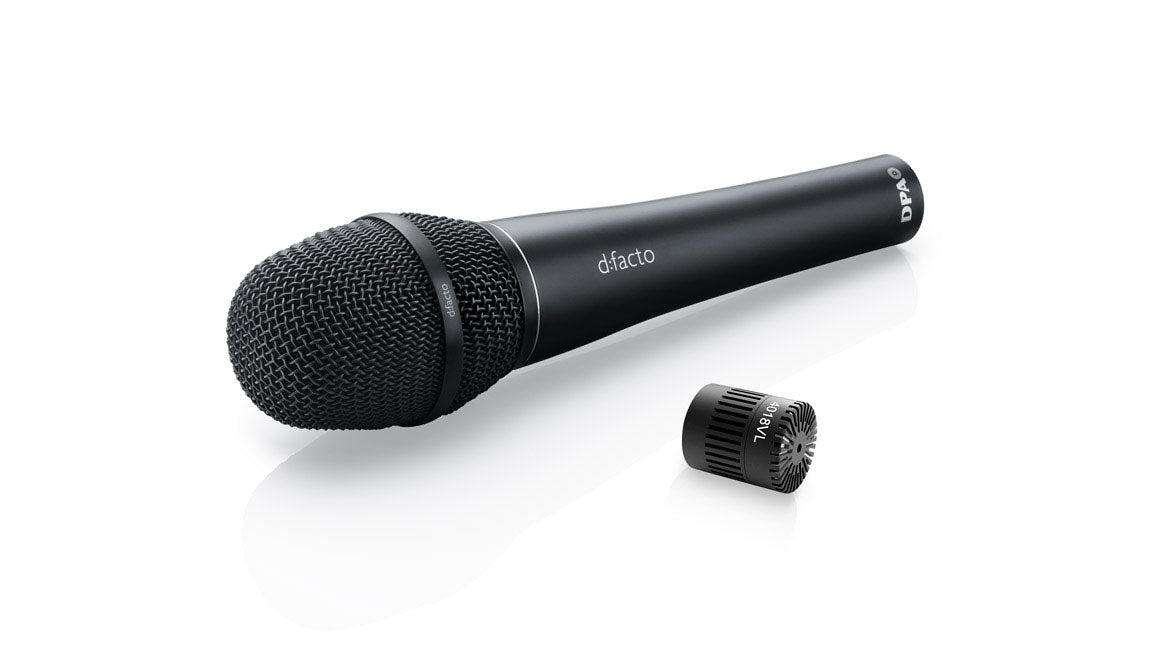

Essential Information About the DPA d:facto 4018VL-B-B01 Vocal Microphone
- Studio sound, live on stage: Linear voicing of the 4018VL capsule for a natural and faithful vocal reproduction.

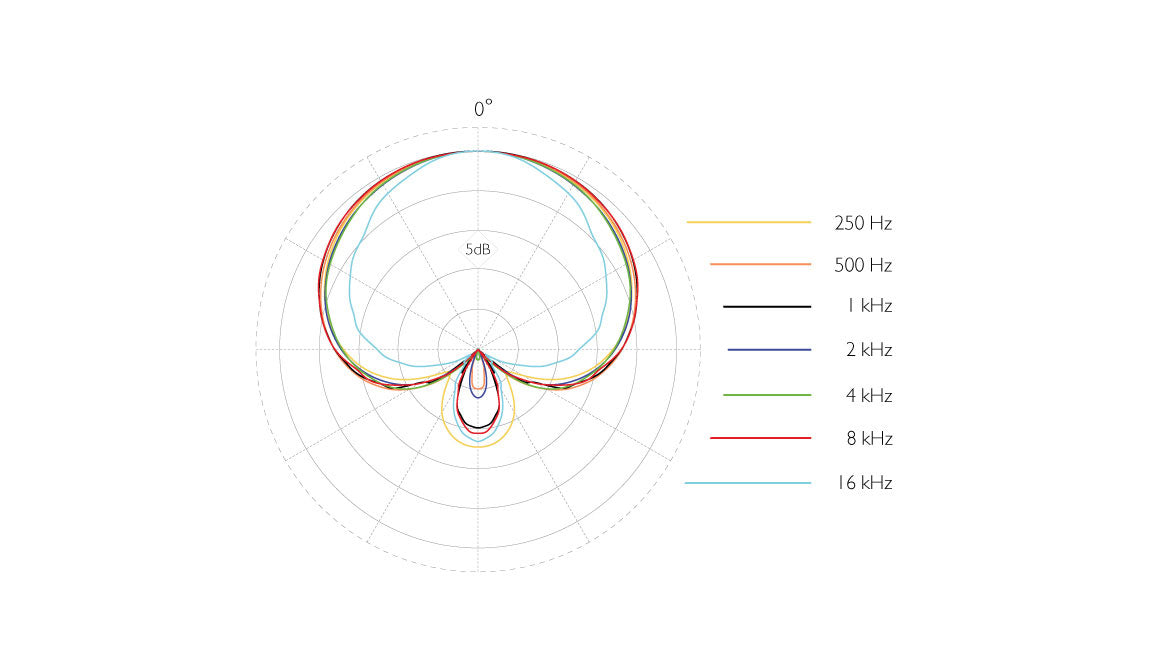

- Uniform supercardioid: Excellent lateral and rear isolation, reduced risk of feedback, and high source separation.
- Robust and live-ready: Three-layer pop filter, very low handling noise, capable of withstanding extreme sound pressure levels.
- Modular wired/wireless: Interchangeable capsule and adapters for major wireless systems, elegant matte black finish.
The DPA "d:facto" Series, Broadcast-Grade Quality for Live Performance
Designed to bring studio aesthetics to stages and sets, the "d:facto" series has established itself through consistent sound and controlled directivity. The 4018VL-B-B01 model features a linear signature, ideal when the engineer prefers to shape the timbre during mixing rather than relying on a predefined high-frequency boost. It carries the DPA DNA: clarity, precise phase, and balanced frequency response.
Intended Uses and Artists
The 4018VL excels for demanding singers and presenters in clubs, tours, or television. Its tight supercardioid pattern keeps the voice front and center while effectively reducing stage monitors, side-fills, and ambient noise. Its headroom and pop resistance make it a reliable choice for dynamic performances, from whispers to fortes.
Technical specifications
| Frequency response | 20 Hz - 20 kHz | Capsule | static electret |
| Category | wired microphone | Color | Black |
| Directivity | supercardioid | ||
Questions frequently asked
Is the DPA 4018VL-B-B01 suitable for live vocal performance with stage monitors?
Its supercardioid directivity reduces feedback, side fills, and stage noise. The triple-layer grille limits plosives, while the mechanics minimize handling noise.
What is the sound signature of this DPA microphone?

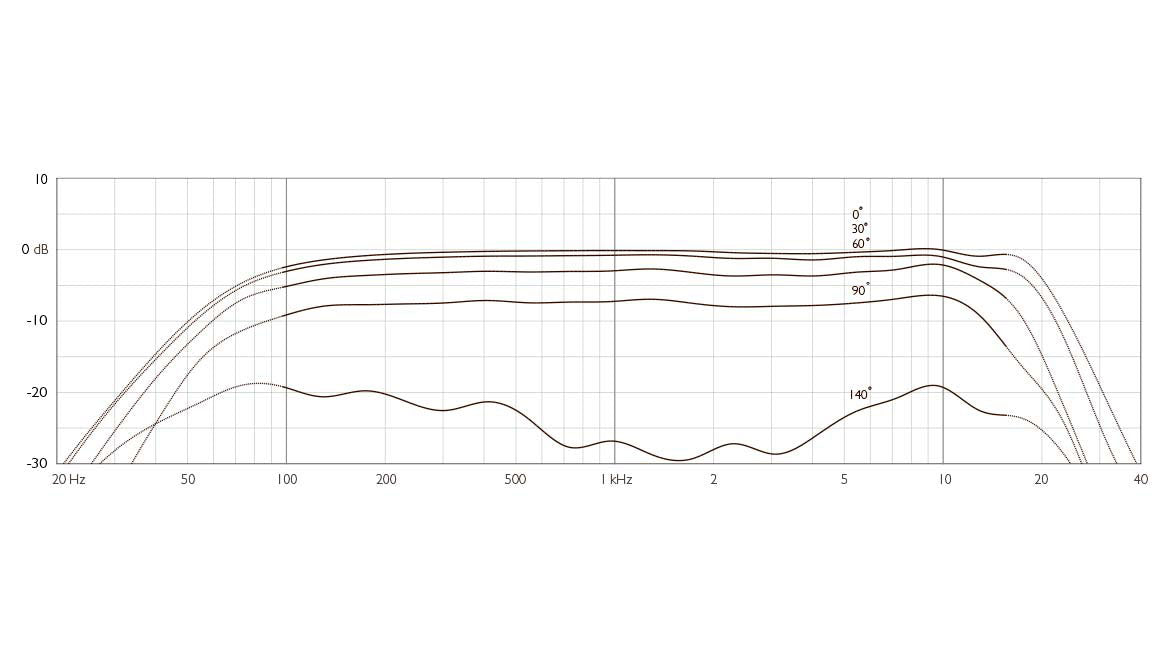

The response is linear, with no pre-boost in the high frequencies, allowing the tonal shaping to be done during mixing. The effective range at 12 cm spans from 40 Hz to 16 kHz, with a gentle 3 dB lift at 12 kHz.
Is phantom power required for wired use?
P48 phantom power is necessary for optimal performance, with a maximum current consumption of 2.0 mA. The balanced output has a nominal impedance of 100 ohms and supports cable lengths up to 100 m.
Can the capsule be used with a wireless system?
It is possible to mount the capsule on a wireless system using DPA adapters. With a wireless adapter, the nominal sensitivity is 2 mV/Pa, equivalent to -54 dB re. 1 V/Pa.
What is the maximum sound pressure level this vocal microphone can handle?
The pre-polarized condenser capsule accepts 136 dB SPL RMS for less than 1% THD, or 139 dB SPL peak. The maximum level reaches 160 dB SPL peak at 10% THD.
