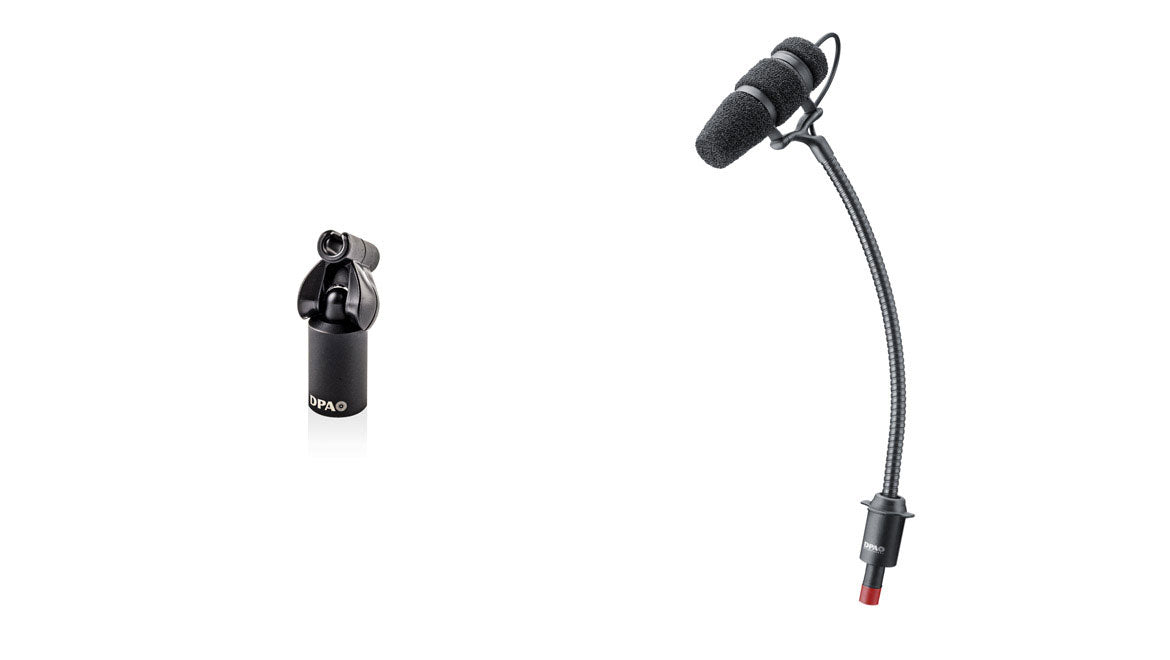

DPA 4099-DC-1-101-MS

An Instrument Sound Reinforcement Reference, Now in CORE Version

Already considered a standard in the instrument microphone world, the d:vote 4099 has established itself on stage and in recording thanks to its natural reproduction and ability to isolate the source. The 4099 CORE version takes this signature even further: more openness, increased definition, and better handling of very dynamic passages, while maintaining the balance that has made the 4099 series renowned. The result: a faithful reinforcement of the instrument's timbre, with enhanced precision and transparency in the mix.

Who It's For and Intended Uses

The DPA d:vote CORE 4099 (with microphone stand mount) is aimed at demanding musicians, live sound engineers, and stage technicians seeking a condenser microphone that sounds "like the instrument," even in noisy environments. It is suitable for reinforcing acoustic instruments (strings, woodwinds, brass, percussion, guitar, piano) as well as denser contexts such as orchestras or TV studios, where presence is desired without sacrificing naturalness. Thanks to its directionality and level handling, it excels on stage where control of spill and feedback is essential.

CORE Technology, Reliable Mounting, and Configuration Flexibility

CORE by DPA: More Transparency, Less Distortion

The CORE technology integrated into the microphone aims to reduce distortion and improve detail clarity. In practice, this results in a sharper attack, cleaner harmonics, and a more stable sense of space, even when the instrument moves from very soft playing to powerful accents. This is a direct advantage for live sound reinforcement: a better-defined sound often requires less corrective equalization and integrates more quickly into a mix.

Supercardioid Directionality: Focus, Rejection, and Feedback Control

With its supercardioid pattern, the 4099 CORE primarily captures what is in front of the capsule and further attenuates the rear. On stage, this translates to better isolation and superior gain before feedback. Note: as with all supercardioids, the proximity effect can boost bass frequencies when the microphone is brought closer to the source, allowing adjustment of warmth through placement.

Microphone Stand Mount, Shock Mount, and Integrated Gooseneck

This version comes with a microphone stand mount (MS4099), convenient when avoiding any contact with the instrument or when stage setup requires "on-the-fly" placement. The shock mount system has been improved to better isolate handling noise and rumble. The integrated gooseneck facilitates precise and reproducible positioning from one concert to another.

Built to Last: IP58 Certification

The 4099 CORE is IP58 certified. This robustness relies notably on a hydrophobic nano-coating, sealing of the sensitive internal amplifier, and a diaphragm with double gold plating. This provides extra security for real-world performances (sweat, humidity, temperature changes, outdoor stages).

MicroDot Connectivity and Adapter System: Ready for Wired and Wireless

The microphone uses a MicroDot connector and comes with an XLR adapter. It can also be connected to many wireless systems via dedicated adapters, allowing ecosystem changes without replacing the microphone. The cables are detachable and available in thinner or more robust versions depending on the application, designed to withstand daily use.

Technical specifications

Frequency response	20 Hz - 20 kHz	Capsule	static electret
Category	instrument microphone	Color	Black
Directivity	supercardioid

Polar pattern	Supercardioid	Power supply (for optimal performance)	For wireless systems: Min. 5 V - max. 10 V via DPA adapter. With DAD6001-BC or DAD4099-BC: P48 (phantom power). Operates from 12 V
Operating principle	Pressure gradient	Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR adapter
Cartridge type	Pre-polarized condenser	Connector	MicroDot
Effective frequency range +/-2 dB at 20 cm (7.9 in)	80 Hz - 15 kHz with a gentle 2 dB boost at 10-12 kHz. Second-order high-pass filter at 80 Hz with DAD4099-BC	Microphone diameter	5.7 mm (0.22 in)
Nominal sensitivity, +/-3 dB at 1 kHz	6 mV/Pa; -44 dB ref. 1 V/Pa	Microphone length	45 mm (1.8 in)
Equivalent noise level, A-weighted	Typ. 23 dB(A) ref. 20 micropascals (max. 26 dB(A))	Cable length	1.8 m (5.9 ft)
Distortion, THD < 1%	128 dB SPL RMS, 131 dB SPL peak	Cable diameter	1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Dynamic range	Typ. 108 dB	Gooseneck length	140 mm (5.5 in)
Max. SPL, THD 10%	142 dB SPL peak	Microphone weight	17 g (0.60 oz)
Nominal output impedance	From MicroDot: 30 - 40 ohms. From DAD4099-BC or DAD6001-BC: 100 ohms	Accordion microphone clip (AC4099)	5 g (0.18 oz)
Cable transmission capacity	Up to 300 m with DAD6001-BC/DAD4099-BC XLR adapter	Universal instrument microphone clip (UC4099)	15 g (0.53 oz)
Output balancing principle	Balanced signal with DAD4099-BC or DAD6001-BC XLR adapter	Microphone stand mount (MS4099)	27.5 g (0.97 oz)
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR adapter	Cold shoe mount with standard 6.35 mm Jack thread (CS4099)	5 g (0.18 oz)
