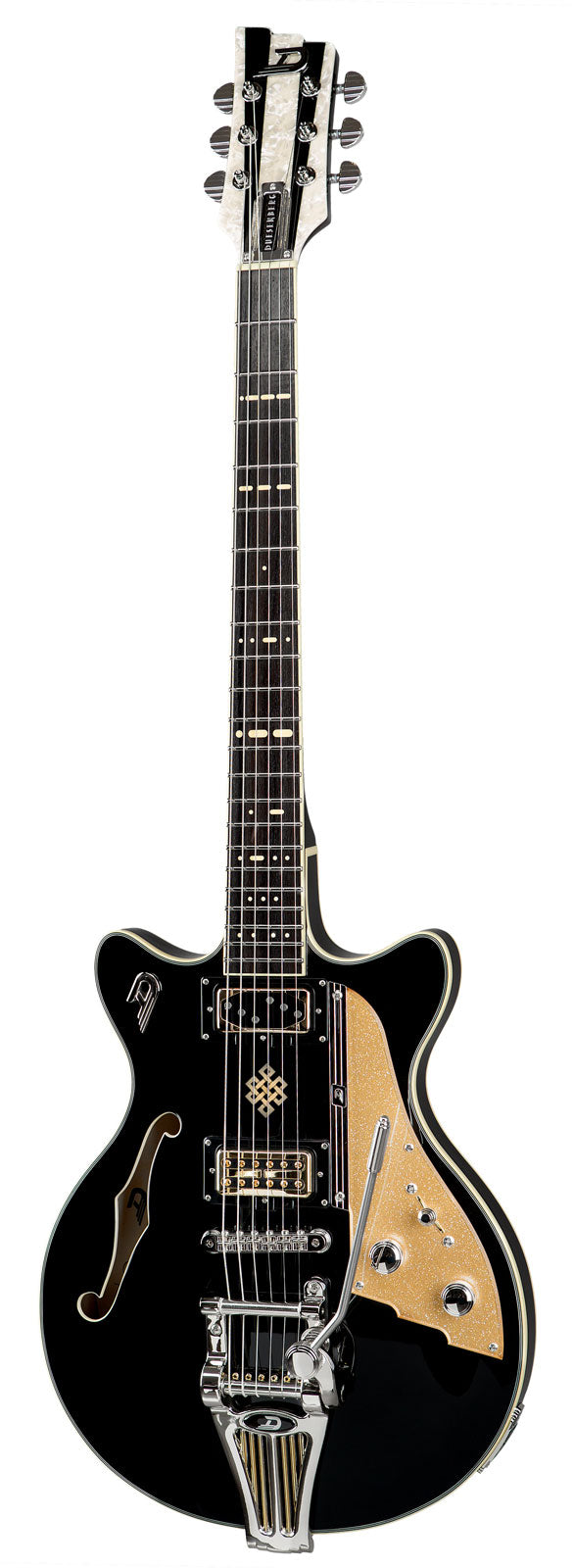

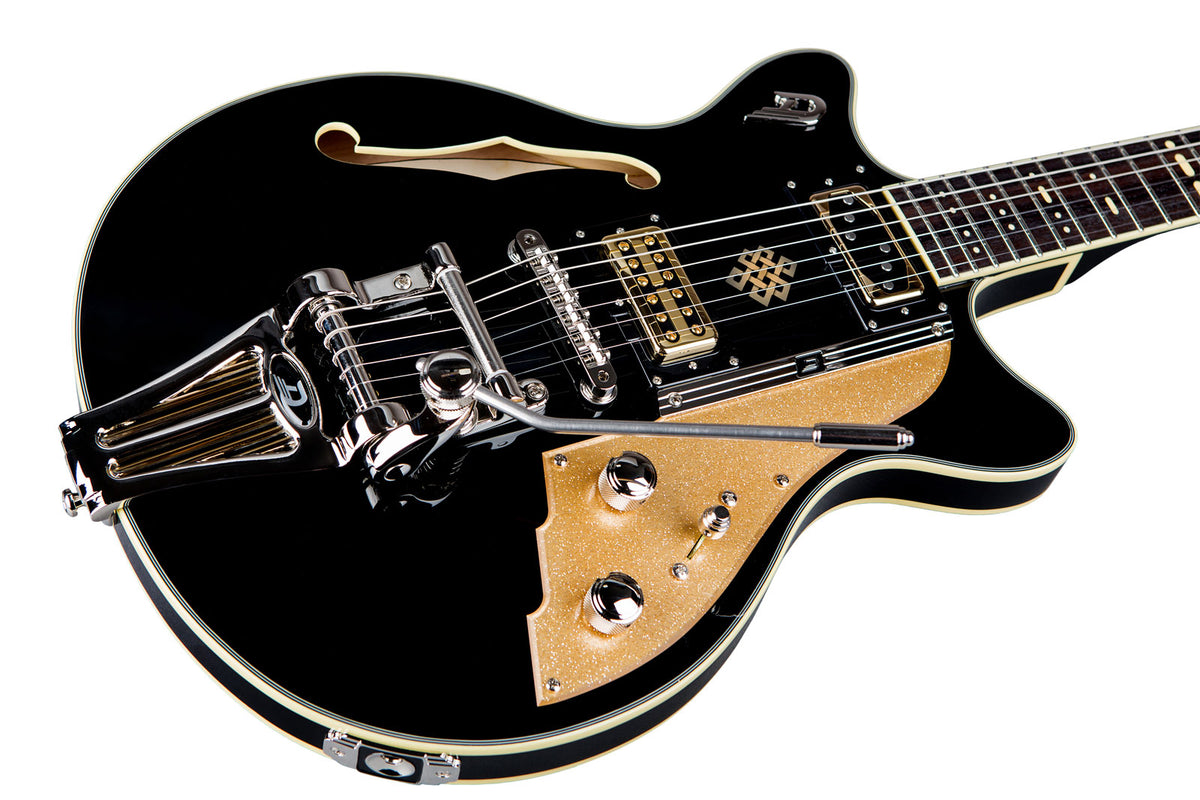

Duesenberg Signature Series Joe Walsh Black
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Duesenberg
andrej@duesenberg.de
------------------------
Safety manager:
Fred's Guitar Parts
Email:
Address:
Essential Information About the Duesenberg Alliance Series Joe Walsh Guitar
- Extra-thin semi-hollow with center block for the punch of a solidbody and the resonance of a hollow body, control over feedback effect and generous sustain.
- Unique pickup combination: LittleToaster (bridge) with precise bite + SingleTwin Mini (neck) silent, remarkable clarity and dynamics.
- Radiator Tremola vibrato ultra-smooth, adjustable (360deg arm), exemplary tuning stability and simplified string changes.
- PLEK-machined fretting for perfect flatness and consistent low action across the 25.5" / 648 mm scale length.
A Signature Collaboration Designed with Joe Walsh
Born from direct exchanges with the legendary Joe Walsh, this Alliance Series is full of personal and functional nods. The "Morse code" inlays on the fretboard and the Tibetan knot between the two pickups mark the instrument, while the mix of nickel and gold hardware reflects Joe's distinctive aesthetic. The goal: an expressive guitar, reliable on stage and in the studio, made for all demanding guitarists.
Who Is It For and What Styles?
Ideal for intermediate to expert musicians seeking a versatile semi-hollow electric guitar. Classic rock, blues, country, pop, indie, and even modern jazz benefit from its precise attack, high-end definition, and strong volume handling. The Medium D neck profile and 12" / 305 mm radius fretboard provide immediate comfort for rhythm players and soloists alike.
Sound
The laminated spruce top combined with flamed laminated maple back and sides, coupled with the center block, delivers a bright projection, singing mids, and tight lows. The SingleTwin Mini neck pickup retains the single-coil spirit while remaining silent: ideal for clear arpeggios and open chords. The LittleToaster bridge pickup adds brightness and bite for riffs without harshness. The simple wiring (1 volume, 1 tone, 3-way selector) emphasizes natural dynamics, while the Steel Saddle Bridge and Radiator Tremola preserve intonation and sustain.
Recommended Compatible Accessories
The Duesenberg Custom Line hard case is included. For maintenance and stage use, opt for nickel strings 10-50 (original gauge), a strap with secure strap locks compatible attachments, and a capo suited for a 12" radius. A stable guitar stand is also advised to protect the semi-hollow body.
Technical specifications
| Electronics: microphone configuration | HH | Nbrs of frets | 22 |
| Category | Hollow body | Body | Flamed Maple |
| Left handed | No | Bridge / tailpiece | Tremolo |
| Strings | Steel | Electronics | Passive |
| Nbr of strings | 6 | Color | Black |
| Top | Spruce | Finishing | Glossy |
| Fingerboard | East Indian rosewood | Hardware | Gold |
| Format | Semi-hollow with sustain block, curved sides, "F" hole | Scale length | 648 mm / 25.5" |
| Back and sides | Flamed laminated maple | Frets | 22 Jumbo, 2.8 x 1.0 mm |
| Body dimensions | 460 x 340 mm / 18.11" x 13.39" | Inlays | Morse code |
| Side height | 35 mm / 1.38" | Truss rod | Dual-action steel |
| Binding | Cream, 5-ply | Headstock | Body color matched |
| Pickguard | Sparkling gold | Tuners | Duesenberg Z-Tuners |
| Finish | PUR lacquer | Bridge | Duesenberg Steel Saddle Bridge |
| Artwork | Tibetan knot | Vibrato system | Duesenberg Radiator Tremola (custom gold grill) |
| Type | One-piece maple | Strap buttons | Duesenberg Standard (Strap Locks compatible) |
| Fretboard | Indian rosewood, 305 mm / 12" radius | Hardware color | Nickel and gold |
| Profile | Medium D | Neck pickup | Duesenberg SingleTwin Mini (silent) |
| Width | 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret) | Bridge pickup | Duesenberg LittleToaster |
| Thickness | 21 mm / 0.83" (1st fret), 24 mm / 0.94" (12th fret) | Wiring | 1 volume, 1 tone, 3-way selector switch |
Questions frequently asked
What tones do the pickups of the Duesenberg Alliance Signature Joe Walsh Black offer?
The combination of the silent SingleTwin Mini in the neck and the LittleToaster in the bridge covers clear arpeggios, open chords, and more cutting riffs. The 3-way selector, paired with a volume and tone control, allows direct access to these two tonal characters.
Does the Radiator Tremola stay in tune well?
The Radiator Tremola works with a Duesenberg Steel Saddle Bridge, a setup designed to preserve intonation and sustain. The Duesenberg Z-Tuners complete this system.
What are the neck dimensions and profile of this guitar?
With a Medium D profile, the one-piece maple neck measures 21 mm at the 1st fret and 24 mm at the 12th fret. The nut width is 42.5 mm, expanding to 52 mm at the 12th fret. The East Indian rosewood fingerboard has a 305 mm radius and 22 jumbo frets.
Is a case included with this guitar?
A Duesenberg Custom Line hard case as well as the necessary Allen keys are included.
What strings should be used on this model?
The original setup is designed for a set of nickel strings in gauge 10-50. Its 648 mm scale length and Steel Saddle Bridge are part of this configuration.
