Earthquaker Data Corrupter

A modern PLL inspired by "no rules" synths

The Data Corrupter belongs to the large family of phase-locked loop (PLL) effects, known for their ability to transform a guitar into a generator of aggressive, sometimes unpredictable synthetic textures... but here, with an approach designed for the pedalboard. EarthQuaker Devices draws inspiration notably from concepts found in the Electrax Synthax and a "Basic Frequency Synthesizer" design, then pushes the work on tracking and sustain to achieve a more expressive and easier-to-use result in real conditions.

The principle: your signal is first "hardened" into a square wave fuzz, then analyzed and reconstructed around a master oscillator. Next, the pedal multiplies, divides, and modulates to generate intervals, subharmonics, and octaves that give this cyberpunk, massive, and immediately recognizable character.

Who is the Data Corrupter for, and in which styles does it shine?

This pedal is aimed at guitarists (and bassists depending on register and playing style) who want to break the mold: experimental rock, noise, stoner, electro-rock, industrial, film music, or any context where a "riff" must become a synth motif. It also excels in the studio for doubling a guitar track with an ultra-stable square layer, or creating lead hooks that stand out in the mix.

Live, the Data Corrupter is a formidable weapon for transitions and accents: a press in momentary mode injects a dose of aggressive synth exactly at the right moment. If you like controlling your sound with the pick and guitar volume, expect a very direct response: here, the attack is sculpted, and the "square" character does not hold back.

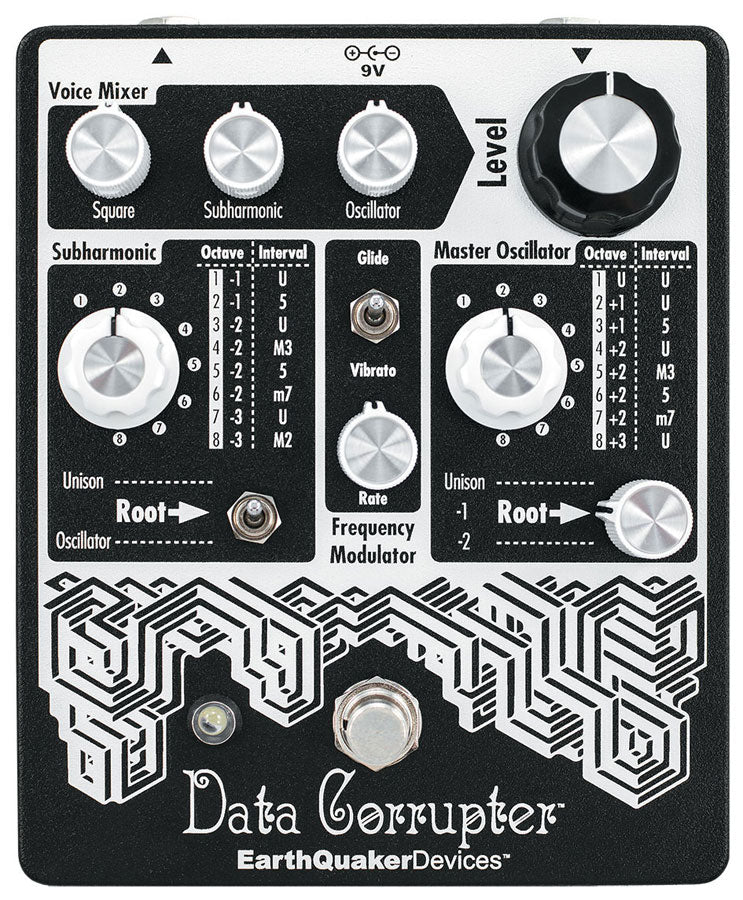

Controls and operation: a 3-voice synth in a pedal

The core of the sound comes from the Oscillator (master oscillator). A 3-position Root selector sets the reference octave sent to the circuit (Unison, -1, -2), to optimize tracking according to your instrument and register. An 8-position rotary selector then allows you to choose the octave and/or interval produced by the master oscillator, ranging from an "arcade" lead line to darker harmonizations.

The Voice Mixer gives you control over the balance of the three voices: level of the master oscillator, level of the Subharmonic section (lower octave programs, up to three octaves below the input), and addition of the Square (your square wave fuzz in the original octave) to thicken, dirty, or even satellite the signal. A second Root setting on the Subharmonic section allows choosing a more stable response (Unison) or more "mutant" behaviors by linking generation to the other sections.

Finally, the Modulator acts like a pitch-bend modulation: in Glide, each note slides to the next (smooth portamento and "synth lead"), while in Vibrato the pitch oscillates for a nervous sci-fi effect. Result: you can go from a massive and simple sound to unstable, almost vocal textures, while keeping clear control over the voice mix.

The sound

The Data Corrupter does not seek transparency: it imposes a square, compressed, and sharp signature, with a "generator" feel more than a pushed amp. The grain recalls vintage synths and 8-bit consoles, but with a solidly analog density: a solid low end, biting mids, and brightness that can become acidic depending on the setting and playing.

Its strong point is the playing dynamics translated into synthetic energy: clear attacks, long sustain, and the ability to produce intervals and sub-octaves that transform a simple riff into a synth line. To optimize the result, precise execution and a clean input signal help the pedal lock pitch more stably, especially when exploring the most extreme settings.

Technical specifications

Effects	Distortion / Overdrive / Fuzz, Distortion	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Black

Dimensions	144 x 121 x 57 mm (including knobs)	Footswitch modes	latching (press to activate, press to bypass) and momentary (hold to activate)
Input impedance	1 megaohm	Required power supply	9V DC (center negative), barrel connector 2.1 mm
Output impedance	less than 1 kiloohm	Consumption	26 mA
Flexi-Switch	relay true bypass
