Earthquaker Organizer V2

A Vintage Organ Spirit in the EarthQuaker Devices Family

The Organizer was designed to recapture the feel of vintage organs, with that slightly unstable and organic character reminiscent of electromechanical machines, while maintaining modern playability. Its DNA is clearly linked to the "Guitorgan" aesthetic: a guitar that takes on an organ identity, with stacked octaves and a chorale texture. The result is not just a contemporary octaver: here, the goal is the illusion of a church keyboard or retro organ, with a very "analog" warmth and a hint of warble reminiscent of a rotary speaker cabinet.

For Whom, Which Styles, and In What Contexts?

The Organizer is aimed at guitarists and bassists who want to enrich their palette without using a synth: psychedelic rock, indie, post-rock, ambient, worship, film music, experimental, and any situation where an organ pad can fill the space. In the studio, it becomes a layering machine (doublings, harmonizations, beds), while live it allows covering "keyboard" parts on guitar, with excellent chord clarity. It also responds very well to other sources: vocals, synths, brass, drum machines, or percussion, as long as you feed it a usable signal.

Controls, Key Settings, and Pedalboard Behavior

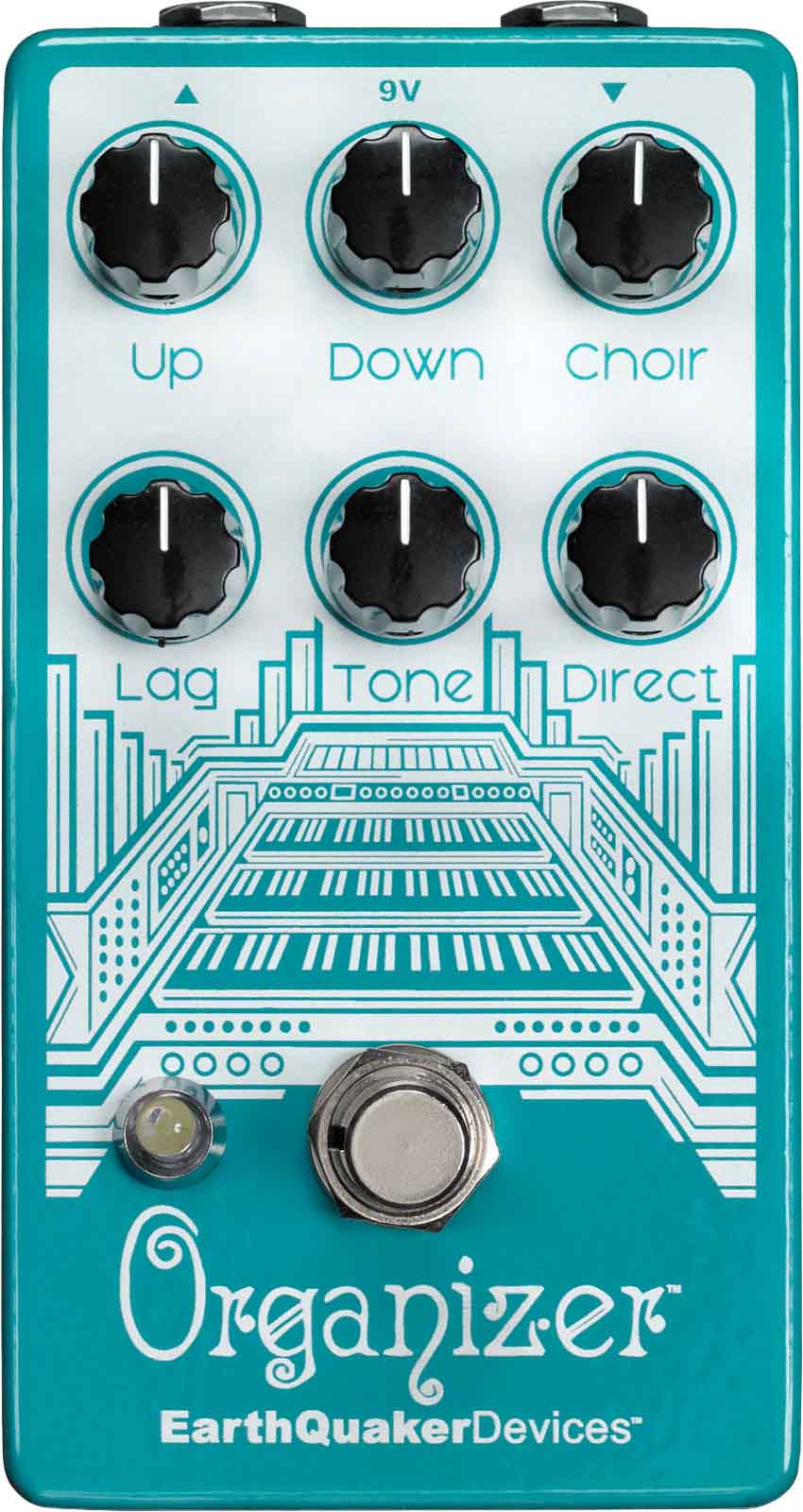

The interface is straightforward: you build your organ by stacking octaves, then shape the attack and breadth. Up controls the level of the upper octave, Down controls the level of the lower octave, and Direct adjusts your original (dry) signal to preserve the guitar's articulation or, conversely, to blend into the pad. The Tone knob acts as a filter: turning it left reduces highs for a softer, more "old wood" color.

The Lag control is key to the "organ" feel: at minimum, the processed signal is more immediate; increasing it adds delay to the wet signal, which broadens the sensation, thickens chords, and can create a sense of movement. Finally, Choir regenerates a blend from the Up and Down octaves to add extra texture: an additional layer with 2 octaves up, 2 octaves down, and a slight delay evoking a "church organ" dimension. Note: Choir only works if Up and Down are engaged in your setting.

In terms of design, the Organizer combines analog circuits and DSP, with a fully analog dry signal path. Switching is a true bypass based on relays: perfect for integrating into a character-driven pedalboard while maintaining a solid clean base and coherent dynamics.

The Sound

The Organizer stands out with an immediately "instrumental" color, closer to a vintage organ than a clinical pitch shifter. The octaves have generous thickness, with a warm feel and a touch of modulation/warble reminiscent of a Leslie-type rotation, without falling into caricature. Depending on the Direct mix, you can keep the pick attack for precision or favor the illusion of a pure, dense, enveloping organ. Pushing Lag and Choir yields chorale pads, ideal for ambient, cinematic intros, and passages where the guitar becomes a living "pad."

Technical specifications

Effects	Synthesizer, Effects, Rotary speaker emulation	Type	sector
Technology	Analog & Digital	Use	electric guitar
Format	Pedal	Color	Blue
EQ	Tone

Up	upper octave level	Dimensions	121 x 64 x 57 mm (including knobs)
Down	lower octave level	Input impedance	1 M?
Choir	regeneration/blend with chorale texture (works with Up and Down)	Output impedance	500 ?
Lag	delay applied to the wet signal (minimum left, increases turning right)	Required power supply	9V DC, center negative, 2.1 mm connector
Tone	attenuates highs when turned left	Consumption	81 mA
Direct	level of the analog dry signal
