Earthquaker The Wave Transformer

Name: The Wave Transformer
Brand: Earthquaker
SKU: 386948
Price: 239.00 EUR
Availability: InStock

239,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 386948

EAN : 0810019913877

This item is covered for 3 years

Information

The Essentials to Know About the Earthquaker Devices The Wave Transformer Modular Synthesizer
• 100% Analog Eurorack Oscillator with an original wave transformation circuit, capable of morphing from a simple waveform to a dense, mutating texture via the "Transform" control.
• 7 Simultaneous Audio Outputs to stack, mix, or route multiple wave characters in parallel within your patch.
• Precise Tracking Over More Than 8 Octaves (starting from A-1 at 13.75 Hz), ideal for stable basslines as well as expressive lead voices.
• Advanced Modulations: Linear and exponential FM, hard/soft sync, PWM from 0% to 100%, and dedicated sub-oscillators.

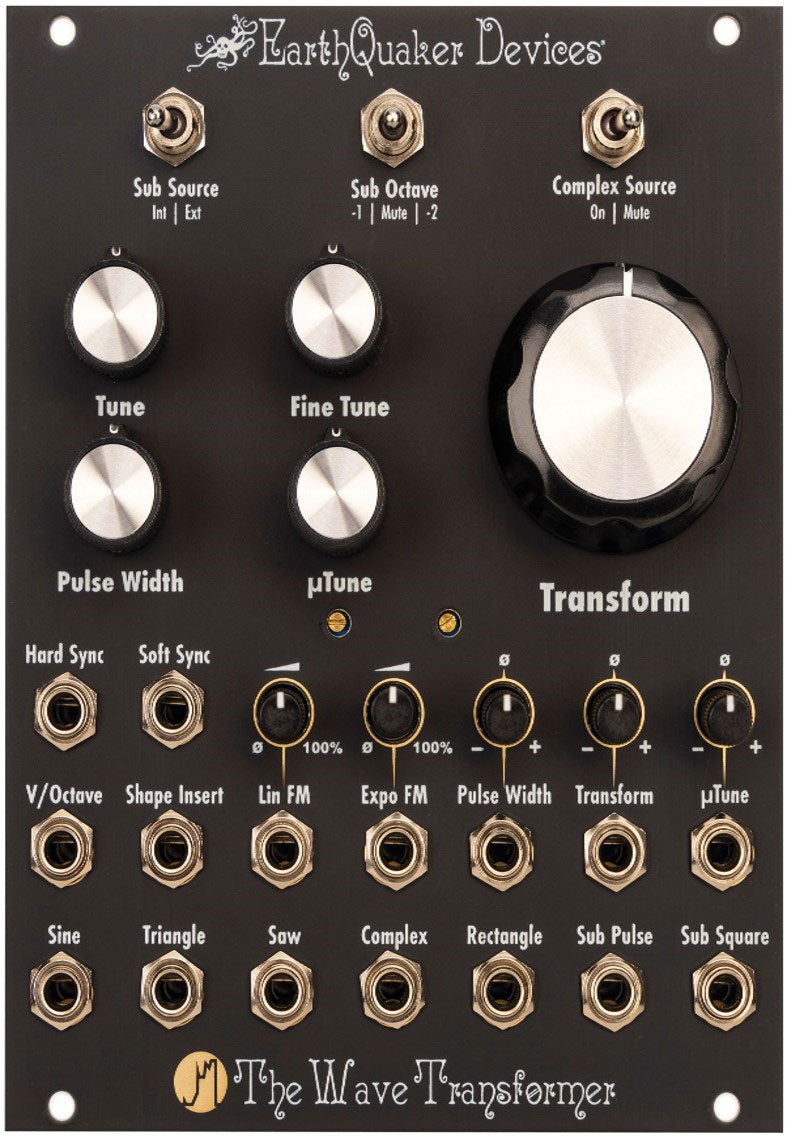

The Wave Transformer

239,00 €VAT incl.

0,00 € Ecotax included

Reference price

An Earthquaker Devices Module That Shakes Up the Complex Oscillator Norms

With The Wave Transformer (Wave Transformer Transfiguration Oscillator), Earthquaker Devices brings its passion for circuits with a strong character into the Eurorack realm. While many complex oscillators rely on wavefolding or filtering approaches, this module adopts a broader wave transformation logic: the "Transform" parameter evolves the timbre of each output from a readable waveform to a rich, intertwined, and lively sonic mass.

Who Is It For, and In Which Styles?

This module is aimed at experienced musicians and sound designers who want a highly modulable central oscillator, equally comfortable in techno, electro, ambient, drone, and synthwave as in texture creation for film scoring. In the studio, it excels at building complex layers from a single source. Live, its multiple outputs and CV inputs with attenuation facilitate immediate variations, from sharp leads to controlled sub basses.

Technical specifications

Arpeggiator	No	Synthesis type	Digital, Modelization
Sampler	No	Vocoder	No
Velocity sensitive	Yes	Module type	Oscillator
MPE compatible	No	Category	Analog synth
Width in HP	20	Inputs	CV in, Sync In
Number of oscillators	1	Outputs	Analog
Semi-modular	Yes

Questions frequently asked

What space should be allocated in a Eurorack case?

The module occupies 20 HP and has a maximum depth of 25.4 mm. It can be installed in a skiff case, not exceeding 25.4 mm behind the panel with the power connector in place.

Which waveform outputs are available simultaneously?

Seven waveform outputs can be used at the same time to feed different patch paths. There is a fixed pulse sub-octave output at -1 octave with a 25% duty cycle, as well as a Sub Square output switchable to 1 or 2 octaves below the fundamental.

Are FM and sync available?

The modulation section includes exponential and linear FM inputs, each with dedicated attenuators and attenuverters. Hard sync and soft sync inputs provide tighter or looser synchronization options. The PWM covers a range from 0% to 100%.

Is the Earthquaker The Wave Transformer suitable for techno and sound design?

This model is aimed at experienced musicians and sound designers working in techno, electro, ambient, drone, synthwave, or film music. The Transform control evolves the timbre from a clear waveform to denser harmonic structures.
