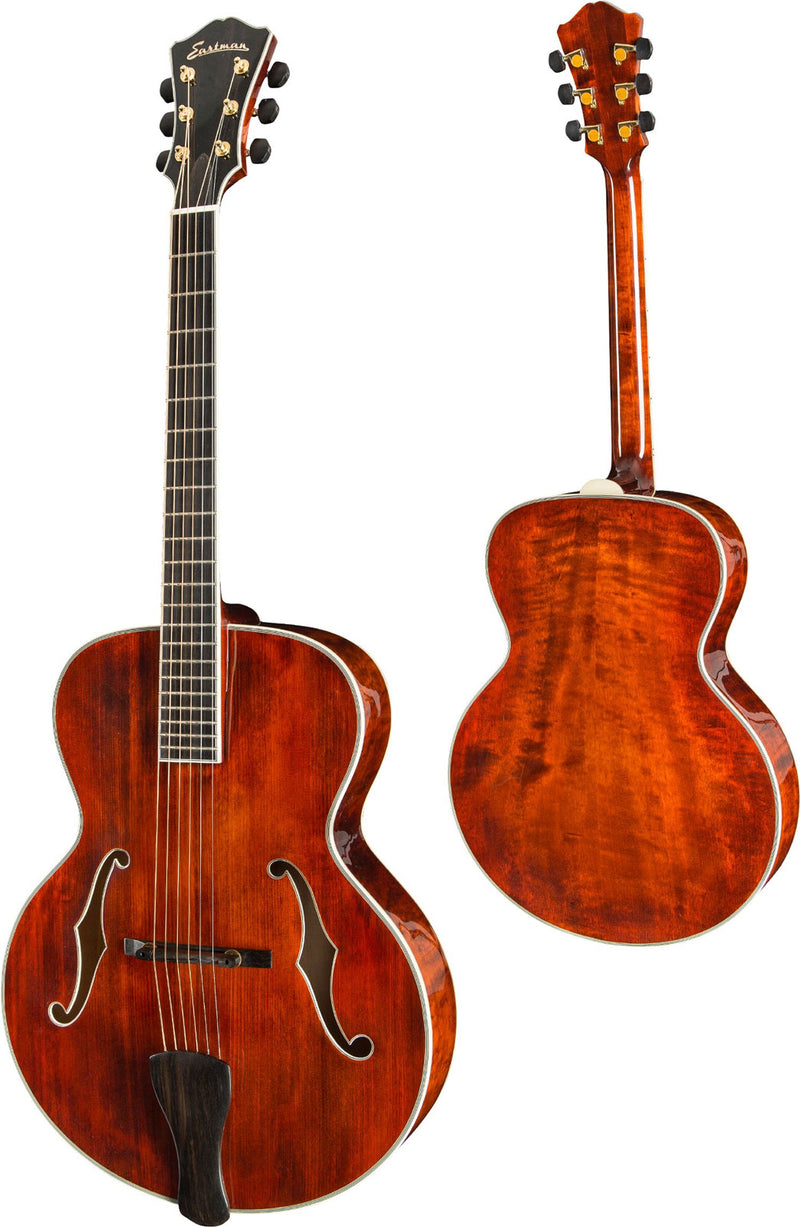

Eastman AR805 Classic

An archtop rooted in the great jazz tradition

With its 16" body and "F" holes, the AR805 Classic follows the codes of historic jazz guitars: natural projection, clear attack, and refined aesthetics down to the details (7-ply ivoroid binding, pearloid logo, glossy finish). Its "no cutaway" design prioritizes acoustic balance and the warm character typical of archtops.

For which guitarist and styles?

This guitar is primarily aimed at intermediate to advanced guitarists seeking a true "jazz" feel under the fingers: chord placement, walking bass lines, comping, chord-melody arrangements, as well as swing, blues, and ballads. The 25" / 635 mm scale length and 12-52 string gauge promote good tuning stability, intonation, and an expressive right hand, particularly appreciated when playing with a pick.

Sound

The solid spruce top offers nuance and responsiveness: it handles strong attacks while remaining sensitive to light dynamics, helping to "make the chords speak." The hand-carved solid maple back and sides enhance definition, clarity, and projection, with tight lows and precise highs. The combination of ebony fingerboard and adjustable ebony bridge supports articulation and note-to-note clarity, while the 16" format maintains an excellent balance between body size, comfort, and acoustic volume.

Recommended compatible accessories

To preserve the original feel, favor .012 - .052 gauge strings, identical to the factory-installed set (D'Addario NYXL .012 - .052). A microfiber cloth is also recommended to maintain the glossy finish and gold hardware after each session.

Technical specifications

Category	Hollow body	Bridge / tailpiece	Fixed
Left handed	No	Electronics	Passive
Strings	Steel	Color	Orange
Nbr of strings	6	Finishing	Glossy
Nbrs of frets	22	Hardware	Gold

Body style	jazz guitar without cutaway	Truss rod	single action
Body dimensions	16" x 3-1/4" / 406.4 mm x 82.6 mm	Frets	22 Medium Jumbo Jescar 47104
Top	solid spruce	Nut	bone, 1 3/4" / 44.5 mm
Back and sides	hand-carved solid maple	String height at 1st fret	0.022" / 0.56 mm
Binding	top, back, fingerboard, F-holes, headstock	String height at 12th fret	basses 0.078" / 1.98 mm; trebles 0.062" / 1.57 mm
Binding material	7-ply ivoroid	Logo	pearloid headstock inlay
Finish	glossy finish	Hardware color	gold
Neck material	maple	Tailpiece	ebony on brass
Neck profile	Traditional Even C	Bridge	adjustable ebony bridge
Fingerboard	ebony	Tuners	Gotoh gold with ebony SG360-EN01GG
Fingerboard radius	12" / 305 mm	Case	hard shell case included
Scale length	25" / 635 mm
