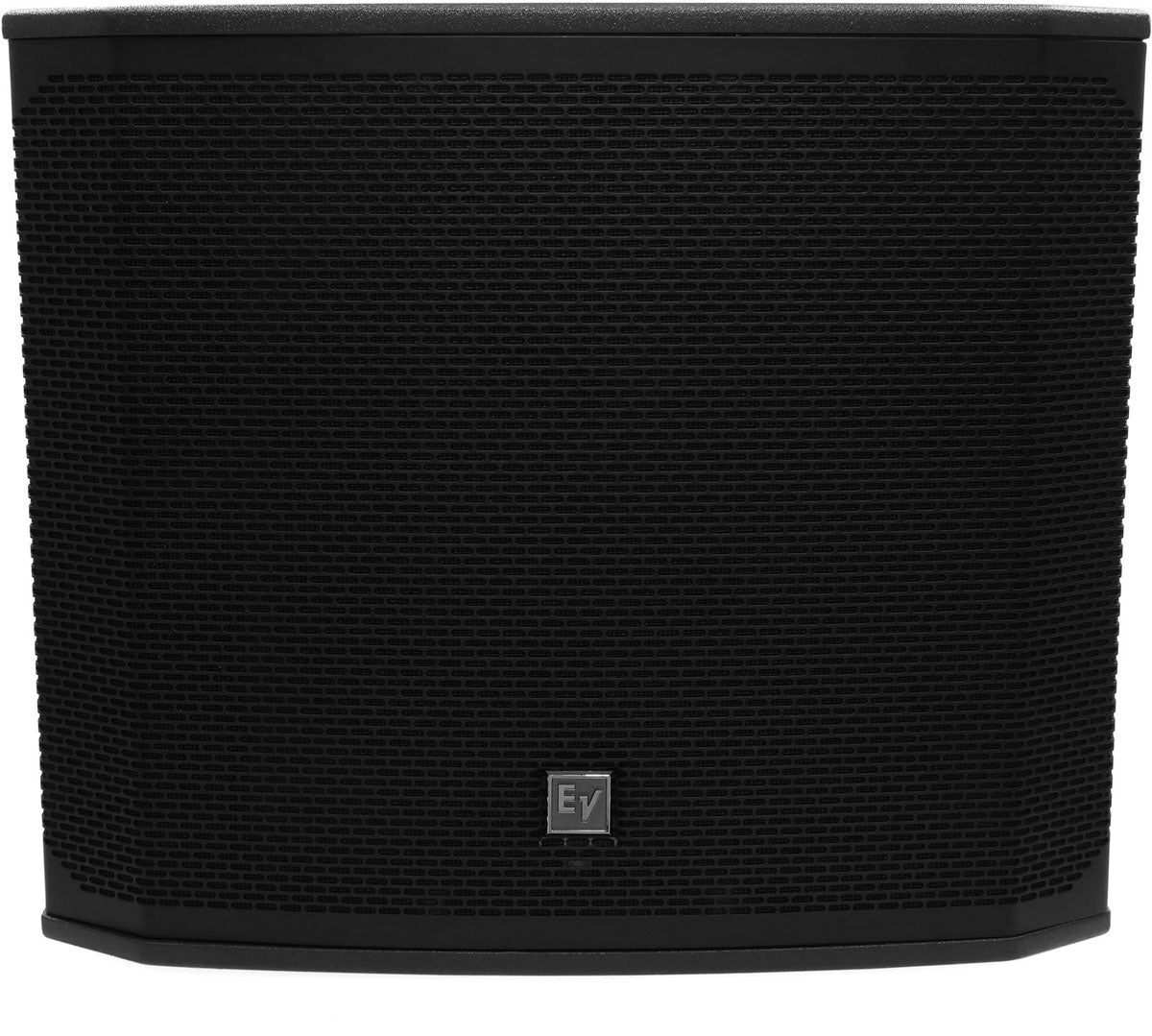

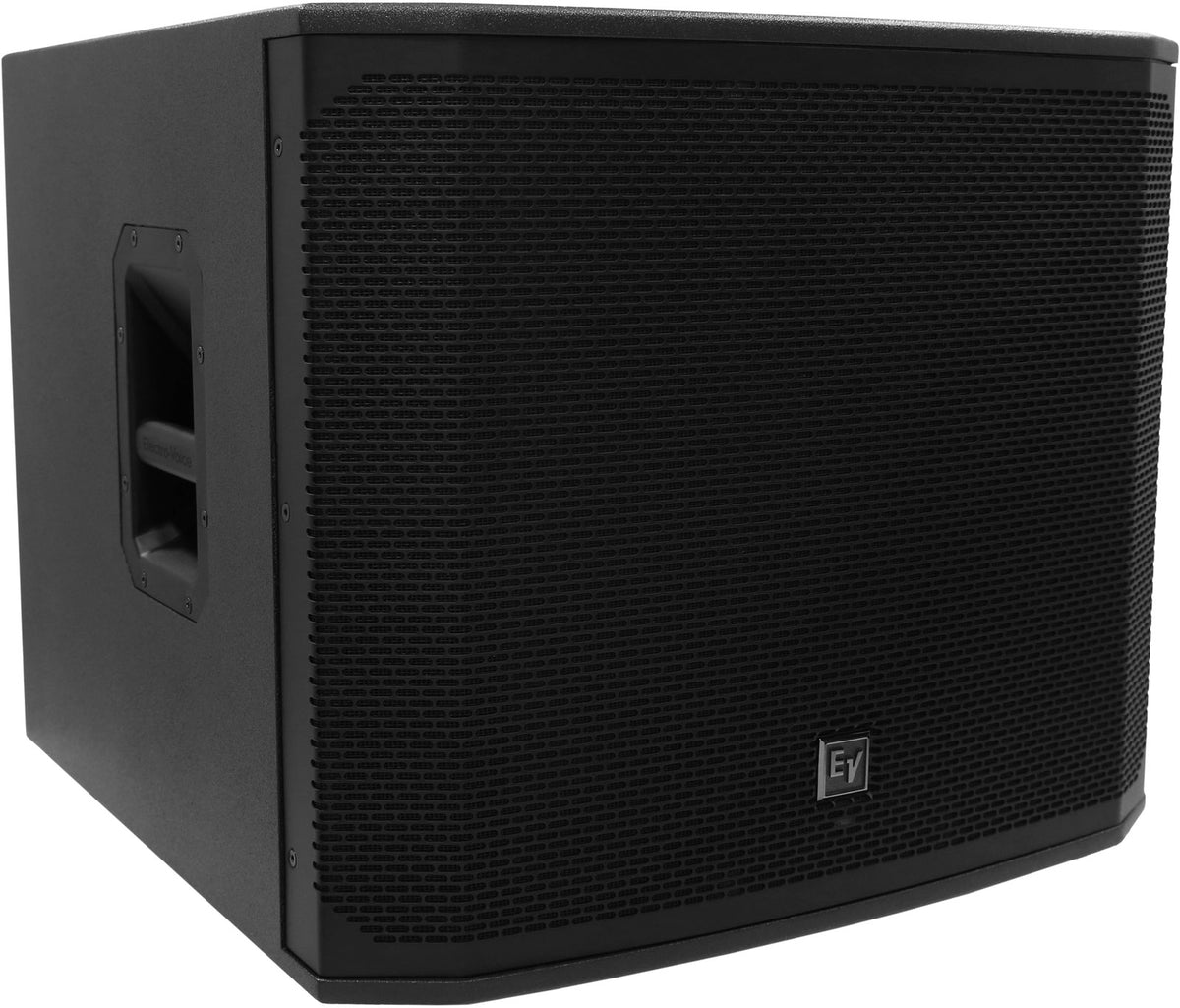

Electrovoice EKX-18SP

EKX: The Electro-Voice Range Designed for Versatility and Reliability

The EKX-18SP is part of Electro-Voice's EKX series, a lineup designed to meet the demands of modern sound reinforcement: power, clarity, and durability without complicating setup. This 18" active subwoofer is a coherent solution to complement a front-of-house system, reinforce a stage monitor (depending on configuration), or build a mobile sound system for events, offering a "plug-and-play" approach with essential controls directly accessible.

Intended Uses and Target Profiles

The Electro-Voice EKX-18SP is aimed at DJs, bands, service providers, venues, and organizations seeking ample bass and high sound pressure levels for live performances or recorded music. Its frequency response extends low (down to 35 Hz at -10 dB) to provide a solid foundation for kicks, basses, and synths, while remaining controlled in the crossover region with the main speakers.

It is also well suited for temporary installations: you arrive, plug in, set the crossover, and achieve a balanced system. With its handles and transport-friendly design, it naturally fits into a mobile setup.

Settings, Connectivity, and Design: Efficiency Serving Sound Quality

Adjustable Crossover: Simple Integration with Your Speakers

Thanks to the selectable crossover (80 Hz, 100 Hz, 120 Hz, 150 Hz), you can quickly adapt the cutoff point to the type of speakers used and the desired sound. A lower setting favors a smooth transition with speakers capable of handling low-mid frequencies, while a higher setting helps more compact speakers gain comfort and headroom.

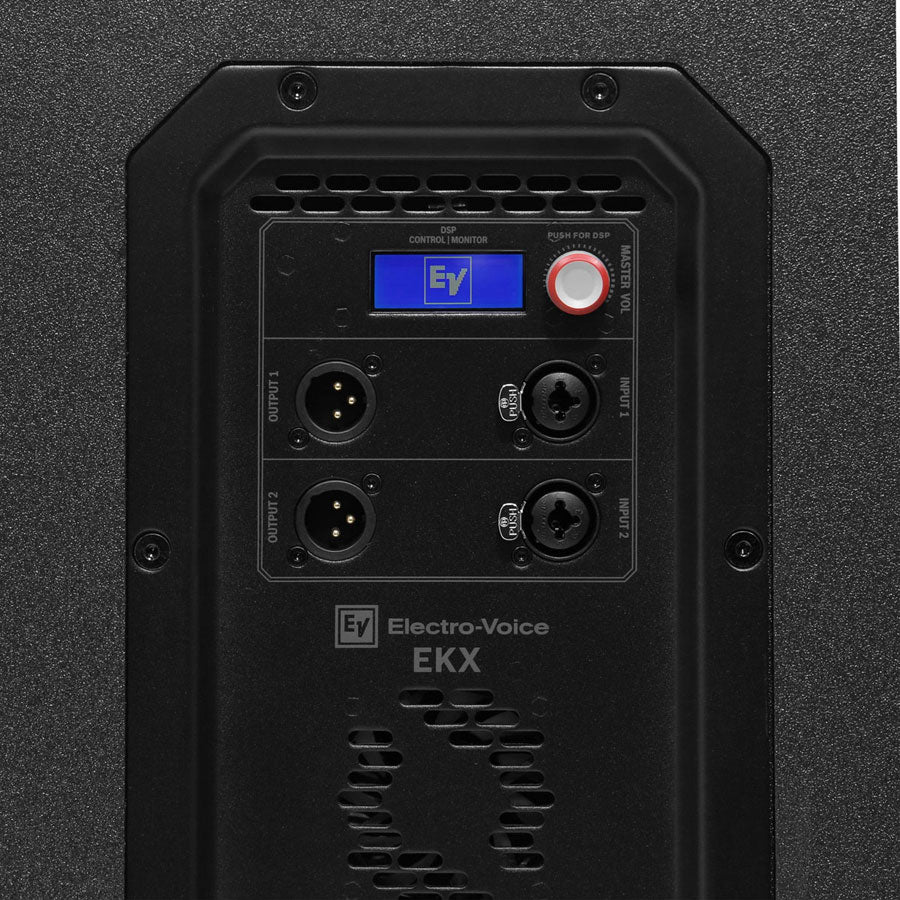

LCD Screen: Direct and Clear Control

The LCD screen facilitates quick access to settings without wasting time, a real advantage during setup/breakdown or when changing venues. You maintain clear and immediate control over the subwoofer's integration into your system.

Inputs/Outputs: Easy Integration in Sound Systems

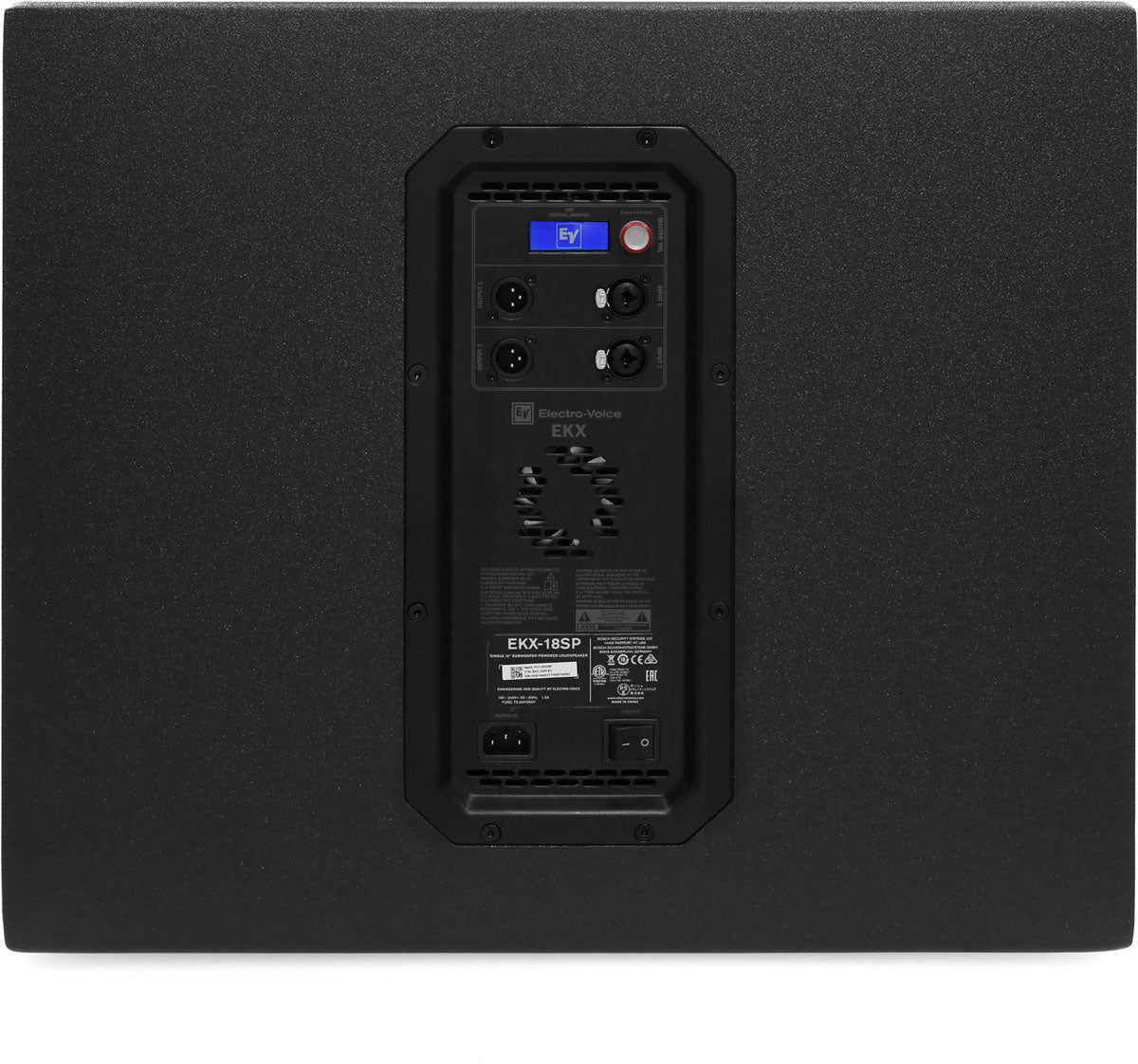

With 2 combo XLR / 6.35mm TRS jack inputs and 2 XLR outputs, the EKX-18SP easily fits between the mixer (or controller) and your powered speakers. This configuration is convenient for cleanly daisy-chaining the signal and building a stereo setup while maintaining standard sound reinforcement cabling.

Reinforced Enclosure and EVCoat Finish

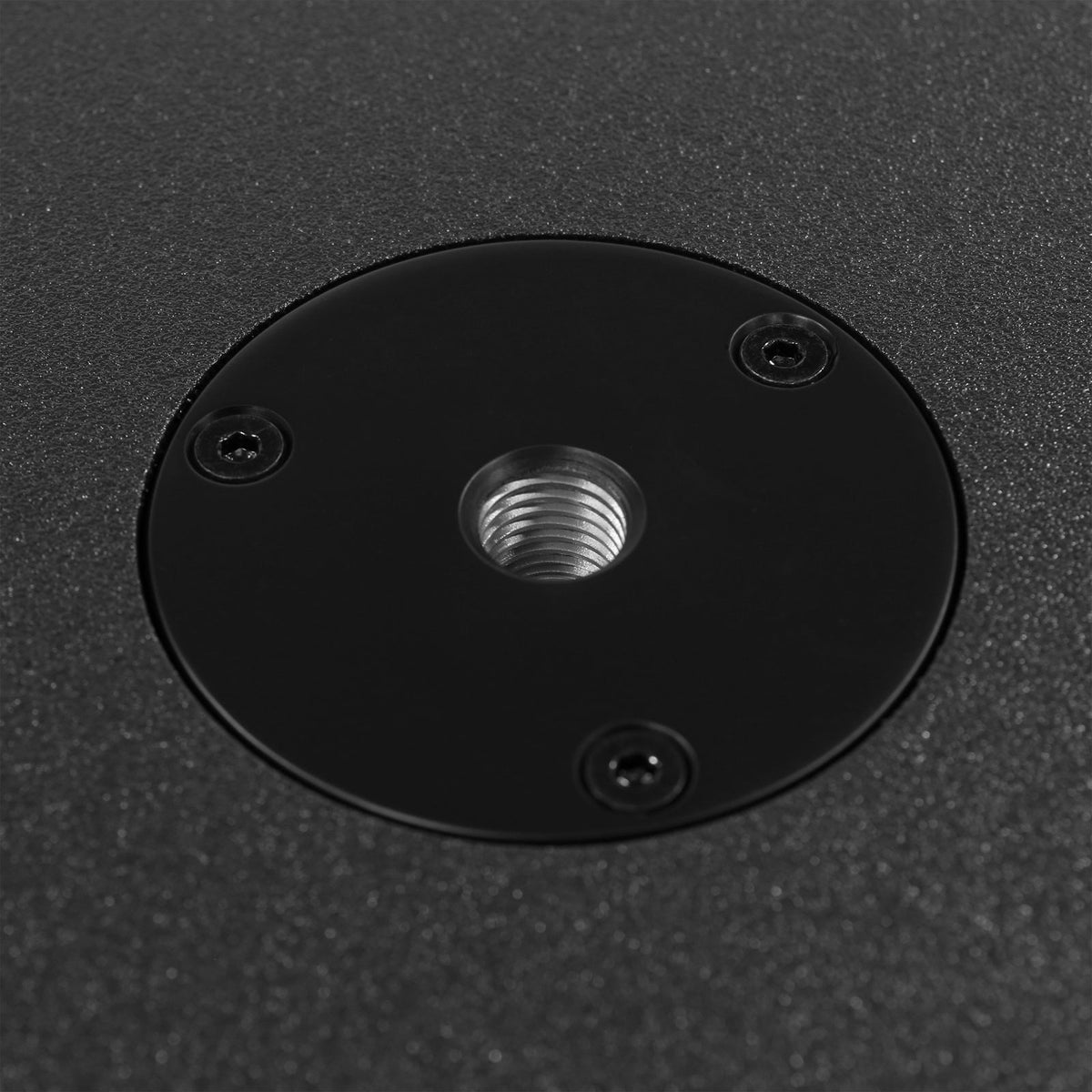

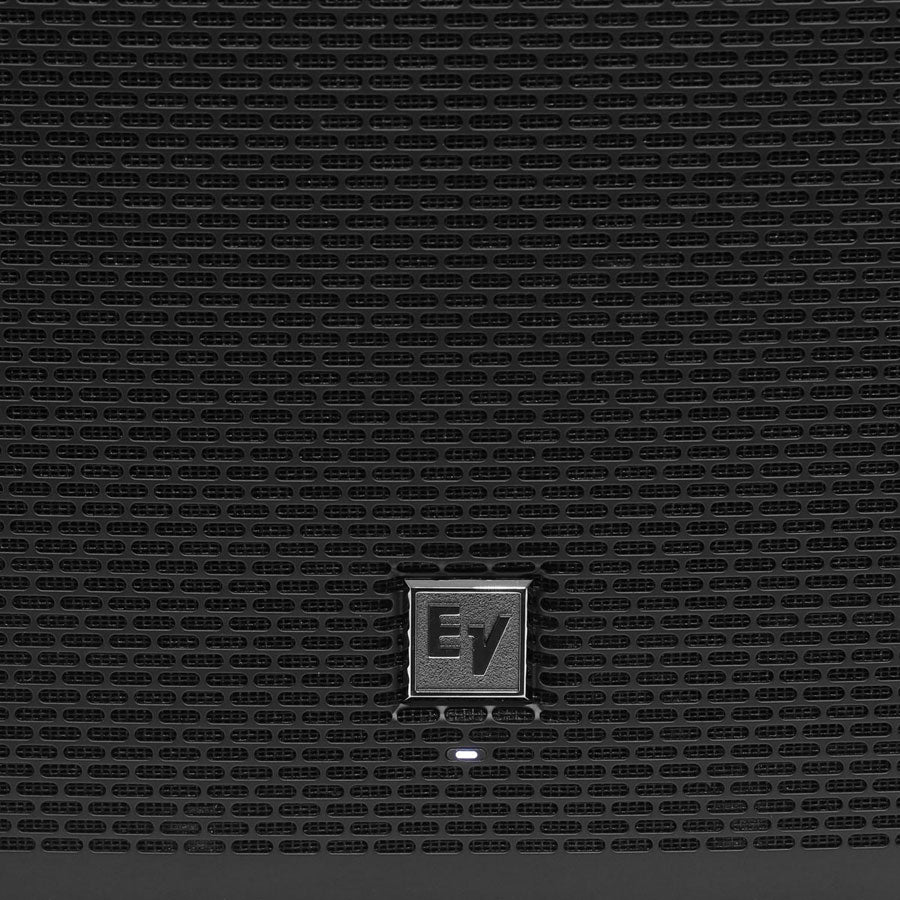

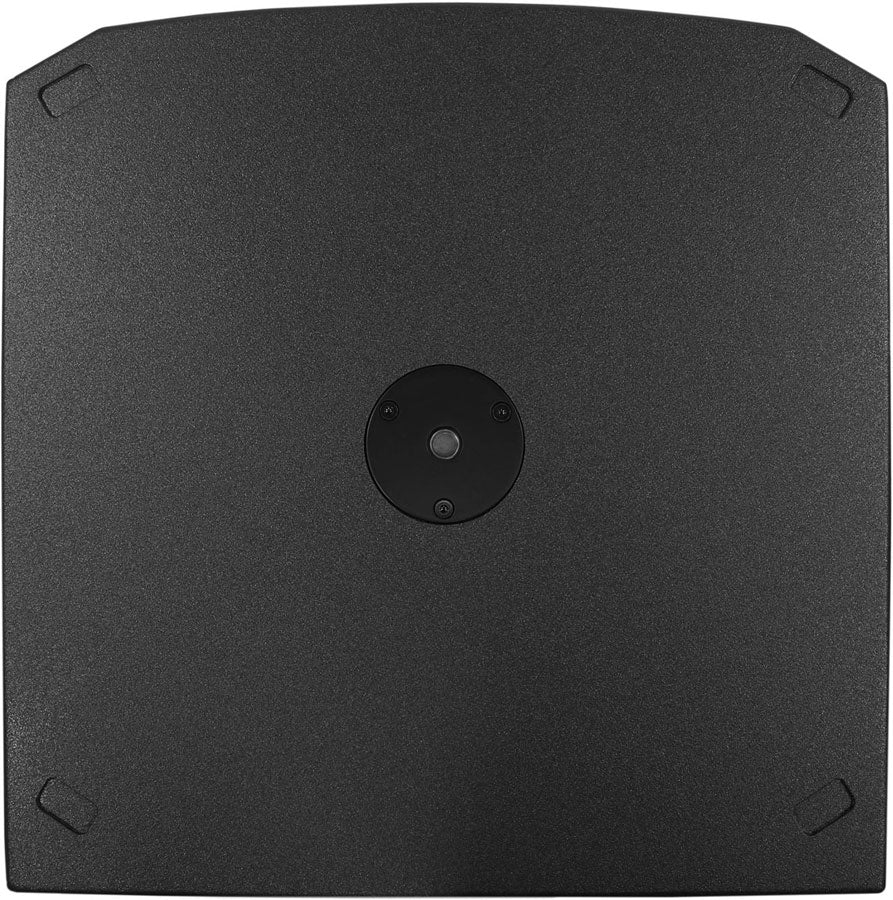

The 15 mm plywood cabinet with internal bracing is designed to withstand the rigors of the road. The EVCoat finish and 18 AWG steel grille with reinforcing bars and powder coating effectively protect the driver. The M20 threaded pole mount allows installation of a pole to position a speaker above the subwoofer, a very common configuration in live sound setups.

Technical specifications

Bluetooth

No

Model	Electro-Voice EKX-18SP	Max SPL	134 dB
Type	active subwoofer	Frequency response (-3 dB)	40 Hz - 150 Hz
Driver	18" (457 mm) EVS-18C	Frequency response (-10 dB)	35 Hz - 180 Hz
Cabinet	15 mm plywood with internal bracing	Adjustable crossover	80 Hz, 100 Hz, 120 Hz, 150 Hz
Finish	EVCoat	Display	LCD
Color	black	Inputs	2 combo XLR / 6.35mm TRS jack
Grille	18 AWG steel with 2 reinforcing bars, powder-coated	Outputs	2 XLR
Handles	2	Dimensions	612 x 606 x 520 mm
Mount	M20 threaded pole mount	Weight	32.8 kg
Power	650 W RMS / 1,300 W peak
