Electrovoice ELX200-10P-W White

ELX200: Electro-Voice Performance in a Compact Format

With the ELX200-10P-W, Electro-Voice offers an active speaker designed to combine efficiency, clarity, and ease of use. The 10-inch format stands out for excellent midrange intelligibility and controlled directivity, while remaining easy to transport and install. The white finish and composite enclosure enhance its appeal for service providers and venues hosting the public, where visual discretion and durability are often essential.

Intended Uses and User Types

The ELX200-10P-W is aimed at musicians, DJs, hosts, technicians, and venue managers seeking a reliable active speaker that is quick to deploy and capable of delivering clean sound at high levels. For front-of-house, it suits small to medium setups, in stereo pairs or complemented by a subwoofer. On stage monitors, its 10-inch format favors precise monitoring, especially appreciated for vocals, keyboards, and acoustic guitars. For installations, its rigging points and refined aesthetics facilitate integration into event spaces, houses of worship, hotels, or multipurpose rooms.

DSP Processing, Sound Dispersion, and Design: Key Advantages

QuickSmartDSP: Fast Settings, Controlled Results

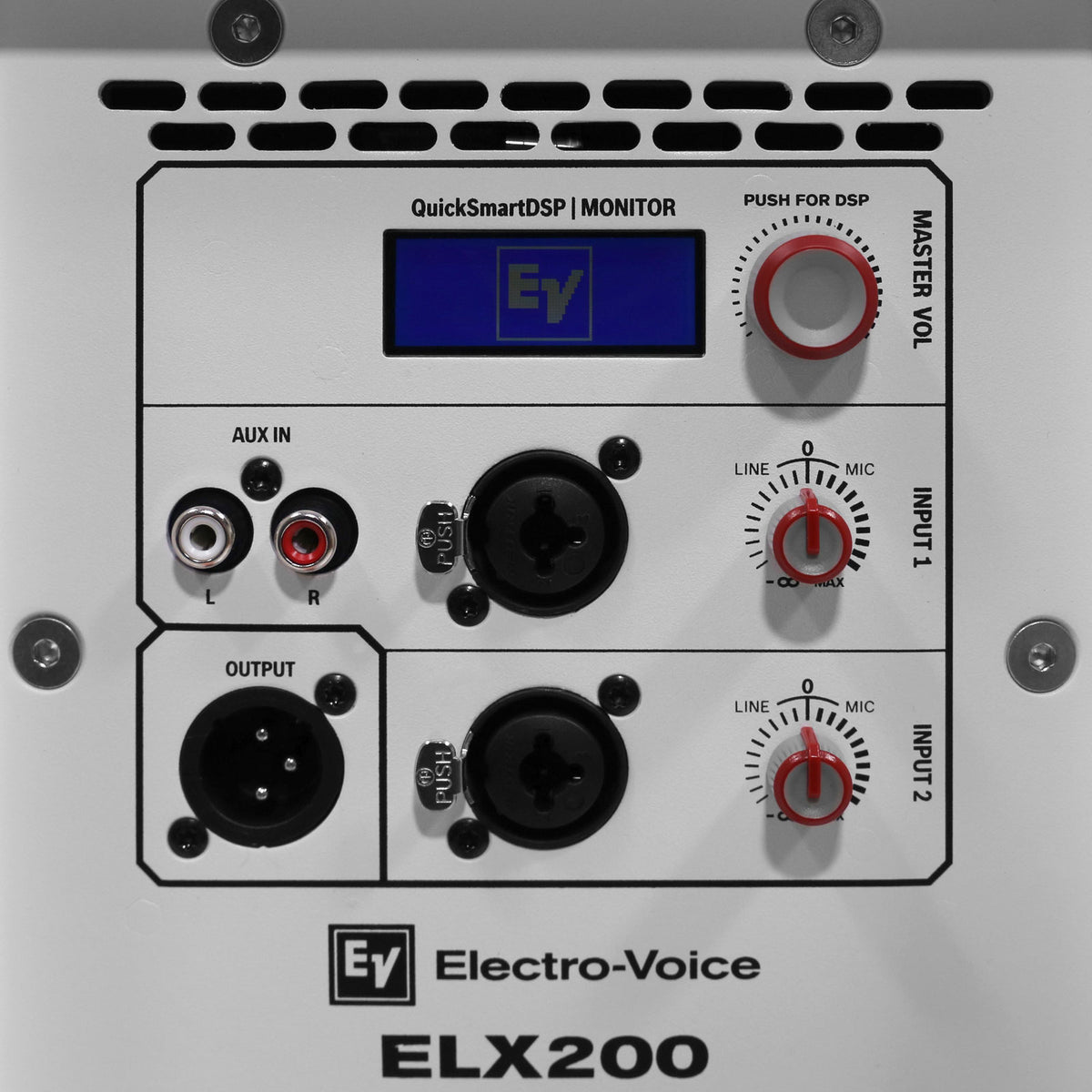

The built-in QuickSmartDSP is designed to save time without sacrificing control. You have presets, a 3-band equalizer, and user memories to recall your settings according to context (speech, music, live, etc.). Limiter monitoring, input level control, and main volume control help secure the system and maintain consistent sound even as levels rise.

Remote Control with the EV QuickSmart Mobile App

For performances where adjustments must be made from the audience area, the EV QuickSmart Mobile App offers real flexibility: configuration, control, and remote monitoring of the speaker. This is especially convenient for adjusting EQ, levels, or checking limiter behavior without being stuck next to the speaker, particularly in installations or during quick soundchecks.

Precise and Coherent Sound Dispersion

The patented SST (Signal Synchronized Transducers) waveguide contributes to even coverage and better coherence between drivers. Combined with a 90deg x 60deg dispersion pattern, the ELX200-10P-W aims for controlled projection, useful to limit overly loud zones and improve intelligibility. Filtering is handled by a 1.8 kHz crossover, optimized for a balanced transition between the 10-inch speaker and the titanium diaphragm tweeter.

Built for Touring and Installation

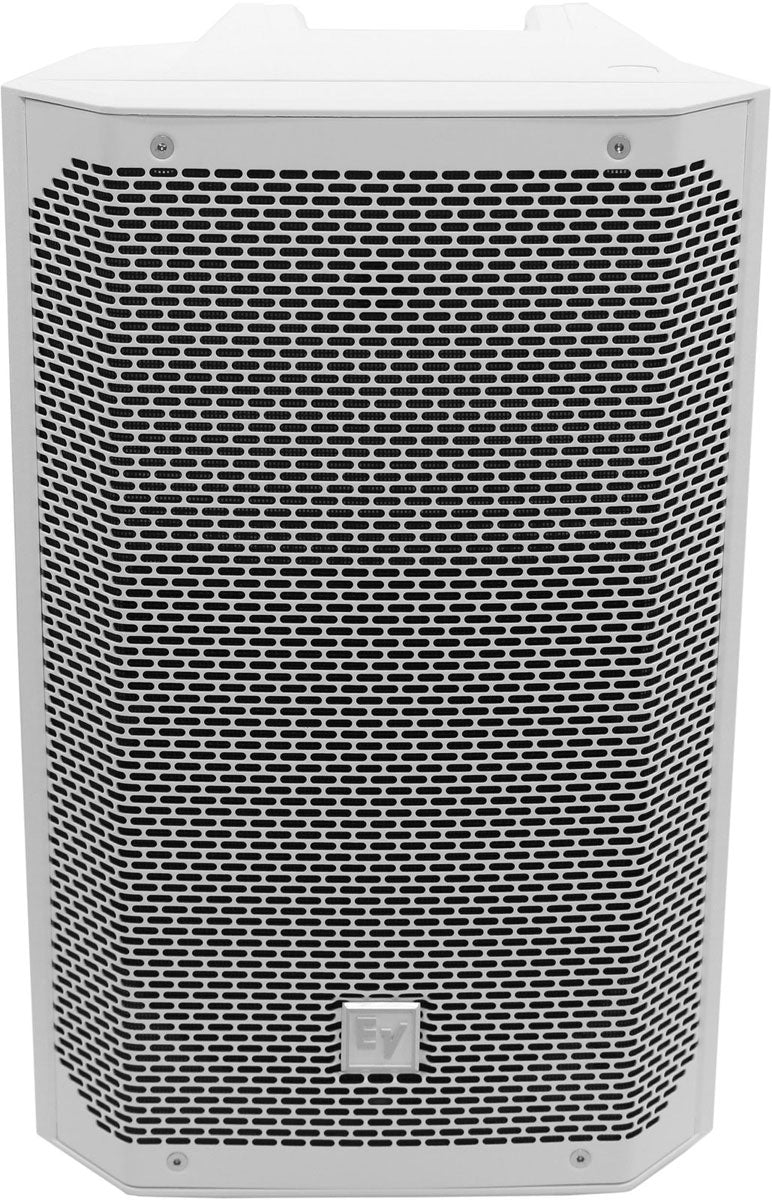

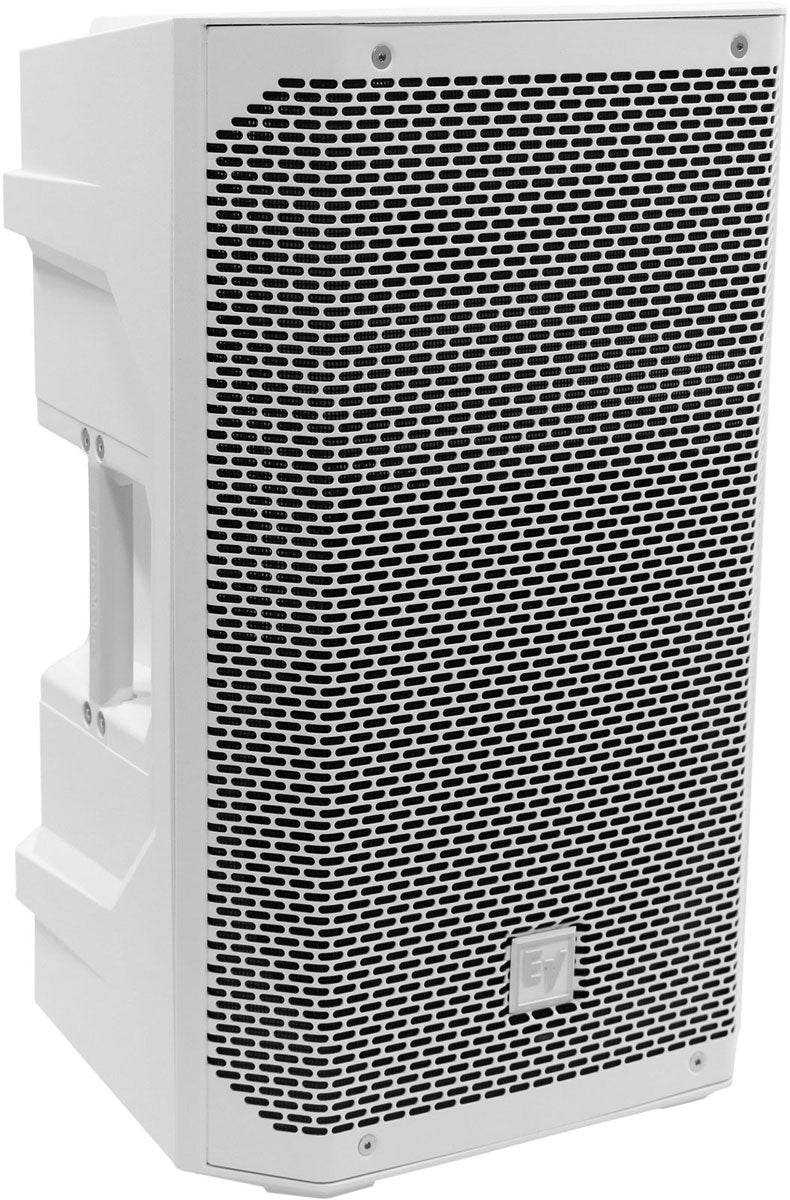

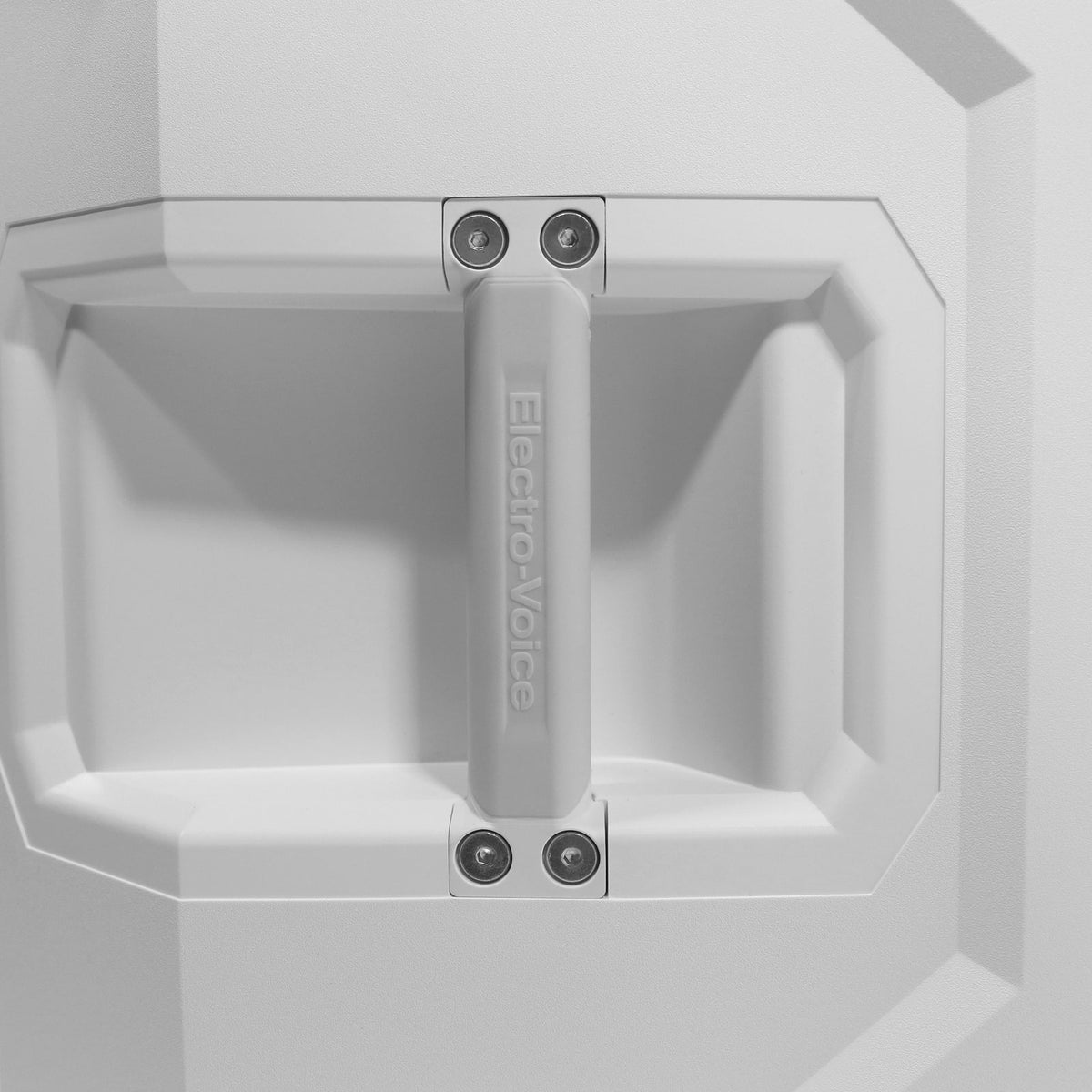

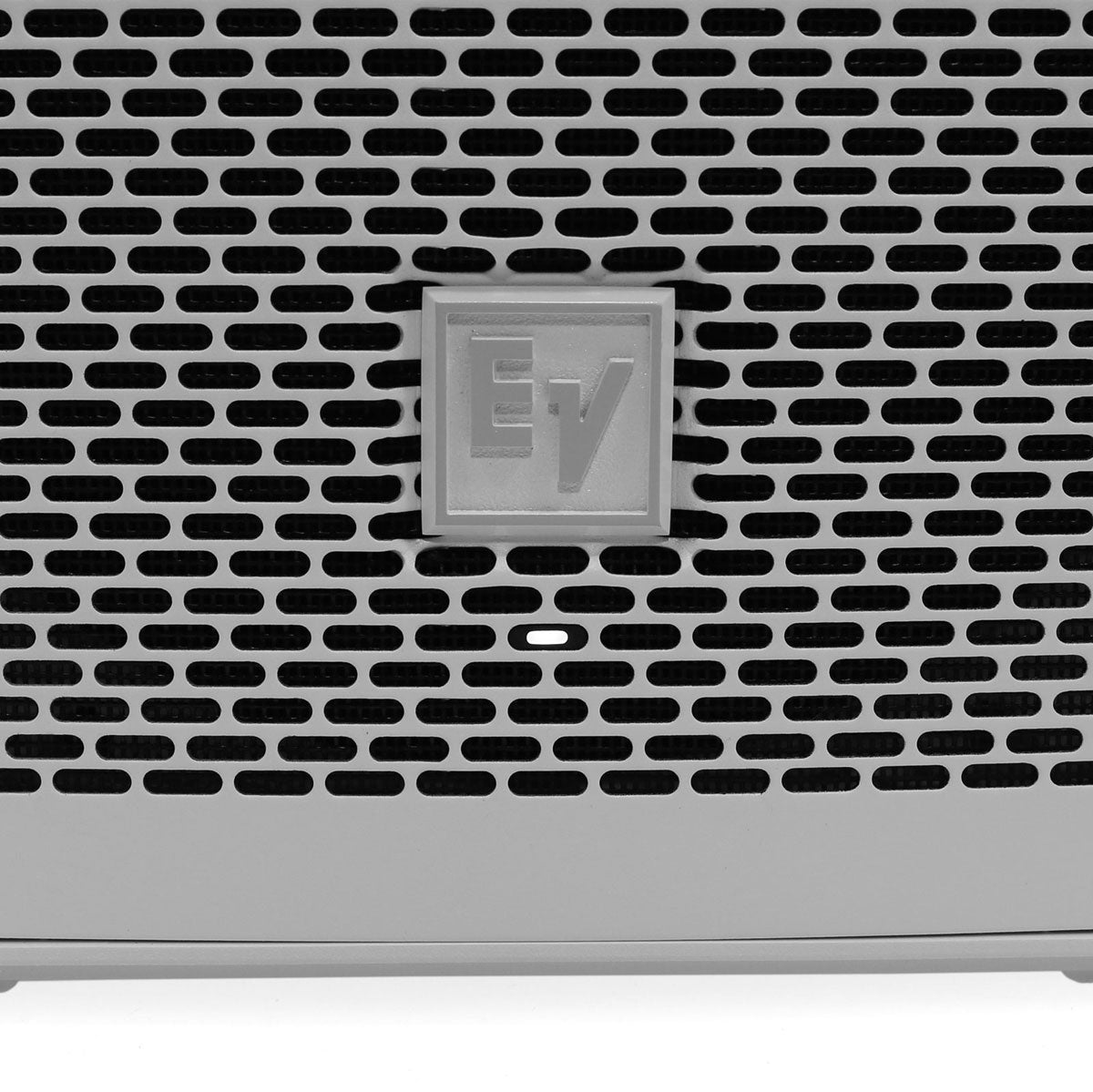

Its polypropylene composite enclosure, 18 AWG steel grille with powder coating, and 2 handles make it suitable for regular use. The 35mm pole mount simplifies stand mounting, while the 3 M10 rigging points offer options for suspended installation depending on venue needs.

Technical specifications

Bluetooth

No

Model	Electro-Voice ELX200-10P-W	EV QuickSmart Mobile App	remote configuration, control, and monitoring of the speaker
Amplification	Class D	QuickSmartDSP	4 presets, 3-band equalizer, 5 user presets, limiter monitoring, input level control, main volume control
Power	600W RMS / 1200W peak	Inputs	2 RCA
Max SPL	130dB	Output	XLR
Frequency Response (-3 dB)	59 Hz / 18 kHz	Enclosure	polypropylene composite
Frequency Response (-10 dB)	53 Hz / 20 kHz	Color	white
Speaker	10" (254mm) EVS-10M	Grille	18 AWG steel with powder coating
Tweeter	1" (25.4mm) DH-1L titanium	Handles	2
Patented Waveguide	SST (Signal Synchronized Transducers)	Pole Mount	35mm
Crossover	1.8 kHz	Rigging Points	3 x M10
Dispersion (H x V)	90deg x 60deg
