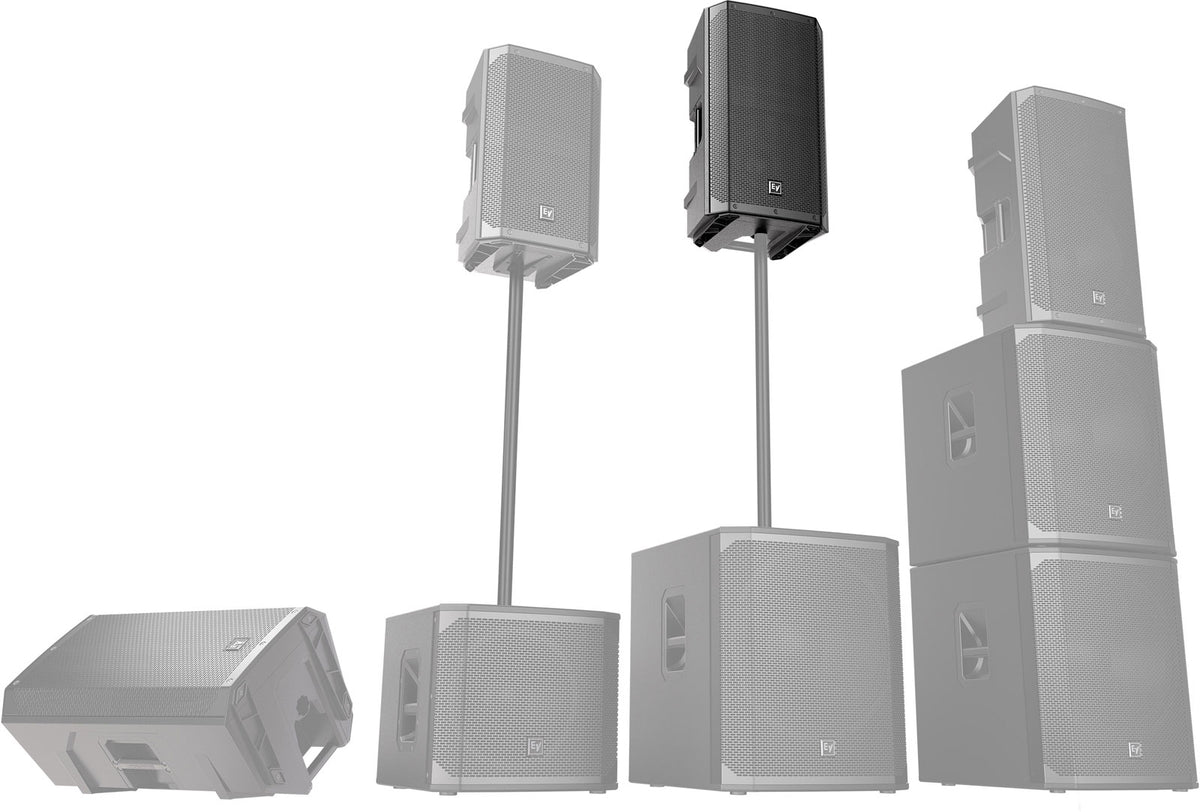

ELX200: An Electro-Voice Speaker Designed for the Field
The Electro-Voice ELX200-12 fits into a "stage-ready" approach: a 12-inch passive speaker designed to offer an effective balance between power, precision, and portability. With its composite enclosure and steel grille, it clearly targets regular performances, lightweight installations, and rentals, where reliability and repeatability of results matter as much as sound level.
Intended Uses and Profiles
This speaker is an excellent choice for bands, service providers, DJs, multipurpose rooms, and places of worship seeking clear mid-high frequency reproduction while maintaining sufficient foundation for vocals, keyboards, guitars, and backing tracks. On the front, it naturally pairs in stereo, and it also works very well as a stage monitor depending on the setup. To extend the low end, pairing with a subwoofer and a recommended high-pass frequency at 50Hz optimizes power handling and mix clarity.
Performance and Intelligibility-Focused Design
The ELX200-12 combines a 12-inch EVS-12M driver and a 1-inch DH-1L titanium diaphragm tweeter to maintain definition in vocals and transients. The 1.7 kHz crossover ensures a coherent transition between frequency ranges, while the SST (Signal Synchronized Transducers) waveguide helps maintain consistent coverage, particularly useful when the audience is wide and you want to limit "hot spots" on the sides.
90deg x 60deg Coverage: Aim Precisely Without Unnecessary Spill
The 90deg x 60deg dispersion is an effective standard for sound reinforcement: wide enough to cover an audience without multiplying speakers, and controlled enough to reduce unwanted reflections in reverberant rooms. The result: improved intelligibility, especially for vocals and announcements.
Speakon (NL4) Connectivity: Simple and Reliable
With 2 Speakon (NL4) inputs, the wiring is designed for professional setups: secure connection, compatibility with daisy-chaining, and natural integration into a passive system driven by an amplifier. Its 8-ohm impedance (minimum 7.2) facilitates classic configurations, whether in stereo or multi-point depending on available amplification.
Technical specifications
| Model | Electro-Voice ELX200-12 | Recommended high-pass frequency | 50 Hz |
| Type | Passive speaker | Driver | 12-inch (305 mm) EVS-12M |
| Enclosure | Polypropylene composite | Tweeter | 1-inch (25.4 mm) DH-1L titanium |
| Color | Black | Patented waveguide | SST (Signal Synchronized Transducers) |
| Grille | 18 AWG steel with powder coating | Crossover | 1.7 kHz |
| Power | 300W continuous / 1200W peak | Dispersion (H x V) | 90deg x 60deg |
| Max SPL | 128 dB | Connectors | 2 Speakon (NL4) |
| Axial sensitivity | 93 dB | Rigging points | 3 x M10 |
| Impedance | 8 ohms (minimum 7.2) | Dimensions | 629 x 369 x 344 mm |
| Frequency response (-3 dB) | 77 Hz - 17 kHz | Weight | 15.2 kg |
| Frequency response (-10 dB) | 51 Hz - 20 kHz | ||
Questions frequently asked
What amplification is suitable for the Electro-Voice ELX200-12?
This passive speaker has a nominal impedance of 8 ohms, with a minimum of 7.2 ohms, and therefore requires an external amplifier compatible with this load. The two Speakon NL4 connectors allow integration into a passive sound system.
Is the ELX200-12 suitable as a stage monitor?
The 12-inch format and the maximum SPL level of 128 dB allow use as a stage monitor depending on the setup. The 1-inch titanium diaphragm DH-1L tweeter enhances vocal definition and transient attacks.
What is the dispersion of this 12-inch speaker?
The SST waveguide provides coverage of 90° horizontally and 60° vertically. This directivity aims for even sound distribution to a wide audience while limiting lateral reflections.
Can this speaker be used with a subwoofer?
It is possible to pair a subwoofer and apply a recommended high-pass frequency at 50 Hz. The frequency response is specified as 77 Hz - 17 kHz at -3 dB, with an extension down to 51 Hz - 20 kHz at -10 dB.
What are the weight and mounting options of the speaker?
Weighing 15.2 kg and measuring 629 x 369 x 344 mm, this model remains suitable for transport for regular gigs. Three M10 rigging points are provided for suspension, while the grille is made of 18 AWG steel with a powder-coated finish.
