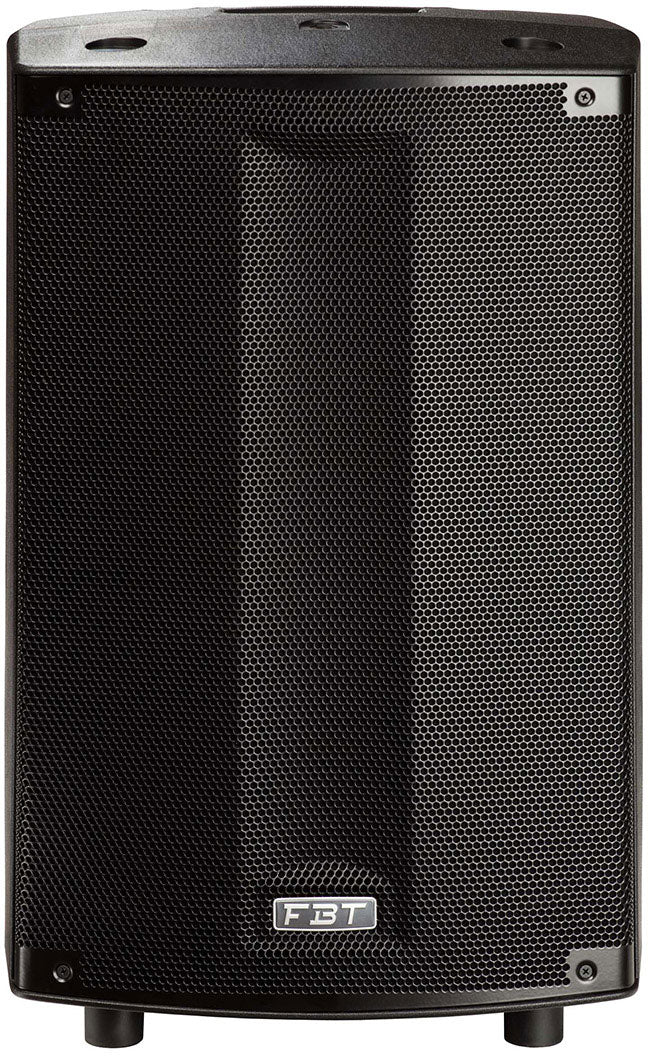

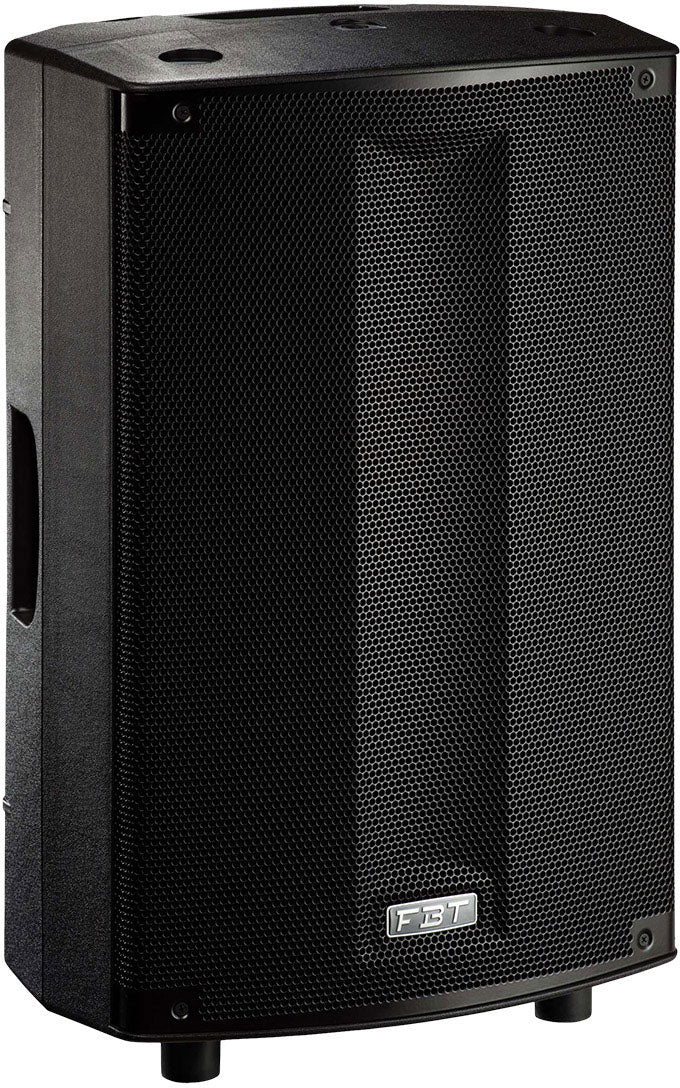

FBT Promaxx 112

A New PROMAXX Series with Italian Style, Designed for the Field

The PROMAXX Series emphasizes a simple and effective approach: a robust passive speaker with a refined look, designed to meet the real demands of live performance and events. With a design and manufacturing process claimed to be 100% Italian, this speaker embodies a "ready to play" philosophy: a versatile 12-inch format, consistent directivity, and a mobility-oriented build to support both fixed setups and touring configurations.

Intended Uses and Musicians

This PROMAXX speaker is a relevant choice for bands, DJs, service providers, rehearsal rooms, and small to medium venues seeking a powerful passive speaker that is easy to transport and quick to set up. Its 12-inch format is perfectly suited for front-of-house (main sound reinforcement) use while remaining suitable as a stage monitor thanks to the enclosure shape and multiple angles. It naturally integrates into a modular system: a pair for main coverage, or multiple speakers to cover different zones, with appropriate amplification.

Performance, Design, and Practicality: What Makes the Difference

A 12-Inch Neodymium Driver: Efficiency, Dynamics, and Simplified Transport

The 12-inch speaker equipped with a neodymium magnet helps reduce weight while maintaining appreciable dynamic response on attacks (kick drum, bass, percussion, vocal transients). Paired with a 1-inch driver, the combination aims for balanced reproduction: clean lows for its size, present mids for clarity, and highs capable of remaining defined at sustained levels.

Controlled Dispersion for Better Intelligibility

With a specified dispersion of 90deg x 60deg, the speaker promotes coherent coverage and limits unwanted off-axis projections, helping to maintain clearer sound in reverberant environments. The sensitivity of 99 dB (at 1 W/1 m) supports good efficiency, useful for achieving comfortable levels with properly sized amplification.

Speakon NL-4 Connectivity and Quick Daisy-Chaining

The presence of a Speakon NL-4 input and a Speakon NL-4 Link Out output simplifies stage wiring: you can power one speaker and then daisy-chain to a second, depending on your system architecture and respecting the total impedance supported by the amplifier. This is a practical and reliable solution designed for frequent setups and teardowns.

Stage Format: On Stand, Suspended, or as a Monitor

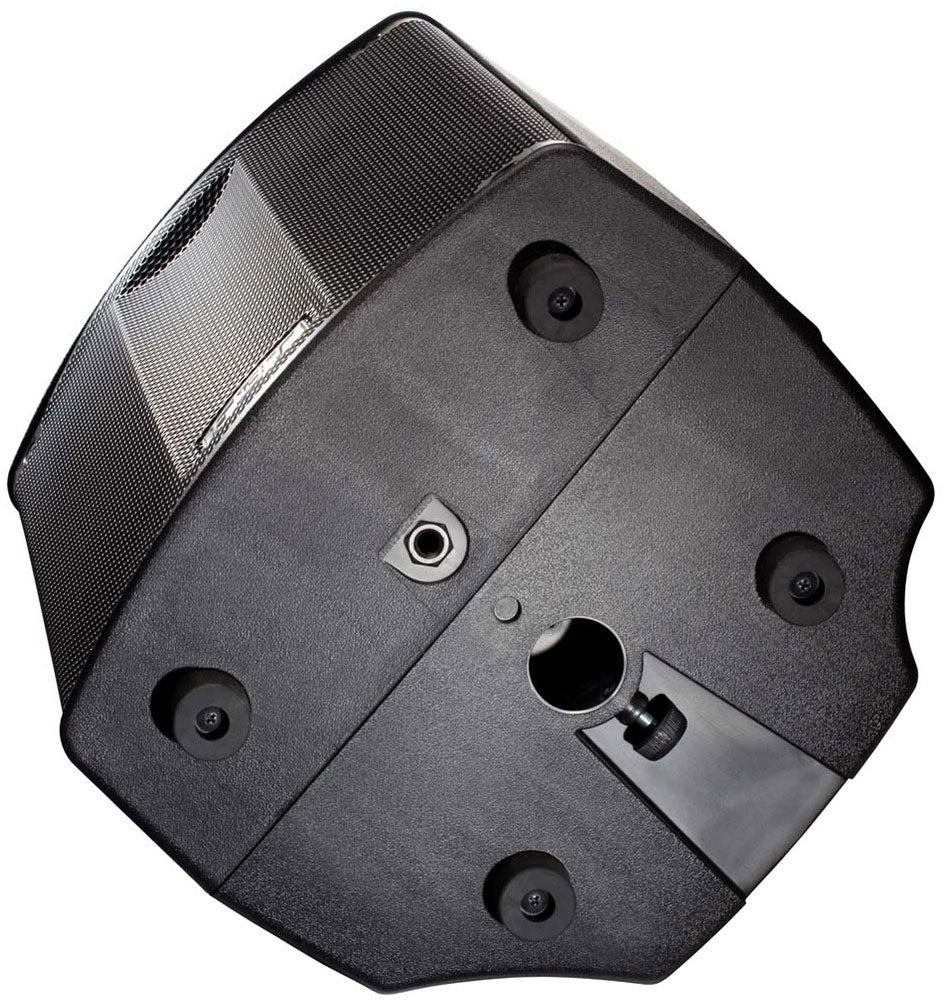

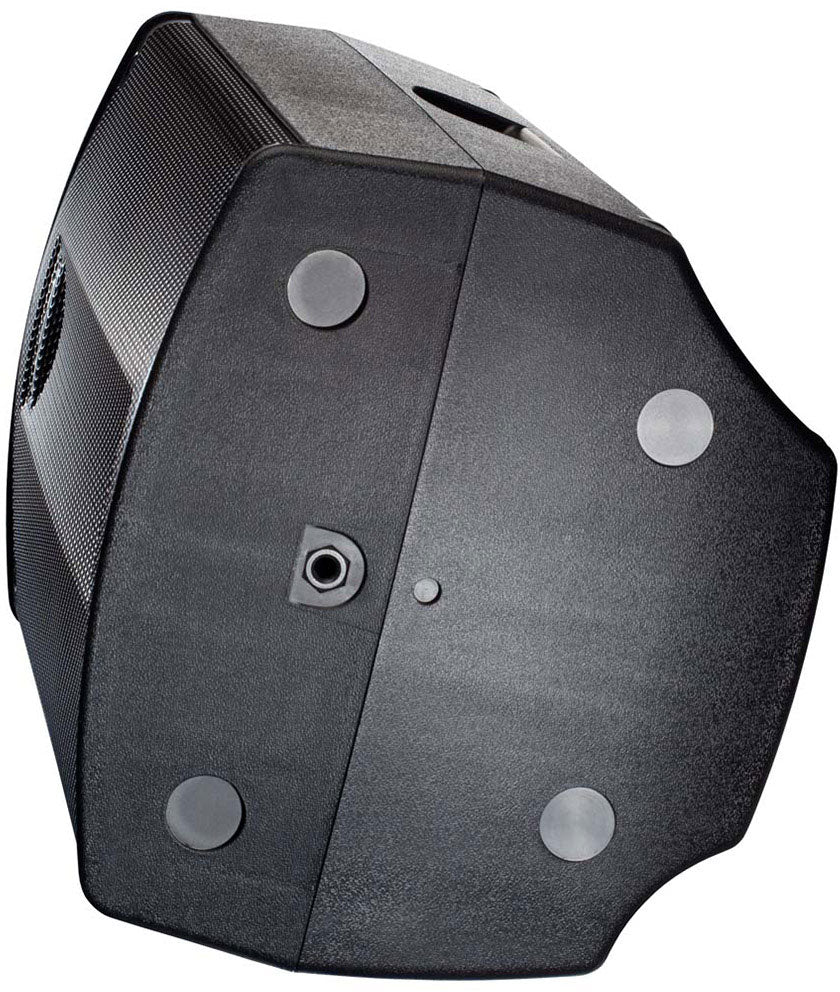

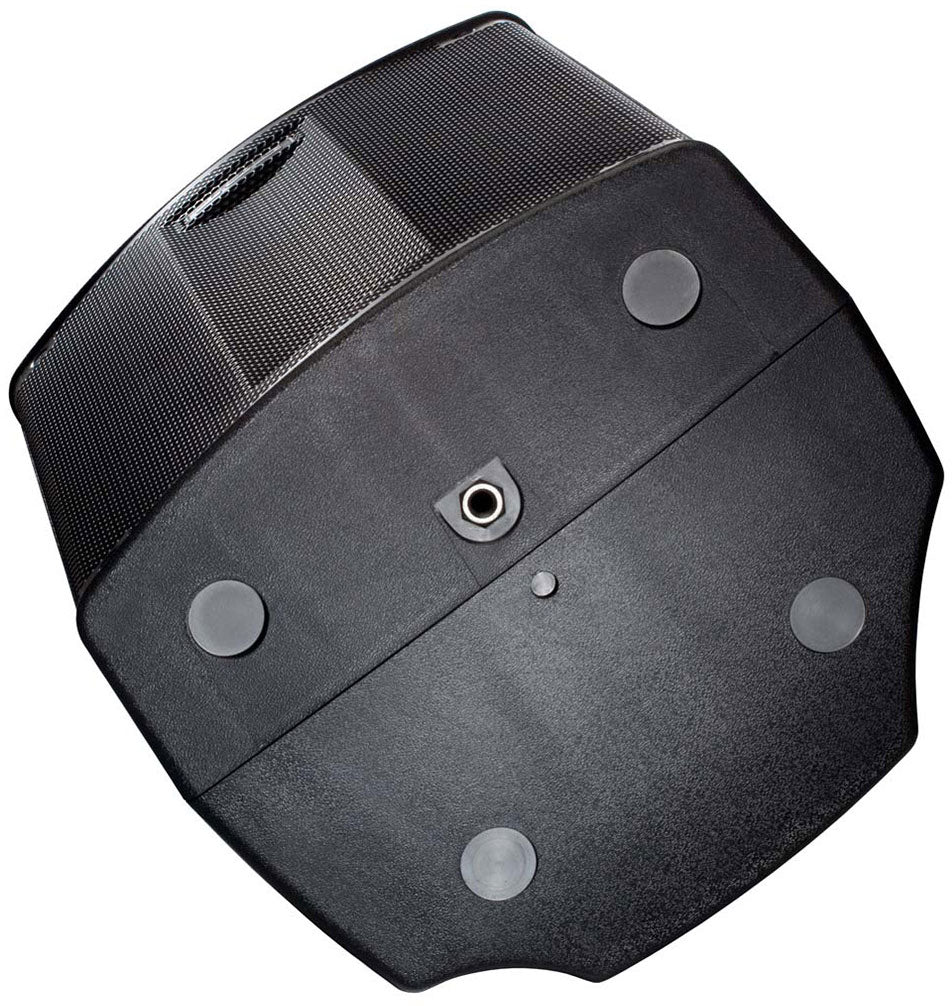

Thanks to its 35 mm pole mount, the speaker can be easily placed on a stand to increase coverage range and uniformity. The two M10 rigging points offer a more integrated installation option depending on your configuration. Finally, the enclosure shape allows positioning as a stage monitor with several angles (12deg, 40deg, and 55deg), optimizing musician listening without unnecessarily raising volume levels.

Technical specifications

Power	400 W RMS at 8 ohms	Output	Speakon NL-4 Link Out
Woofer	12-inch neodymium	Sleeve	35 mm for speaker stand
Driver	1 inch	Rigging points	2 x M10
Frequency range (+/-6 dB)	55 Hz to 18 kHz	Carrying handle	ergonomic
Sensitivity (at 1 W / 1 m)	99 dB	Stage monitor use	angles 12deg, 40deg, and 55deg
Max SPL	129 dB	Design and manufacturing	100% Italian
Dispersion (H x V)	90deg x 60deg	Dimensions	402 x 644 x 345 mm
Input	Speakon NL-4	Weight	14.4 kg
