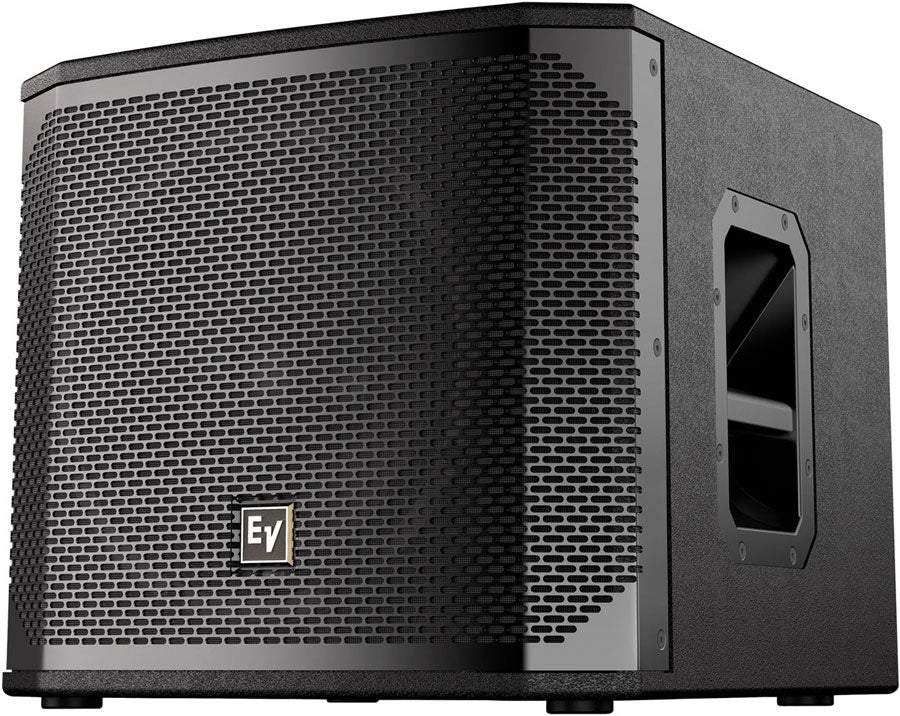

Electrovoice ELX200-12S

Name: ELX200-12S
Brand: Electrovoice
SKU: 341132
Price: 649.00 EUR
Availability: InStock

649,00 €VAT incl.

0,14 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 341132

EAN : 4060039028853

This item is covered for 3 years

Information

Essential Information About the Electro-Voice ELX200-12S Passive Subwoofer
• 12-inch passive subwoofer in a compact format, ideal for reinforcing the low end in a mobile sound reinforcement setup.
• Bass Reflex enclosure for full and efficient bass, with a frequency response rated down to 33 Hz (-10 dB).
• Power: 400 W continuous / 1600 W peak and max SPL 129 dB to maintain level on stage, in DJ sets, or performances.
• Robust construction (15 mm plywood, polyurethane finish, steel grille) with M20 pole mount and handles for quick setup.

ELX200-12S

649,00 €VAT incl.

0,14 € Ecotax included

Reference price

A Compact Reference in the Spirit of the ELX200 Series

The Electro-Voice ELX200-12S is designed with a field-oriented approach: offering a passive subwoofer that is transportable, sturdy, and easy to integrate into an existing system. Its size and 12-inch driver make it a relevant solution when you want to add depth and impact without switching to a bulkier subwoofer, while maintaining a modular configuration logic.

Who Is It For and What Are Its Uses?

This passive subwoofer is intended for users who already work with a power amplifier or suitable amplification and want to complement a pair of main speakers. It is particularly suitable for live performances, DJs, small to medium-sized venues, corporate events, or locations seeking a clean and controlled bass foundation.

Thanks to its format, the ELX200-12S is also a good option for systems where space is limited (light vehicle transport, temporary installations, compact stages), while still delivering a substantial sound level to support kick drum, bass, synths, and bass-rich musical content.

Technical specifications

Bluetooth

Questions frequently asked

Which amplifier should be used with the Electro-Voice ELX200-12S?

This passive subwoofer has a nominal impedance of 8 ohms, with a minimum of 6.9 ohms. External amplification and proper crossover filtering are required for operation.

Does the subwoofer go low enough for kick drum and bass?

The stated frequency response reaches 42 Hz at -3 dB and 33 Hz at -10 dB. This extension supports the fundamental frequencies of kick drum, bass, and synthesizers in a sound reinforcement system.

What is the maximum sound pressure level of this 12-inch subwoofer?

The maximum SPL specified is 129 dB, with an axial sensitivity of 93 dB. The built-in driver is a 12-inch (305 mm) EVS-12L speaker.

Is it possible to mount a speaker on this subwoofer cabinet?

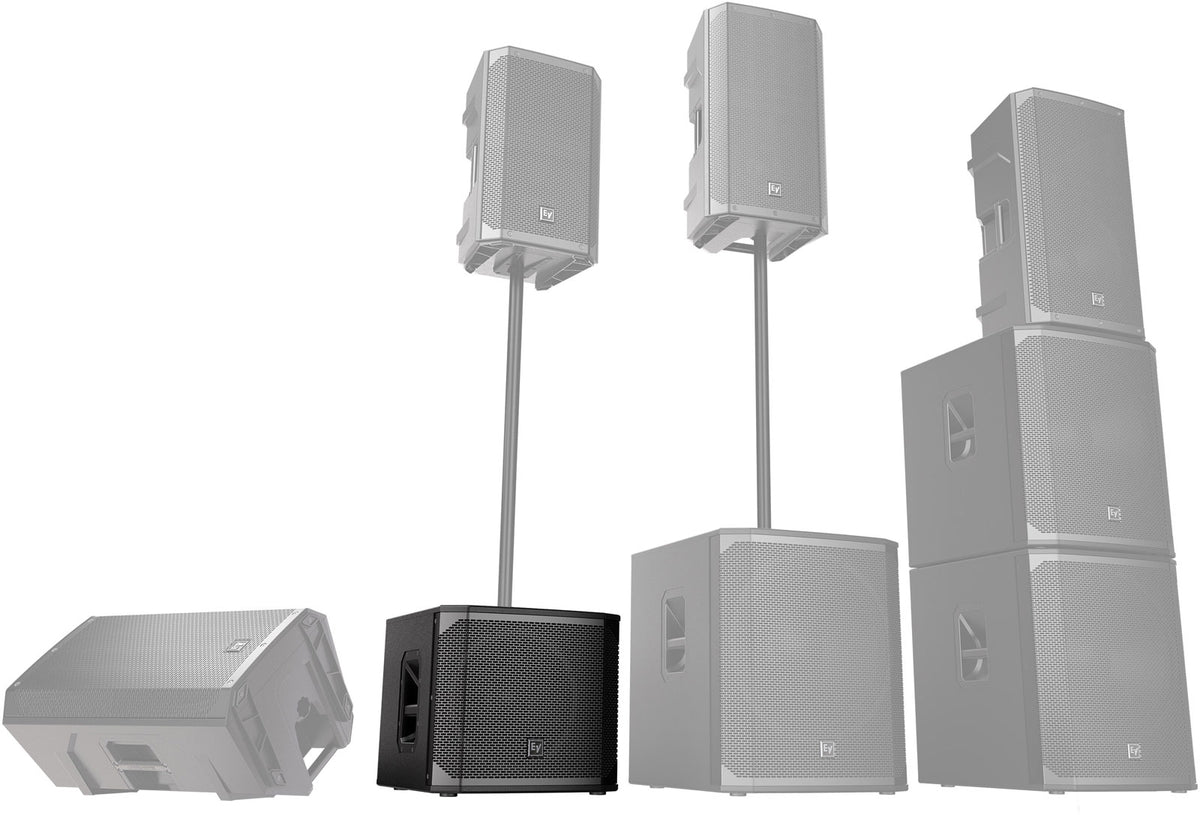

The M20 mount allows installation of a speaker pole to place a main speaker above the subwoofer.

Is the ELX200-12S easy to transport for gigs?

Weighing 17.5 kg with dimensions of 457 x 445 x 397 mm, this format remains suitable for temporary setups and light vehicles. Two handles facilitate handling. The 15 mm plywood cabinet features a durable polyurethane finish and an 18 AWG steel grille.
