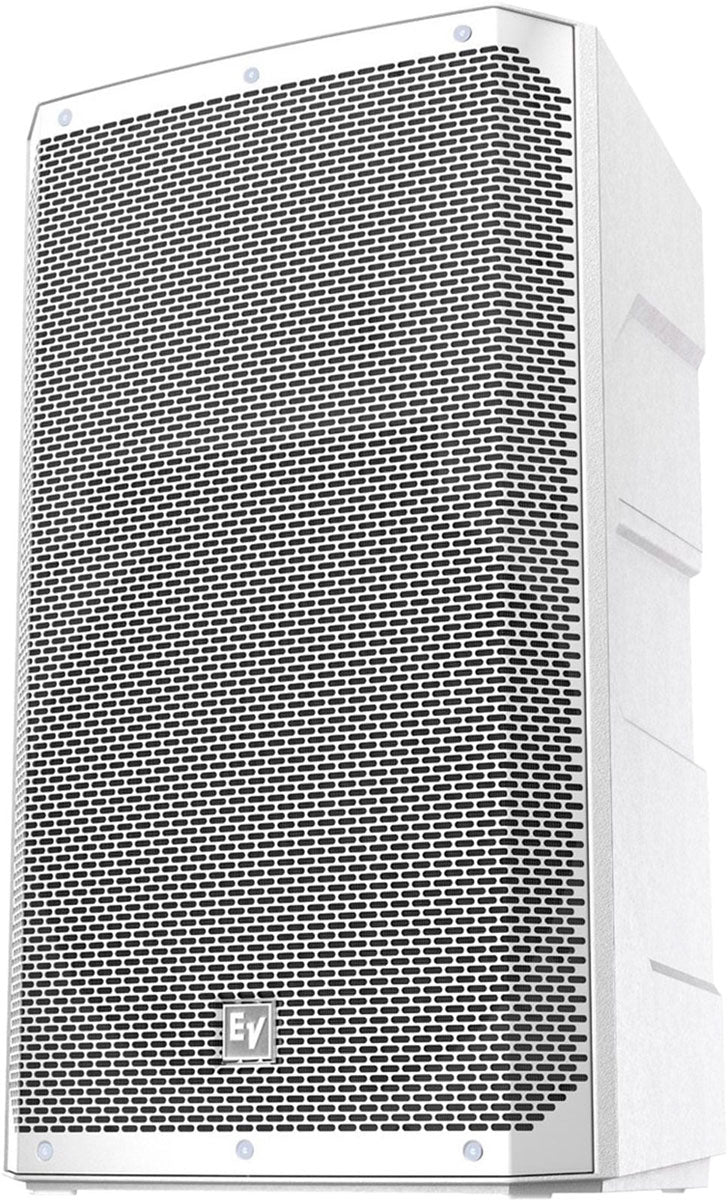

An ELX200 Designed for Versatility in Sound Reinforcement
The ELX200-15-W follows the spirit of the ELX200 series: offering a reliable, easy-to-use speaker suited to the real needs of live events. In its passive version, it allows freedom of choice for amplification and processing, appealing both to rental companies with rack systems and fixed installations seeking a custom setup. Its 15-inch format strikes an effective balance between fullness, projection, and portability, with a white aesthetic particularly suitable when the speaker needs to blend into the décor.
Who and What For: Stage, DJ, Multipurpose Room, Installation
This speaker is designed for users seeking a robust and high-performance solution without unnecessary complexity: mobile DJs, bands, associations, rental companies, bars with live music, municipal halls, or places of worship. The frequency response allows clear reinforcement of vocals and instruments, while the 15-inch driver adds body to musical content. As a front-of-house speaker, it can form an effective system foundation, and to extend the low end, adding a subwoofer (with appropriate crossover settings) is a natural evolution depending on volume level and musical style.
Acoustic Design: Directivity, Intelligibility, and Implementation
SST Waveguide: Controlled Coverage
The ELX200-15-W features an SST (Signal Synchronized Transducers) waveguide designed to provide even dispersion. Practically, this helps maintain a consistent listening experience when moving within the coverage area and better controls energy sent to the sides. With a 90deg x 60deg dispersion, the speaker is easy to position front-of-house: it covers the audience area without unnecessarily spilling sound into non-listening zones, which can enhance clarity.
Drivers and Crossover: Balance Between Impact and Precision
The 15-inch EVS-15M driver delivers the foundation needed for full vocals and dynamic reproduction. The 1-inch DH-1L titanium diaphragm tweeter aims for detailed high-frequency response and good power handling. The 1.6 kHz crossover ensures a smooth transition between low/mid and high frequencies, providing a coherent sound for demanding sources (lead vocals, guitar, keyboards, playback).
Connectivity and Integration: Simple, Reliable, Road-Ready

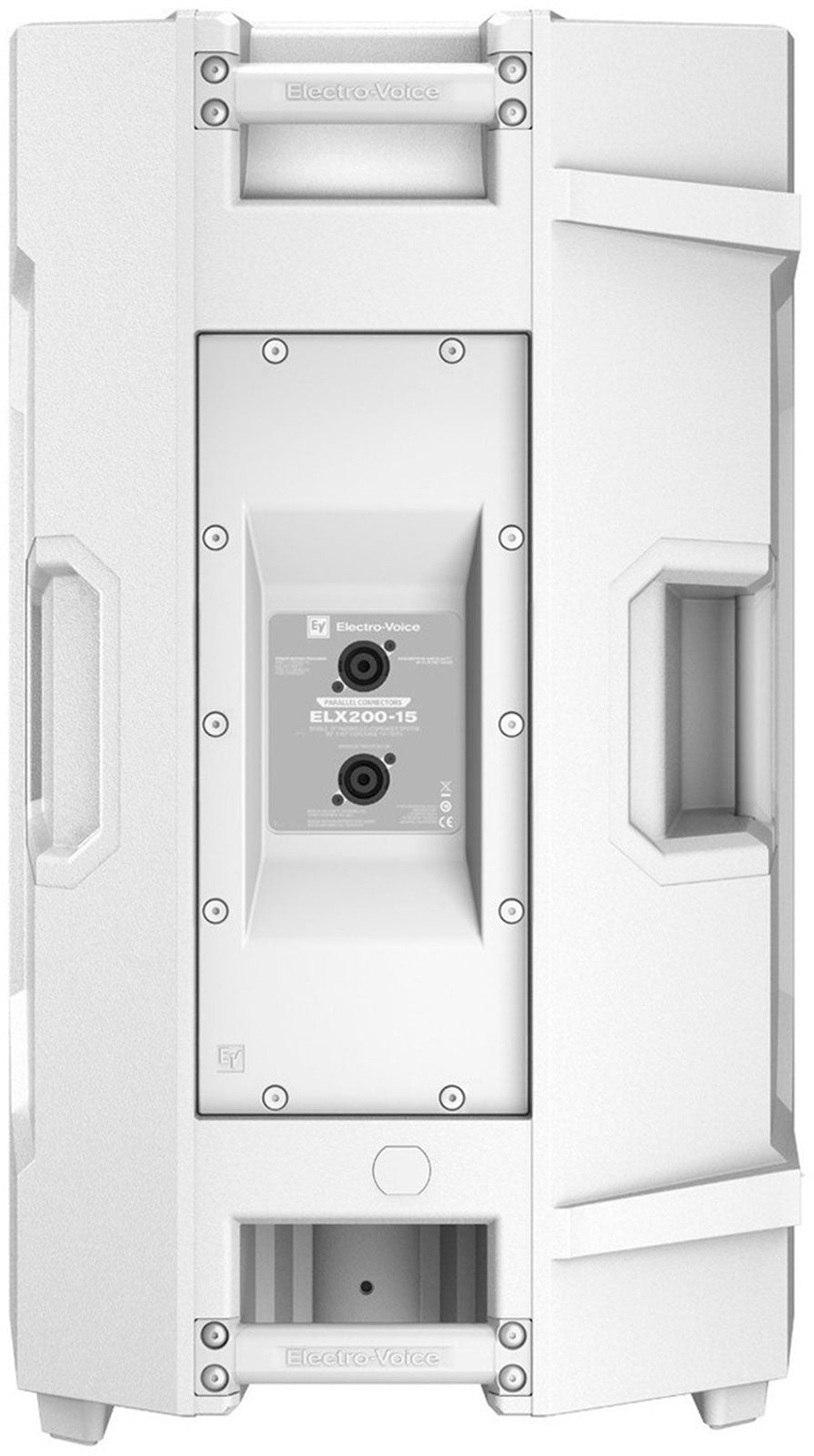

Speakon (NL4) connectors facilitate secure wiring in sound reinforcement setups, especially in daisy-chain configurations. The polypropylene composite enclosure is designed to withstand transport rigors, while the steel grille effectively protects the drivers. For installation, the M10 rigging points and 35 mm pole mount offer flexible mounting options: on stands, flown, or optimally positioned according to the stage setup.
Technical specifications
| Bluetooth | No | ||
| Model | Electro-Voice ELX200-15-W | Recommended high-pass frequency | 42 Hz |
| Type | passive speaker | Dispersion (H x V) | 90deg x 60deg |
| Power | 300 W continuous / 1200 W peak | Connectors | 2 x Speakon (NL4) |
| Impedance | 8 ohms (minimum 7 ohms) | Enclosure | polypropylene composite |
| Max SPL | 130 dB | Color | white |
| Frequency response (-3 dB) | 77 Hz - 16 kHz | Grille | 18 AWG steel with powder coating |
| Frequency response (-10 dB) | 52 Hz - 19 kHz | Handles | 3 |
| Axial sensitivity | 95 dB | Pole mount | 35 mm |
| Driver | 15-inch (381 mm) EVS-15M | Rigging points | 3 x M10 |
| Tweeter | 1-inch (25.4 mm) DH-1L titanium | Dimensions | 710 x 423 x 384 mm |
| Patented waveguide | SST (Signal Synchronized Transducers) | Weight | 18.7 kg |
| Crossover | 1.6 kHz | ||
Questions frequently asked
Which amplifier should be used with the Electro-Voice ELX200-15-W?
The amplification should be suitable for an 8-ohm passive speaker, with a minimum impedance of 7 ohms as specified. The connection is made via Speakon NL4.
Is the speaker active and does it have Bluetooth?
This speaker is passive and does not feature Bluetooth.
What sound coverage does this 15-inch speaker provide?
The SST waveguide ensures a dispersion of 90° horizontal and 60° vertical. This coverage allows directing the sound towards the listening area. The maximum SPL is rated at 130 dB.
Can a subwoofer be added to this speaker?
Adding a subwoofer can extend the low-frequency response, as the frequency range is specified from 77 Hz to 16 kHz at -3 dB. Appropriate filtering is required for this configuration.
What are the mounting options and weight?
The white polypropylene enclosure includes a 35 mm pole socket and three M10 rigging points. It weighs 18.7 kg with dimensions of 710 x 423 x 384 mm.
