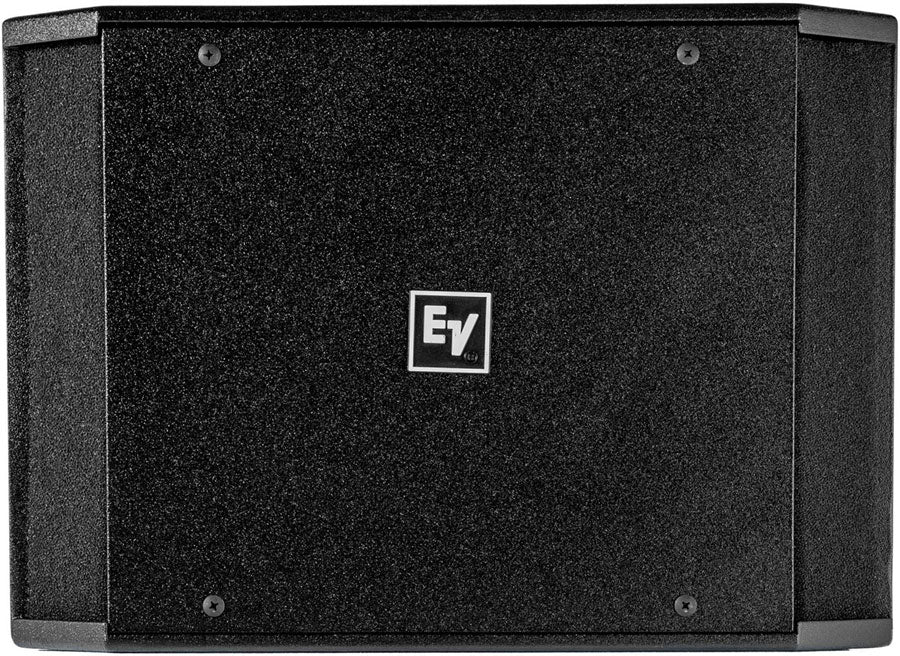

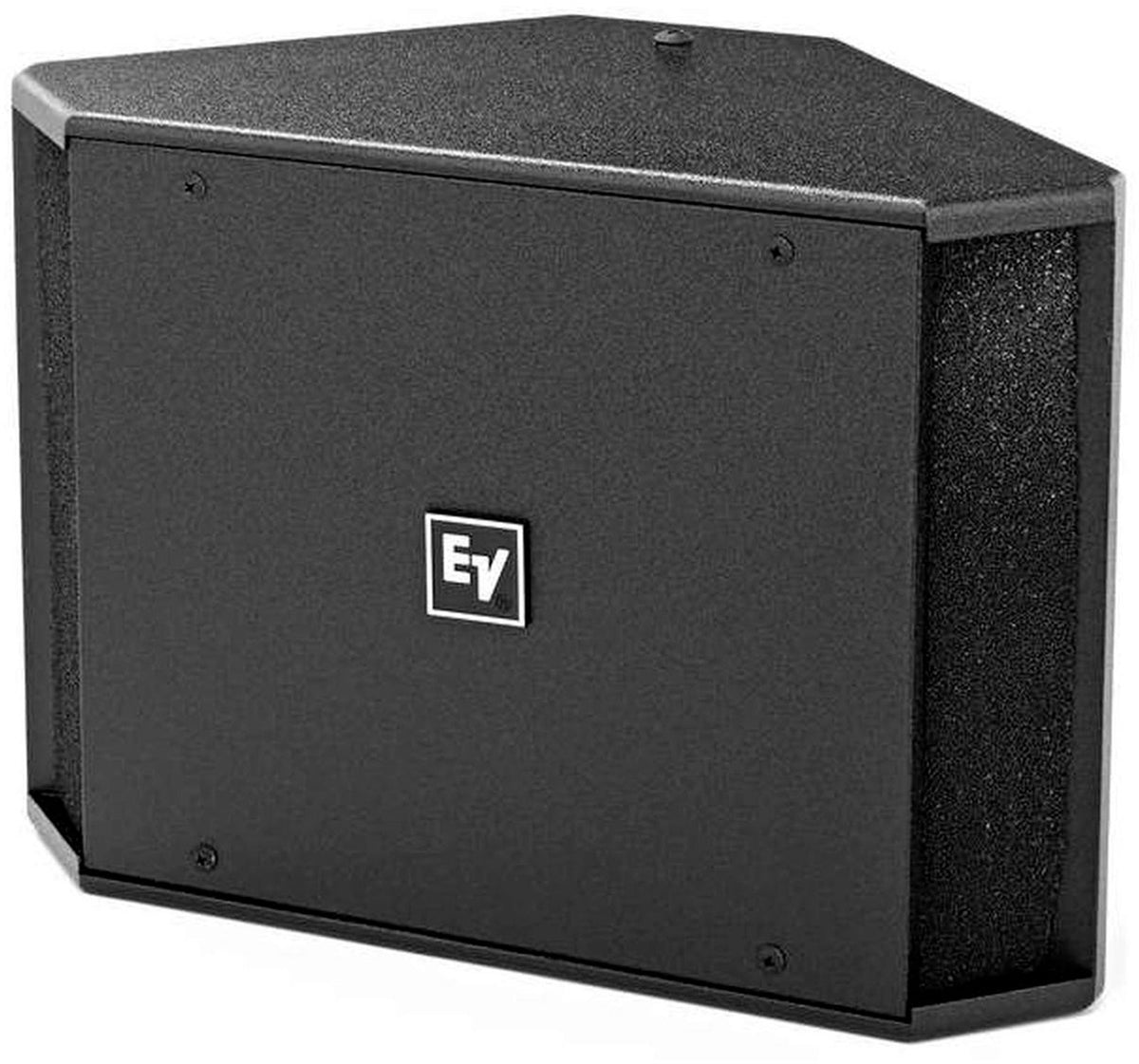

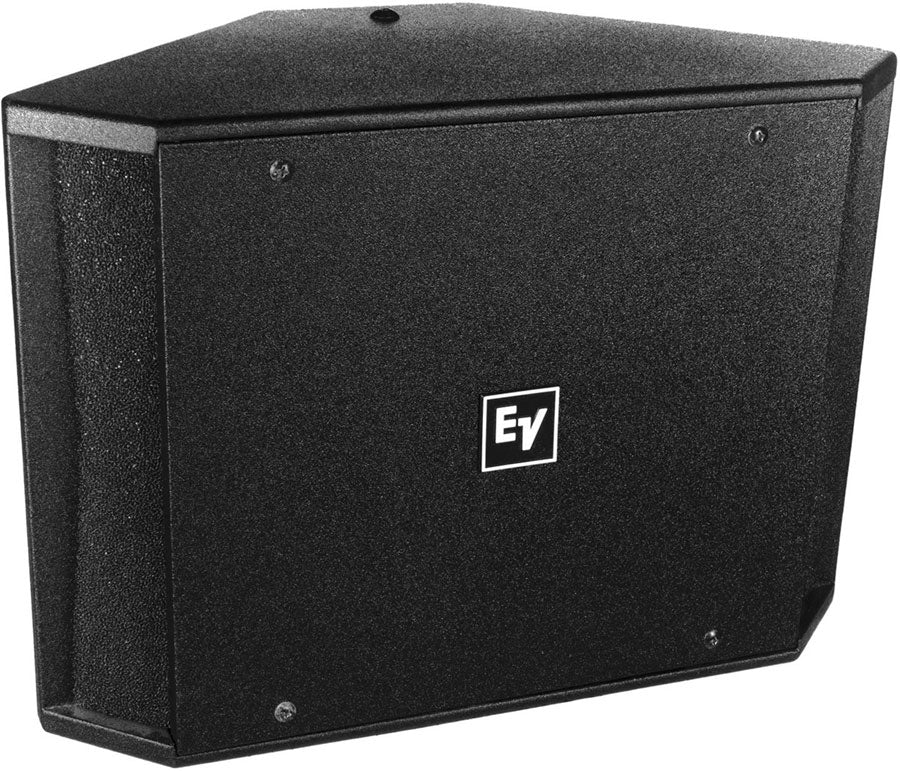

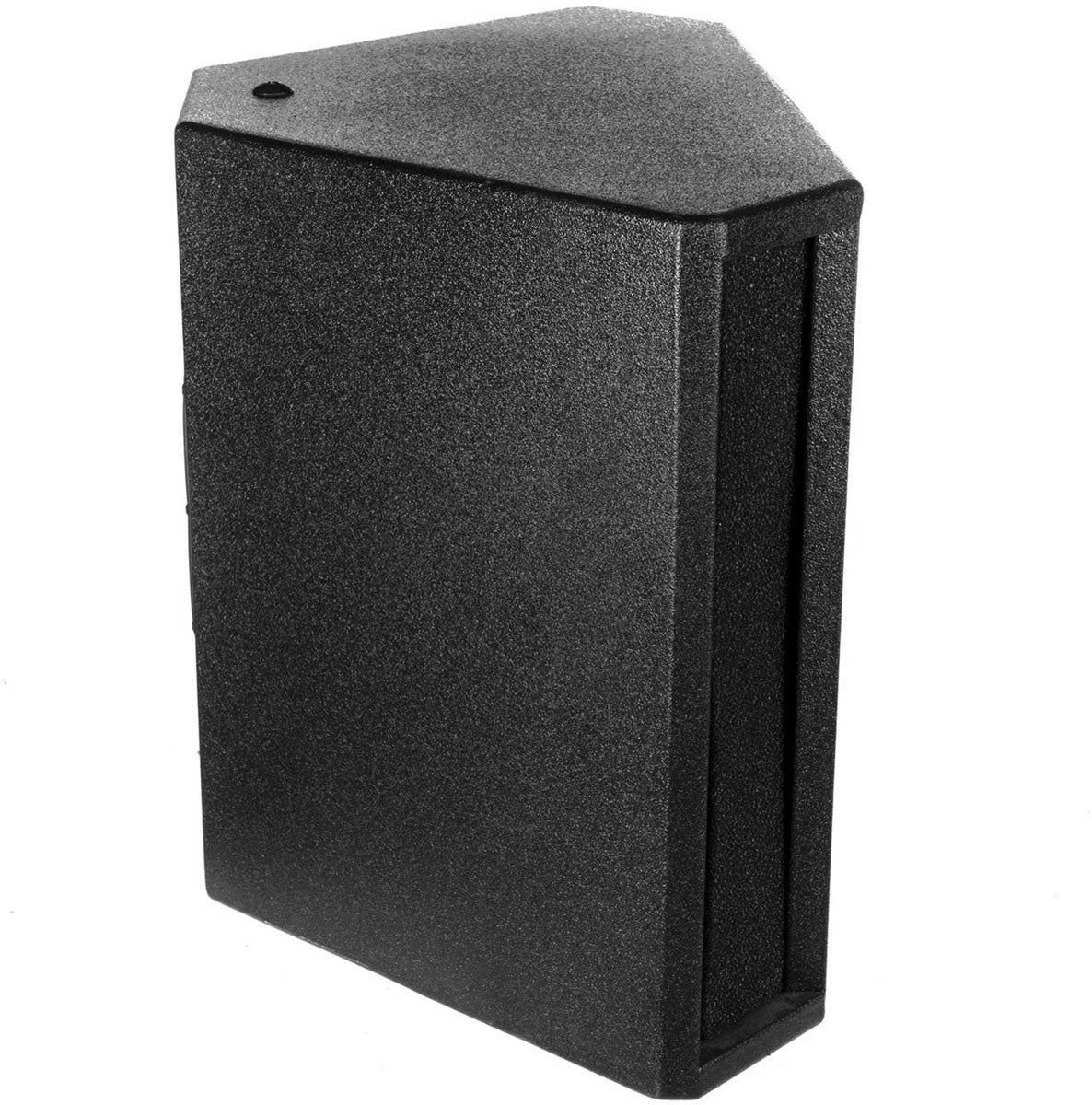

Electrovoice Evid S12 1B

A coherent bass reinforcement within the EVID ecosystem

In a fixed installation, bass is not only for "making things shake": it stabilizes tonal balance, adds warmth to background music, and improves dynamic perception even at moderate volume. The Electro-Voice EVID-S12.1B was designed with this in mind, to naturally integrate with the EVID series systems.

Its role is clear: extend the bandwidth downward while maintaining clear reproduction, suitable for public venues. It relieves satellite speakers on the most demanding frequencies, enhancing listening comfort and sustained level handling without altering the overall sound signature.

For which installations and users

This compact subwoofer is primarily aimed at installers and operators seeking a reliable solution to reinforce the low end in various contexts: bars, restaurants, shops, gyms, reception areas, multipurpose rooms, or event zones. It is also suitable for temporary event setups when a more substantial sound is desired without deploying an overly bulky system.

Thanks to its design for indoor and outdoor use, the EVID-S12.1B proves relevant for covered areas, terraces, or semi-open spaces where robustness and visual discretion are as important as performance.

Controlled bass, simple integration

A 12-inch (305 mm) driver serving clarity

Equipped with a 12-inch (305 mm) driver, the EVID-S12.1B aims for firm and structured bass, useful for adding body to playlists, background music, or more rhythmic content. Its frequency response from 40 Hz to 140 Hz (-10 dB) enhances impact while avoiding overloading the range where intelligibility (voice, announcements) must remain impeccable.

Efficiency and level: headroom for peaks

In audio integration, the feeling of comfort often comes from available headroom. With 104 dB sensitivity and a maximum sound pressure level of 127 dB (133 dB peak), this subwoofer maintains useful margin to absorb transients and keep bass clean when the environment becomes noisier (crowds, sports, service, events).

Its power handling of 200 W (800 W peak) and operation at low impedance with a nominal impedance of 8 Ohm facilitate pairing with many installation amplifiers while remaining consistent with multi-zone or multi-source approaches.

Installation: fast, neat, discreet

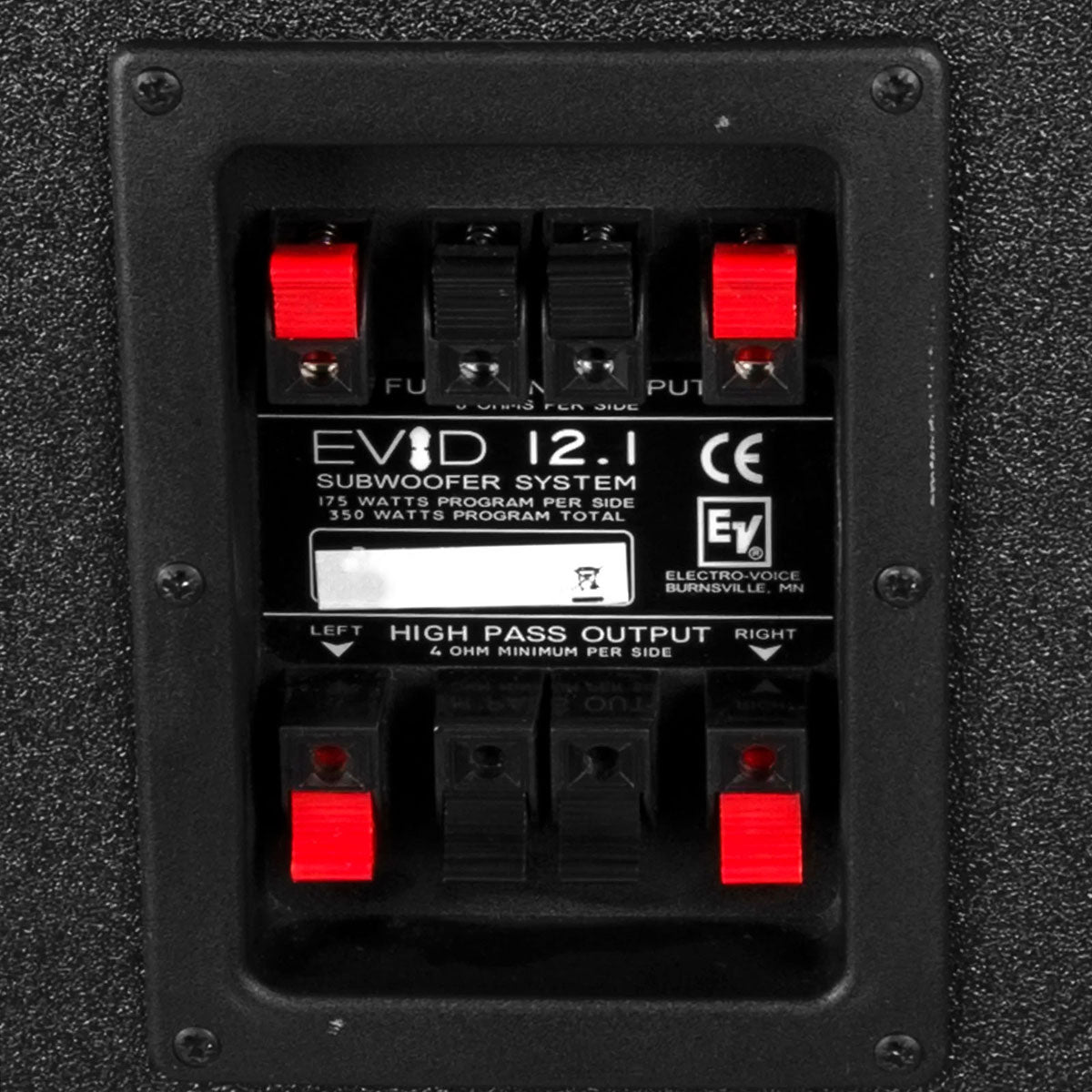

Wiring is simplified by a spring-loaded terminal block, practical for deployments in commercial environments. The enclosure, in black finish, visually integrates into most décors. Finally, the included wall-mounting accessories save space and optimize placement, especially when floor space must remain clear.

Technical specifications
