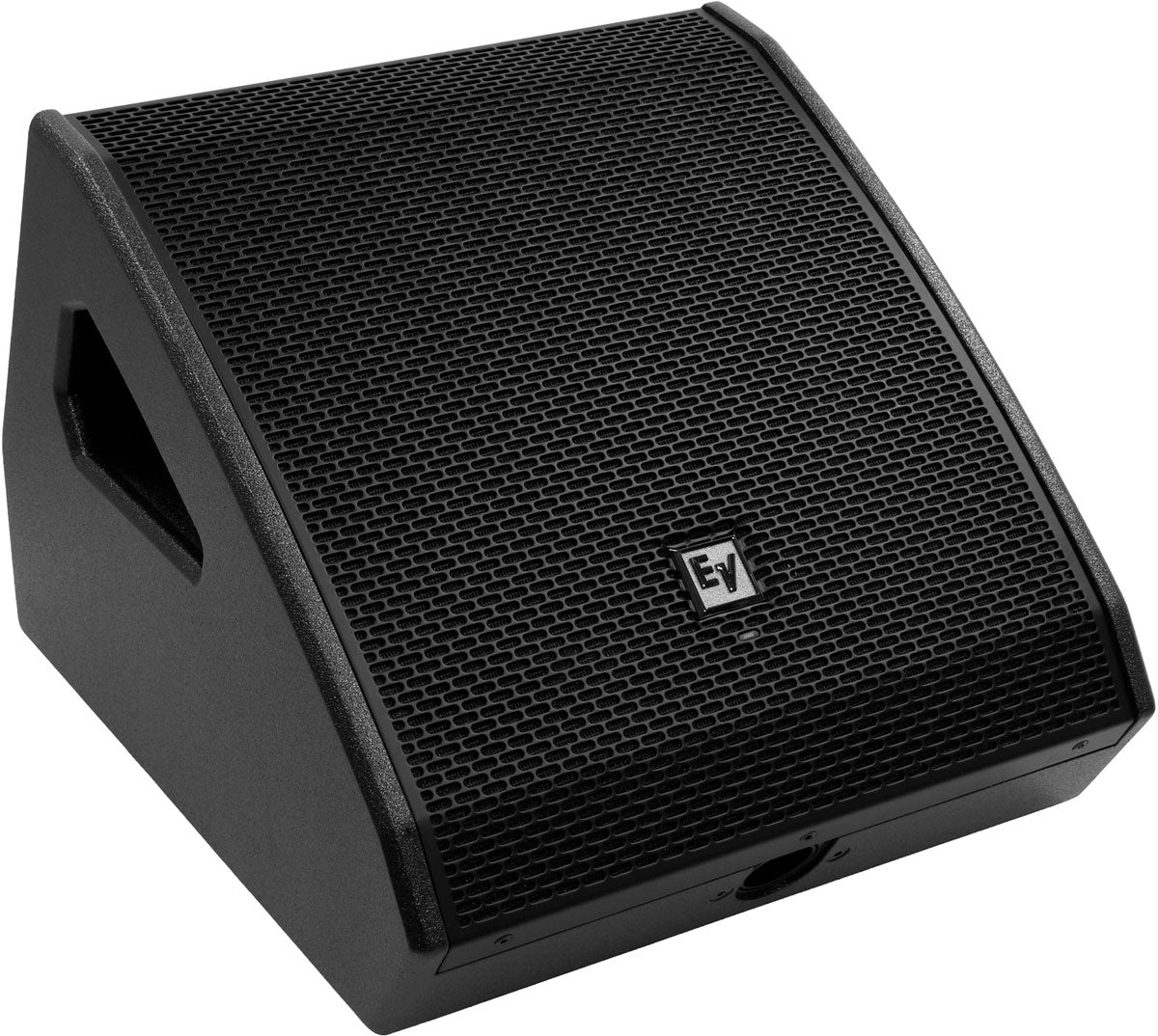

Electrovoice PXM 12MP
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Electrovoice
https://www.electrovoice.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
Part of Electro-Voice's ELX200 Series
Designed to combine power and portability, the ELX200-12P-W follows the ELX200 philosophy: offering reliable active speakers that are easy to set up and suited to the demands of both professionals and musicians. Its wedge format with a 55 deg angle and 90 x 90 deg dispersion ensures consistent monitoring even on tight stages.
Who Is It For and What Are Its Uses?
Ideal as a stage monitor for vocalists, DJs, and instrumentalists, it is also suitable for near-field sound reinforcement in small gigs, rehearsals, or mobile installations. The 35 mm pole mount allows front-of-house speaker placement if needed, while its 2 handles and manageable weight of 13.5 kg facilitate frequent setups.
Technical specifications
| Battery | No | Cutaway | Yes |
| Number of channels | 1 channel | Speaker structure | wood |
| Bluetooth | No | Inputs | Rca, combo XLR/jack |
| Speaker diameter | 12" | Outputs | XLR |
| Number of speakers | 2 | Color | Black |
| EQ | Yes | Power output | 1400 W |
Questions frequently asked
Is the Electrovoice PXM 12MP suitable as a stage monitor?
Its 55° return angle and 90° x 90° dispersion provide even sound coverage on stage. The 12-inch coaxial driver with a 1.75-inch voice coil ensures coherent vocal projection.
What power and sound level does this Electro-Voice monitor offer?
The Class D amplifier delivers 700 W, distributed as 500 W for low frequencies and 200 W for highs. The maximum reported SPL reaches 129 dB.
What inputs are available on this speaker?

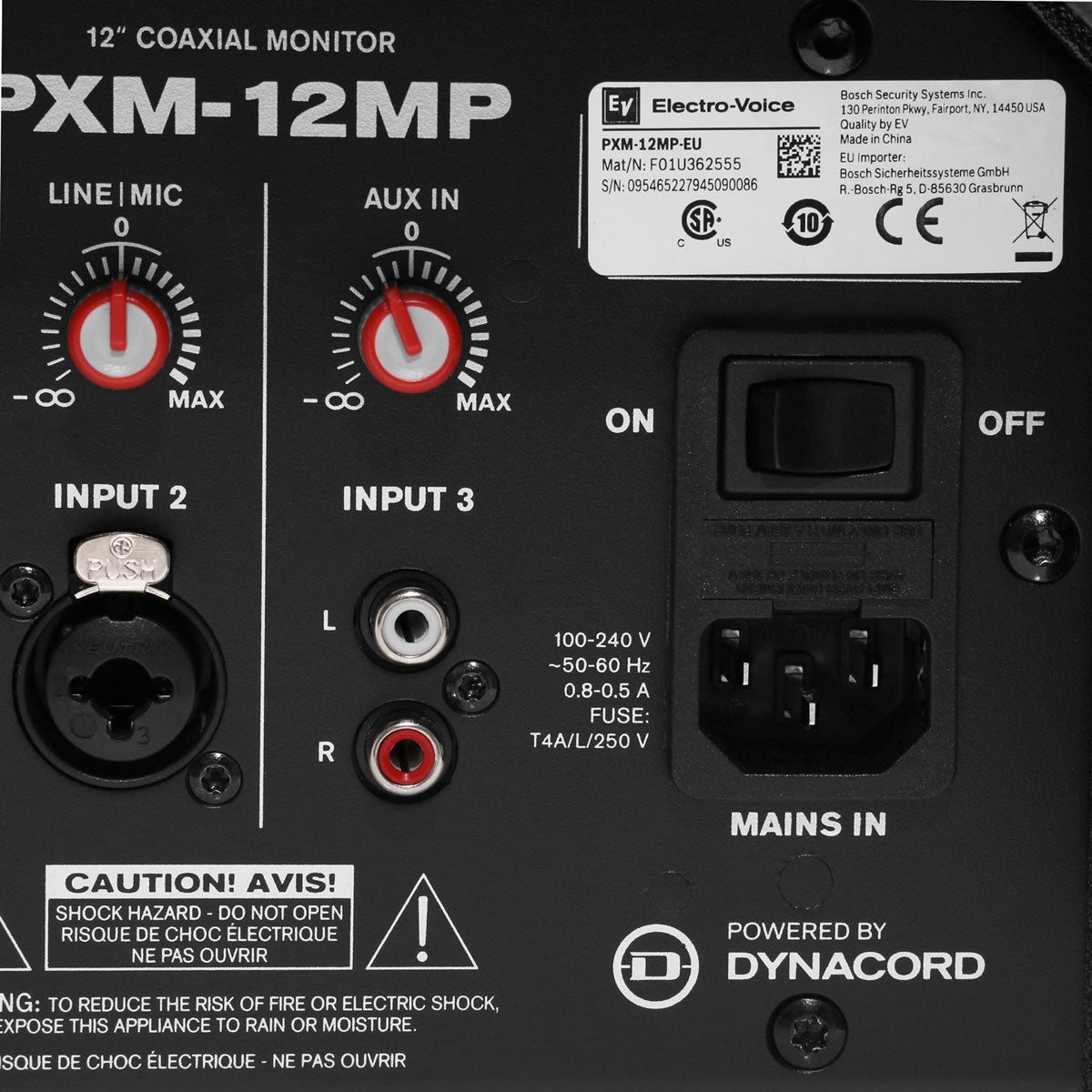

The connectivity includes RCA and combo XLR/jack inputs, as well as an XLR output. No Bluetooth or battery is integrated.
Can the equalization be adjusted directly on the monitor?

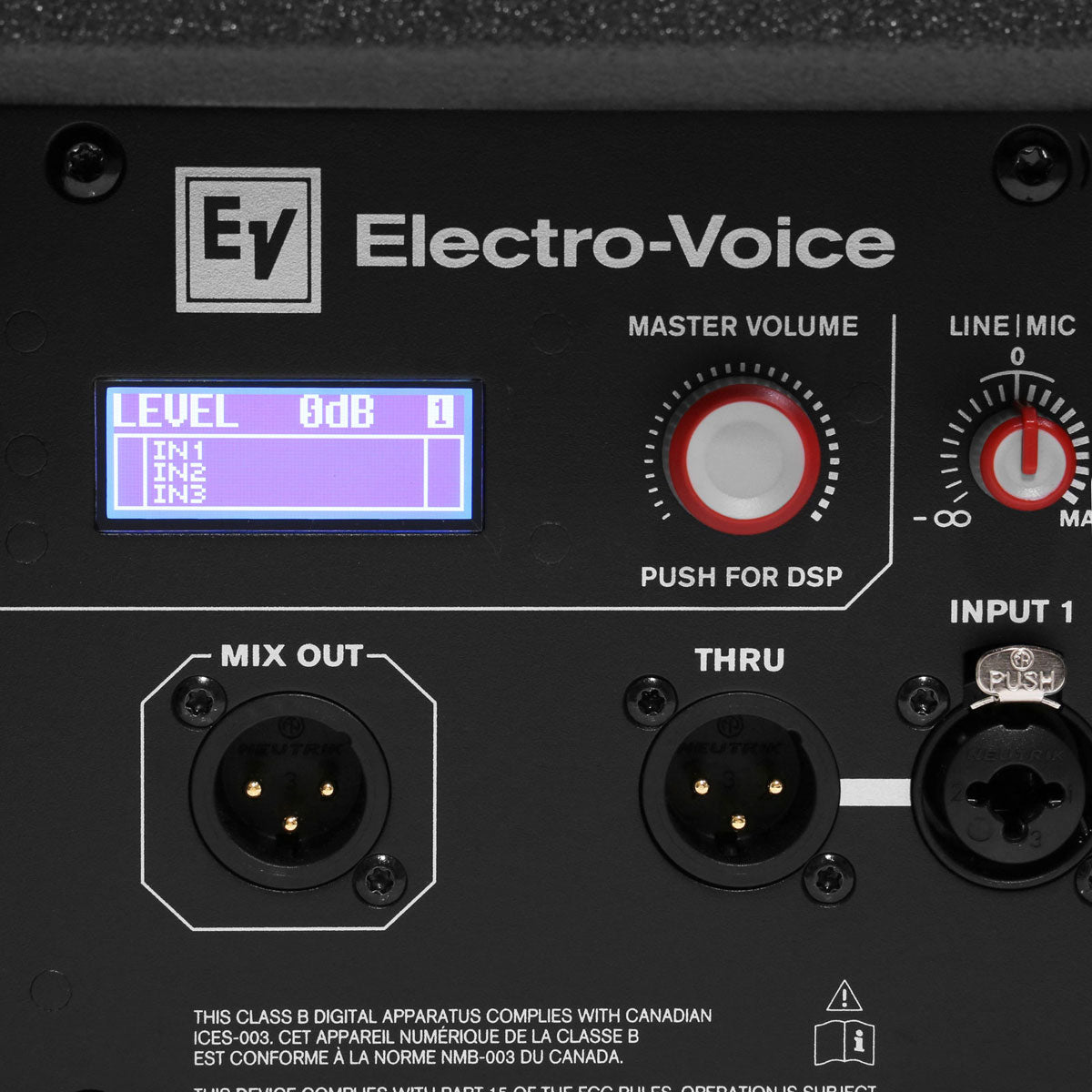

The QuickSmartDSP features a 3-band EQ, four presets, and five user memories. Input levels, main volume, and limiter monitoring are accessible via the LCD screen.

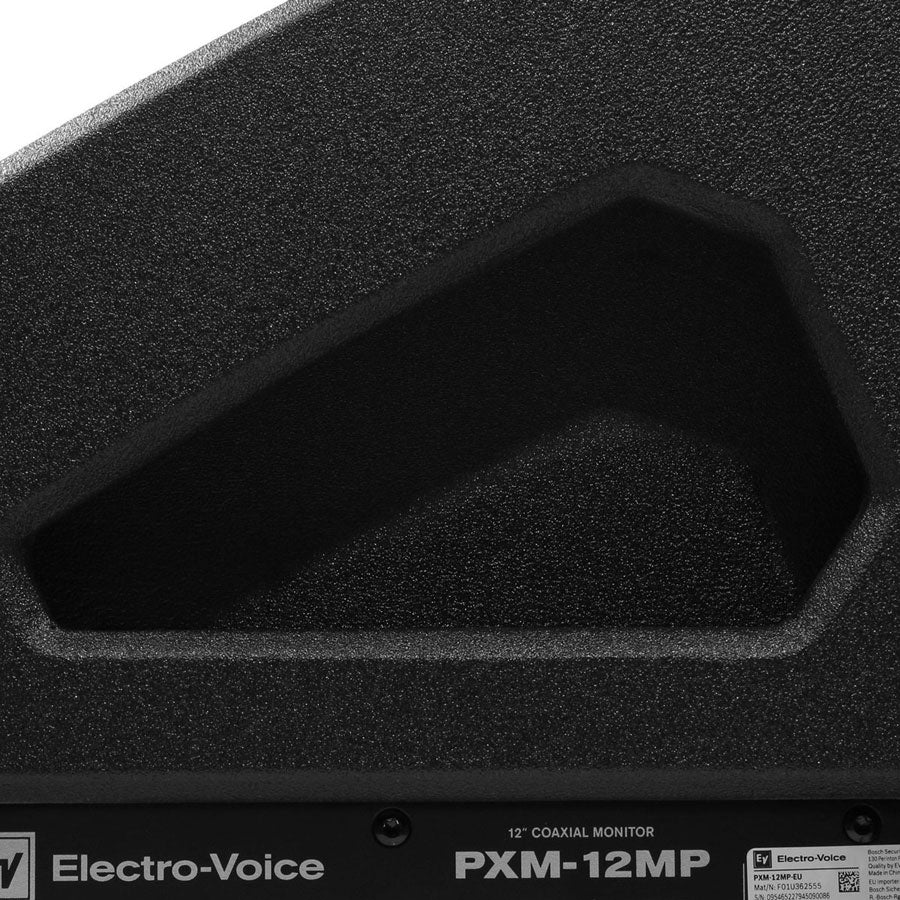

What is the weight of the PXM 12MP and can it be pole mounted?

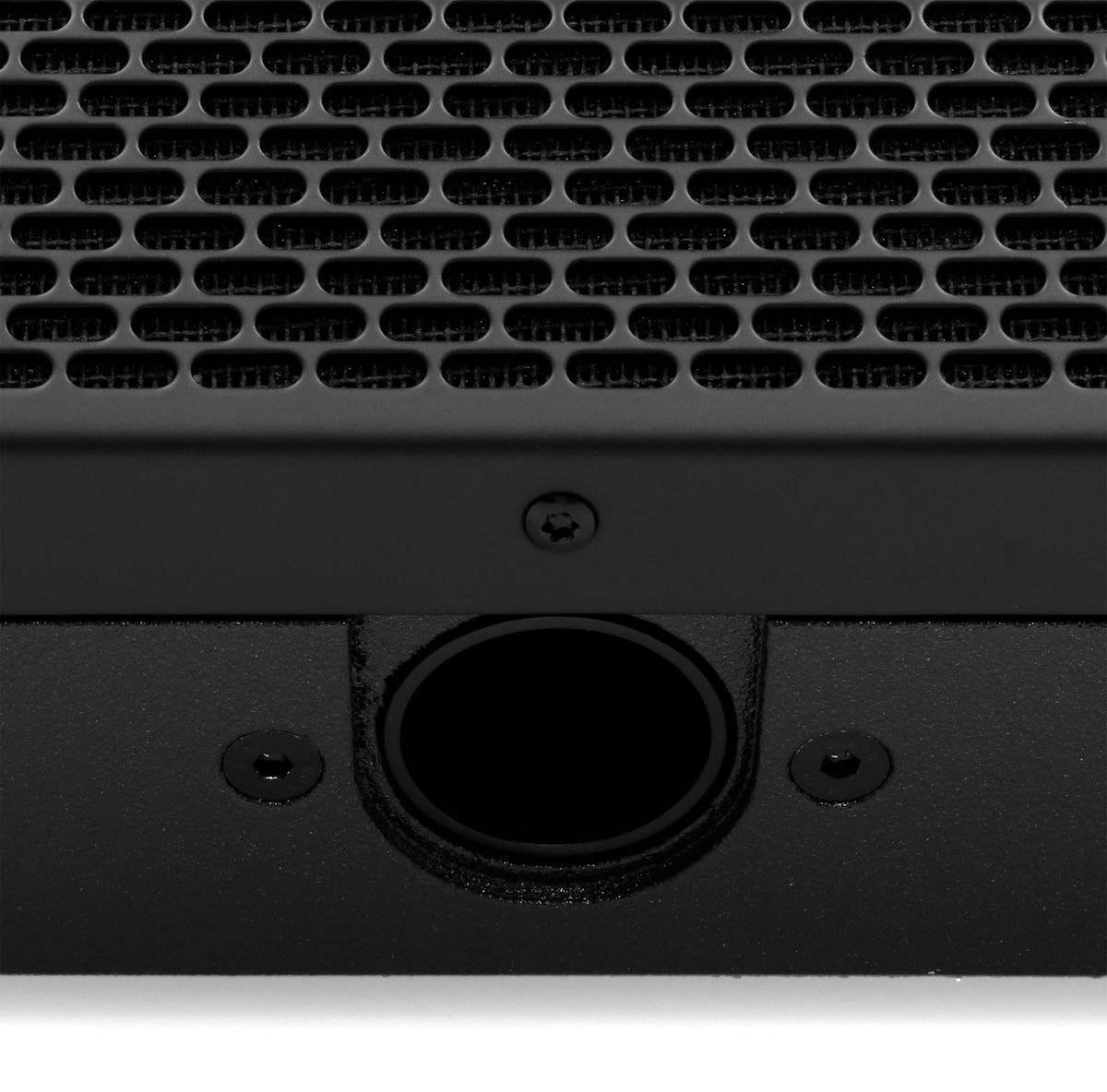

Weighing 13.5 kg and equipped with two handles, this model facilitates mobile installations. Its 15 mm plywood enclosure includes a 35 mm pole mount socket. The steel grille with powder coating protects the drivers.
