A RE3 System Designed for Reliability on Stage and in Performance

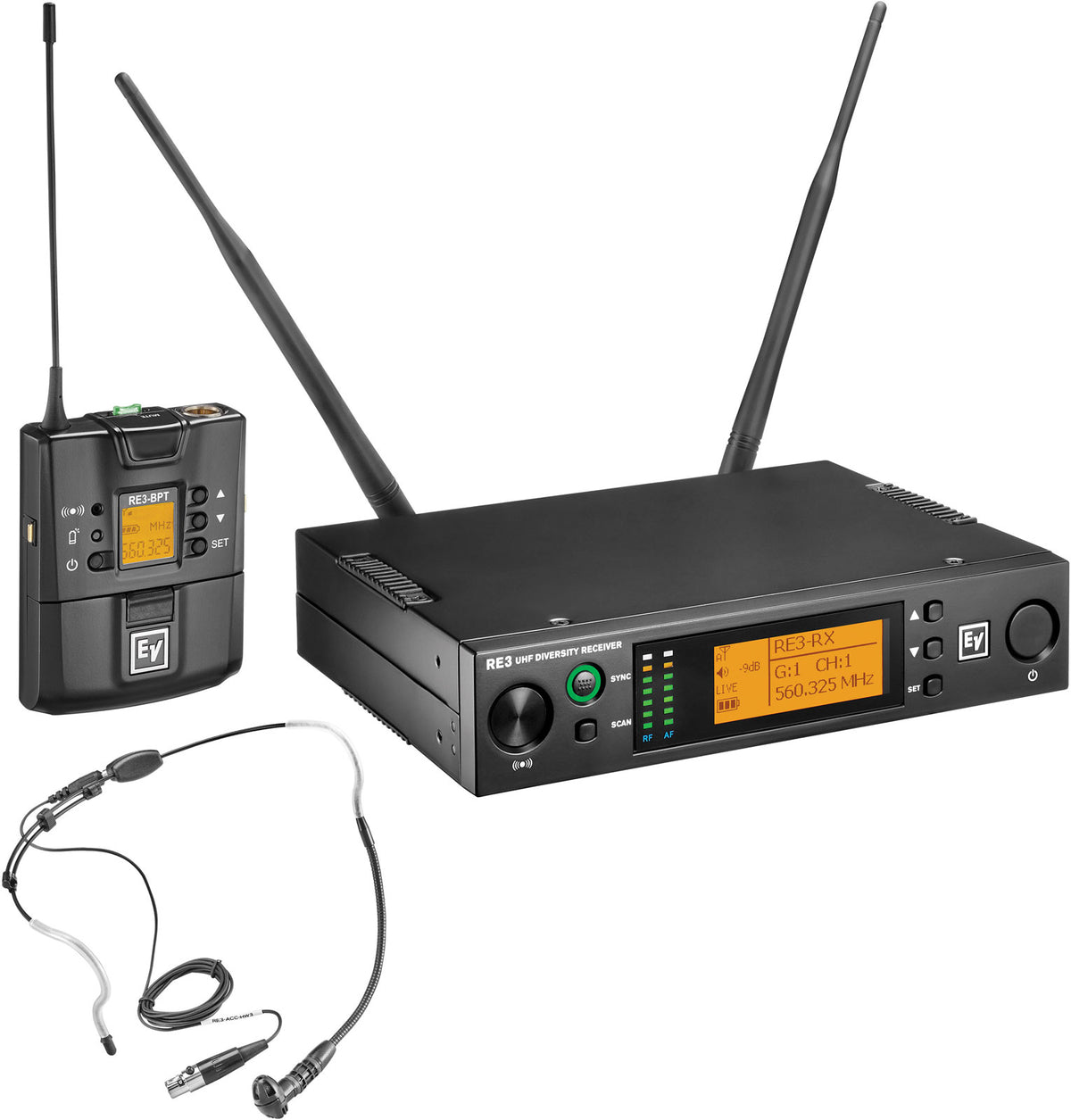

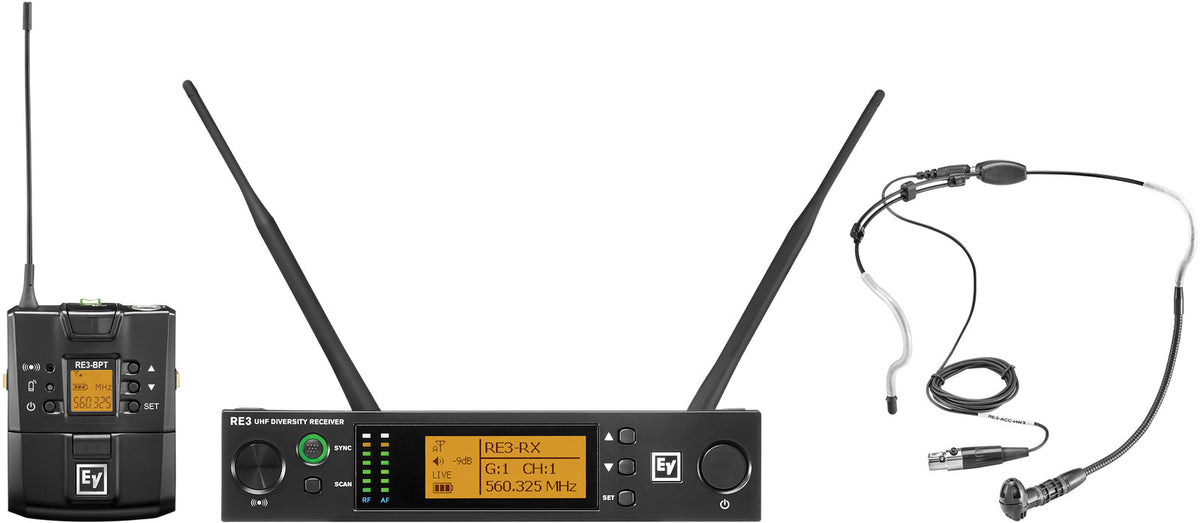

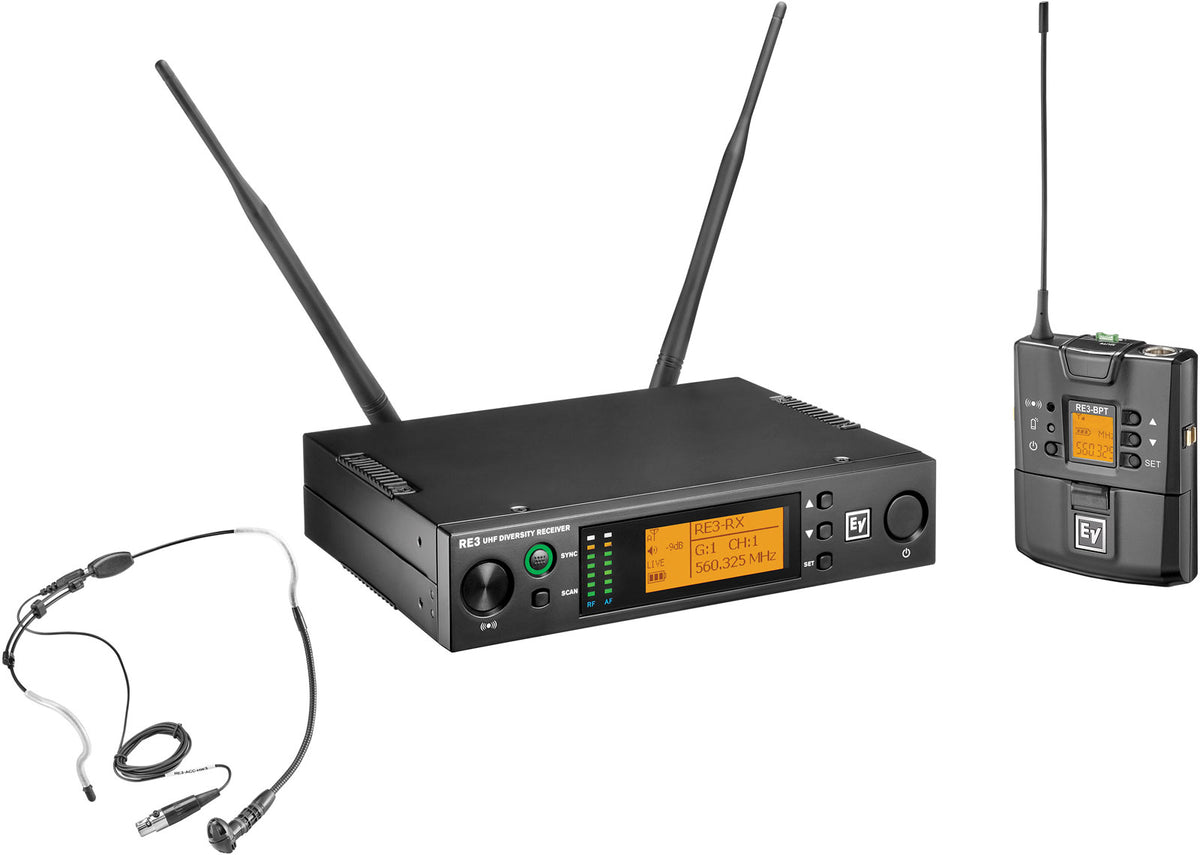

The RE3-BPHW-8M follows a "system" approach: a discreet and precise headset microphone, a robust bodypack transmitter, and a receiver designed for easy integration into sound reinforcement. This product line logic ensures professional-grade features (metal housings, backlit LCD displays, antenna diversity on the reception side), with a coherent set aimed at consistent transmission and clear setting readability in real conditions.
Who It's For and What It's For: Speech, Shows, Classes, and Performances
This kit is intended for users who need a reliable hands-free microphone: speakers, trainers, actors, corporate presenters, places of worship, hosts, as well as coaches and teachers in classrooms. The headset frees the hands and stabilizes the mouth-to-microphone distance, which facilitates intelligibility and limits level variations during movement.
The supercardioid directivity helps better isolate the voice in noisy environments (monitors, close front-of-house, onstage music), while maintaining the detailed reproduction typical of a condenser capsule.
Key Features and Design: Efficiency, Control, and Integration
Headset Microphone: Precision and Comfort of Use
The RE3-ACC-HW3 features a pre-polarized condenser capsule, with an extended frequency response (30 Hz to 18 kHz) for detailed diction and natural presence. Its detachable cable (1150 mm) facilitates maintenance and fit adjustment, and the included windscreen helps reduce wind noise and certain plosive consonants during dynamic speech.
Bodypack Transmitter: Battery Life, Durability, Professional Connectivity
The RE3-BPT-8M transmitter operates in the 8M band (823 MHz to 865 MHz) and relies on a PLL frequency oscillator with 40 kHz ultrasonic synchronization. It includes a backlit LCD screen for quick control, a flexible external antenna, and a metal housing designed to withstand repeated handling (shows, tours, event performances).
The TA4F connector (Mini XLR 4-pin) ensures a reliable connection with the headset microphone. Power is supplied via 2 AA (LR6) 1.5 V batteries or a rechargeable NiMH battery, with charging contacts compatible with a dedicated charging base (sold separately).
Receiver: Antenna Diversity and Outputs Suitable for Sound Systems
The RE3-RX-8M receiver offers antenna diversity and a 36 MHz bandwidth, with a backlit LCD display for comfortable reading. On the audio side, it provides XLR and 6.35mm Jack outputs, convenient for integration both on a mixing console (mic or line input) and in a fixed system. The antennas are removable half-wave with BNC connectors, and DC power is provided for the antenna (12 V to 15 V / 100 mA).
Technical specifications
| Category | Complete system | Capsule | electret |
| Directivity | supercardioid | ||
| Reference | Electro-Voice RE3-BPHW-8M | Pin 2 | microphone input |
| Type | headset microphone kit + bodypack transmitter + wireless receiver | Pin 3 | +5 V bias |
| Included Components | Electro-Voice RE3-ACC-HW3, Electro-Voice RE3-BPT-8M, Electro-Voice RE3-RX-8M | Pin 4 | +5 V via 2.2 kohms |
| Frequency Response | 30 Hz to 18 kHz | Charging Contacts | for battery charging on RE3-ACC-BC2 base (sold separately) |
| Impedance | 1000 ohms | Antenna | flexible external quarter-wave |
| Maximum SPL | 130 dB SPL | Housing | rugged metal |
| Sensitivity (open circuit voltage, 1 kHz) | 0.5 mV per Pascal | Dimensions | 81.5 x 64.5 x 25 mm |
| Power Supply | 3 V to 9 V DC | Diversity | antenna diversity |
| Connector | TA4F | Bandwidth | 36 MHz |
| Detachable Cable | 1150 mm | Signal-to-Noise Ratio | greater than 100 dB(A) |
| Included | windscreen | Total Harmonic Distortion (THD) | less than 0.6% at 1 kHz |
| Weight | 38.5 g | Reception Sensitivity | -81 dBm for -12 dB SINAD |
| Carrier Frequency Band | 8M (823 MHz to 865 MHz) | Antenna Type | removable half-wave with BNC connector |
| Synchronization Frequency | 40 kHz ultrasonic | Antenna Power Supply | DC 12 V to 15 V / 100 mA |
| Frequency Oscillation Mode | phase-locked loop (PLL) | Audio Frequency Output Level | reference +/-22.5 kHz at 1 kHz |
| Display | backlit LCD screen | 6.35mm Jack Output | -10 dBV |
| Radio Stability | +/-10 kHz at Fc | XLR Output | -4 dBV (line); -24 dBV (mic) |
| FM Deviation | wideband FM +/-48 kHz | Output Impedance | 240 ohms (unbalanced); 1400 ohms (balanced) |
| Harmonic Radiation | less than -50 dBc | Connectors | XLR + 6.35mm Jack |
| Pin 1 | ground | ||
Questions frequently asked
Is the RE3-BPHW-8M system suitable for hands-free singing and speaking?
The RE3-ACC-HW3 headset microphone uses a supercardioid electret capsule, suited for detailed voice with a response from 30 Hz to 18 kHz. Its directivity helps limit the pickup of surrounding stage sources.
What is the frequency band of the Electrovoice RE3-BPHW-8M?
The system operates in the 8M band, from 823 MHz to 865 MHz. The receiver covers a bandwidth of 36 MHz.
What audio outputs are available on the receiver?
The receiver features an XLR output switchable between -4 dBV line level or -24 dBV microphone level, as well as a 6.35 mm jack output at -10 dBV.
Does the headset microphone have a detachable cable?
A detachable 1,150 mm cable is integrated into the RE3-ACC-HW3. A windscreen is provided to reduce wind noise and plosives.
How is the bodypack transmitter powered?
The RE3-BPT-8M transmitter operates with two 1.5 V AA batteries or a rechargeable NiMH battery. Contacts allow charging on the RE3-ACC-BC2 dock, sold separately. Its metal housing measures 81.5 x 64.5 x 25 mm.
