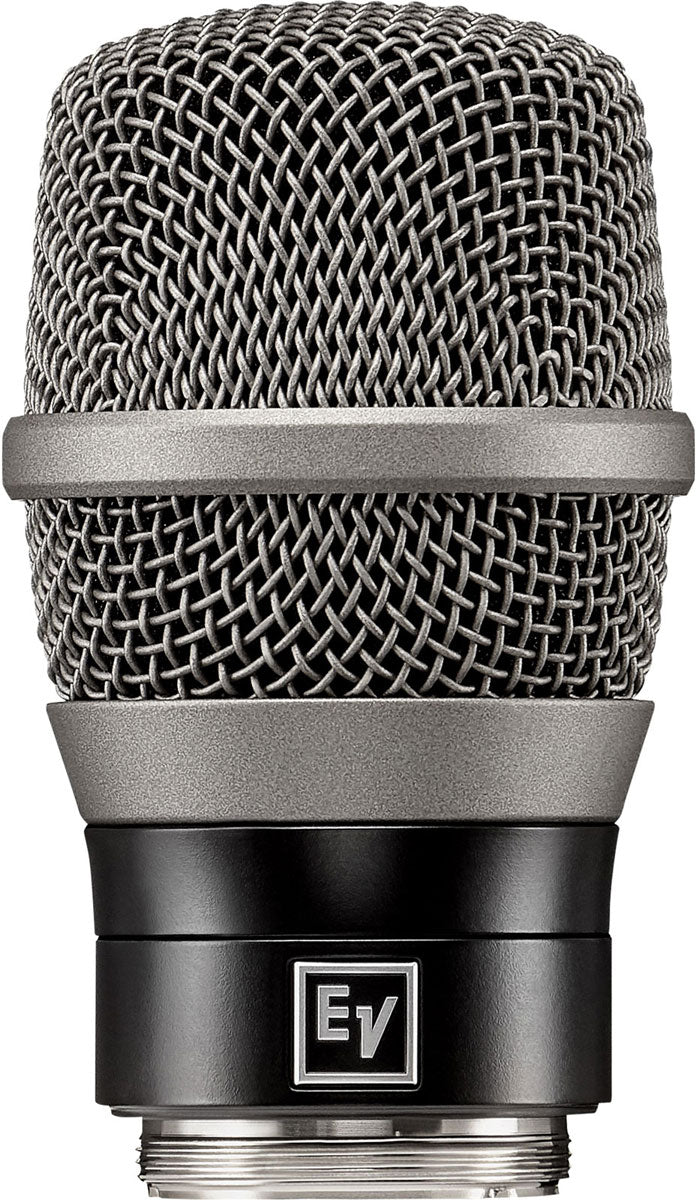

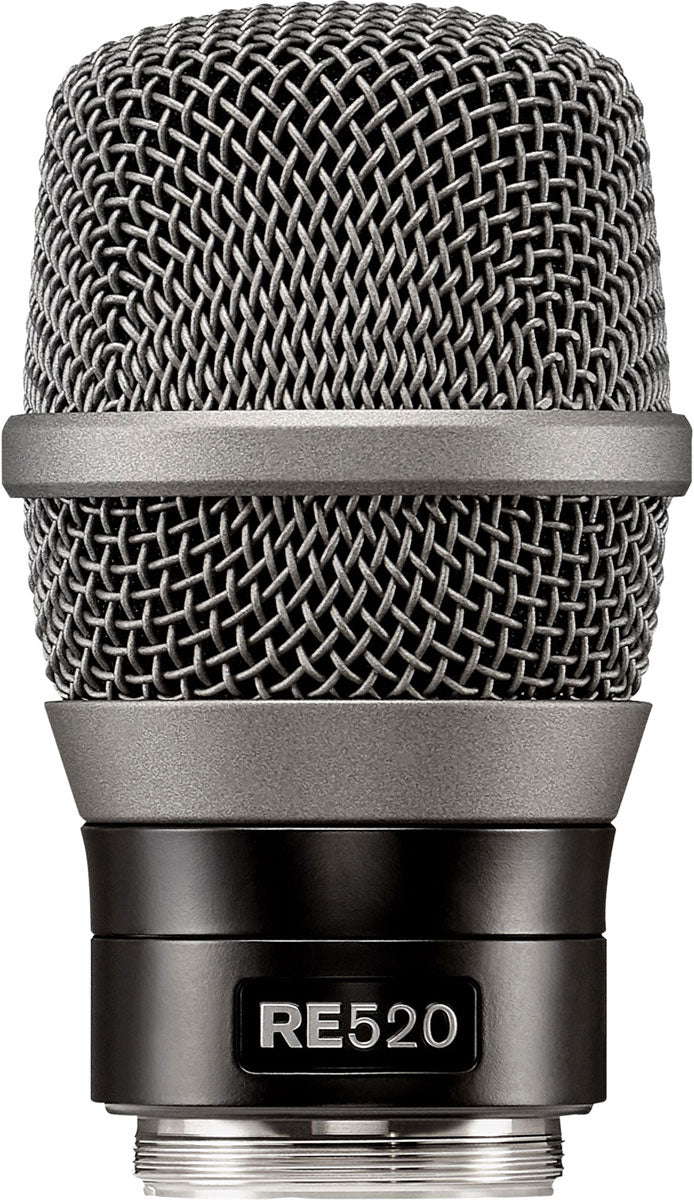

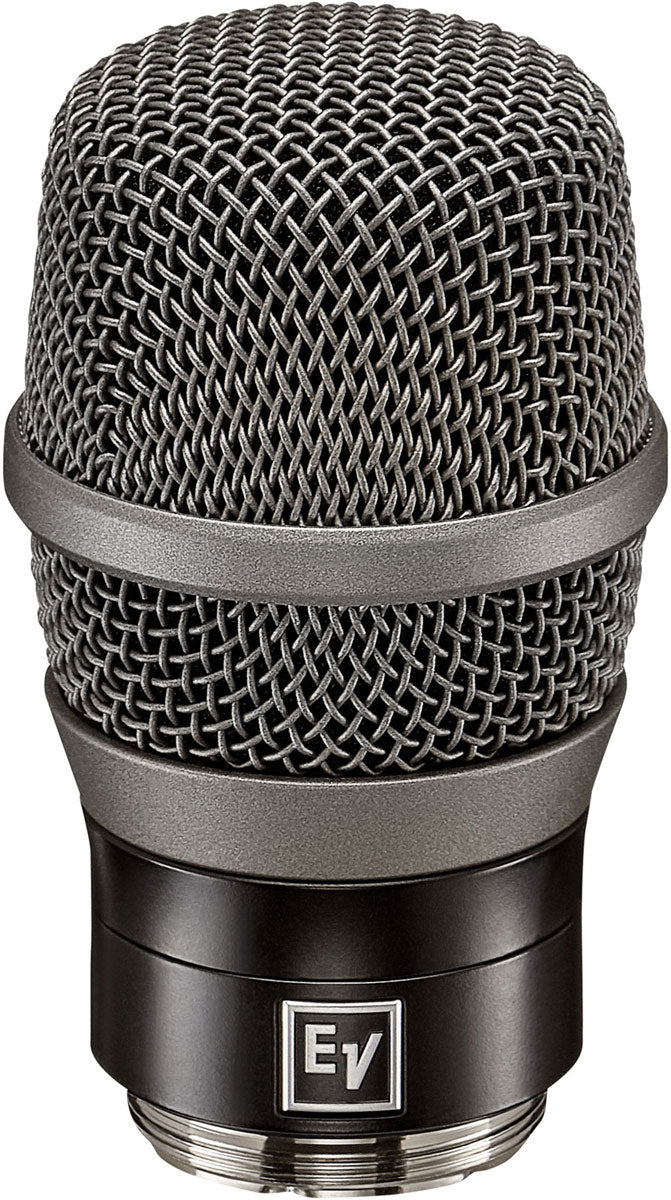

Electrovoice RE520-RC3
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know

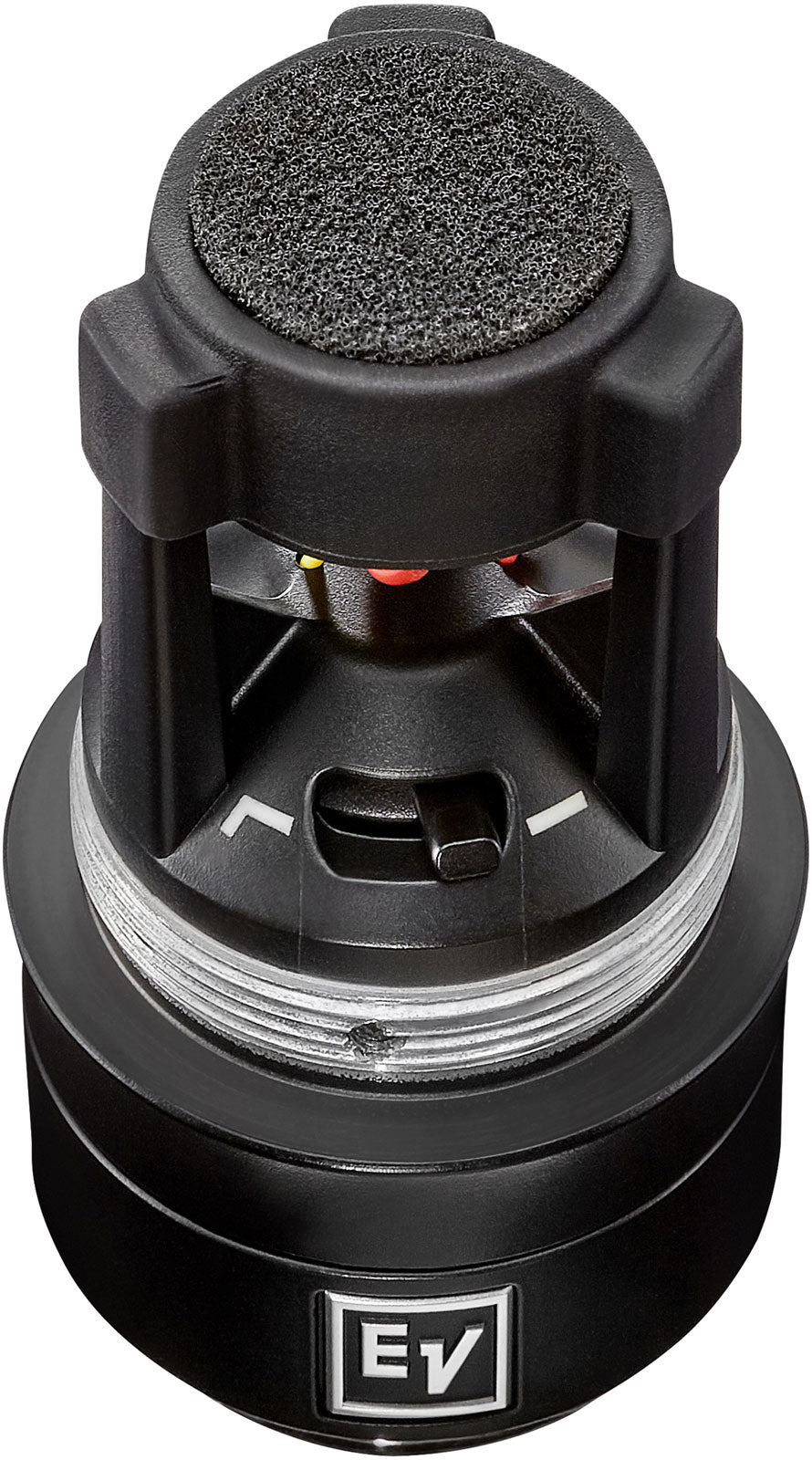

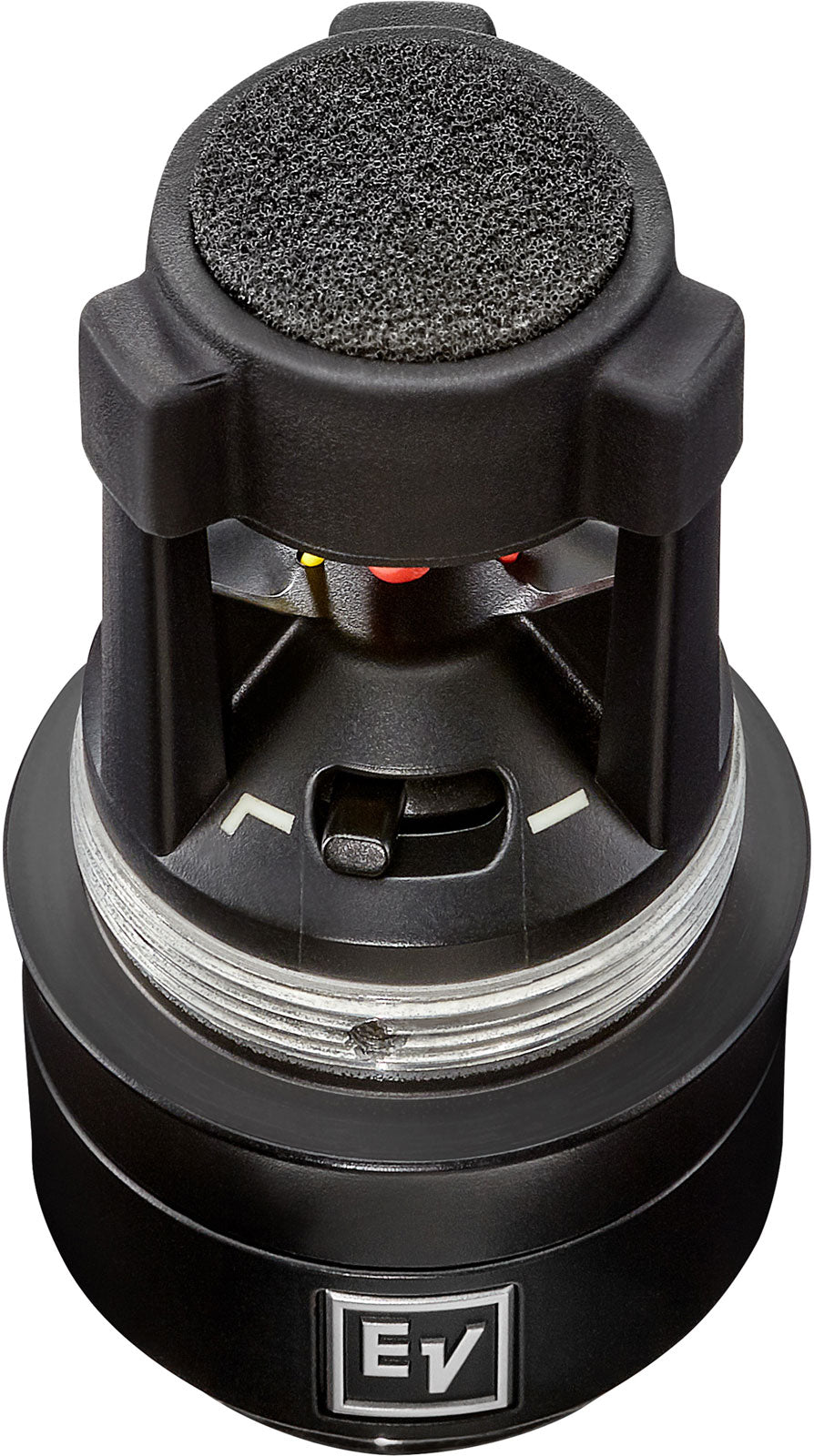

- Condenser capsule dedicated to vocals : precision, presence, and definition for singing.
- Supercardioid polar pattern : excellent rejection of side noise and better feedback control on stage.

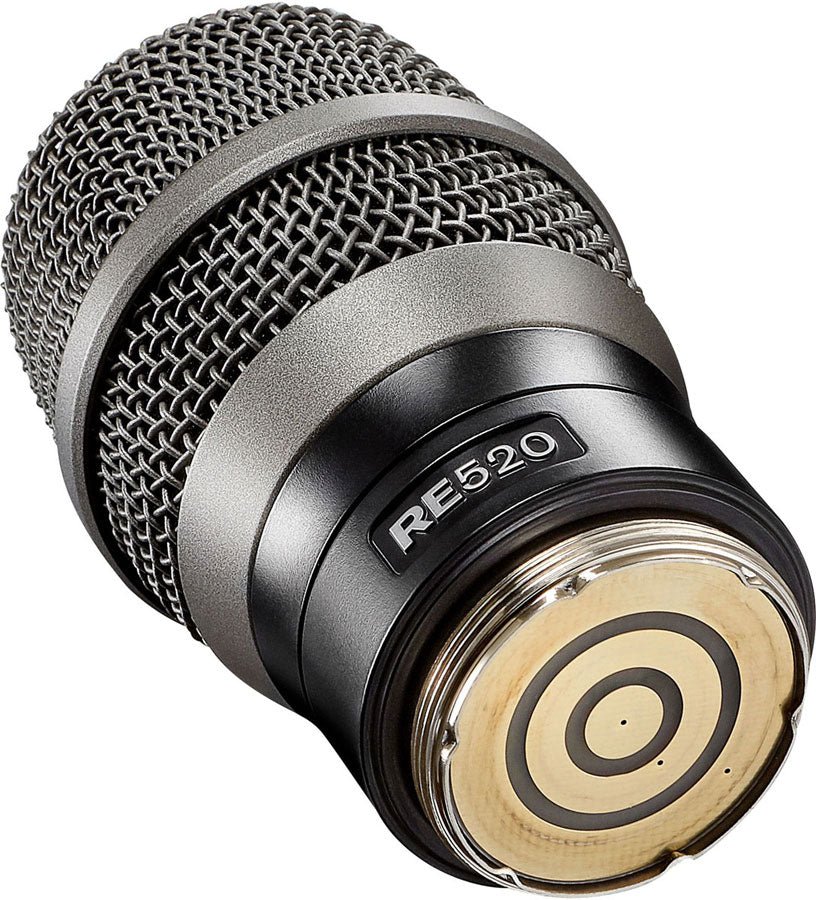

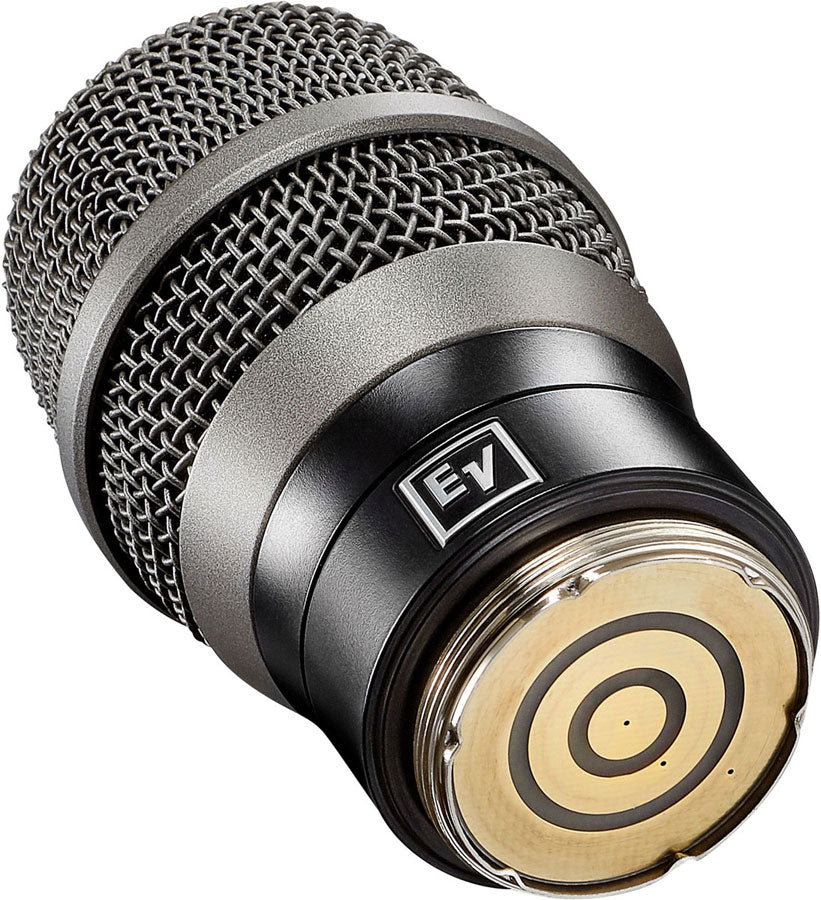

- Compatible with Electro-Voice RE3 wireless handheld transmitters (and other brands), featuring a 3-point electrical contact.
- Robust and compact design : black finish, mounting via 28 UN-2A threading.
Manufacturer Information
Electrovoice
https://www.electrovoice.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A Capsule Designed for Electro-Voice Wireless Handheld Systems
The RE520-RC3 is a replacement/upgrade capsule designed to restore the expected sonic character of a stage handheld microphone while benefiting from the speed and detail level typical of a condenser capsule. It naturally integrates into the Electro-Voice RE3 ecosystem and targets users seeking a more refined vocal reproduction than a classic dynamic capsule.
For Which Singers and Contexts?
Ideal for live performances (concerts, places of worship, event shows), this capsule is aimed at voices that seek articulation and projection in the mix. Its supercardioid pattern is particularly suited for noisy stages and environments where monitor feedback must remain controlled.
Design and Performance Serving the Stage
With an extended frequency response and a maximum SPL over 139 dB, the RE520-RC3 handles powerful voices without distortion. Its required power supply of 4 to 8 V and 3-point interface ensure proper integration with compatible handheld transmitters, providing reliable daily use.
Technical specifications
| Category | transmitter | Capsule | electret |
| Directivity | supercardioid | Color | Black |
| Model | Electro-Voice RE520-RC3 | Sensitivity | 5.6 mV/Pa |
| Type | condenser capsule for vocals | Impedance | 1000 Ohms |
| Polar pattern | supercardioid | Required power supply | 4-8 V |
| Frequency response | 40 Hz to 20 kHz | Electrical contact | 3 points |
| Maximum sound pressure level | over 139 dB | Threading | 28 UN-2A |
| Self-noise | 22 dB SPL A-weighted (0 dB = 20 µPa) | Dimensions | 85.3 mm x 49.6 mm diameter |
| Dynamic range | 117 dB | Net weight | 130 g |
| Signal-to-noise ratio | 72 dB | ||
You will also like
Shure
SLXD2+-B58-G65
Shure
BLX88E-M17
Shure
HANDHELD TRANSMITTER SM58
Shure
P3TE-K3e
Sennheiser
EW-D SK BASE SET (520 - 576 MHZ)
Shure
Movemic Two
Sennheiser
Ew-Dx Sk 3-Pin (Q1-9 : 470,2 - 550 Mhz)
Sennheiser
Ew-Dx Skm (Q1-9 : 470,2 - 550 Mhz)
Questions frequently asked
Is the RE520-RC3 capsule compatible with Electro-Voice RE3 wireless systems?
This capsule is designed to integrate with Electro-Voice RE3 handheld wireless systems. Its 3-pin electrical contact and required power supply of 4 to 8 V correspond to this integration.
What is the polar pattern of the RE520-RC3?
The supercardioid polar pattern tightens pickup around the voice. It is suitable for noisy stages and facilitates monitor control.
Does this condenser capsule support powerful vocals in live concerts?
With a maximum sound pressure level exceeding 139 dB, this capsule handles high vocal levels. Its dynamic range is 117 dB. Frequency response extends from 40 Hz to 20 kHz.
What vocal quality does this Electro-Voice capsule provide?
The electret capsule is designed for detailed vocal reproduction, with articulation and projection in the mix. Its sensitivity is 5.6 mV/Pa and signal-to-noise ratio reaches 72 dB.
What are the dimensions of the replacement capsule?
The size measures 85.3 mm in length and 49.6 mm in diameter, with a net weight of 130 g. The threading complies with 28 UN-2A standard and the finish is black.
