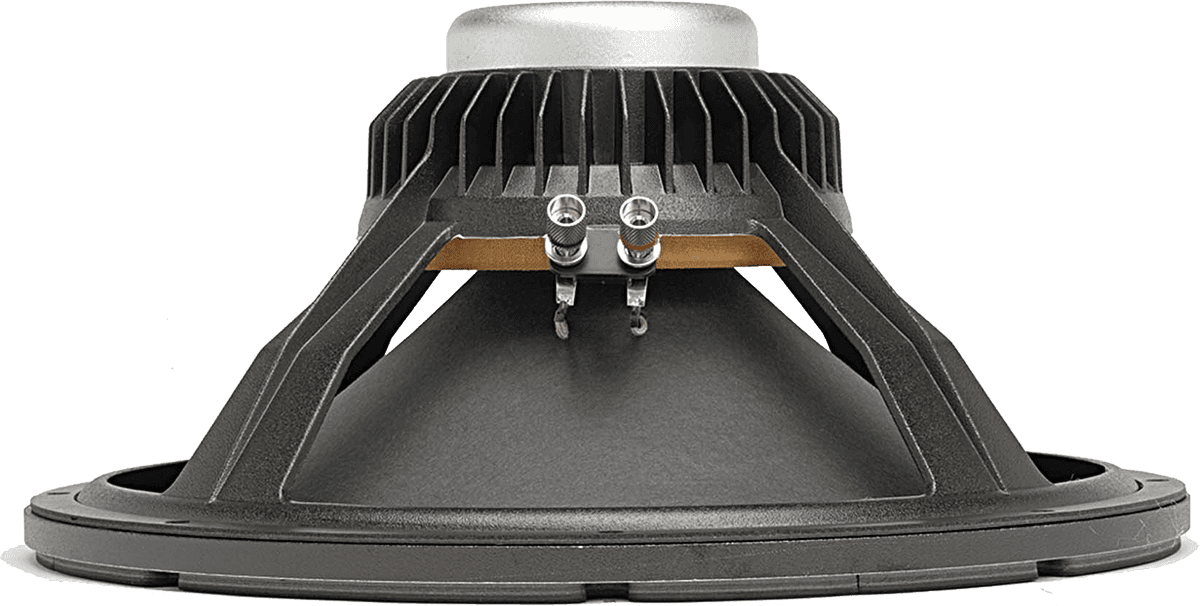

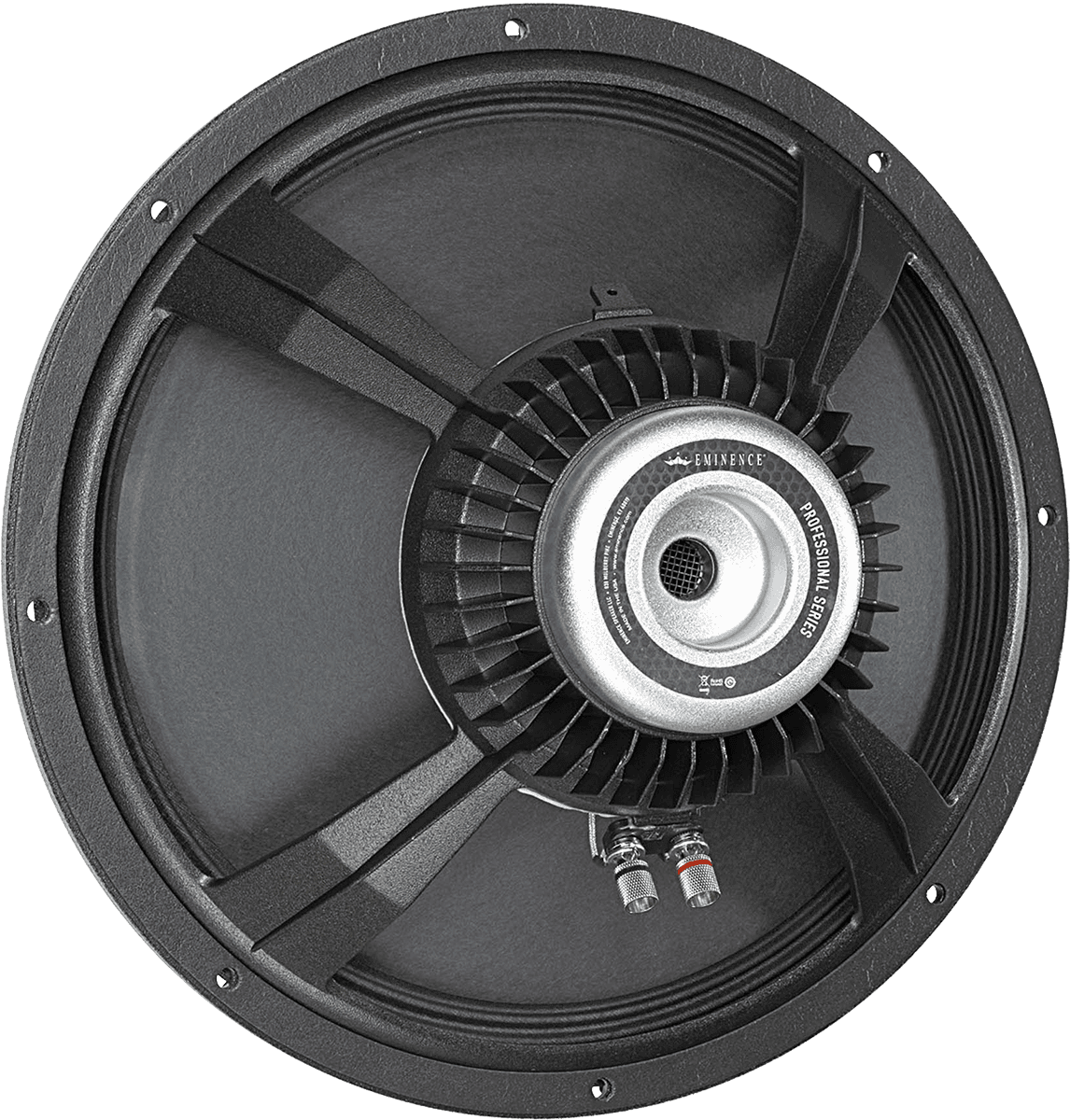

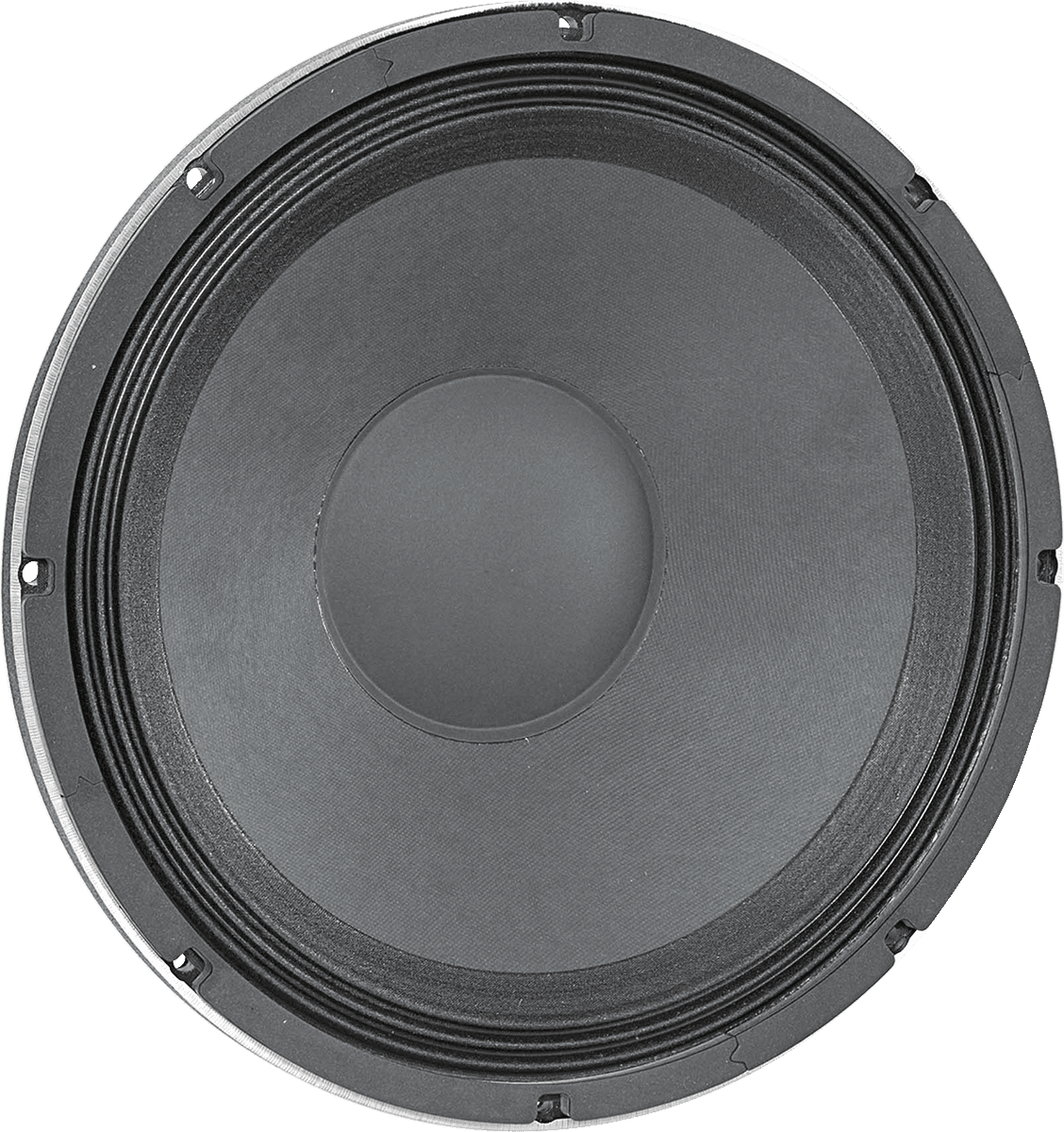

Eminence Kappalite 3015LF
Estimated Shipping Widget will be displayed here!
Essential Information About the EMINENCE KAPPALITE 3015LF Bass Speaker
Essential Information About the EMINENCE KAPPALITE 3015LF Bass Speaker
- Powerful and clean bass: designed to go low with a frequency range of 40Hz to 1.5kHz, ideal for "low end" oriented setups.
- Excellent efficiency: 99.8dB (1W/1m) to achieve high sound levels without demanding excessive amplifier power.
- 38cm (15-inch) format: a classic for bass cabinets, with a generous cone area (Sd 881.1 cm2) to move air effectively.
- Optimized size: only 3.9 kg for a speaker in this category, convenient for lightening a cabinet without sacrificing impact.
Manufacturer Information
Eminence
https://www.eminence.com
info@eminence.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
Technical specifications
| Cabinet impedance (Ω) | 8 Ω | Category | loudspeaker |
| Speaker diameter | 15" | Chassis | aluminium |
| Sensitivity | 98,4 | Coil diameter | 76 mm |
| Frequency response - start | 40 Hz | Power output | 450 W |
| Frequency response - end | 1.5 kHz | Weight | 3.9 kg |
| Model | EMINENCE KAPPALITE 3015LF | Fs | 44Hz |
| Type | Bass speaker | Re | 5.5 ohm |
| Diameter | 38cm | Qts | 0.46 |
| Power | 450 Watts RMS | Qms | 8.97 |
| Impedance | 8 Ohms | Qes | 0.48 |
| Frequency range | 40Hz - 1.5kHz | Vas | 150.9 L |
| Efficiency (1W/1m) | 99.8dB | Sd | 881.1 cm2 |
| Voice coil diameter | 76.2 mm | Xmax | 9.6 mm |
| Mounting diameter | 356.4 mm | Mms | 90 gr |
| Depth | 184.2 mm | Le | 0.93 mH |
You will also like
Celestion
Alnico Blue 16 Ohms
Celestion
Ruby HP 31cm 35W 8Ohms
Celestion
FTR18-4080FD
Celestion
Alnico Blue 8 Ohms
Celestion
CF1840JD
Eminence
Signature HEMPDOG 12 12" Pete Anderson
Eminence
EJ1250B Eric Johnson Signature
Eminence
LEGEND 1058
Questions frequently asked
Eminence Kappalite 3015LF: what power and impedance?
This speaker handles 450 W RMS at 8 ohms, a configuration suitable for designing an 8-ohm bass cabinet.
Is this 15-inch driver suitable for a 5-string bass cabinet?
Its specified frequency response from 40 Hz to 1.5 kHz and LF orientation favor low-frequency reproduction. It can thus be integrated into a project seeking strong low-end foundation.
What cabinet volume should be planned for the Kappalite 3015LF?
Sizing requires modeling based on the provided Thiele & Small parameters: Fs of 44 Hz, Qts of 0.46, and Vas of 150.9 L. These values define the internal volume and tuning of the enclosure. No preset cabinet volume is specified.
Can it be used alone without a tweeter?
The bandwidth ends at 1.5 kHz; a midrange or tweeter with crossover can therefore complement the reproduction of higher frequencies.
What are the mounting dimensions and weight?
Mounting requires a diameter of 356.4 mm and a depth of 184.2 mm. The aluminum frame and neodymium magnet bring the weight to 3.9 kg.
