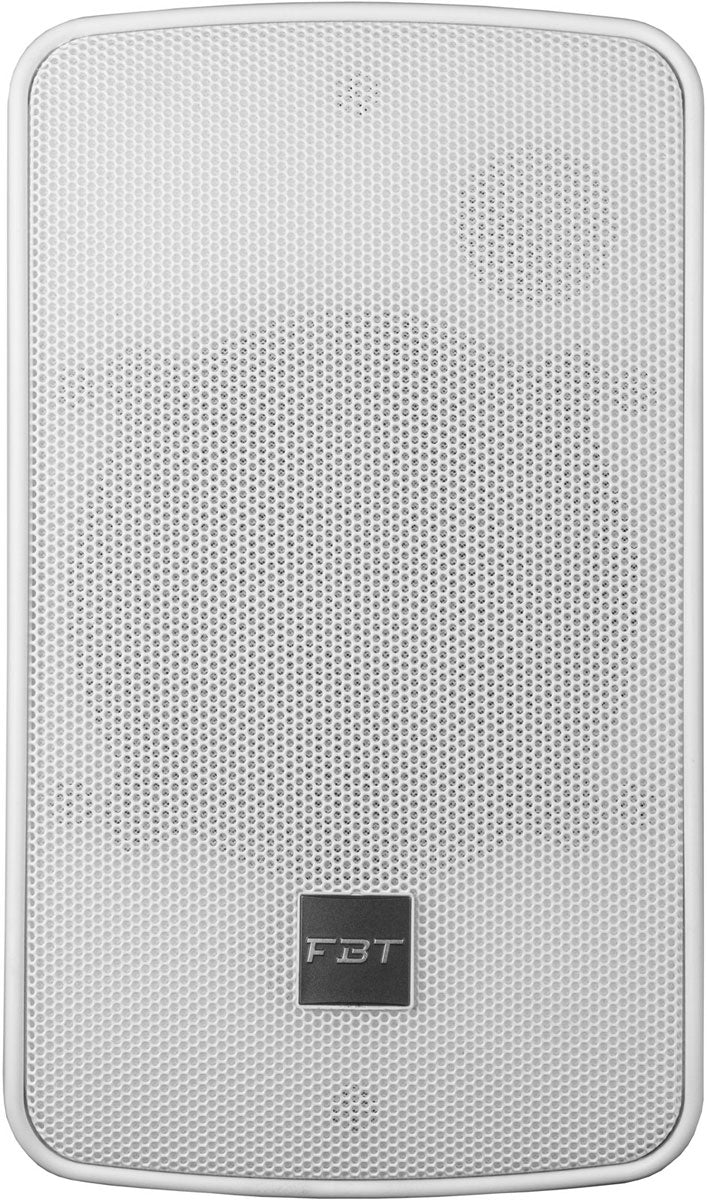

FBT Install Canto 5C W White

FBT Canto: An Installation Speaker Designed and Manufactured in Italy

The FBT Install Canto 5C W belongs to the Canto series, a range designed for environments where both a refined visual integration and reliable daily sound distribution are expected. Its Italian manufacturing reflects the brand's DNA: offering professional sound reinforcement solutions tailored to the constraints of public spaces, with a clean and durable implementation.

What Applications Is the Canto 5C W Designed For?

This 2-way passive speaker is particularly well suited for background sound reinforcement and nearfield sound distribution : retail stores, restaurants, hotels, meeting rooms, cultural spaces, or places of worship. Its compact format allows easy placement wherever enhanced vocal clarity and musical presence are desired, while maintaining a discreet aesthetic thanks to the white color.

With a nominal impedance of 16 ohms and an RMS power of 60 W, it naturally integrates into multi-speaker systems driven by a suitable amplifier to create coherent sound coverage across multiple zones.

A Coaxial Design for a Stable Sound Image and Clean Installation

2-Way Coaxial: Coherence and Intelligibility

The Canto 5C W features a 2-way coaxial configuration : the tweeter is aligned with the woofer/midrange driver, promoting a more point-like sound source and better image stability, especially when the audience moves. The result is a more consistent dispersion, useful in public spaces where uniform listening is sought.

Controlled Coverage and Comfortable Levels

Its 90 deg x 90 deg dispersion helps control the coverage area while limiting "holes" in the distribution. The 93 dB sensitivity and 117 dB peak SPL provide solid output levels with reasonable amplification, ideal for preserving announcement clarity and listening comfort.

Practical Integration: Euroblock, 35 mm Socket, and Optional Bracket

For a clean installation, the speaker includes a 4-pin Euroblock input connector, appreciated in fixed setups for secure wiring. The presence of a 35 mm socket also allows for stand mounting as needed. For adjustable wall mounts, an adjustable WM-45 bracket is recommended and sold separately.

Technical specifications

Bluetooth

No

Model	FBT Install Canto 5C W	Tweeter	1 inch (25.4 mm), voice coil 1 inch (25.4 mm)
Manufacturer Reference	44897	Dispersion	90 deg H x 90 deg V
Series	Canto	Frequency Response	80 Hz - 20 kHz
Type	2-way passive speaker	Sensitivity	93 dB (1W/1m)
Configuration	2-way coaxial	Max Peak SPL	117 dB
Manufacturing	Italy	Input Connector	4-pin Euroblock
Color	white	Mounting	35 mm socket
Recommended Amplification	120 W RMS	Adjustable Bracket Sold Separately	WM-45
RMS Power	60 W	Enclosure	polypropylene
Peak Power	240 W	Dimensions (H x W x D)	276 x 170 x 160 mm
Nominal Impedance	16 ohms	Weight	3 kg
Woofer	5 inches (127 mm), voice coil 1.5 inches (38.1 mm)
