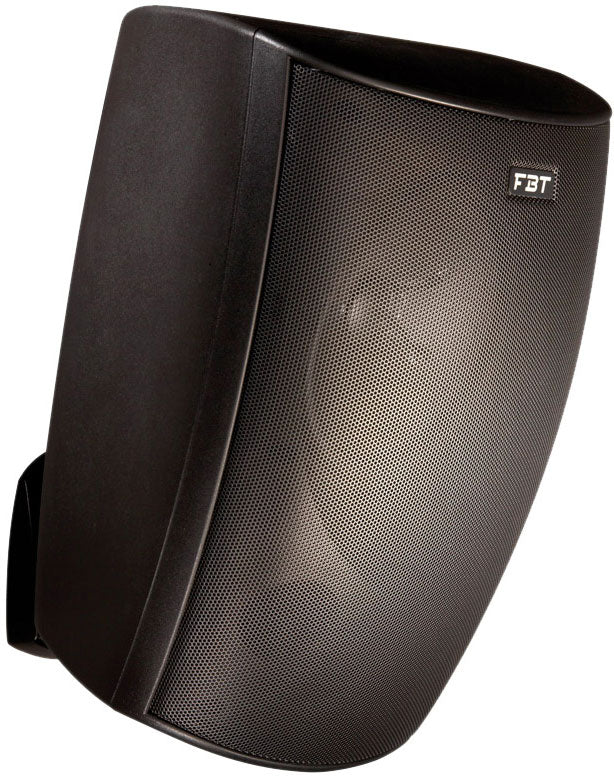

FBT Install Project 550BT

A Speaker Designed for Installation, Within the FBT Install Project Range

The FBT Install Project 550BT follows an "install" logic: a passive 2-way speaker designed for fixed systems, where consistent coverage, simple connection, and visual integration are priorities. Its compact size allows it to be integrated without compromising the aesthetics of a space, while maintaining sufficiently wide dispersion to effectively sound daily-use areas.

Intended Uses and User Types

This speaker is particularly suited for installers, venue managers, retail stores, restaurants, hotels, waiting rooms, educational institutions, or places of worship seeking a reliable solution for speech reinforcement and background music. With a frequency response of 85 Hz to 20 kHz, it emphasizes intelligibility and presence, while remaining coherent for comfortable listening at moderate levels in passageways or gathering areas.

2-Way Design: Clarity, Controlled Directivity, and Clean Integration

A 5.1-inch Woofer + 1-inch Tweeter Pair for Precise Listening

The 2-way configuration combines a 5.1-inch woofer for low-mid frequencies and a 1-inch tweeter for definition. The result is clear reproduction of voices (microphone announcements, conferences, safety messages) and good articulation of musical content. This architecture is ideal when seeking a clean sound without oversizing the system.

Wide Dispersion for Homogeneous Coverage

The 100degH x 100degV dispersion covers an area with fewer speakers or achieves more even diffusion at comparable distances. This is a real advantage in spaces where the audience moves or when avoiding a too localized listening point is desired.

Level Management and Consistency in Installation

With a sensitivity of 89 dB and a max SPL of 109 dB, the 550BT targets controlled diffusion suitable for fixed installations. Its nominal impedance of 8 ohms and rated power of 100 W at 8 ohms facilitate amplifier selection and integration into multi-zone architectures, maintaining a rational and reliable approach.

Euroblock Connectivity: Ideal for Fixed Wiring

The Euroblock connector is especially appreciated in installations: it allows neat, secure wiring and simpler maintenance compared to "stage" connections. It is the logical choice for technical racks, false ceilings, cable runs, and permanent installations.

Technical specifications

Bluetooth

No

Model	FBT Install Project 550BT	Max SPL	109 dB
Type	Passive 2-way speaker	Low-frequency driver	5.1-inch woofer
Finish	Black	High-frequency driver	1-inch tweeter
Frequency response	85 Hz - 20 kHz	Dispersion	100degH x 100degV
Nominal impedance	8 ohms	Input connectors	Euroblock
Power	100 W at 8 ohms	Dimensions (W x H x D)	204.3 x 167.65 x 179.5 mm
Sensitivity	89 dB
