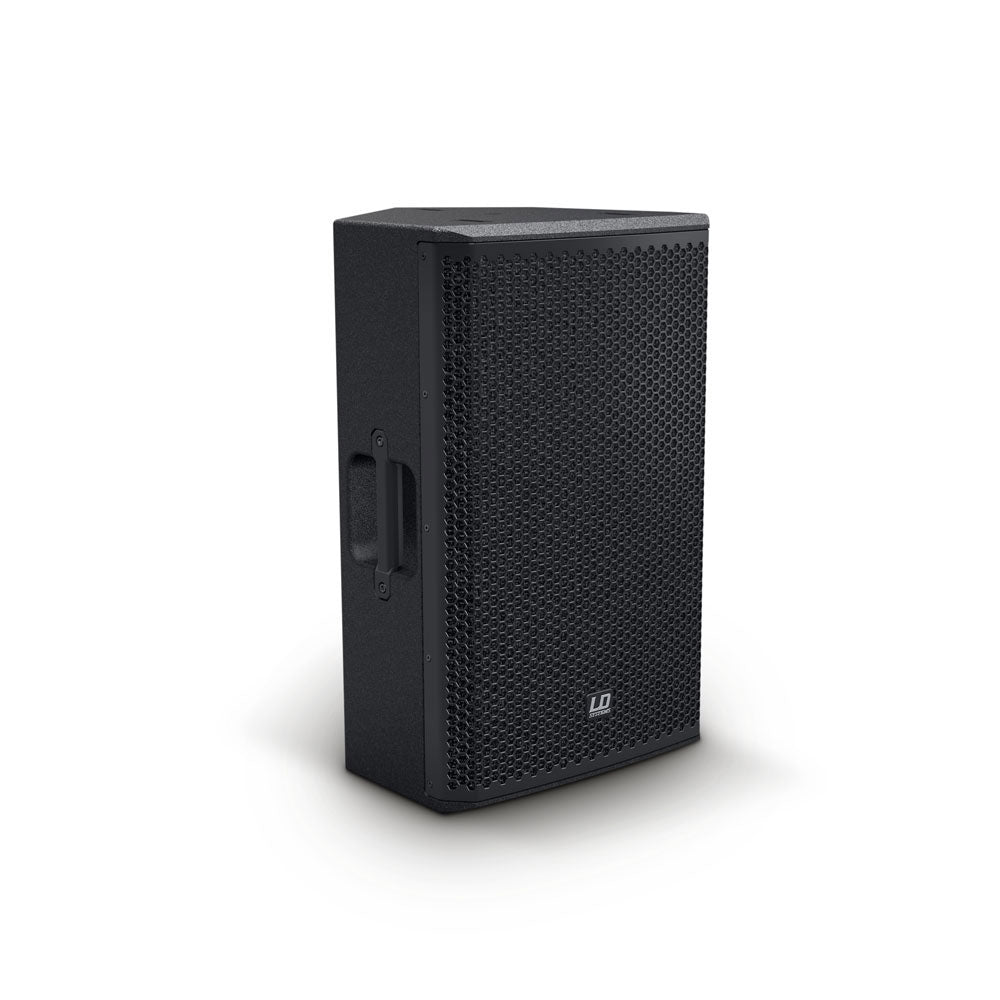

LD Systems Stinger 12 G3

A Stinger Built to Last: The Stinger 12 G3 with a "Pro Field" Approach

The Stinger 12 G3 was designed and manufactured with a clear goal: to offer an ultra-professional sound reinforcement speaker capable of withstanding the real demands of both mobile use and fixed installations. Its multifunction bass reflex enclosure allows it to fit into a wide variety of configurations while maintaining a coherent sonic signature: present lows, usable mids, and natural highs.

The 12-inch format remains a classic for performances: compact enough for transport while retaining the necessary impact to amplify a band, lead vocals, or a DJ track. Here, the Stinger 12 G3 focuses on reliability and consistency in design, delivering reproducible results from one stage to another.

Intended Uses: Stage, DJ, Performances, Fixed Installation

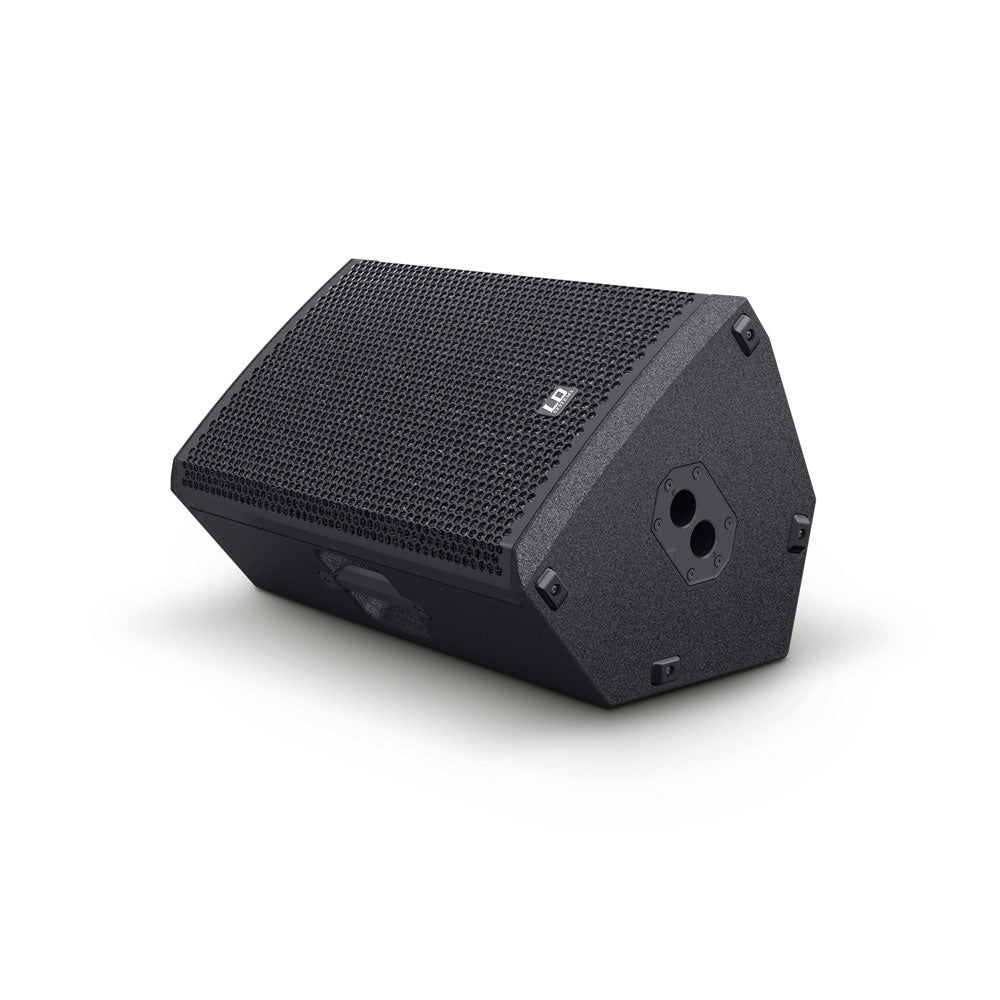

Versatile by nature, the Stinger 12 G3 is suitable for sound providers, DJs, concert bands, as well as venues seeking a robust passive speaker for fixed installation. On the front-of-house, it delivers effective Full Range reproduction; as a satellite, it pairs easily with a subwoofer to enhance low-end depth; as a stage monitor, its size and directivity help maintain clarity without unnecessarily "flooding" the stage.

Thanks to its enclosure designed for mobile setups and its mounting options, it adapts to the demands of stages, clubs, multipurpose rooms, or events, while remaining simple to implement with a suitable amplifier.

Acoustic Design and Manufacturing: Power, Directivity, and Durability

400 watts RMS: a solid foundation for credible dynamics

With a continuous power rating of 400 W and a maximum level of 125 dB SPL, the Stinger 12 G3 aims to provide a useful dynamic reserve for vocals, amplified music, and transient-rich content. Its specially developed 12-inch woofer, paired with a BMS tweeter, contributes to a reproduction that extends deep into the bass while maintaining "fresh" and natural highs, particularly appreciated on vocals and percussive elements.

Homogeneous dispersion: optimized waveguide (BEM)

The tweeter's waveguide was developed using a simulation approach (BEM) to better control sound radiation. The goal is twofold: reduce certain unwanted reflections (notably towards the floor and ceiling) and limit the appearance of secondary lobes. The result is more controlled and consistent dispersion, useful for maintaining homogeneous coverage and better intelligibility when moving within the listening area.

Built for the road: reinforced enclosure and Polyurea finish

The Stinger 12 G3 is designed to be "indestructible." Its reinforced bass reflex enclosure made of plywood (with a robustness-oriented design) and its extremely durable Polyurea finish aim for excellent longevity against shocks, abrasions, and repeated handling. The front steel grille effectively protects the drivers, while ergonomic handles facilitate handling.

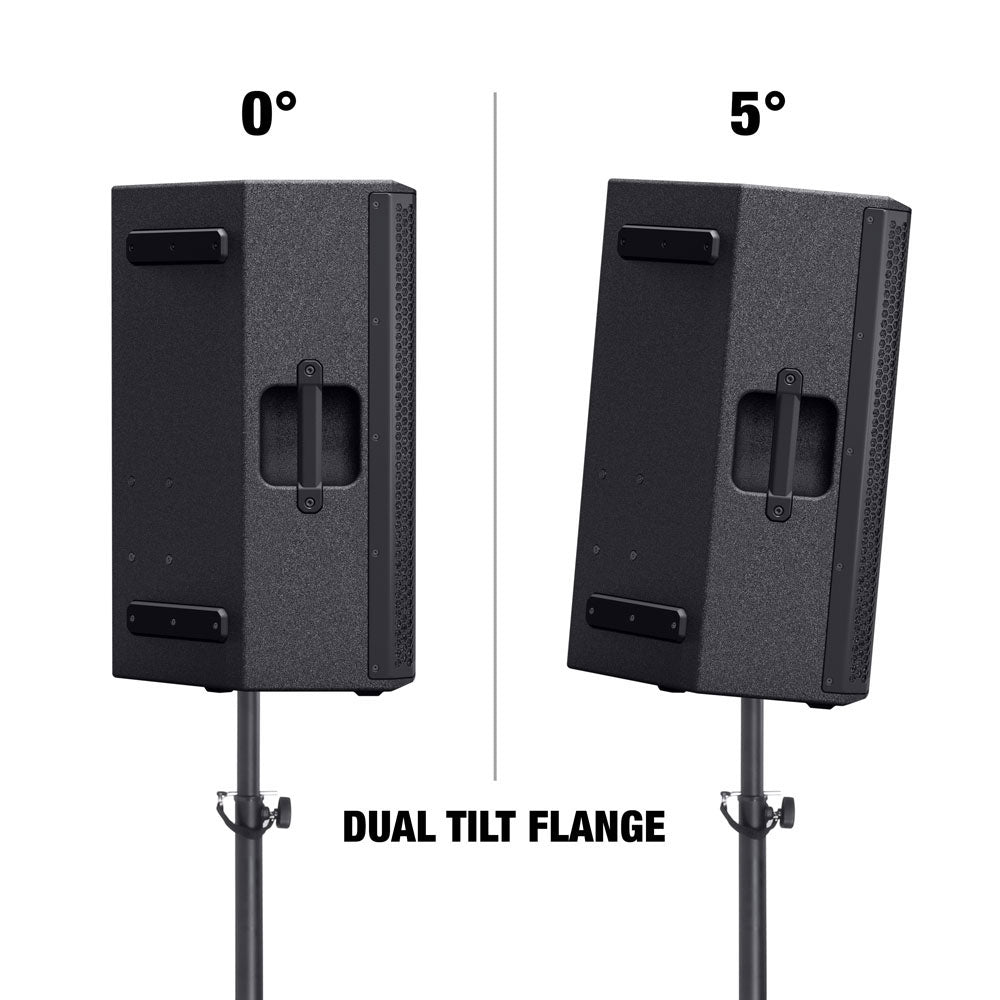

For practical integration, the speaker features a Dual-Tilt pole mount socket as well as rigging points, simplifying adaptation to the stage (monitor, front-of-house) or installation (suspension, fixed positioning). A wide range of accessories is available to meet common event and installation needs.

Technical specifications

Bluetooth

No

Product type	Sound reinforcement speaker	Tweeter magnet	Ferrite
Type	Passive	Tweeter brand	BMS
Configuration	2-way	Tweeter voice coil	1 "
Design	Bass Reflex enclosure	Tweeter voice coil diameter	25.4 mm
Woofer/midrange diameter	12 "	Dispersion angle (H x V)	90 deg x 50 deg
Woofer diameter	304.8 mm	Power (continuous)	400 W
Woofer magnet	Ferrite	Power (peak)	800 W
Woofer brand	Custom	Frequency response	58 - 20000 Hz
Woofer voice coil	2.5 "	Sound pressure level (1 W at 1 m)	99 dB
Woofer voice coil (mm)	63.5 mm	Maximum sound pressure level	125 dB
Horn	Optimized BEM horn with constant directivity	Impedance	8 ohms
Tweeter diameter	1 "	Protection circuits	Tweeter
